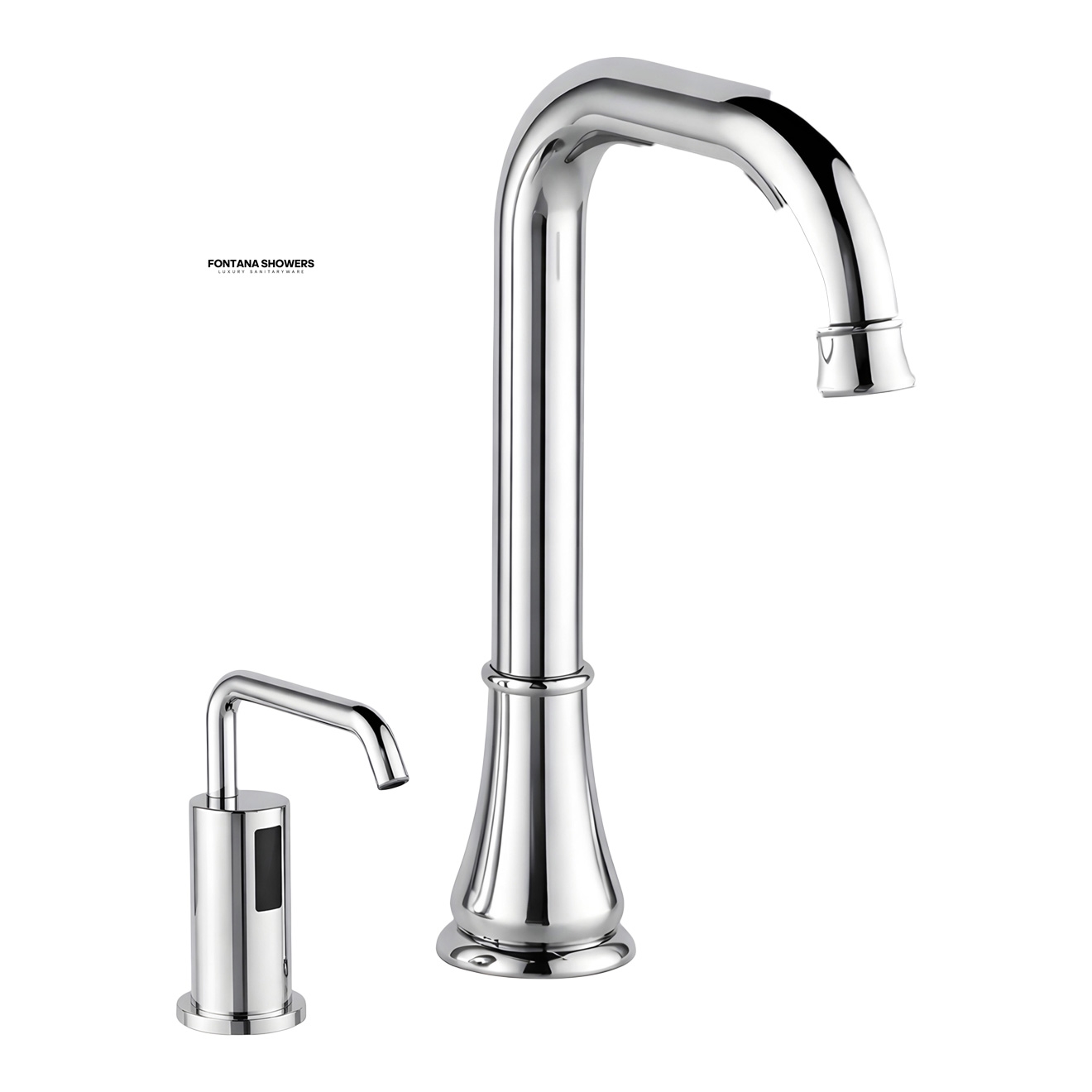

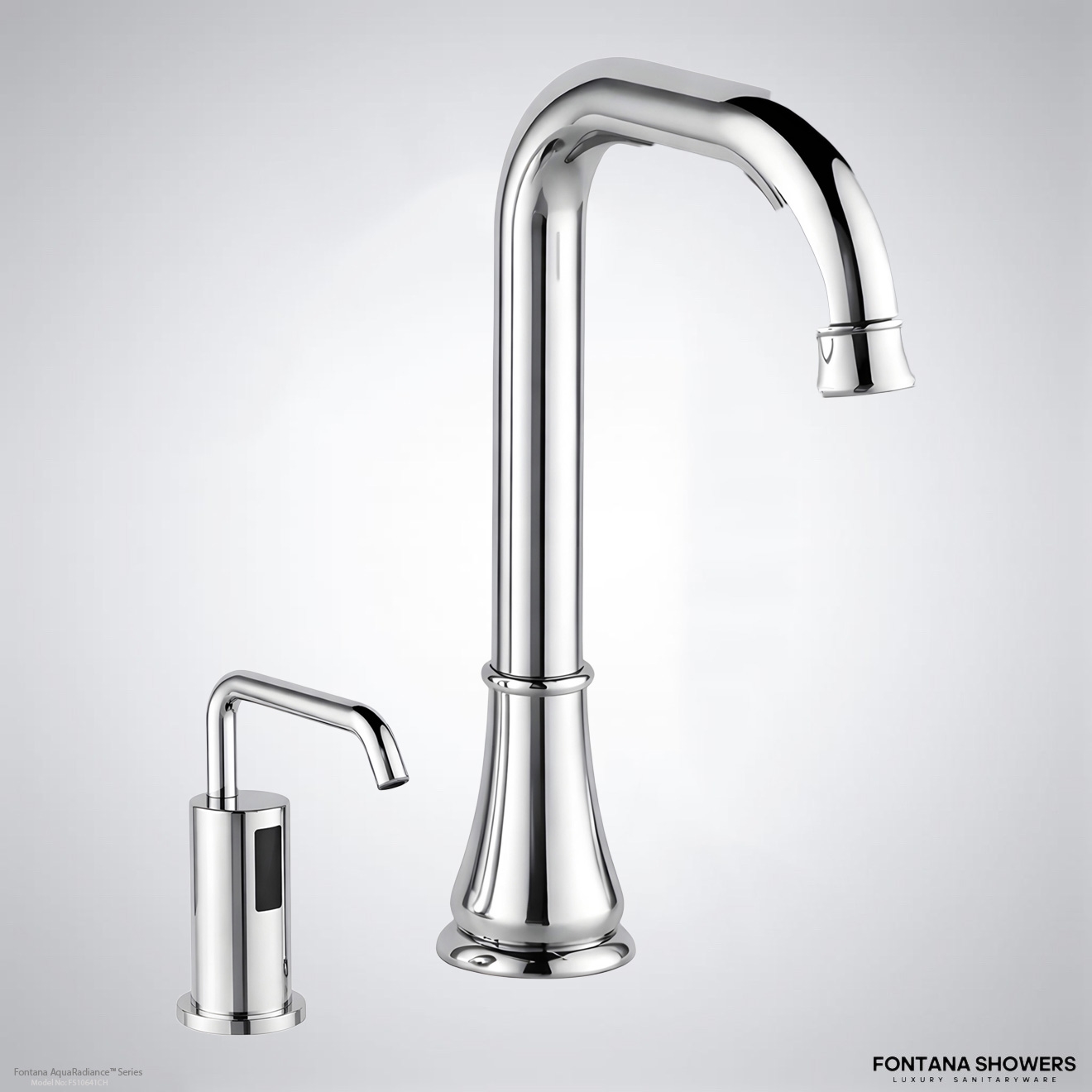

Fontana AquaRadiance Series Chrome Sensor Faucet With Soap Dispenser Temperature Control
Fontana AquaRadiance™ Series chrome touchless faucet with soap dispenser system is an engineered hygiene innovation defined by sensor-activated precision, and temperature-managed flow, which results in seamless hands-free sanitation performance. The system's solid-brass construction guarantees that it will be durable, resistant to corrosion and pressure, and will have a stable lifecycle in demanding commercial-restroom deployments. The active-infrared detection technology allows the water to be delivered without any contact, and the cleansing-dispense to be synchronized, thereby reducing contamination and enhancing public health protection. The deck-mounted architecture supports the professional installation accuracy, spatial efficiency, and architectural refinement aesthetics. The digital microprocessor control is responsible for the plug-and-play integration, rapid 0.6-second activation, and programmable shutoff logic which conserves resources and prevents overflow. The latching-solenoid technology ensures stable operation and increased battery life, which is rated for two hundred thousand cycles. The internal fifty-mesh filtration prevents hydraulic components from getting clogged and keeps their performance consistent. The adjustable aerator selections are used to set output efficiency according to compliance targets. Ideal environments for these products include airports, hotels, restaurants, shopping malls, stadiums, offices, healthcare facilities, educational campuses, and any other hospitality venues that require smart restroom automation solutions. SEO relevance is aimed at automatic touchless-faucet systems, commercial soap-dispenser integration, sensor-based plumbing technology, hands-free hygiene equipment, and professional washroom fixtures. Regulatory assurance is obtained through the ASME/CSA/ADA/WaterSense/CALGreen certifications that verify accessibility, sustainability, and safety alignment. Confident and reliable technology at the same time, elevates new design with modern interiors through its automation, hygiene, precision in operation, and stability of long-term performance. Moreover, user-experience is refined to the utmost excellence.
- Brand Name: FontanaShowers®
- Model Number: FS10641CH
- Type: Touchless Faucet With Soap Dispenser
- Style: Contemporary
- Finish: Chrome
- Installation Type: Deck Mounted
- Material: Brass
- Power: 4 (AA) Alkaline Batteries or AC/DC Adapter
- Battery Life Expectancy: 200,000 cycles
- Solenoid Valve: 6 Volt Magnet Latching
- Working Water Pressure: 1 PSI -100 PSI
- Supply Inlet Size: 1/2" NPT Male
- Water Temperature Control: None
- Pop-Up Drain Rod: None
- Sensor type and Location: Active Infrared, Deck mount
- Sensor Microprocessor: Digital, Plug and Play
- Sensing Range: 2" to 6"
- Response Time: 0.6 Second
- Shut-Off Delay Time: 2 Seconds
- Maximum Running Time: 60 Seconds
- Particle Filter Size: 50 Mesh
- Aerator: 2.2 GPM. Optional 1.0 GPM, 0.5 GPM
- Dispenser Height: 4.67"
- Dispenser Spout to Base: 3.74"
- Dispenser Body to Spout Distance: 3.76"
Integrated Temperature Control Sensor
|
