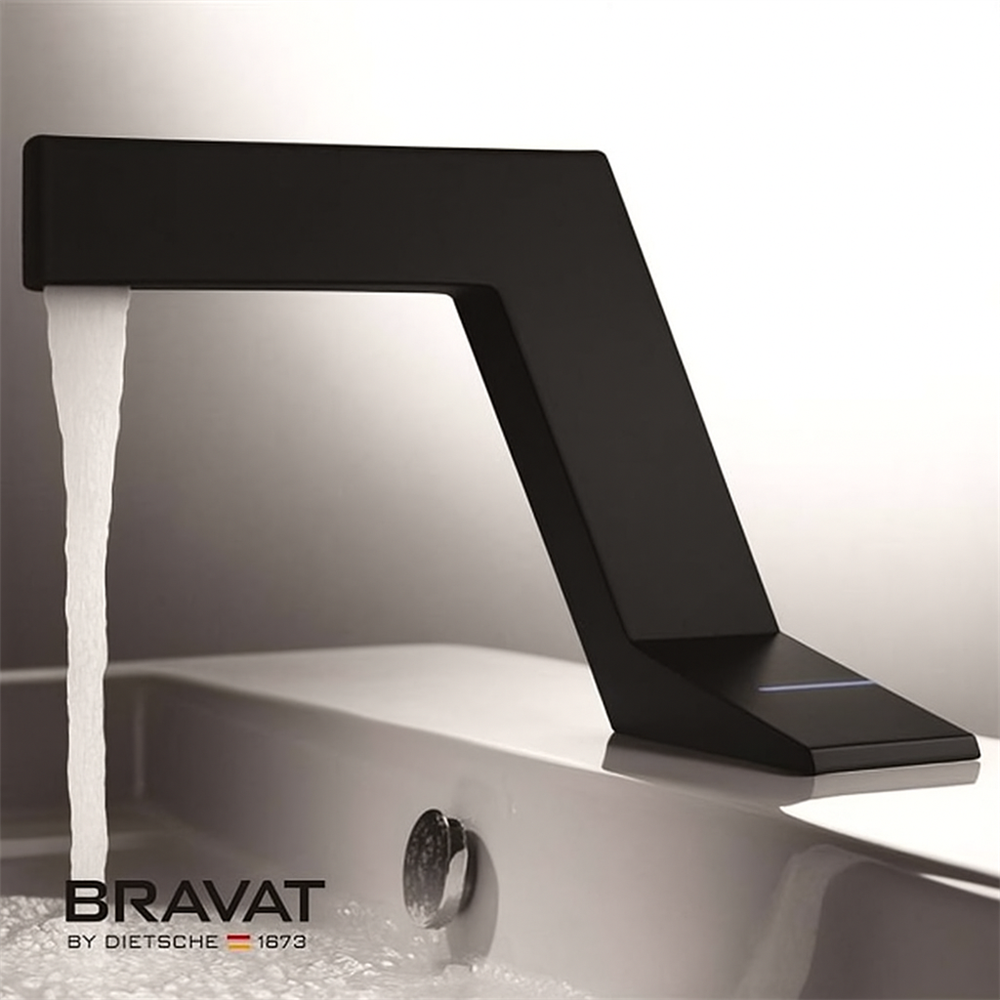

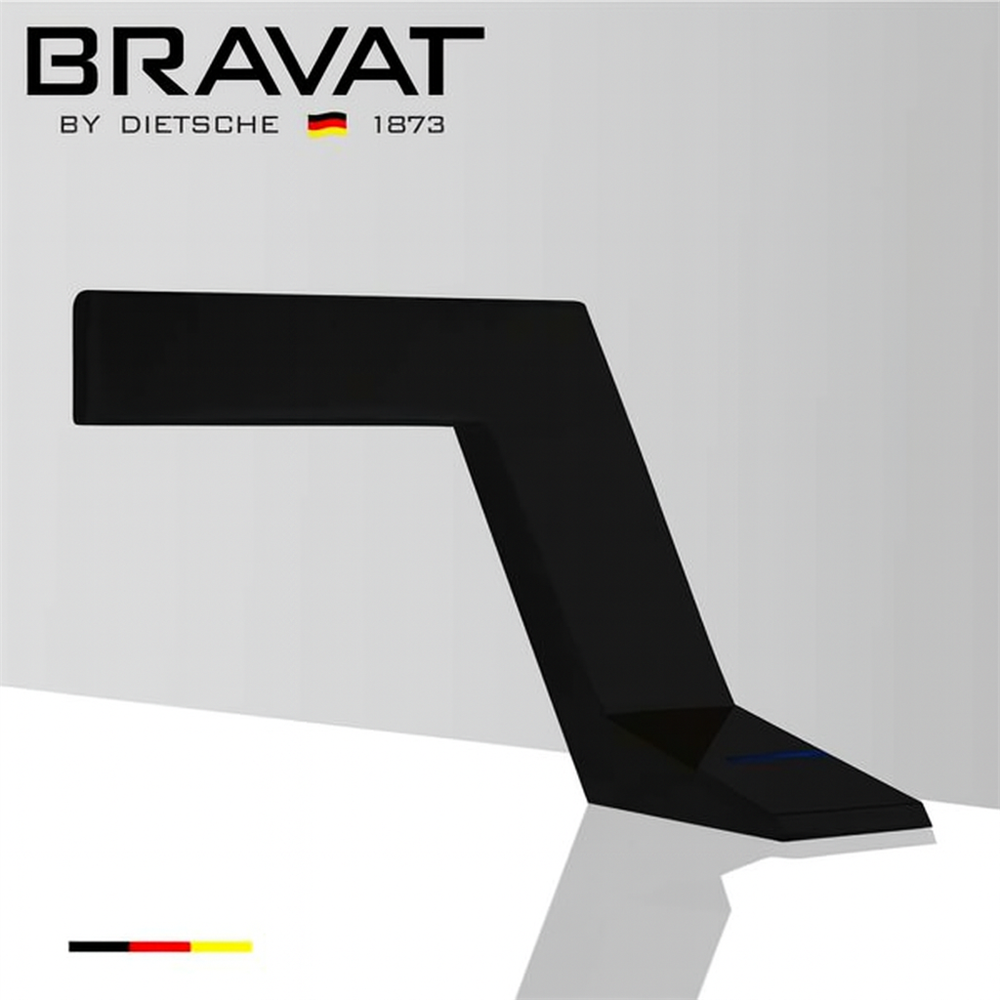

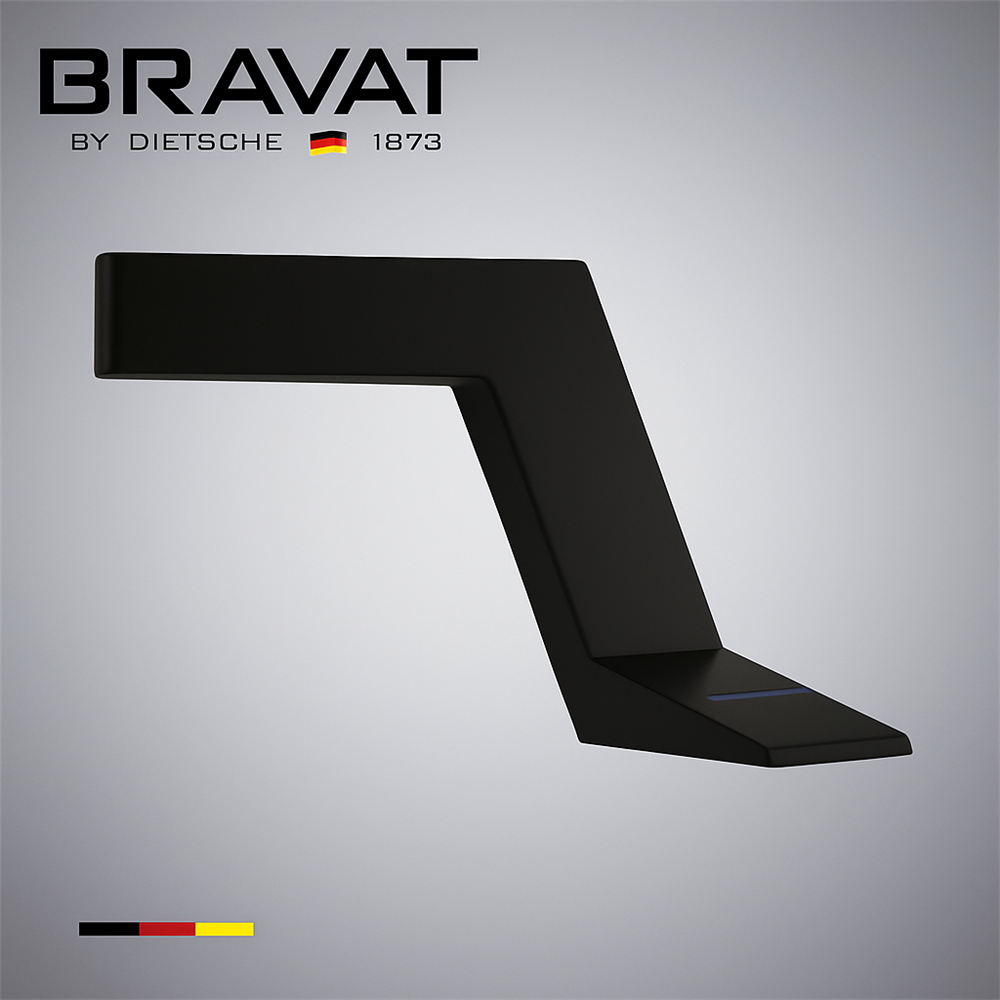

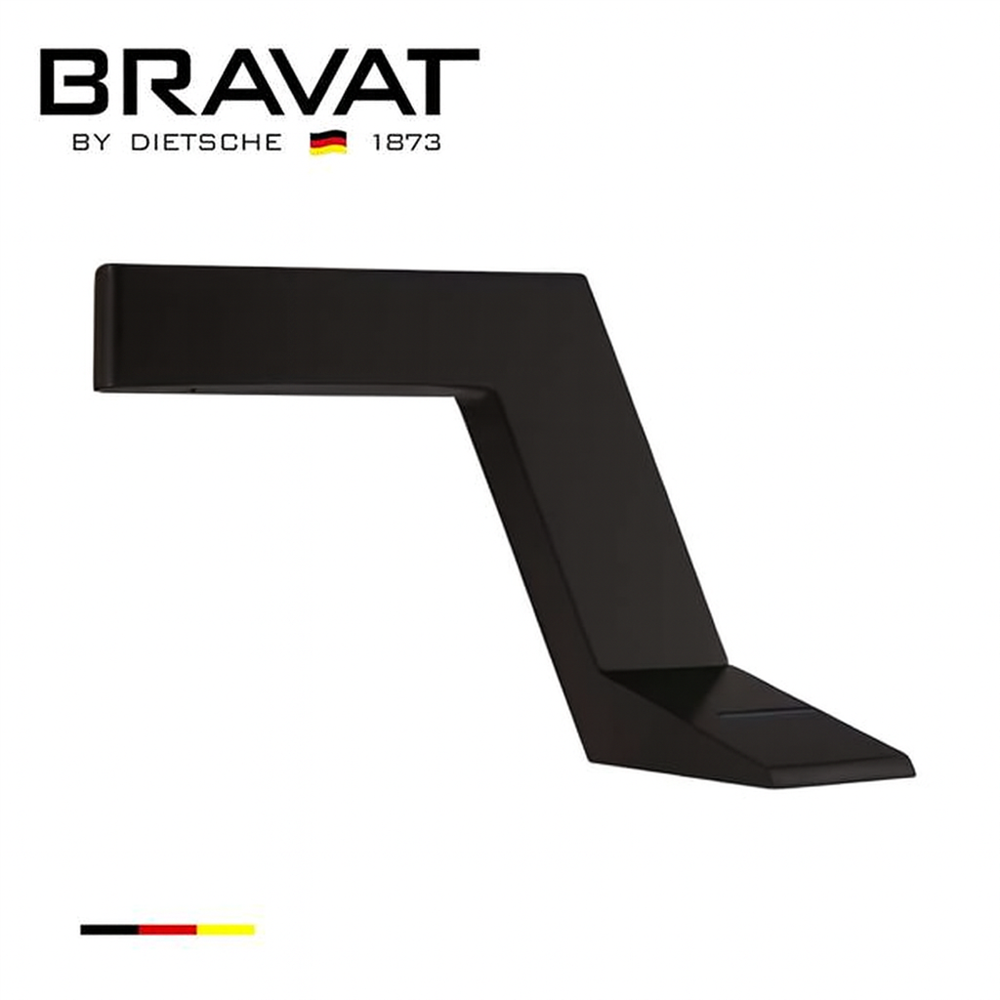

Fontana Bravat ClarityFlow Matte Black Smart Touchless Faucet

The Fontana Bravat ClarityFlow™ – Matte Black Faucet combines sleek sophistication with sophisticated sensor reliability, providing a solution for washrooms which always prioritizes sanitary practices and optimization. This is fashioned from solid brass in a matte-finish black, not only durable, but it also a refined and sophisticated accent to any space. It includes a high-quality infrared micro-computer controlled sensor that has an adjustable detection range from 16cm to 32cm, and will reliably operate touch-less. The sensor reacts to user motion by opening in less than a second and closing in less than two seconds with low power consumption. This detector sensor is powered via battery or AC or DC 6V with a box transformer. It provides over 500,000 flushes from a motor valve and 100k cycles from a battery for many years of performance. Engineered to perform, it has been designed with a 1.2 GPM (4.5 LPM) flow rate that reduced water consumption and energy usage, but also includes an in-built strainer to protect it and plumbing from debris. It operates at 0.05 and 1.6 MPa of pressure, and includes a below-deck mechanical mixing valve for water temperature control. Fontana Bravat ClarityFlow™ – Matte Black Faucet is also fully compliant with the ADA and will deliver class-leading style, dependability and performance in a high-traffic environment.

PRODUCT FAQ

Infrared Sensor Precision, Water Efficiency & Commercial Touchless Performance

This commercial-grade matte black touchless faucet integrates infrared micro-computer sensing, adjustable detection technology, and low-consumption water management for modern high-traffic restroom environments.

How does the infrared sensor system improve faucet responsiveness?

The micro-computer-controlled infrared sensor activates water flow in less than one second and automatically shuts off within two seconds after hand removal.

Can the sensor detection range be adjusted?

Yes, the faucet includes an adjustable sensing range engineered between approximately 16 cm and 32 cm for customized activation control.

How does the faucet improve water conservation?

The integrated electronic valve system operates at approximately 1.2 GPM (4.5 LPM) to reduce water usage while maintaining stable flow performance.

What type of power configuration does this faucet support?

The faucet is compatible with AC and DC 6V power configurations and can operate through transformer or battery-powered installation setups.

Is the faucet engineered for long-term commercial operation?

Yes, the motor valve system is rated for up to 500,000 operational cycles and incorporates a built-in strainer for additional plumbing protection.

• Brand Name: FontanaShowers®
• Model Number: FSD650MB
• Finish: Matte Black
• Type: Touchless Sensor Faucet
• Surface Treatment: Polished
• Installation Type: Deck Mount
• Style: Contemporary
• Material: Brass
• Valve Core Material: Ceramic
• Sensor: Infrared Sensor, Micro-Computer Controlled
• Power: AC & DC 6V (batteries not included)
• Water Consumption: 0.05–0.6 MPa
• Detection Zone: 16–32 cm (adjustable)
• Motor Valve Lifespan: Up to 500,000 flushes
• Battery Lifespan: Up to 100,000 cycles
• Static Power Consumption: 0.36 mW
• Working Power Consumption: ≤ 0.5 mW
• Inductive Opening Time: Less than 1 second
• Inductive Closing Time: Less than 2 seconds
• Inlet/Outlet Pipe Diameter: G1/2"
• Flux: ≥ 0.07 L/S
• Power Supply: Box Transformer (BOX)
• Temperature Mixer: Below Deck Manual Mixing Valve (BDM)
• Factory Default Timeout: 30 seconds
• Factory Default GPC: 0.75
• Working Pressure: 0.05–1.6 MPa
• Flow Rate: 1.2 GPM / 4.5 LPM
• Usage: Commercial
• Overall Height: 9.06" (156 mm)
• Spout Height: 6.22" (158 mm)
• Spout Length (Projection): 6.69" (170 mm)
• Spout Width: 2.05" (52 mm)
• Body Width: 1.57" (40 mm)
• Water Supply Pipe Size: DN15
• Special Features: Water-Conserving, Energy-Saving Design, Built-in Strainer
• ADA Compliant
