Fontana HydroIntel Brushed Touchless Automatic Urinal Flush Valve

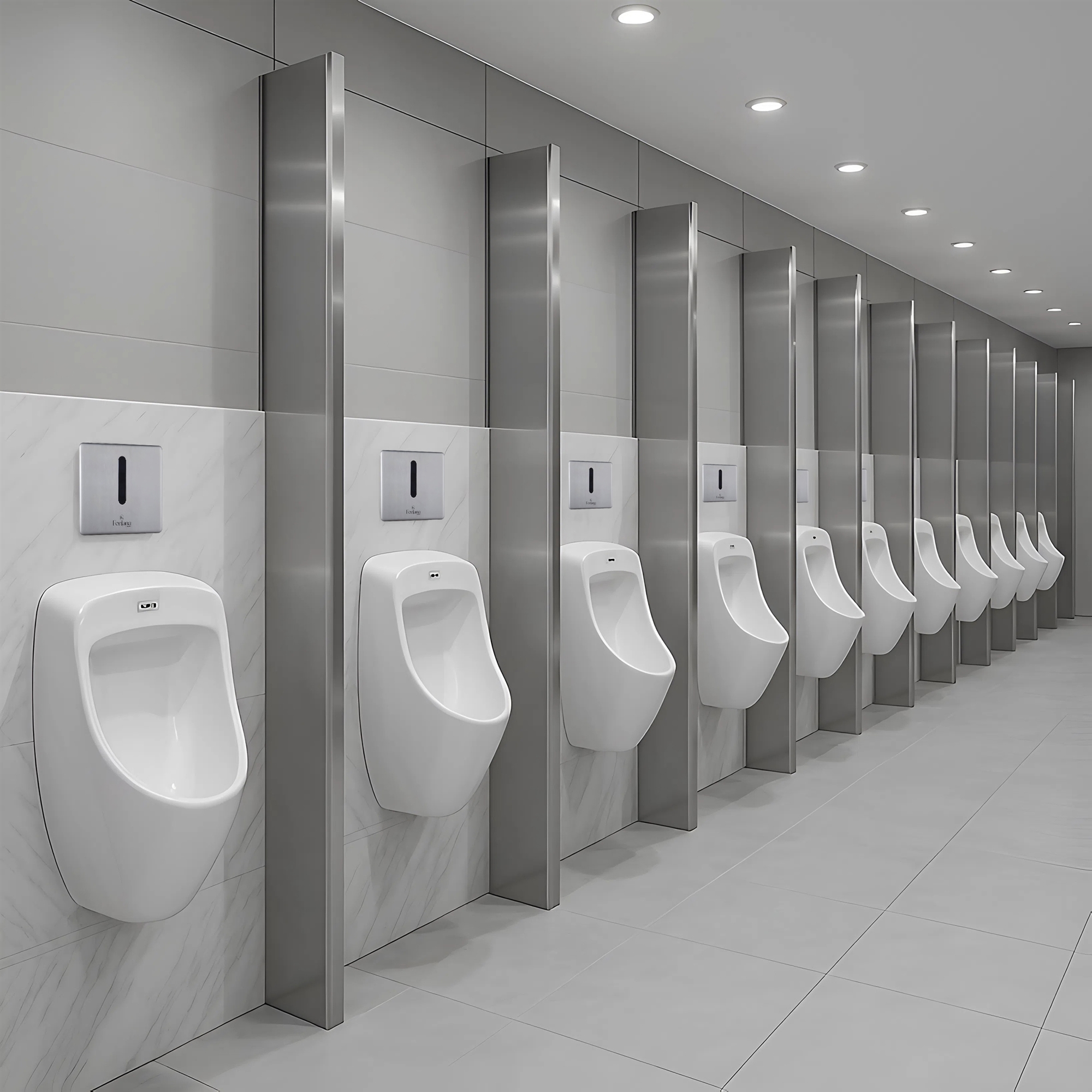

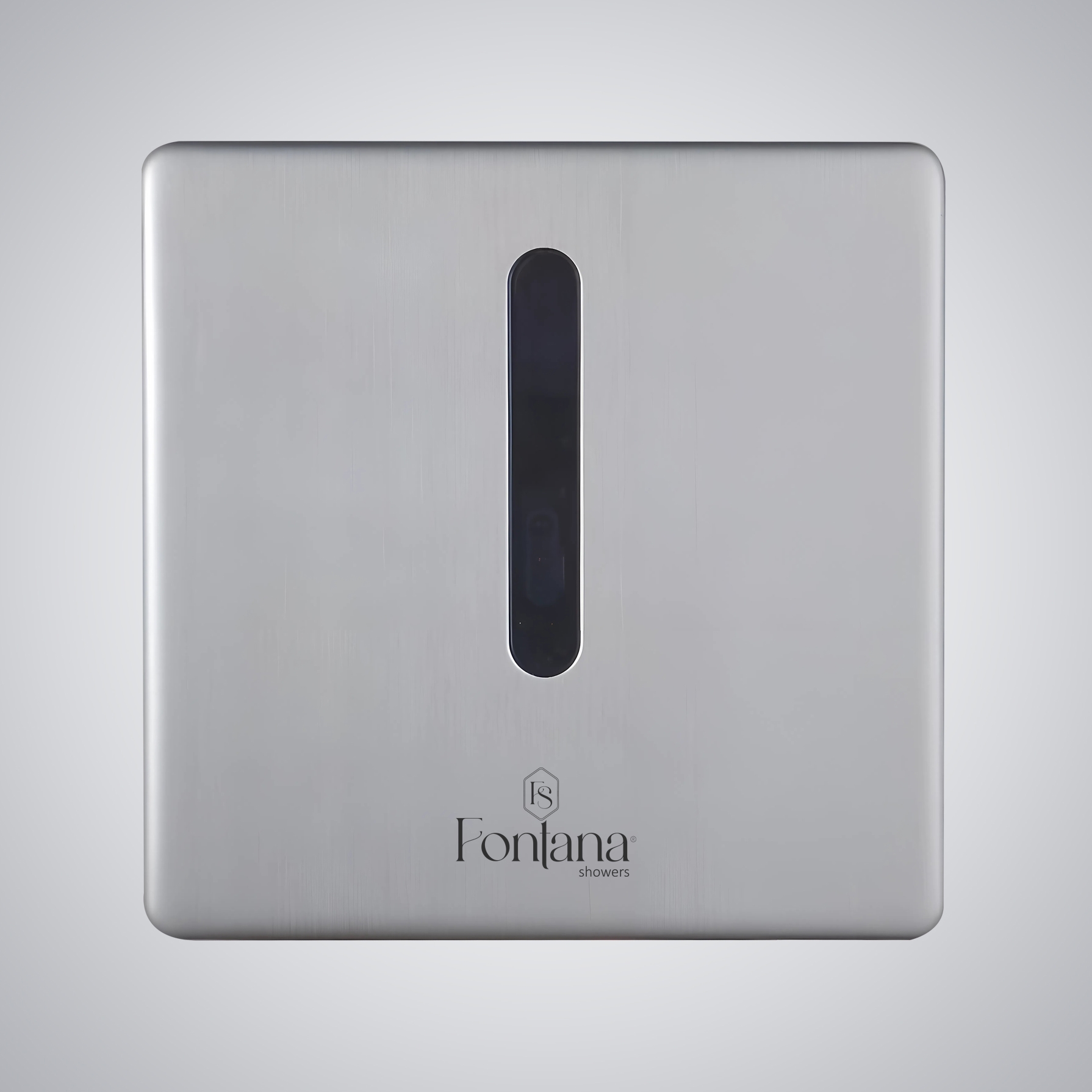

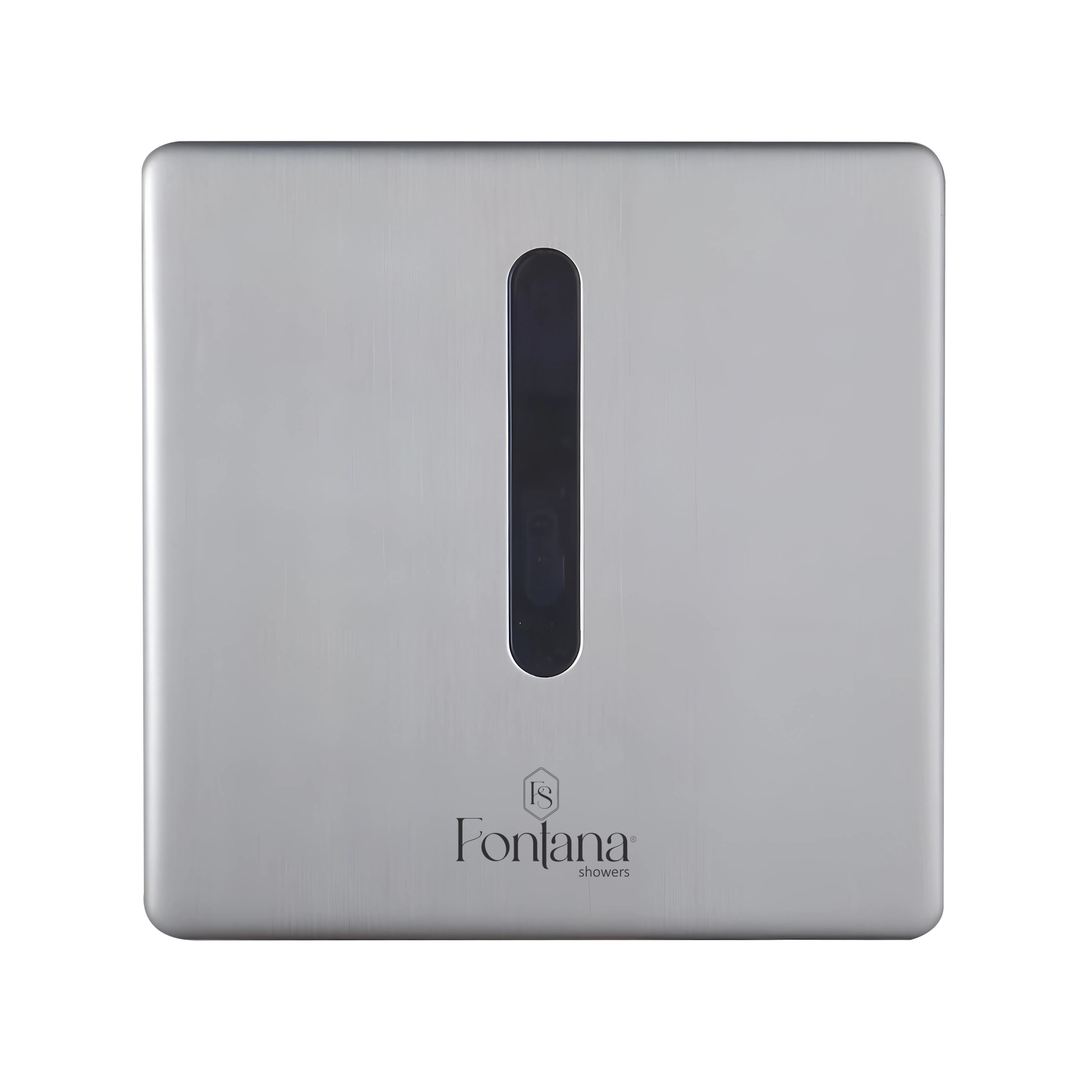

The Fontana HydroIntel™ - Brushed Nickel Flush Valve presentation combines modern design components with groundbreaking, smart, hygienic functionality, making the toilet flush system very applicable and desirable for high end restrooms and professional uses. The matte brushed nickel finish combined with the square 304 SUS stainless steel panel gives a modern, touchless toilet flush appearance. The wall mounted, fully concealed nature of the HydroIntel in lends itself to long term reliable functionality in addition to reducing the risk of cross contamination and spread of germs. Using built in presence sensors to detect the user leaving the toilet stall end-point, the Valve system then quietly, efficiently and accurately maximizes every flush cycle required. The flush system can be in-wall/hidden and used in high scale applications for discreet applications in airports, hotels, office buildings, and busy public spaces that have great foot traffic. It is 133mm x 133mm with enough space to have a compact profile, being only 15mm thick, with a total cavity dimension of 75mm available behind the wall for the internal system. A compact design and user experience is focused, as it has an adjustable flush timer, plus flexibility of installation for the user to mitigate options, as well as for the service user in a commercial space to maintain.

Smart Sensor Precision in a Refined Brushed Nickel Look

• Brand Name: FontanaShowers®
• Model Number: FS8971BR
• Design Style: Modern
• Product Type: Urinal flush valve
• Flush Valve Type: Automatic sensor
• Finish: Brushed
• Material: Stainless Steel
• Flush Time: Adjustable
• Panel: 304 SUS stain
• Installation Type: Wall Mounted
• Special Features: Concealed, Touchless, Water Saving
• Electronic Induction Type: DC & AC
• Power Supply: DC:6V (4xAA alkaline batteries), AC:220v-50 Hz
• Function: Automatic, sensor, inductive
• Front Plate Size: 133 mm (W) × 133 mm (H) × 15 mm (T)
• Internal Mechanism: 114 mm (H) × 124 mm (W)
• Overall Depth: 75 mm
• Application: Hotel
