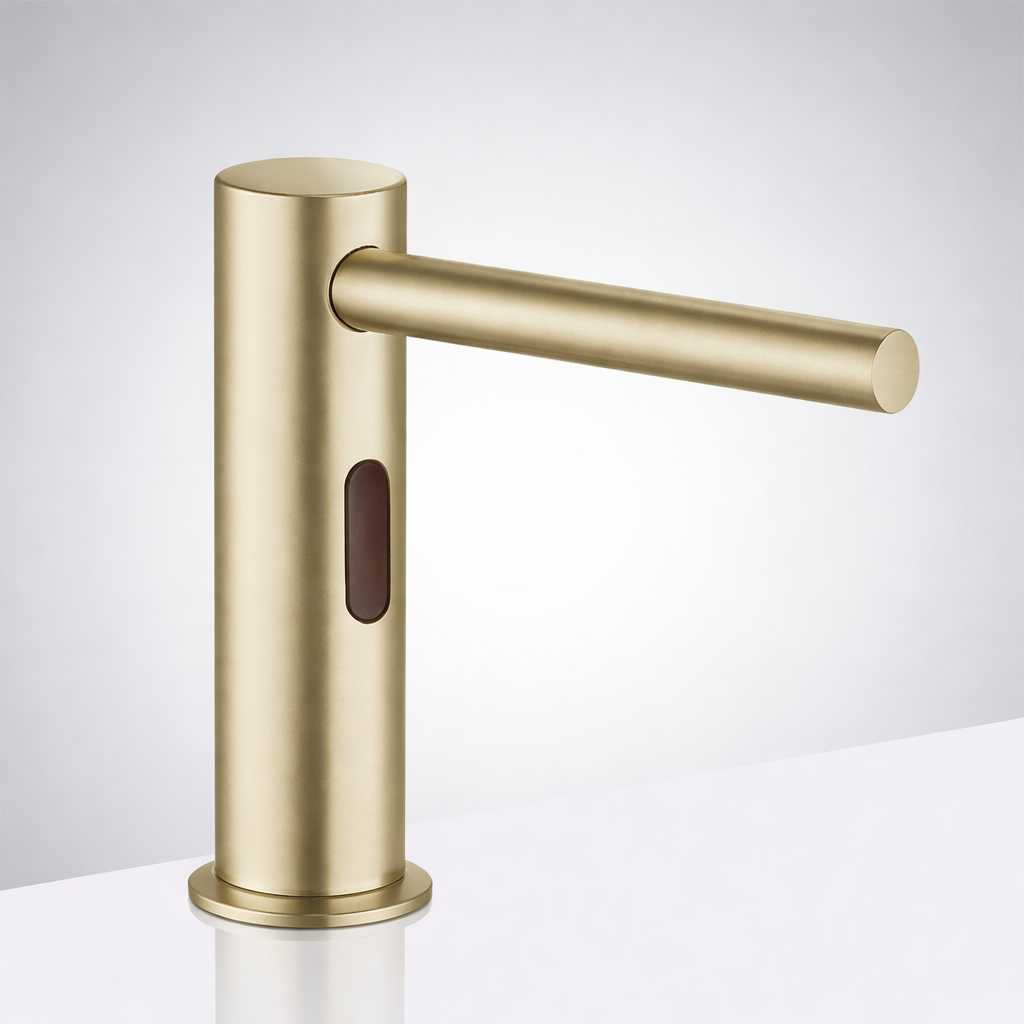

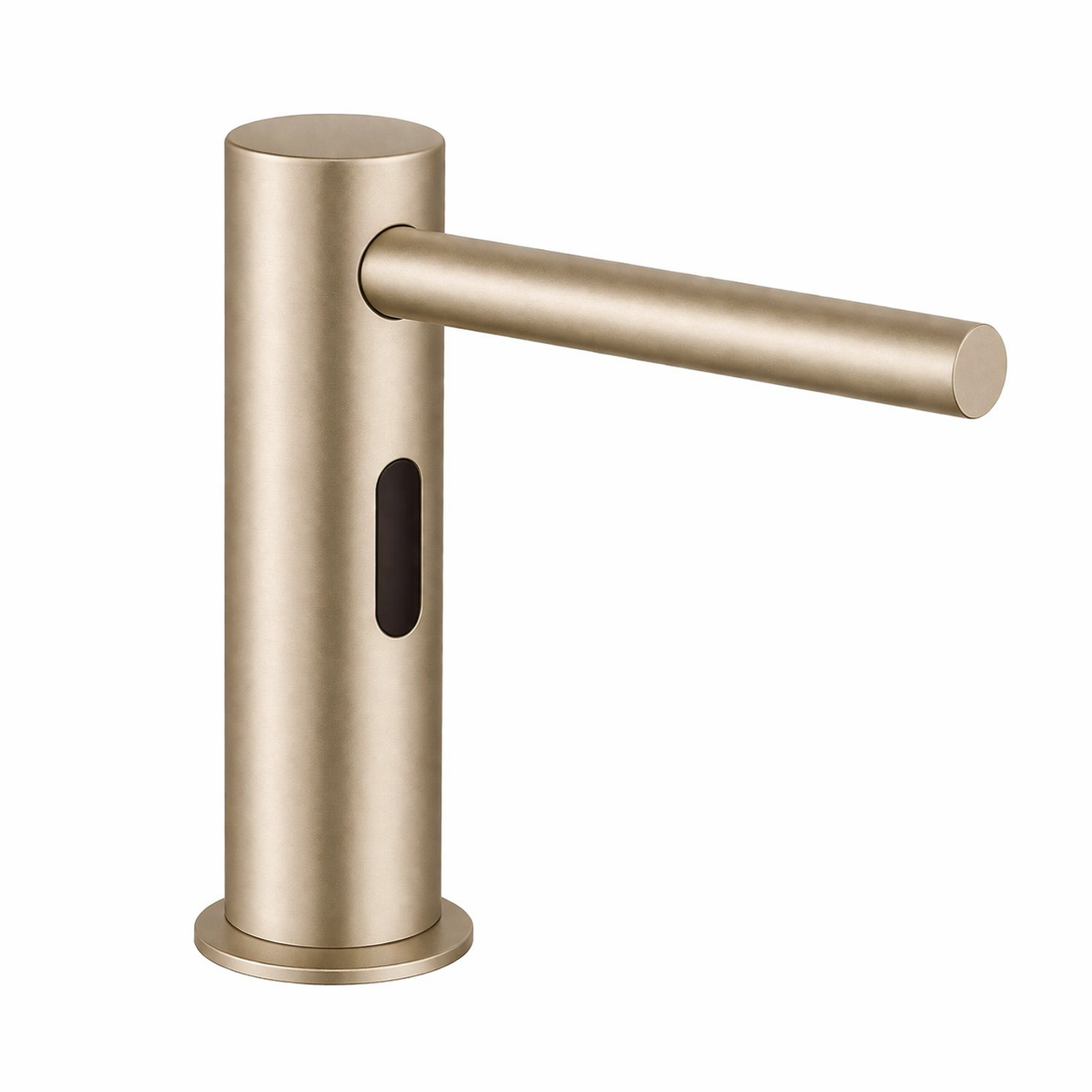

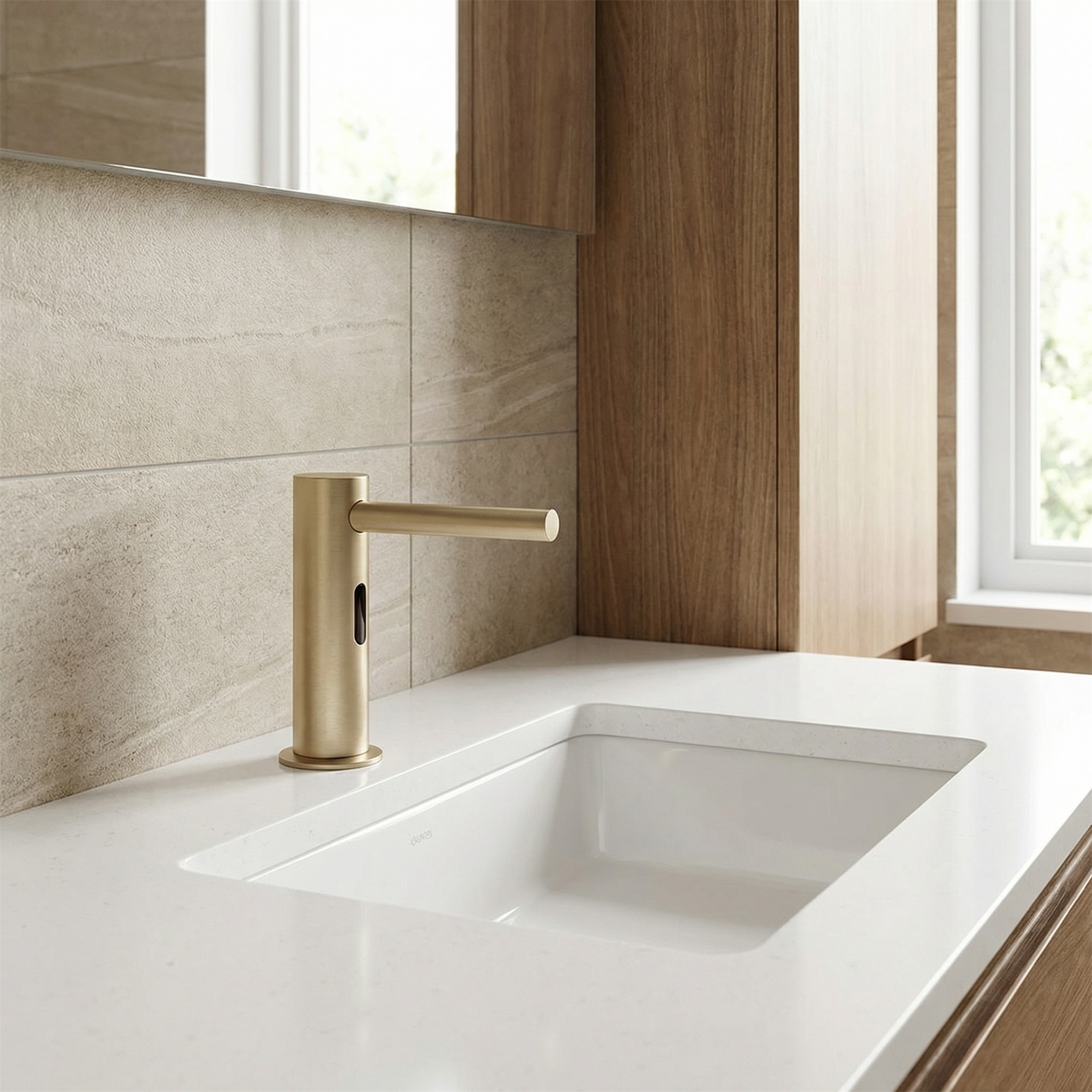

Fontana Lenox Edition Champagne Automatic Hygienic Foam Soap Dispenser

Elevate your hygiene to a whole new level with the Fontana Lenox™ Edition ProGuard, offered in a beautifully refined Champagne finish. This eco-friendly, touchless foam soap dispenser merges contemporary design with modern advancements, making it a beautiful, functional soap dispensing solution for the modern interior.

Made of stainless steel with a solid brass body, the Fontana Lenox™ Edition ProGuard will last for many years and look great doing it. The infrared sensor technology requires only 1 second to activate when presented with hands underneath, dispensing soap with a flow rate of 1-4.5 ml/sec. The self-adjusting sensor manages to ensure that the soap dispenser is both efficient and effective while reducing waste and improving productivity. The ProGuard has two types of power, either DC with 4 AA alkaline batteries, or AC 110-240V, meaning that you will have flexibility on where to install the device in your home, or business, either residentially or commercially. In summary, the Champagne finish combines eco-friendly efficiency, elegance with a Champagne finish, and premium durability all while enriching the look and feel of any modern environment, while helping to promote cleaner, healthier living.

Fontana Lenox™ Edition Champagne Automatic Foam Soap Dispenser FAQ

Self-Adjusting Sensor Control, Foam-Dose Commissioning; Champagne Surface Protection

The Fontana Lenox™ Edition Champagne automatic soap dispenser combines stainless-steel construction, a solid-brass body, infrared touchless activation, self-adjusting sensor control, 1–4.5 ml/sec foam delivery, and flexible AC or DC power for commercial and residential washrooms.

How should the self-adjusting infrared sensor be commissioned after installation?

Complete sensor testing after the basin, faucet, mirror, backsplash, lighting, and surrounding accessories are installed. Allow the control to stabilize, then verify that a hand beneath the outlet produces one controlled dose without false activation from reflective surfaces, nearby movement, or objects outside the dispensing area.

What should be checked if foam delivery is below the specified 1–4.5 ml/sec range?

Inspect the soap reservoir, pickup tube, pump connection, foam-mixing passage, and outlet for trapped air, leakage, residue, or restriction. Confirm that a compatible foaming-soap formulation is being used and prime the complete delivery path before changing any electronic or sensor settings.

How should the AC or battery power system be verified during commissioning?

Confirm stable AC 110–240V power or install four fresh AA alkaline batteries with correct polarity. Cycle the dispenser repeatedly and verify consistent one-second activation. Intermittent dispensing may indicate low battery voltage, a loose power connection, sensor contamination, or an incomplete pump prime.

How should the Champagne finish be cleaned without changing its warm metallic appearance?

Remove fingerprints and soap residue with a soft damp microfiber cloth, then dry the dispenser immediately. Use diluted pH-neutral soap only and avoid abrasive pads, acidic cleaners, bleach, ammonia, steel wool, metal polish, and concentrated disinfectants that may scratch, brighten, or discolor the Champagne surface.

Champagne

• Brand Name: FontanaShowers®
• Model Number: FS9070CP
• Finish: Champagne
• Type: Sensor Operated
• Dispenser Type: Stainless steel Automatic Soap Dispenser
• Feature: Foam Soap Dispenser
• Main Material: Stainless Steel
• Body Material: Solid Brass
• Activation: Infrared Sensor
• Sensor Range: Self-adjusting
• Activation time:1 second
• Flow Rate:1-4.5ML/S
• Sensor Life:10000 times
• Solenoid Valve Life: Over 500000
• Battery Life:108000 uses (4 x AA alkaline battery)
• Inlet/Outlet Diameter: G-1/2"
• Power Supply:DC :6v(4 x AA alkaline battery) AC:110-220V-240v; 50/60Hz
