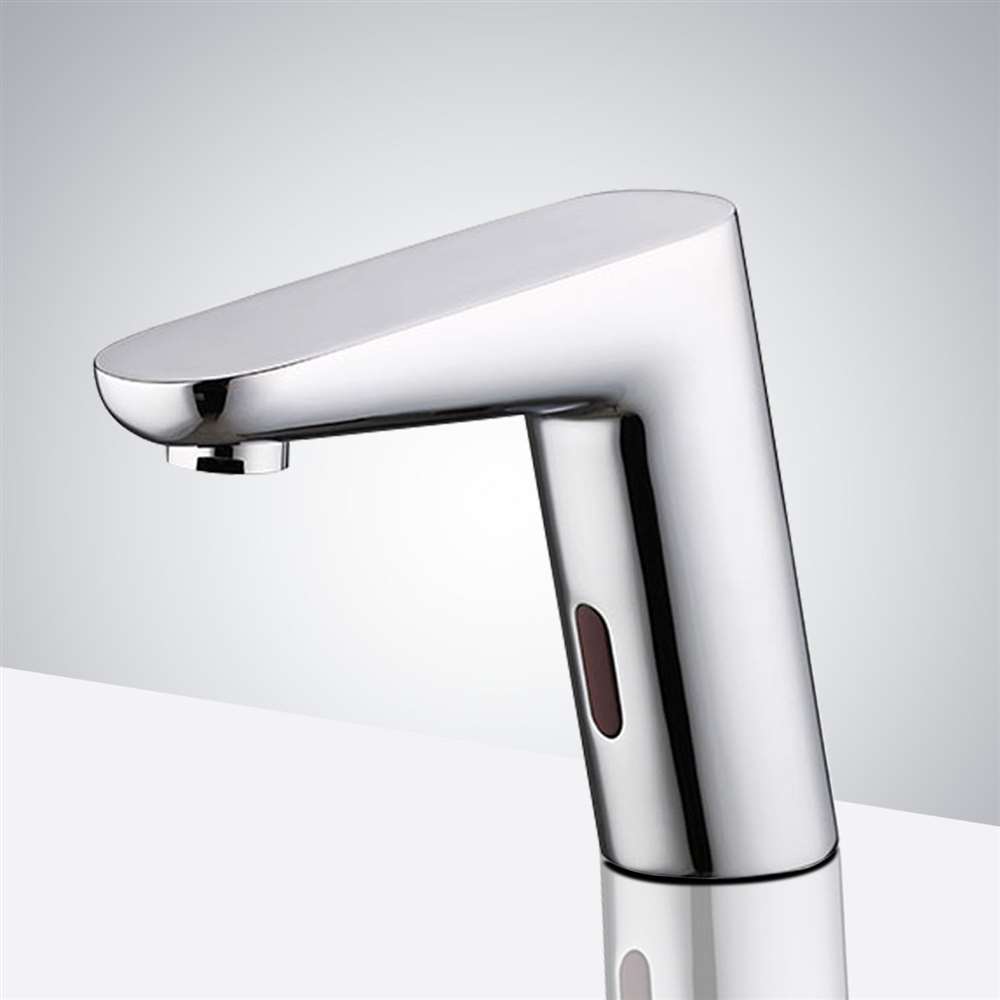

Mugla Commercial Chrome Automatic Electronic Faucet with CUPC Approved

Mugla Commercial Chrome Automatic Electronic Faucet with CUPC Approved. Stable sensor, better quality, the highest standard. Stability: the infrared sensor emission adopts a constant current circuit. The transmitter signal is stable even when the battery voltage changes.

Automatic: it incorporates microcomputer control, and features anti-ultraviolet rays and automatic time-out shut-off. Water saving: automatic shut-off water-saving flow control. The design was inspired by the FontanaShowers design. Be sure, when it comes to new Bathroom Faucets, FontanaShowers is offering the shapes, finishes and styles you're looking for. It comes complete with mounting accessories and installation instructions. Hardwired power option supports long-life operation and reduces battery service overhead.

Mugla Commercial Chrome Automatic Electronic Faucet with cUPC Approved

Constant-Current Infrared Sensing, Dual-Power Architecture & Automatic Time-Out Flow Protection

Engineered for commercial washrooms, this chrome deck-mounted faucet combines stable infrared sensing, AC/DC power capability, and automatic shutoff for dependable touch-free water control.

How does the constant-current infrared circuit maintain sensing stability as battery voltage changes?

The infrared transmitter uses a constant-current circuit to stabilize emitter output as battery voltage varies. This reduces changes in detection behavior during battery discharge and helps maintain consistent sensor response throughout the power source's usable operating range. :contentReference[oaicite:0]{index=0}

How should the adjustable 6.2–12.5-inch sensing range be commissioned for different basin geometries?

The sensing distance should be finalized after the basin and countertop are installed. Adjustment within the specified 6.2–12.5-inch range allows the detection field to be coordinated with bowl depth and reflective surfaces, reducing false activation while maintaining reliable hand recognition. :contentReference[oaicite:1]{index=1}

What engineering advantage does the AC/DC power architecture provide in high-use facilities?

Dual AC/DC capability gives designers greater flexibility in electrical coordination. Hardwired AC can reduce routine battery servicing in high-cycle installations, while the supported DC configuration provides an alternative where permanent electrical infrastructure is impractical. :contentReference[oaicite:2]{index=2}

How do the specified opening and closing times affect water-control performance?

The electronic control is specified to initiate flow in less than one second and close the valve in less than two seconds after detection ends. These response parameters reduce activation delay while limiting unnecessary post-use discharge in high-traffic commercial washrooms. :contentReference[oaicite:3]{index=3}

• Brand Name: FontanaShowers®
• Model Number: FST9746
• Type: Touchless Bathroom Faucet
• Surface Treatment: Chrome
• Water Pressure: 0.05-0.6MPa
• Surface Finish: Chrome
• Faucet Mount: Single Hole
• Faucet height: 5.5"
• Spout length: 7.2
• Spout Height: 4.1
• Style: Contemporary
• Sensing: Infra-red Sensor
• Chrome Plating: 24/48 Hours Salt Spray Test
• Operating Temperature: 0.1-50℃
• Installation Type: Deck Mount
• Power Supply: DC & AC
• Sensing Distance: 6.2-12.5" or adjustable
• Inductive Opening Time: < 1 second
• Inductive Closing Time: < 2 second
• Usage: Commercial
• Ideal for commercial use applications in public restrooms, restaurants, office buildings, public facilities, and hospitals. Fits all standard US plumbing.
