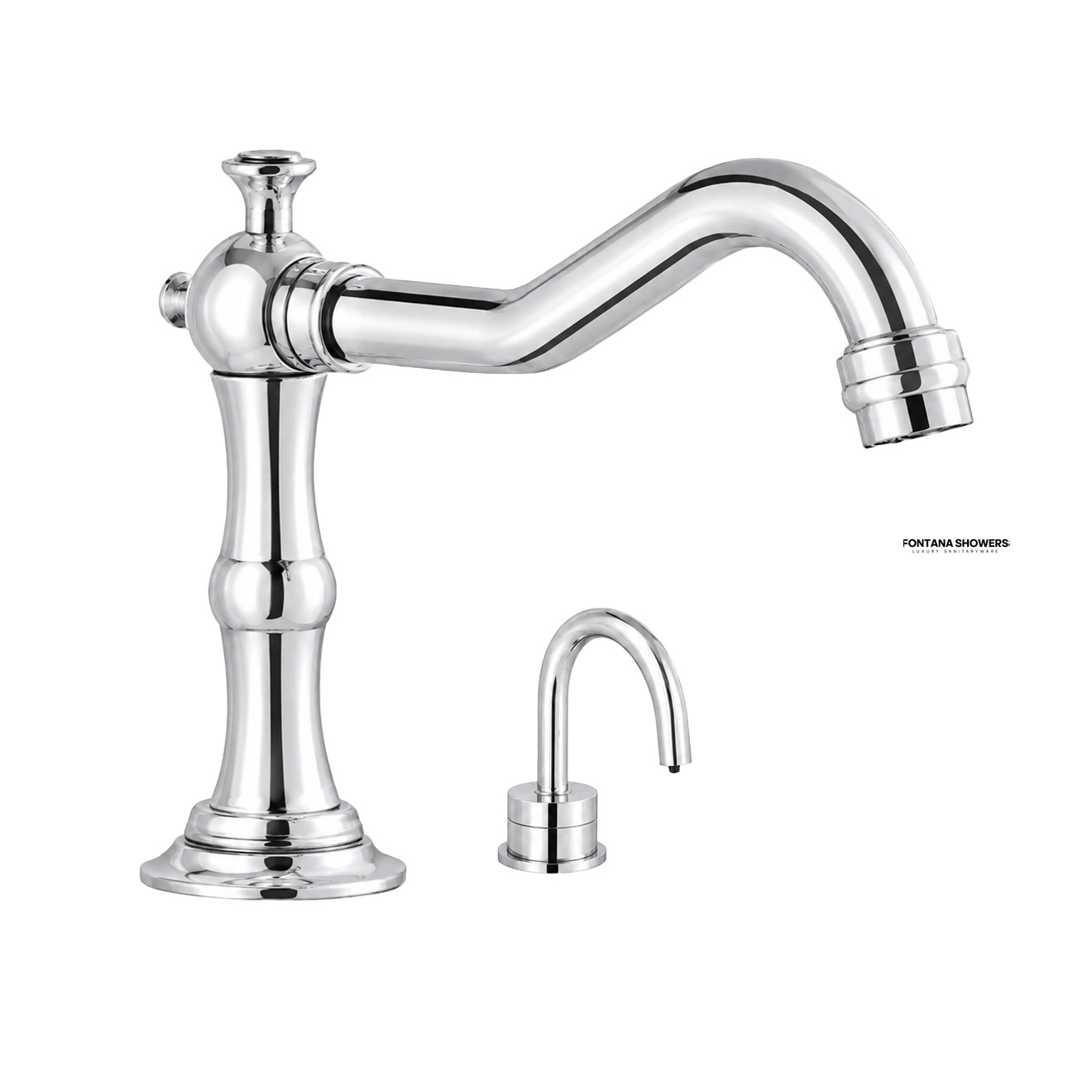

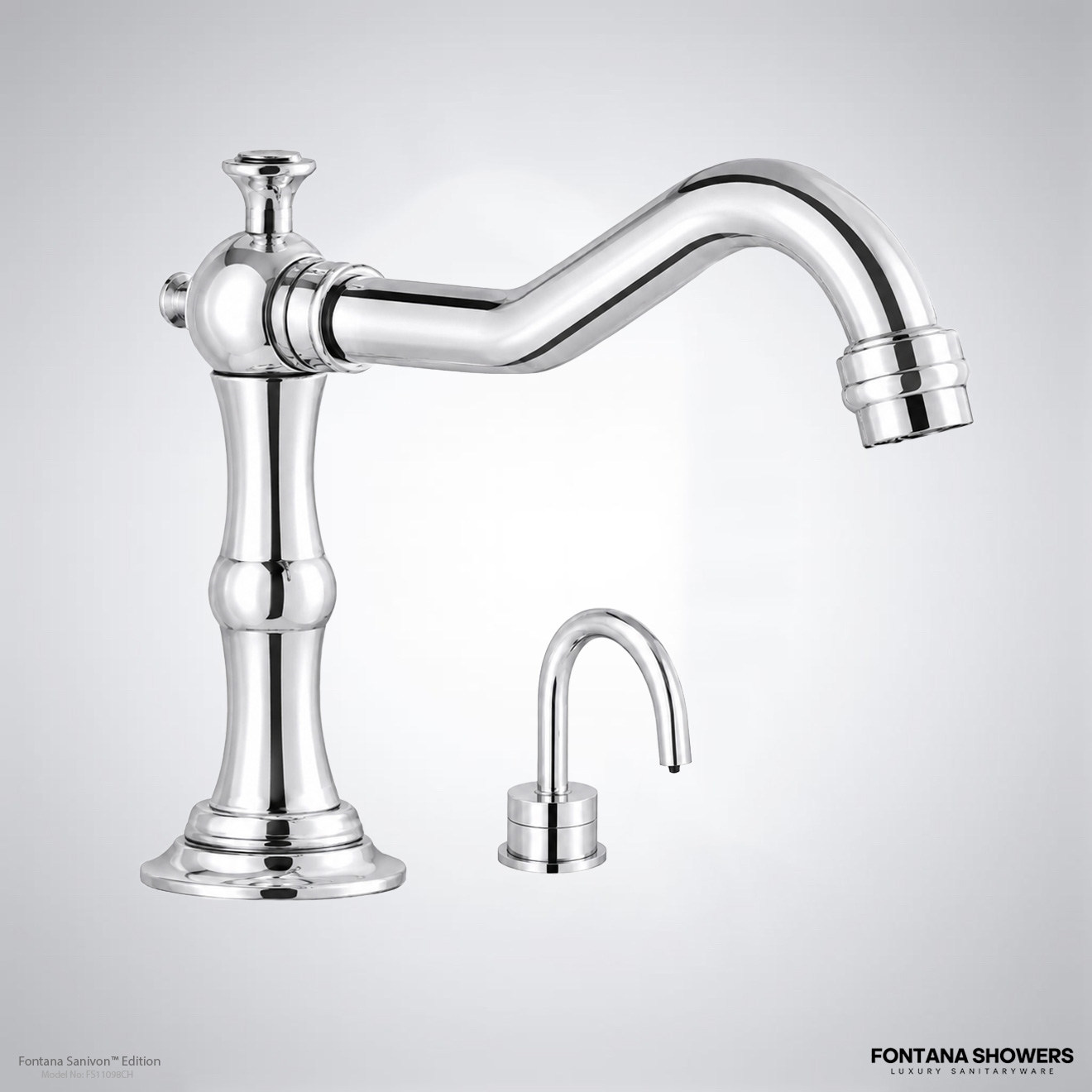

Fontana Sanivon Edition Chrome Premium Touchless Faucet With Soap Dispenser

Engineered for those demanding public washrooms where the look, the sanitation, and the overall efficiency kind of have to happen together, this premium sensor-operated set gives a more refined answer for busy, high-traffic places. In other words, it’s built to stay dependable while still looking polished. The active infrared sensor auto-adjusts so there’s less need for touching surfaces, which helps improve hygiene even as it keeps water use in check. It runs with a controlled 6 L volume per cycle and an operating pressure range of 0.05 MPa to 0.8 MPa, so performance stays steady. When you place the Fontana Sanivon™ Edition Chrome Premium Touchless Faucet With Soap Dispenser at the center of a restroom upgrade, you get more of a coordinated faucet-and-soap dispenser flow, suited to environments like airports, hotels, restaurants, shopping malls, offices, schools, healthcare, stadiums, and other commercial sites. You also get a 360-degree swivel capability, a widespread configuration, plus an ADA-compliant design that feels practical for lots of different users. For the soap side, the system uses a noise-free 6-volt peristaltic pump, keeping dispensing smooth from 0.5 mL to 1.5 mL each time. The dispenser can be powered by four D batteries or by an AC/DC supply, depending on the setup. It’s meant for standard liquid, and it comes with an 800 mL bottle. If you need larger coverage, it’s also compatible with an optional one-gallon container, which helps bigger facilities stay flexible. Compliance covers ASME, CSA, ADA, WaterSense, and CALGreen standards, so architects, contractors, and facility managers have more confidence around performance, accessibility, water efficiency, and sustainability-minded restroom planning. Overall, the sleek exterior, reliable sensing technology, and low-maintenance operation make it a solid choice for premium commercial washroom installations.

• Brand Name: FontanaShowers®
• Model Number: FS11098CH
• Type: Touchless Faucet With Soap Dispenser
• Style: Contemporary
• Finish: Chrome
• Installation Type: Deck Mounted
• Material: Brass
• Number of Holes: Two Hole
• Special Features: ‎360 Swivel, Widespread
• Faucet Water Pressure: 0.05 Mpa-0.8 Mpa
• Water Saving: Volume 6L Each Time
• ADA Compliant: Yes
• Dispenser Power: 4 (D) Batteries / AC/DC
• Soap Pump: 6 Volt Noise-Free Peristaltic Pump System
• Sensor type: Active Infrared, Self-Adjusting
• Working Soap: Standard liquid Soap
• Soap Bottle Capacity: 800 ML (Optional 1 Gallon Containers)
• Soap Amount Per Use: 0.5 mL to 1.5 mL (Adjustable)
• Dispenser Sensing Range: 2" to 6" Adjustable with optional remote control
• Faucet Height: 6.69"
• Faucet Spout Length: 4.92"
• Faucet Spout Height: 3.93"
• Usage: Commercial
