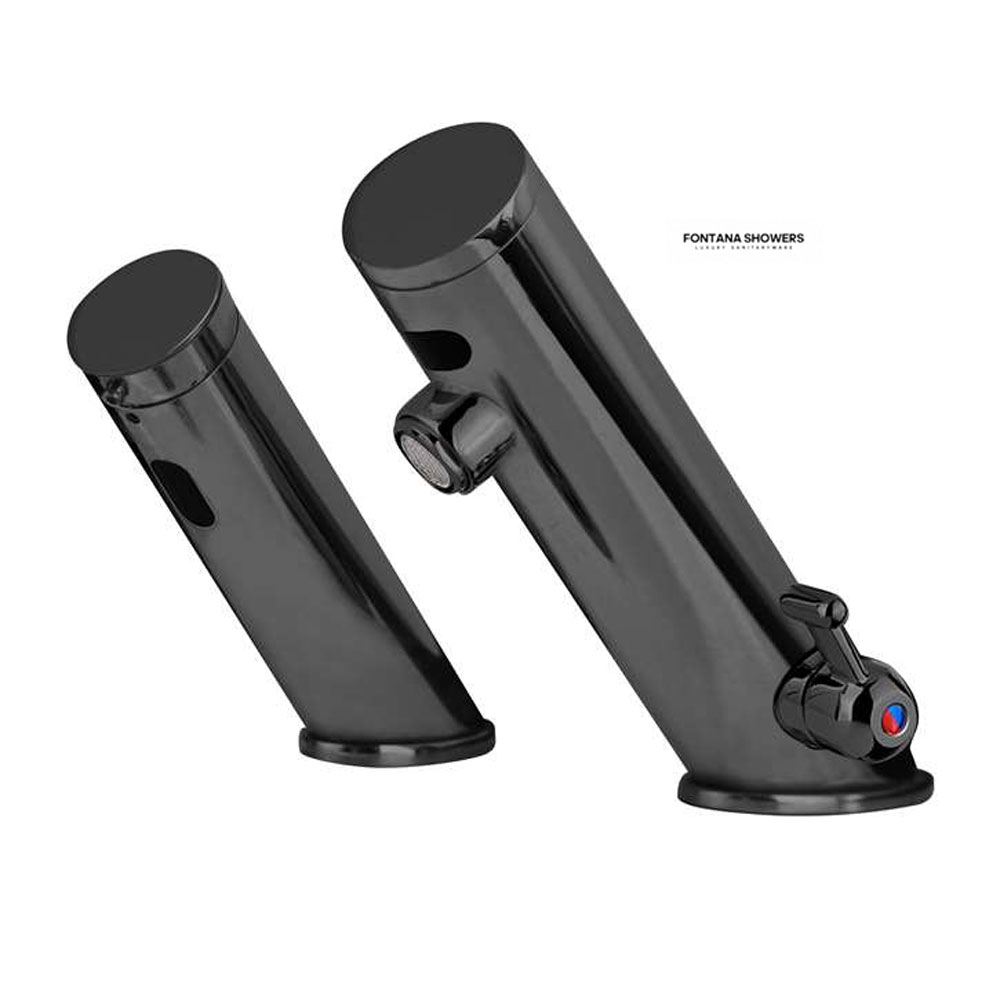

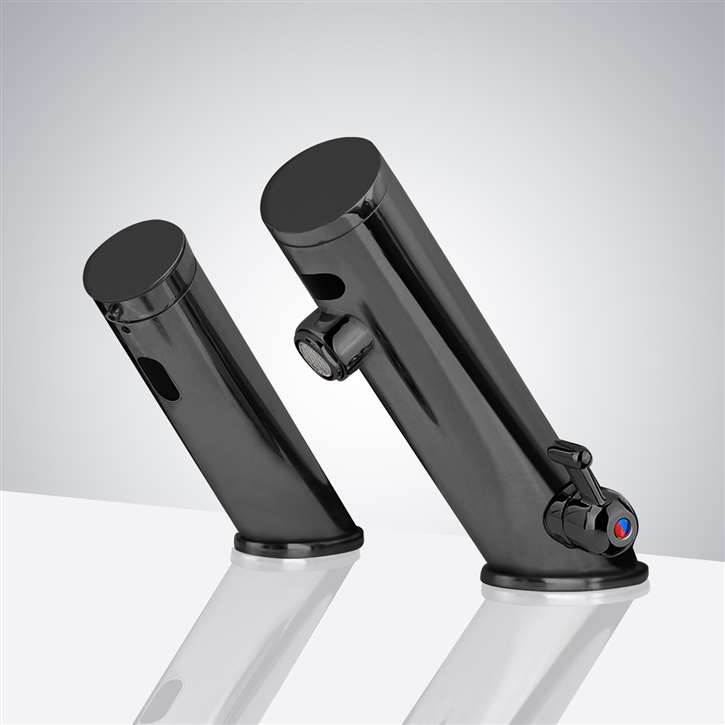

Fontana Oil Rubbed Bronze Commercial Automatic Temperature Control Thermostatic Sensor Tap with Matching Soap Dispenser
Fontana Oil Rubbed Bronze Commercial Automatic Temperature Control Thermostatic Sensor Tap with Matching Soap Dispenser



Alternative Views:
Retail Price: $1,795.36
Sale Price: $1,328.57
Savings: $466.79

Price with Selected Options: $1,328.57





Availability: Usually Ships in 5 to 10 Business Days
Product Code: FS-505BD


Hot & Cold Option:

Qty:
Description Technical Specs Extended Information


Chrome

Fontana Oil Rubbed Bronze Commercial Automatic Temperature Control Thermostatic Sensor Tap with Matching Soap Dispenser

Commercial Temperature Control Automatic Touchless Sensor Faucet with Mixing ValvePlatinum Commercial Automatic Temperature Control Thermostatic Sensor Tap B505 Solid Brass Construction - (Available in Oil Rubbed Bronze)
  • Fits all standard US plumbing.
  • Uses 4AA Alkaline Batteries (purchase separately).
  • Water Pressure: 0.5 - 7.0 KGS/cm, 10-125 psi
  • Sensor Faucet Applications: Residential & Commercial.
  • Touchless Operation
  • Sensitive Sensor with Infrared AI Smart-Chip
  • Factory set to 30-second Auto Shutoff (can be adjusted).
  • Water Pressure: 0.5 - 7.0 KGS/cm , 10 - 125 psi
  • Solid Brass Construction, Oil Rubbed Bronze
  • Easy to Install - Instructions Included
  • Water resistant solenoid enclosure
  • Advanced energy saving design for long lasting battery life
  • Comes complete with Hoses & Accessories
  • ADA Compliant
  • Can be installed easily in new or upgraded retrofit commercial restrooms.
  • Can easily be installed in new or retrofit applications
  • Usage: Commercial / Residential
  • Ideal for commercial use applications in public restrooms, restaurants, office building, public facilities, hospitals. Fits all standard US plumbing





Reduces the transfer of germs by preventing cross-contamination and re-contamination of germs and bacteria by not touching the faucet handles. Cut down on water usage by minimizing waste of water by eliminating unnecessary or unattended water flow.

Temperature Control Sensor Faucet Special Features:

  • Durable Vandal-Resistant Brass Body; Ideal for Residential as well as commercial high use applications
  • Intelligent: with its micro-computer controlling its action, the faucet will self adjust its best detection zone as per the color and shape of lavatory
  • Flashing light indicator; a diagnostic indicators for power up, low battery, and solenoid function.
  • Meaning of the codes are described in the installation instructions.
  • Convenient to maintain; with built-in strainer to prevent sundries from entering the solenoid valve and the strainer is easy to clean
  • Faucet can be mount to any sink surface.
  • ADA Compliant
  • Batteries life 8,000 cycles per month and with enough water pressure is approx 5 year service life of the batteries.
  • Adjustable sensing range; while the factory range is set about 4"to 5"from the sensor, it can be adjusted.
  • Diameter of inlet pipe DN15
  • Diameter of outlet pipeDN15
  • Water Flow Rate: 1.3 GPM (gallons-per-minute)
  • Power DC.6V
  • Detection Zone Factory set 25cm/10" (based on standard inductive board)
  • Ambient Temperature 1 - 45 ℃ / 33.8 -113 °
  • Degree of protection by enclosure 1P56
  • Usage: Commercial / Residential

Sensor Faucet Specification:

  • Overall Height: 7" (measured from counter top to the highest part of the faucet)
  • Spout Height: 3-1/2" (measured from counter top to the spout outlet)
  • Spout Reach: 4" (measured from the center of the faucet base to the center of spout outlet)
  • Mounting Type: Single hole
  • Number of Holes Required for Installation: 1
  • Faucet Centers (Distance Between Handle Installation Holes): Single Hole
  • Flow Rate: 1.3 GPM (gallons-per-minute)
  • Maximum Deck Thickness: 1-5/8"
  • Infrared sensor operation with temperature control.

Sensor Faucet Special specification

  • The infrared sensor technology: Sensor-operated taps increase hygiene in public and patient restrooms. Surprisingly, the dirtiest area in the bathroom, as far as germs are concerned, are the handles to the tap that collect most of the germs on them.
  • The thermostatic technology: Controlling the temperature fluctuations at the outlet prevents scalding. Mixing the water at the desirable temperature at the point of use allows to store the water enough cold and hot to prevent scalding.
  • Installation; Fontana touchless faucet is easy-to-install design!
  • Easy servicing
  • Version with mixer to adjust the temperature.
  • The Oil Rubbed Bronze finish will not fade, tarnish or corrode for the lifetime of the faucet.
  • 6V battery or electrical connection version available
  • Solenoid valve inside the product
  • Operates with low and high pressures (0.5 to 7Bar)
  • Range adjustment
  • Two products in 1: the thermostatic mixing valve and operates by an infrared sensor
automatic-faucet-diagramautomatic-faucet-rohos automatic-faucet-ceimages
FontanaShowers® Product Warranty Information FontanaShowers Product Warranty
Installation Instructions for Platinum Commercial Thermostatic Sensor
