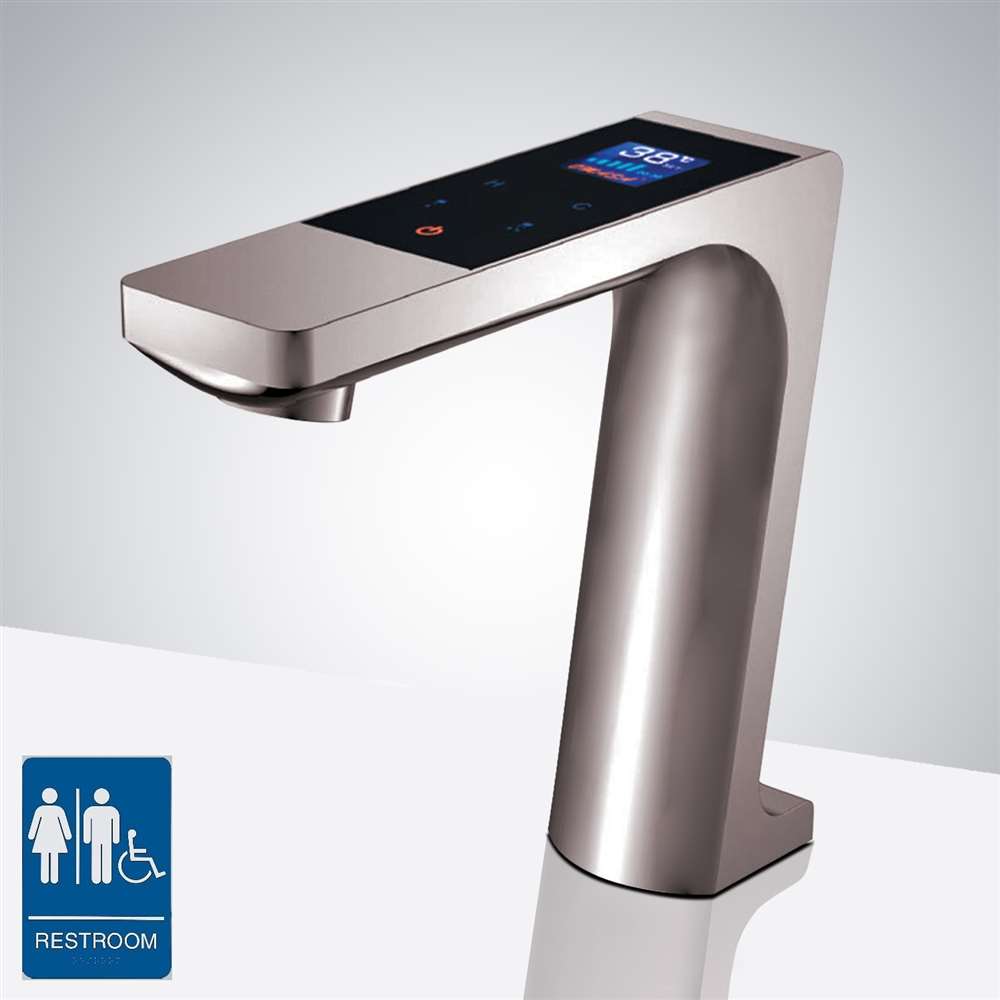

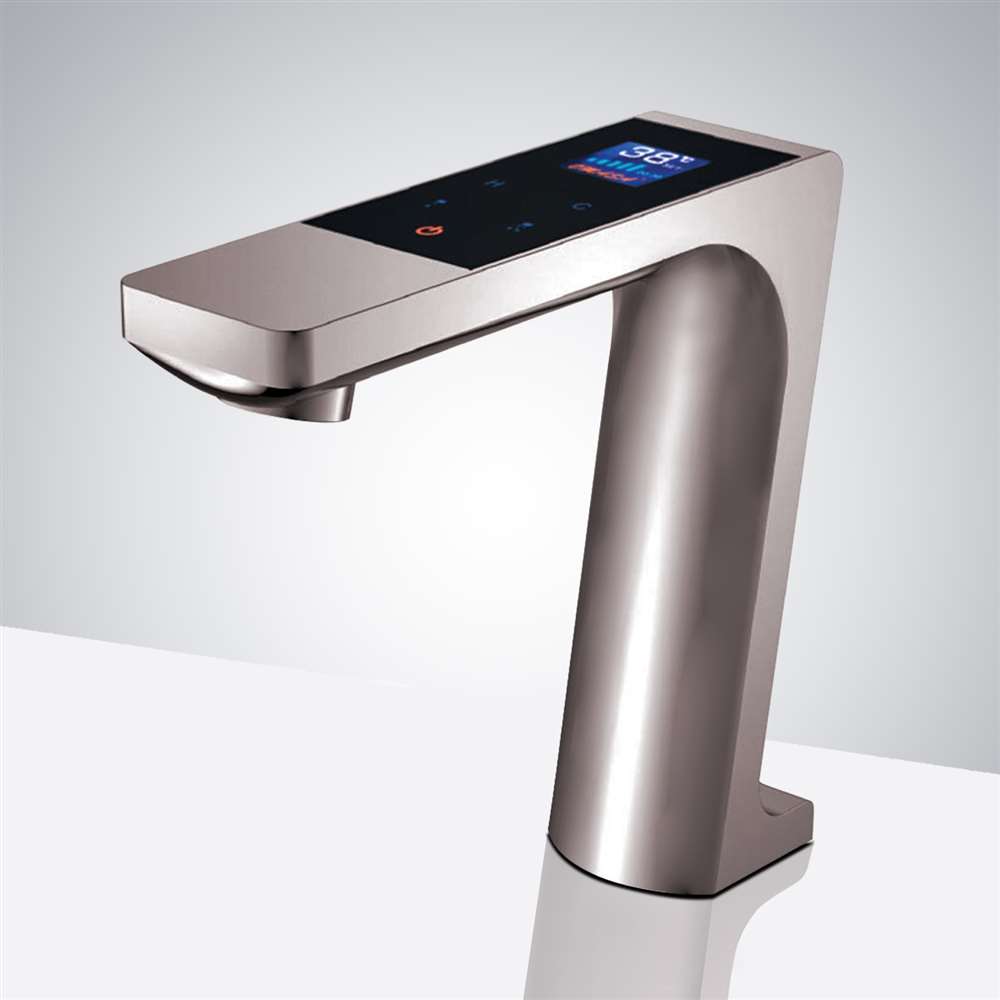

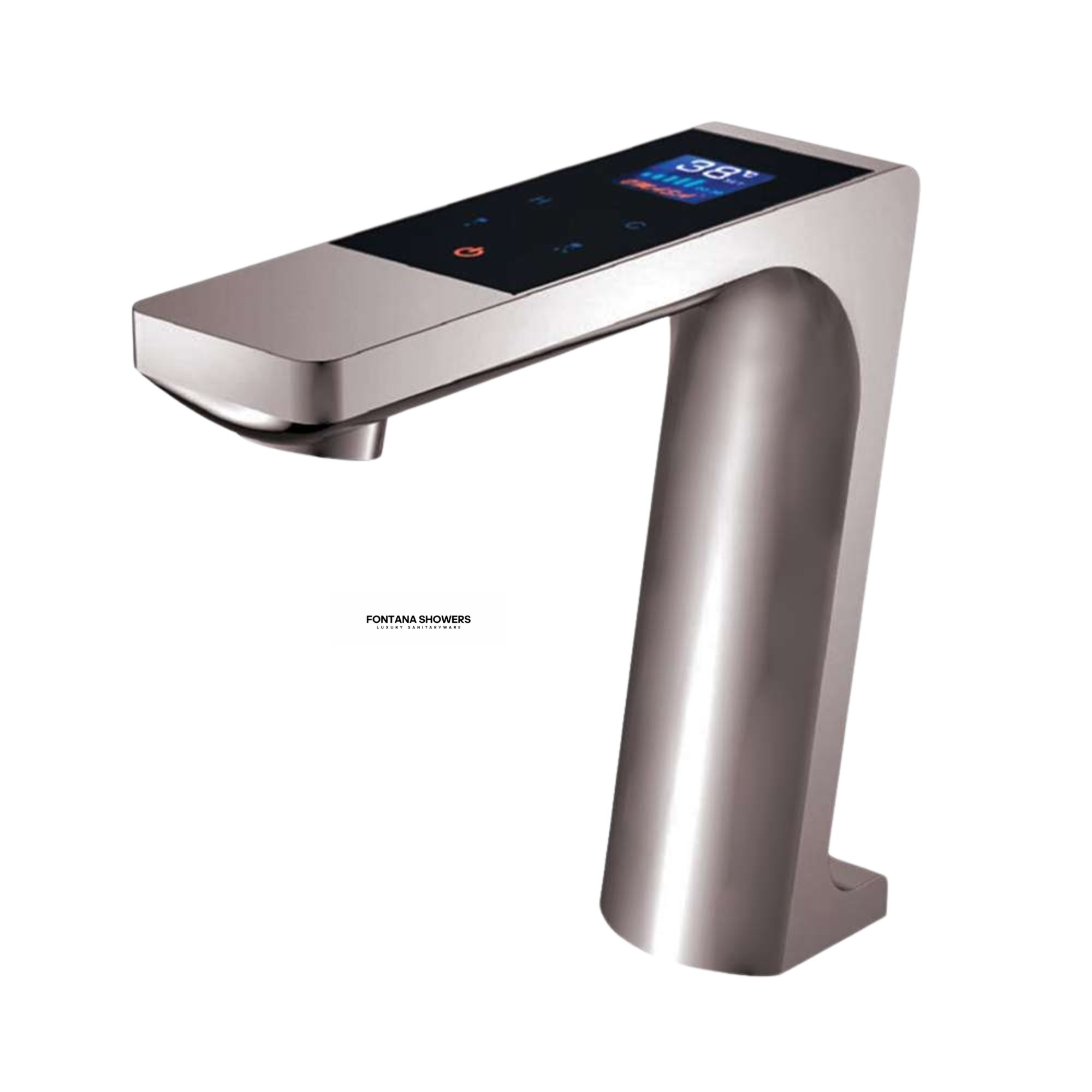

Fontana Commercial Brushed Nickel Digital Screen Automatic Sensor Faucet
Fontana Commercial Brushed Nickel Digital Screen Automatic Sensor Faucet



Alternative Views:


Retail Price $893.59
Sale Price: $770.11
Savings: $123.48

Price with Selected Options: $770.11






Availability: Usually Ships in 5 to 10 Business Days
Product Code:
FS1327-B-DIG


Hot & Cold Option:


Qty:
Description Technical Specs Extended Information


Fontana Commercial Brushed Nickel Digital Screen Automatic Sensor Faucet Specifications :

  • Motion detection provides touchless operation.
  • Sensitive Sensor with Infrared AI Smart-Chip.
  • Factory set to 30-second Auto Shutoff (can be adjusted).
  • Water Pressure: 0.5 - 7.0 KGS/cm, 10 - 125 psi
  • Easy to Install - Instructions Included
  • Water-resistant solenoid enclosure
  • Advanced energy-saving design for long-lasting battery life
  • Sensor faucet comes complete with Hoses & Accessories
  • Power Supply: AC110V And DC6V (batteries not included)
  • AC/DC power option.
  • Ideal for commercial use applications.
  • ADA Complaint
  • Can be installed easily in new or retrofit applications.
  • Durable Vandal-Resistant Brass Body; Ideal for commercial use applications
  • Adjustable sensing range; while the factory range is set about 4" to 5" from the sensor, it can be adjusted.
  • Flashing light indicator; diagnostic indicators for power up, low battery, and solenoid function.
  • The meanings of the codes are described in the installation instructions.
  • Convenient to maintain; with a built-in strainer to prevent sundries from entering the solenoid valve and the strainer is easy to clean.
  • Batteries life is 8,000 cycles per month and with enough water pressure is the approx 5-year service life of the batteries.
  • Usage: Commercial
  • Touch-free operation Touchless restrooms operation ideal for commercial use applications in restaurants, office buildings, public facilities, and hospitals. Fits all standard US plumbing.

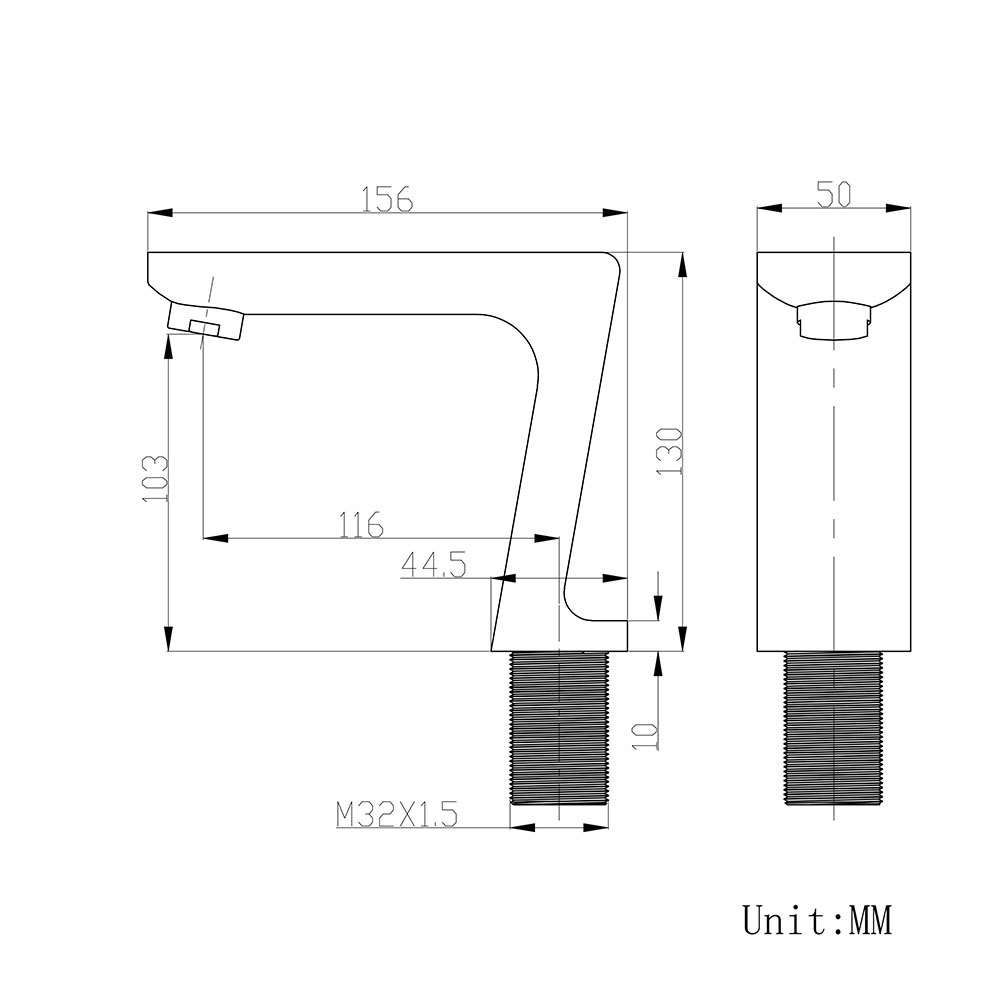

  • Diameter of inlet pipe: DN15
  • Diameter of outlet pipe: DN15
  • Water Pressure: 0.05Mpa - 0.7Mpa
  • Power and Voltage: DC.6V, AC.110-220V - 50/60Hz
  • Power Consumption: 0.5MW, <2W
  • Detection Zone: Factory set 25cm/10" (based on standard inductive board)
  • Ambient Temperature: 1 - 45 ℃ / 33.8 -113 °F
  • Degree of protection by enclosure: 1P56
