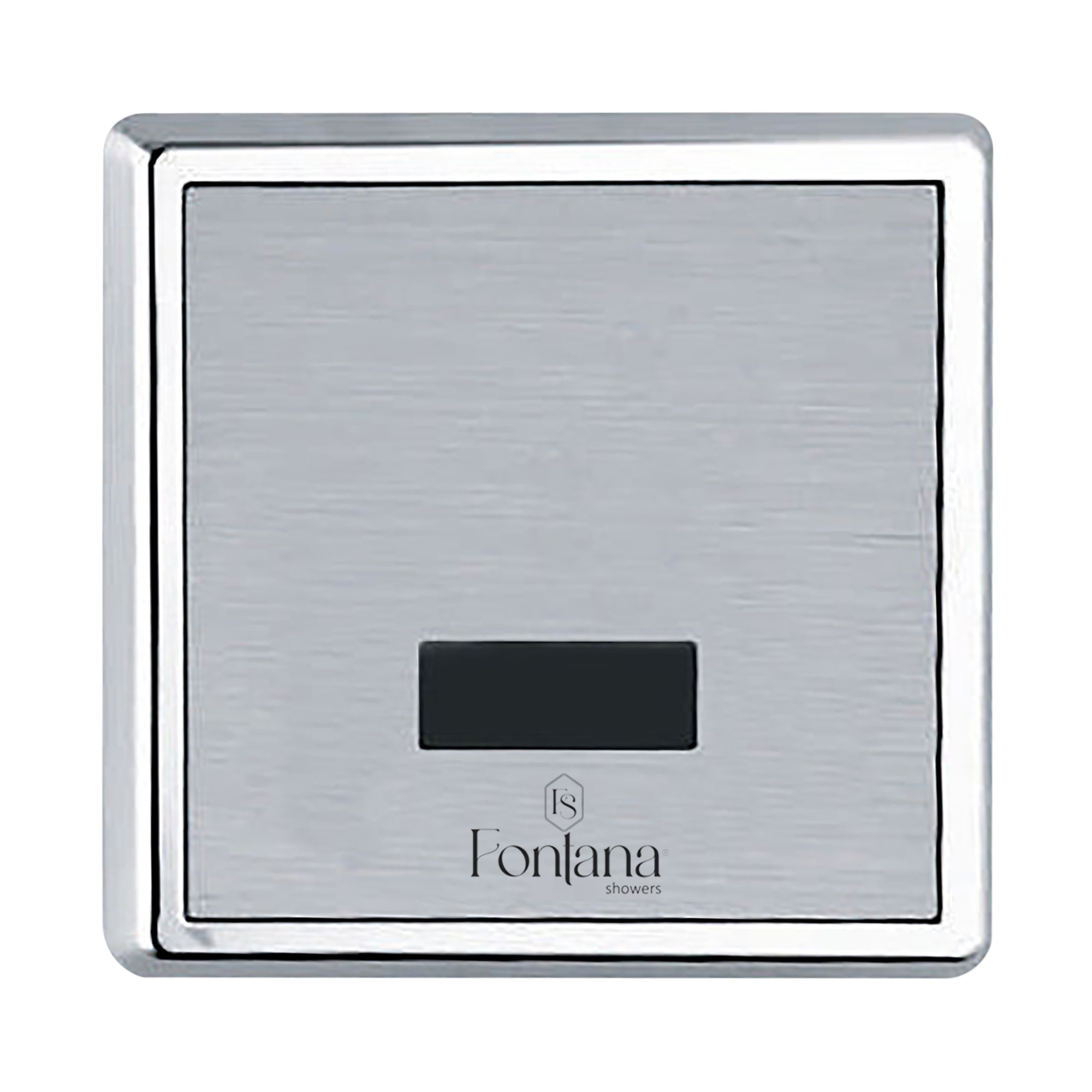

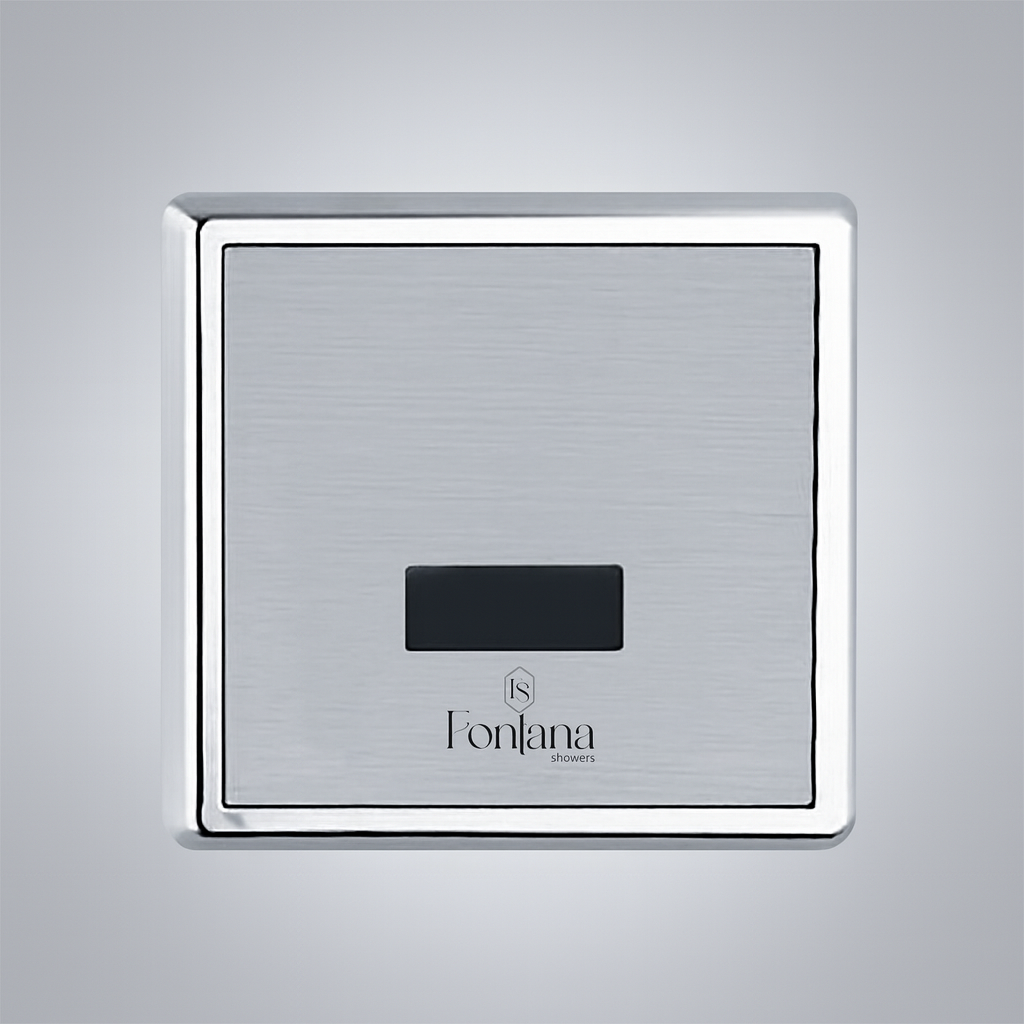

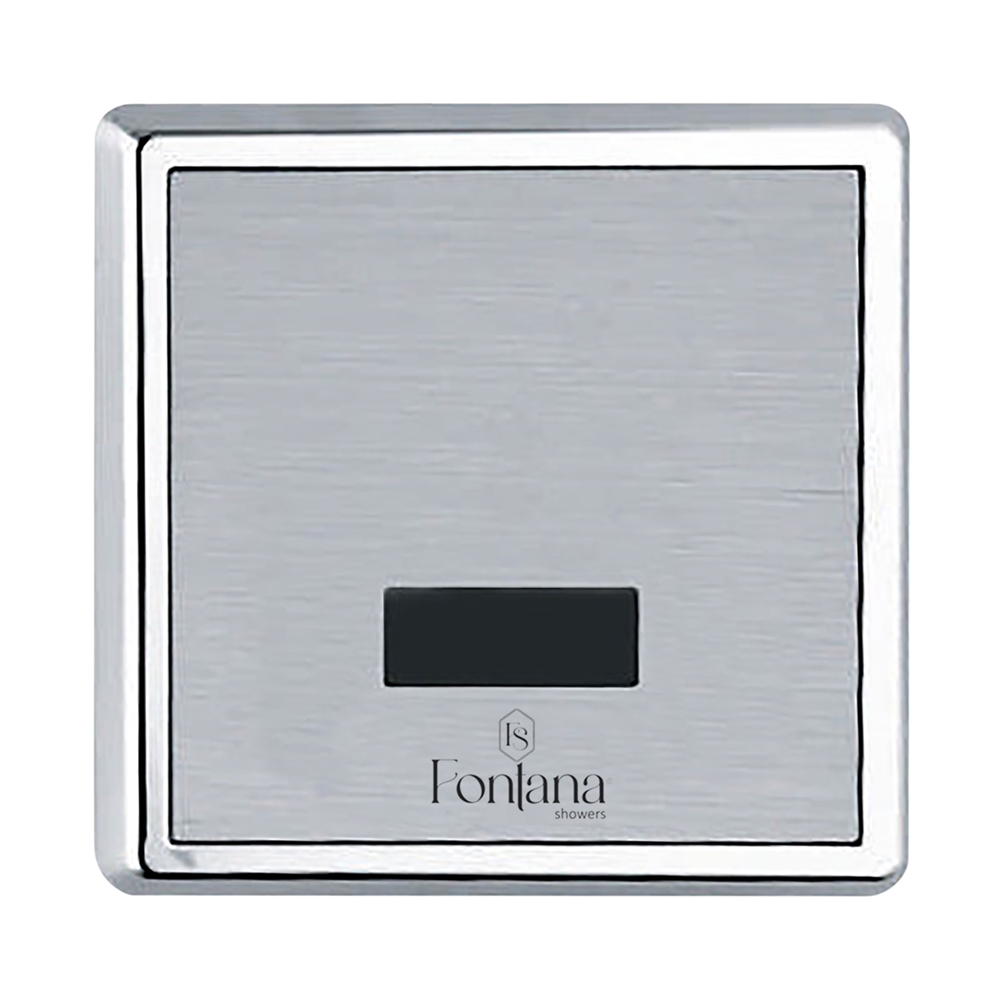

Fontana AquaNode White Automatic Sensor Urinal Flush Valve

The Fontana AquaNode™ in Arctic White blends discreet intelligence with a pristine finish. Designed for healthcare, hospitality, and high-end public restrooms, it offers ultra-quiet, sensor-based flushing that maintains cleanliness without disruption. The AquaNode™ is made from industrial-grade ABS, ensuring years of durability in a high-volume venue without sacrificing any aesthetics when installing in a washroom. It is shipped with a powerful dual-sensor input, with both a DC battery (4xAA, 0.5V) or an AC/electrical supply; it is essential to install and use either one. We have provided a variable induction zone based on how far to stand before the sensor is activated; the optimal range is between 60 - 70 cm. This will create a more hygienic experience. This automatic flushing mechanism is intelligent because it gives the servicing agent latitude in the range of time through which the automatic flusher will be activated. Thus, the agent may extend the flush time or reduce it for greater automatic accuracy. The flush time is less than 0.7 seconds from the time that the auto flush is activated. The energy consumption continues to impress; current draw is less than 60uA and total energy consumption is less than 0.5W, again for district time of service or apparent cost effectiveness. It is rated for the upper limit of both 0.2 to 0.7MPa pressure level, and it can handle the upper liquid temperature limit of 60C so it may be used in the most testing of conditions. The AquaNode operates on DN15 (G1/2") pipe interfaces. For architects, designers, and building owners alike, if your property requires a sleek, quality, intelligent flushing system.

Silent Intelligence for Clinical & Luxury Spaces

• Brand Name: FontanaShowers®
• Model Number: FS8113WH
• Design Style: Contemporary
• Product Type: Urinal Flush Valve
• Flush Valve Type: Automatic Sensor
• Finish: White
• Material: High Quality ABS
• Flush Time: Adjustable
• Installation Type: Wall Mounted
• Electronic Induction Type: DC & AC
• Power Supply: DC:6V (4xAA alkaline batteries), AC 110V~220V
• Flush Time: Adjustable
• Application: Hotel
• Treatment: Natural Surface
• Sensing Distance: 60-70 cm (adjustable)
• Water Temperature: 0.1-60 °C
• Water Pressure: 0.2-0.7MPa
• Environment Temperature: 0.1-45 °C
• Switching Time: <0.7s
• Operation Consumption: <60uA
• Overall Power Consumption: <0.5W
• Water Supply Pipe Size: DN15 (G1/2")
• Front View Width: 5.31"
• Front View Height: 5.31"
• Side View Total Depth: 3.86"
• Depth to Mounting Plate: 2.95"
• Depth from Plate to Cover: 0.59"
