3 in 1 Touchless System Bar Series

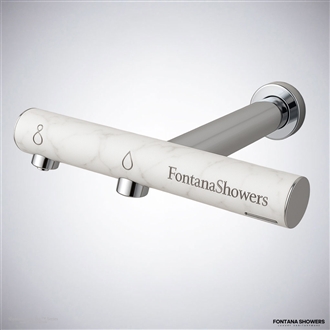

3 in 1 Touchless Fontana Axis Bar Series

A single, minimal footprint that integrates touchless water, soap, and hand-drying at the bar sink. Engineered to give architects, engineers, and contractors a clean, coordinated solution for high-end bars, lounges, hospitality and mixed-use commercial environments.

Perfect fit for bar counters, compact back-of-house sinks, and VIP lounges.

Why the 3 in 1 Touchless Fontana Axis Bar Series

A category-defining bar solution for architects, engineers & contractors

This series goes beyond a typical bar faucet. It consolidates three core hygiene functions into a single, touchless bar station – minimizing clutter on the counter, simplifying installation, and elevating the experience for guests and staff. Ideal for projects where every detail counts.

Architects

Minimal Lines, Maximum Impact

Maintain a clean, uninterrupted bar profile with integrated touchless hardware that coordinates in finish and form. The Fontana Axis Bar Series supports contemporary, transitional, and luxury hospitality concepts while preserving visual calm at the counter edge.

Engineers

Performance & Integration

Compact 3-in-1 design helps simplify mechanical layouts and reduces the number of connections at each bar bay. Incorporate touchless water delivery, soap, and hand-drying with clearly defined power, water, and drain requirements for coordinated MEP drawings.

Contractors

Installation Efficiency

Fewer cutouts, fewer independent devices, and a coordinated kit of parts means shorter install time and fewer callbacks. The series is designed with clear mounting details and accessible components to support fast, clean installations in fast-track projects.

Visible Banner for AEC Teams

Engineered as a Complete Bar Hygiene Station

From design development to final commissioning, the 3 in 1 Touchless Fontana Axis Bar Series is built to move smoothly through every stage of the project lifecycle. Reference it confidently in your specs, schedules, and drawing sets.

Specification-Driven Touchless Operation Compact Footprint Bar-Ready Finishes High-Traffic Use
Technical Overview

3 in 1 Touchless Axis Bar Series Specifications

This overview is structured for quick integration into Division 22 and Division 11 specifications, as well as drawing schedules. Always refer to the official cut sheet for final dimensional and technical data.

High-Level Technical Summary

  • Integrated touchless bar faucet with matching touchless soap dispenser and hand-drying solution.
  • Infrared sensor activation, tuned for bar applications to reduce nuisance activations.
  • Coordinated finish options for visible components – ideal for premium hospitality and lounge spaces.
  • Available with AC power, battery backup, or dedicated low-voltage options (per specific model).
  • Low-flow options available to support water-efficiency goals and relevant regional codes.
  • Designed for commercial bar sinks, utility bar stations, and compact hand-wash locations.
  • Compatible with typical bar countertop materials including stone, quartz, solid surface, and stainless.
  • Installation and maintenance access planned with bar millwork and under-counter congestion in mind.
Category Key Notes
Configuration 3-in-1 system: faucet, soap dispenser, and hand-drying / auxiliary component.
Operation Touchless infrared sensors with adjustable range and delay (model dependent).
Application Commercial bars, lounges, hotels, restaurants, mixed-use developments.
Mounting Deck-mounted at bar counter or back-of-house bar prep areas.
Power Options for line power and/or battery operation; consult cut sheet for exact requirements.
Water Connection sizes and maximum working pressure to match standard commercial plumbing practices.
Compliance Designed to work with major plumbing codes and commercial standards; verify local requirements.
Resources for AEC Teams

Download Center & Bar Use Cases

Everything your team needs – from schematic design to record drawings. Attach these documents directly to your project folder, BIM model, or submittal package.

Project Resources

3 in 1 Touchless Axis Bar Series – Spec Sheet (PDF) Outline specifications for Division 22 and related sections.
Axis Bar Series – Cut Sheet & Dimensions (PDF) Dimensional drawings, clearances, and mounting requirements.
Revit / BIM Content (RVT, RFA) Ready-to-place families optimized for bar layouts.
Installation & Maintenance Guide Details for contractors, facility teams, and operators.

Note: Link these buttons to your actual file URLs or document management system (DMS) paths for production use.

Bar & Hospitality Applications

  • Front-of-house bars and cocktail stations where guest-visible details matter.
  • Private club lounges, hotel bars, executive floors, and VIP suites.
  • High-traffic entertainment venues requiring robust, easy-to-clean solutions.
  • Back-of-house bar prep sinks where space is tight and operations are continuous.
  • Mixed-use hospitality spaces with shared bar / café concepts.
Design Coordination Note

Coordinate the 3 in 1 Touchless Fontana Axis Bar Series with millwork shop drawings, bar equipment layouts, and lighting plans to preserve visual alignment and ergonomic reach zones for bartenders and staff.

Frequently Asked Questions

FAQ – 3 in 1 Touchless Fontana Axis Bar Series

Quick answers to the questions your AEC team and clients will most often raise when evaluating a 3-in-1 touchless bar solution.

How does the 3-in-1 functionality work at the bar?

The Fontana Axis Bar Series integrates a touchless faucet, a matching touchless soap dispenser, and a coordinated hand-drying or auxiliary component into a single, unified system. Each element is sensor-based, helping reduce contact points and keeping bar work surfaces cleaner.

Is the series suitable for compact bar layouts?

Yes. The 3-in-1 configuration is specifically geared toward high-value counter space where multiple single devices would create visual and physical clutter. By consolidating functions, it preserves workflow behind the bar while delivering full hygiene capability.

Can this be coordinated with other Fontana fixtures?

The series is developed to visually align with broader Fontana touchless collections, enabling a consistent design language from restrooms to bar areas, lobbies, and back-of-house spaces in larger hospitality or mixed-use projects.

What should our team include in the specification?

Reference “3 in 1 Touchless Fontana Axis Bar Series” as basis of design, and call out essential performance criteria: touchless operation, 3-in-1 integration, commercial bar rating, aligned finishes, and compatibility with project power and water conditions. Attach the official spec and cut sheet to your specification section for clarity.
