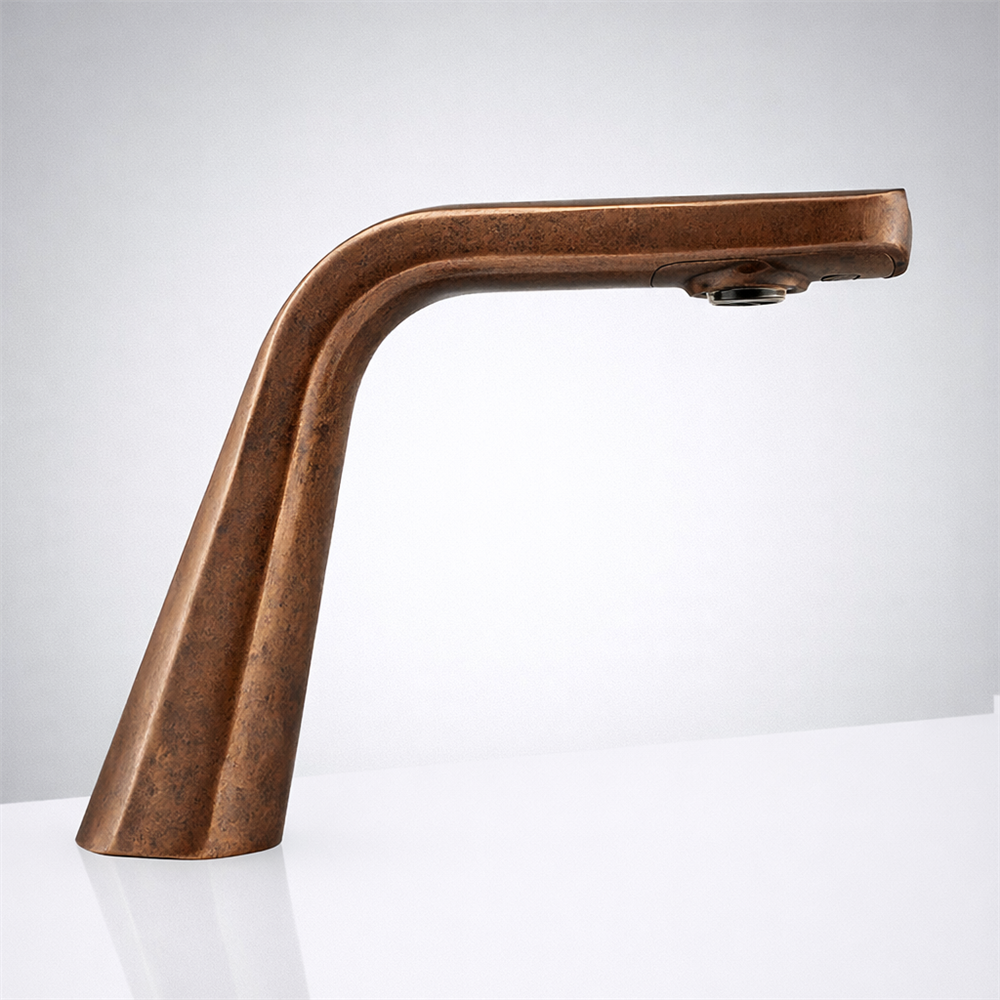

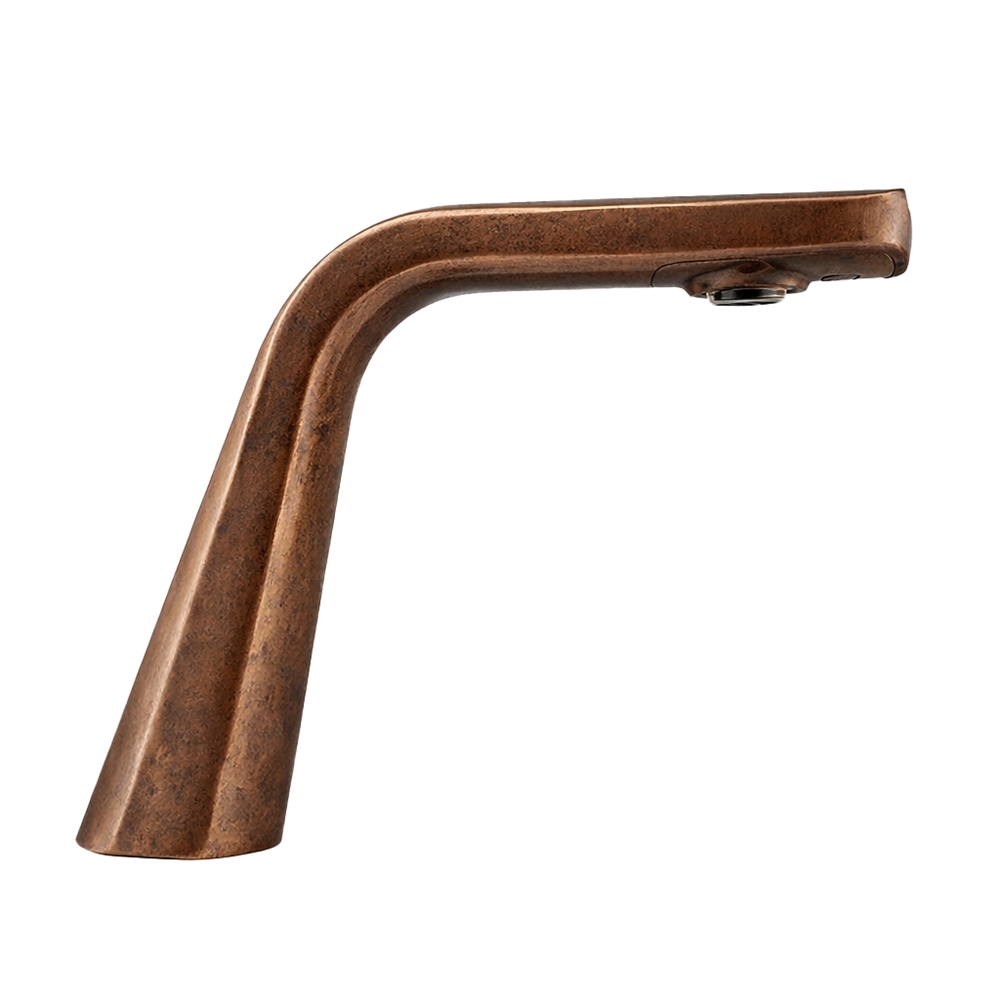

FontanaCivicSense Premium Antique Copper Automatic Sensor Faucet

FontanaCivicSense™ Premium Antique Copper Automatic Sensor Faucet presents a luxurious automation that is very well thought out for tough civic and institutional lavatory situations. Its warm antique copper finish, and its contemporary style, are the two main features that enable this fixture to be very sophisticated visually yet still functional and hands-free. The operation of the advanced system allows a very accurate response within a limited detection zone, therefore allowing a hygienic interaction without the need for physical contact. A timed dose sensor faucet releases the amount of water that is preset, thus increasing efficiency, hygiene control, and dependable performance of it in commercial facilities. Through adjustable shutoff timing, resources are well managed, and the consumption during the peak usage periods is also prevented. The durable enclosure protection helps in the long-term operation of it in various ambient conditions. The dual power feature gives the option of either integration in new installations or retrofitting existing projects. Smooth flow control guarantees sustainable use of the facility even during high-frequency applications. The best places for it would be schools, universities, cafeterias, academic common areas, government buildings, municipal restrooms, and public facility wash stations. Touchless operation bolsters health measures since it is the major reason for the reduction of germ spread moving around in shared environments. The engineered reliability ensures stable daily operation even under conditions of continuous demand. Compliance certified ASME/ CSA/ ADA /WaterSense / CALGreen. This solution with a global reach not only has a pleasant classic finish character but also features modern sensor intelligence and operational efficiency that are a must for professional restroom infrastructures around the world.

• Brand Name: fontanatouchlessfaucets®
• Model Number: FS20049AC
• Style: Contemporary
• Finish: Warm Antique Copper
• Power: DC.6V
• Detection Zone: 0.94" (25cm/Factory set, based on standard inductive board)
• Ambient Temperature: 1-45°/33.8-113°F
• Degree of Protection by Enclosure: 1P56
• Flow Rate: Available Flow Rate From 0.5 to
• Auto Shutoff: 30 Seconds (Factory set, can be adjusted)
• Water Pressure: 0.5-7.0 KGS/CM, 10-125 PSI
• Power Supply: AC 120V (dual voltage) and DC 6V (batteries not included)
• Power Options: AC/DC
• Battery Type: 4 x 'AA' size cells
• Diameter of Inlet Pipe: DN15
• Diameter of Outlet Pipe: DN15
• US Standard Water Supply Pipe Size: DN15 (G1/2")
• Faucet Height: 7.87" (200mm)
• Spout Length: 4.13" (105mm)
• Water Pressure: 0.05Mpa-0.7Mpa
