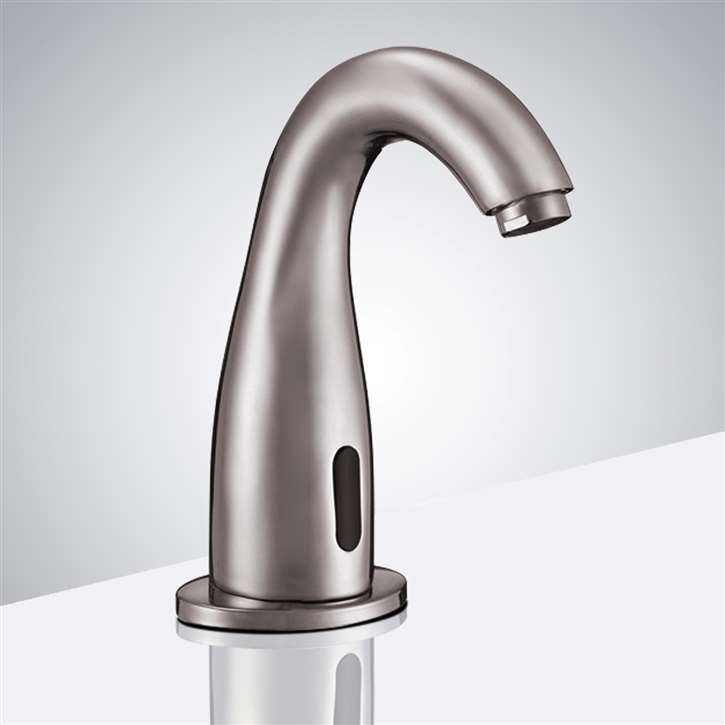

Fontana Plato Automatic Commercial Brushed Nickel Sensor Faucet
Fontana Commercial Brushed Nickel Platinum Automatic Sensor Faucet
Thermostatic Sensor Tap



Alternative Views:


Retail Price $722.44
Sale Price: $556.70
Savings: $165.74

Price with Selected Options: $556.70






Availability: Usually Ships in 5 to 10 Business Days
Product Code:
FS-505SG


Hot & Cold Option:


Qty:
Description Technical Specs Extended Information


  • Motion sensor with the touchless operation
  • Sensitive Sensor with Infrared AI Smart-Chip
  • Factory set to 30-second Auto Shutoff (can be adjusted).
  • Water Pressure: 0.5 - 7.0 KGS/cm, 10 - 125 psi
  • Solid Brass Construction, Brushed Nickel Finish
  • Easy to Install - Instructions Included
  • Water-resistant solenoid enclosure
  • Advanced energy-saving design for long-lasting battery life
  • Comes complete with Hoses & Accessories
  • Power Supply: AC110V And DC6V (batteries not included)
  • AC/DC power option.
  • ADA Compliant, commercial sensor faucet.
  • Can be installed easily in new or upgraded retrofit commercial restrooms.
  • Usage: Commercial
  • Fits all standard faucets. Uses 4AA Alkaline Batteries (purchase separately). Water Pressure: 0.5 - 7.0 KGS/cm, 10-125 psi.
  • Touch-free operation ideal for commercial use applications in public restrooms, restaurants, office buildings, and public facilities. Fits all standard US plumbing.

Comes Complete for easy installation.

Plato Automatic Commercial Sensor Faucet D514 (Available in Oil Rubbed Bronze Finish)

Reduces the transfer of germs by preventing cross-contamination and re-contamination of germs and bacteria by not touching the faucet handles. Cut down on water usage by minimizing waste of water by eliminating unnecessary or unattended water flow.

Sensor Activated Faucet Special Features:

  • Durable Vandal-Resistant Brass Body; Ideal for commercial high use applications
  • Intelligent: with its micro-computer controlling its action, the faucet will self-adjust its best detection zone as per the color and shape of the lavatory
  • Flashing light indicator; a diagnostic indicator for power up, low battery, and solenoid function.
  • The meanings of the codes are described in the installation instructions.
  • Convenient to maintain; with a built-in strainer to prevent sundries from entering the solenoid valve and the strainer is easy to clean
  • The faucet can be mounted to any sink surface.
  • ADA Compliant.
  • The battery's life is 8,000 cycles per month and with enough water pressure is approx 5 years service life of the batteries.
  • Adjustable sensing range; while the factory range is set about 4" to 5" from the sensor, it can be adjusted.
  • Diameter of inlet pipe: DN15
  • Diameter of outlet pipe: DN15
  • Water Pressure: 0.05Mpa - 0.7Mpa
  • Power and Voltage: DC.6V, AC.110-220V - 50/60Hz
  • Power Consumption: 0.5MW, <2W
  • Detection Zone: Factory set 25cm/10" (based on standard inductive board)
  • Ambient Temperature: 1 - 45 ℃ / 33.8 -113 °F
  • Degree of protection by enclosure: 1P56
