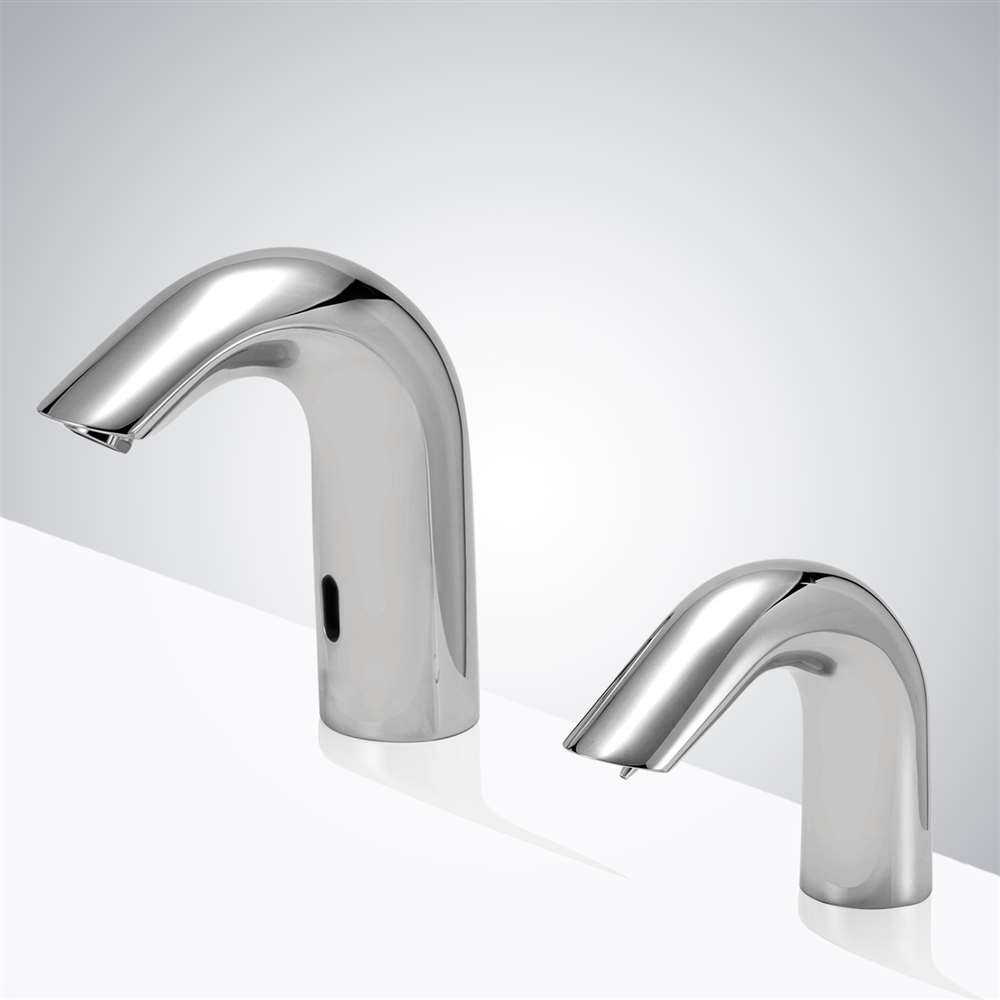

Fontana Commercial Chrome Automatic Dual Motion Sensor Bathroom Faucet and Soap Dispenser

Made with stainless steel and a drip-free design this automatic bathroom motion sensor faucet & touchless soap dispenser set is also available in Chrome finish. Fit for high traffic commercial applications. Sensitive Sensor with Infrared AI Smart-Chip. Factory set to 30-second Auto Shutoff (can be adjusted). Advanced energy saving design for long lasting battery life. Convenient to maintain; with built-in strainer to prevent sundries from entering the solenoid valve and the strainer is easy to clean. Faucet can be mounted to any sink surface. Sensor faucet comes complete with Hoses & Accessories. Easy to Install - Instructions Included. Ideal for commercial use applications in public restrooms, restaurants, office buildings, public facilities, and shopping malls. Fits all US standard plumbing.

Fontana Commercial Chrome Automatic Dual Motion Sensor Faucet and Soap Dispenser FAQ

Dual-Sensor Coordination, Soap Dispensing Synchronization & Touchless Hygiene Integration

The Fontana FB507CSD combines an automatic faucet and touchless soap dispenser utilizing dual motion-sensing technology, AI-assisted detection, and commercial-grade electronic controls. :contentReference[oaicite:10]{index=10}

How does the dual-sensor architecture improve handwashing workflow?

Independent sensors manage soap dispensing and water delivery separately, allowing each system to respond optimally without interference. :contentReference[oaicite:11]{index=11}

Why is a drip-free soap dispensing design important in commercial facilities?

Drip-free operation reduces countertop residue accumulation, minimizes soap waste, and lowers cleaning frequency. :contentReference[oaicite:12]{index=12}

How does the built-in strainer support long-term reliability?

The strainer prevents particulate contamination from reaching the solenoid assembly, reducing the likelihood of valve obstruction. :contentReference[oaicite:13]{index=13}

What role does the adjustable auto-shutoff function perform?

The auto-shutoff timer limits continuous operation duration, conserving water while protecting the fixture from unnecessary run cycles. :contentReference[oaicite:14]{index=14}

• Brand Name: FontanaShowers®
• Model Number:FB507CSD
• Type: Touchless Bathroom Faucet
• Water Pressure: 0.5-7.0 KGS/cm , 10-125 psi
• Finish: Chrome
• Construction: Solid Brass
• Control Box : Included- Hardwired & Battery Operated
• Supply Hoses: Included
• Other Features: Vandal resistant
• Remote Control: Optional- Reset or Adjust the Sensing Distance or turn off/on
• Flow Rate: Built in Aerator Available from .5 GPM - 1.5 GPM
• Flow Rate Special: Customizable can be provided for any Water Flow Requirement
• Sensor Range: Adjustable
• Mounting Hardware: Included
• Hot and Cold Water: Optional
• Power Supply: AC110V And DC6V
• Batteries Included: No
• Mixing Valve: Water Temperature Mixing Valve Available
• Mixing Valve Material: Solid Brass Thermostatic Mixing Valve Available
• Mixing Valve: Water Temperature Mixing Valve Available
• Mixing Valve Material: Solid Brass Thermostatic Mixing Valve Available
• Mixing Valve Material: Solid Brass Thermostatic Mixing Valve Available
• Valve Type: Solenoid Valve
• Mounting Type: Deck Mount
• Usage: Commercial Restrooms
• Body Material: Brass
• Valve Body: Brass
• Temperature Range: 0.1 - 45ºC
• Sensing distance: 9.8"
• Time delay: 0.5 seconds
• Usage: Commercial restrooms including high traffic bathroom facilities
• ADA Compliant
