How should the infrared activation field be validated after the commercial lavatory is fully assembled?

Commission the faucet only after the basin, drain trim, mirror, backsplash, soap dispenser, and final lighting are installed. Test several hand-entry paths and wet-basin conditions to confirm immediate activation without nuisance triggering from reflective chrome components or standing water.

How should the single-hole deck mount be reinforced for high-traffic restroom use?

Verify that the countertop and underside support resist rotational and lateral movement around the brass mounting shank. Thin solid-surface or metal decks may require a reinforcement plate so repeated cleaning and incidental user contact do not alter spout alignment or load the supply connections.

What hydraulic tests are required across the published 0.05–0.8 MPa pressure range?

Measure static pressure with the faucet closed and dynamic pressure during discharge. Confirm dependable valve opening, stable stream formation, positive shutoff, and acceptable noise without cavitation, pulsation, excessive velocity, pressure collapse, or water hammer.

How should the six-liter water-saving operation be documented during commissioning?

Collect discharge from multiple representative sensor cycles and record delivered volume, activation duration, flowing pressure, and basin drainage response. Retain the results as a commissioning baseline for future water-use audits and diagnosis of aerator restriction or abnormal cycle duration.

Why should the optional below-deck hot-and-cold mixer be tested under simultaneous fixture demand?

Set the mixed-water temperature while the faucet is flowing, then operate nearby faucets and flush valves to reproduce realistic pressure fluctuations. Confirm that the outlet temperature remains stable and does not create sudden hot or cold excursions during peak restroom demand.

What supply-line preparation protects the automatic valve and outlet assembly?

Flush the branch piping before final faucet connection and inspect inlet screens after startup. Construction debris, pipe scale, solder residue, and thread sealant can restrict discharge, damage the valve seat, delay shutoff, or create an uneven stream.

How should the chrome finish and sensor window be maintained without degrading detection accuracy?

Clean with a soft microfiber cloth and diluted pH-neutral cleaner, then rinse and dry the faucet body and optical window. Avoid abrasive pads, acidic descalers, chlorine concentrates, metal polish, wax, and solvent-based cleaners that can damage the finish or interfere with infrared transmission.

Which final acceptance tests confirm complete FS-1097SC readiness for commercial service?

Verify mounting rigidity, repeatable hands-free activation, static and dynamic pressure, automatic shutoff, measured discharge volume, stream placement, optional mixed-water stability, leak-free standard US plumbing connections, ADA usability, and dependable performance through repeated high-traffic operating cycles.

Browse Fontana Commercial Chrome Automatic Sensor Hands Free Faucet at FontanaShowers

Fontana Aquila Chrome Touchless Faucet

Fontana Commercial Chrome Touchless Faucet

Alternative Views:

List Price $917.30

Sale Price: $686.72

Savings: $230.58

Sale Price: $686.72

Availability: Usually Ships in 2 to 3 Weeks

Product Code: FS-1097SC

Hot & Cold Option:

Qty:

Description

Technical Specs

Extended Information

Brushed Gold

Matte Black & Gold

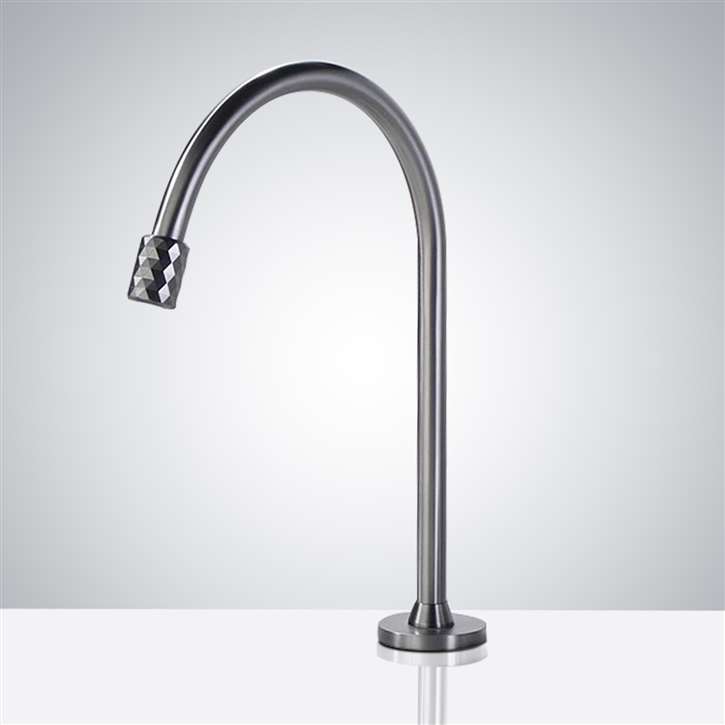

Fontana Commercial Chrome Touchless Faucet

Deck-Mount Sensor Faucet; Built with stable sensing, controlled discharge, and reliable operation. If you're looking for improved touchless convenience, enhanced hygiene, energy efficiency, and durable performance with instant on and off built in technology this is a great choice. This Fontana touchless bathroom faucet are easy to use, instant on and off technology, simple and intuitive making it a great choice among architects and designers.

Do you need a new faucet for your commercial space? Check out this Fontana Commercial Chrome Touchless Faucet! It's perfect for modern spaces and is sure to impress your guests. Plus, it's easy to install and made with high-quality materials. It has a chrome finish which sets your public restroom apart from others. The infrared sensors enable totally hands-free operation, effectively preventing the transfer of germs. This Fontana Commercial Chrome Touchless Faucet is compatible with all standard US plumbing. The faucet can be used in commercial locations, is ADA Compliant, and has a 5-year warranty. This cast brass electronic faucet in reducing the transfer of germs by preventing cross-contamination and re-contamination of germs and bacteria by not touching the faucet handles.

Fontana Aquila Commercial Chrome Touchless Faucet FAQ

Sensor Targeting, Branch-Pressure Stability & Mixer Commissioning

The Fontana Aquila commercial touchless faucet combines a Chrome-finished brass body, single-hole deck mounting, and infrared-controlled water delivery for hygienic operation in airports, offices, restaurants, and public facilities.

How should the infrared field be coordinated with the basin’s front edge?

The sensing zone should detect hands beneath the outlet without extending beyond the usable bowl area. Final validation must be completed with the basin, backsplash, mirror, and countertop accessories installed.

Why should faucet performance be tested while nearby flush valves are discharging?

Simultaneous fixture operation reveals dynamic pressure losses that static testing cannot identify. The branch should maintain stable faucet discharge throughout the specified 0.05–0.8 MPa operating range.

How should the optional hot-and-cold mixer be set for repeatable outlet temperature?

The below-deck mixer should be adjusted while water is flowing and both supplies are under normal building demand, then secured to prevent maintenance activity from changing the commissioned blend.

What does delayed shutoff accompanied by normal sensor response usually indicate?

The condition commonly points to debris on the valve seat, restricted inlet filtration, unstable supply pressure, or incomplete actuator travel rather than a failure of the infrared detection module.

Brand Name: FontanaShowers®
Model Number: FS-1097SC
Type:Commercial Touchless Bathroom Faucet, Motion Sensor Sink Faucet
Style: Contemporary
Finish: Chrome
Faucet Mount: Single Hole
Installation Type: Deck Mount
Material: Brass
Water Pressure: 0.05Mpa-0.8Mpa
Water Saving: Volume 6L Each Time
Usage: Commercial restrooms, and high traffic bathroom facilities
Hands-free operation is ideal for commercial use applications in public restrooms, restaurants, office buildings, public facilities, and airports. Fits all standard US plumbing.
ADA Compliant
