Fontana Cylindra | Vessel Faucet Series

New Category Series • Vessel Sink Match

Fontana Cylindra Wall-Mount Faucets
for Vessel Sink Architecture

A curated wall-mount faucet series engineered for vessel basins, combining precise projection control, architectural proportions, and finish consistency – ready for AEC workflows, hospitality and premium residential projects.

3 Spout Projections

6+ Architectural Finishes

<1.5 L/min Optional Low-Flow Config

BIM Ready Revit & DWG Families

Faucets with Vessel Sink Match AEC Preview Banner

Category Vision: Faucets with Vessel Sink Match

The Faucets with Vessel Sink Match category brings together wall-mount faucets that are proportioned specifically for above-counter vessel basins. The Fontana Cylindra series sits at the center of this category – its geometry, reach and aerator positioning are tuned to minimise splash and maximise visual alignment with vessel rims and feature walls.

AEC Optimized

Designed for Section Cuts & Elevations

Cylindrical bodies and clean wall-backplates read clearly in drawings and renderings, while consistent projection options make coordination with vessel diameters and vanity depths straightforward during DD and CD phases.

Vessel Sink First

Projection Tuned to Vessel Geometry

Multiple spout lengths allow the faucet to clear wide or compact vessel bowls, while maintaining ideal fall distance between the outlet and the effective water surface to reduce splash and noise.

Collection Cohesion

One Language Across the Project

The Cylindra wall-mount range can be mirrored across guest rooms, suites and public washrooms, using the same visual language while scaling finishes and configurations per zone.

Technical Specifications & Model Matrix

For accurate coordination with vessel sinks, each model within the Fontana Cylindra wall-mount series is defined by its spout projection, valve configuration and flow performance. Use this section for quick specification and schedule entries.

Model Matrix – Fontana Cylindra Wall-Mount Faucets

Model / Ref.	Spout Projection	Control	Flow Rate*	Typical Vessel Size	Finishes
Cylindra WM 180	180 mm	Single-lever mixer	5.7 L/min @ 3 bar	Ø 320–360 mm	Chrome, Brushed Nickel, Matte Black
Cylindra WM 210	210 mm	Single-lever mixer	5.7 L/min @ 3 bar	Ø 360–420 mm	Chrome, Brushed Nickel, Brushed Gold, Matte Black
Cylindra WM 240	240 mm	Wall-mount mixer, 2-handle	5.7 L/min @ 3 bar	Wide oval / rectangular vessels	Chrome, Brushed Nickel, Graphite
Cylindra WM ECO	210 mm	Single-lever ECO	<1.5 L/min w/ aerator	Contract & public restrooms	Chrome, Matte Black

*Indicative performance. Always verify region-specific flow regulations and certificates during specification.

Installation Envelope

Ideal mounting height is determined by vessel rim elevation + user ergonomics. For most applications, the spout outlet lands 200–250 mm above the finished vessel rim. Rough-in boxes and valve sets are compatible with standard 1/2" supplies.

Rough Depth

65–80 mm (adjustable)

Max Wall Finish

Up to 25 mm

Connection

1/2" BSP / NPT (region)

Pressure Range

1–5 bar recommended

Finish Strategy

The Cylindra series is conceived to align with contemporary vessel sinks: from pure white ceramics to textured stone. Contrasting or tone-on-tone finish pairings allow you to reinforce your project’s design concept.

Polished Chrome – clean, timeless, high-luminance for compact spaces.
Brushed Nickel – soft reflection, pairs well with concrete and stone basins.

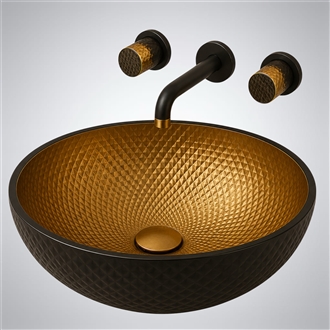

Matte Black – graphic edge for minimal or monochrome bathrooms.

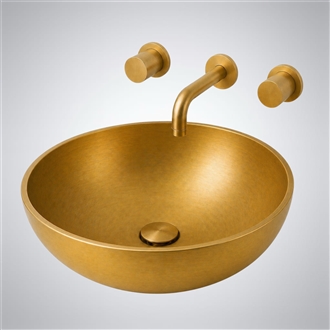

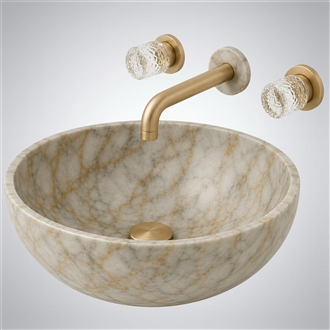

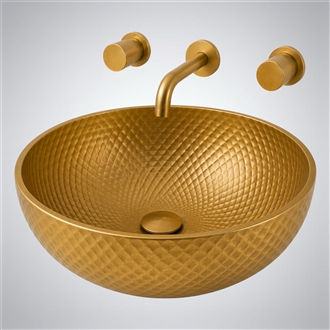

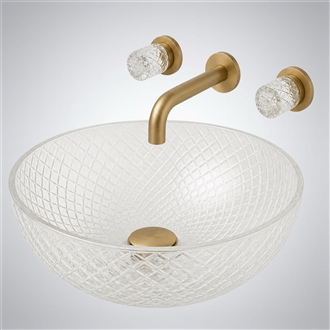

Brushed Gold / Warm Tones – hospitality & luxury suites, feature powder rooms.

Typical Applications & AEC Use Cases

The Fontana Cylindra Wall-Mount series is positioned to be specified wherever vessel sinks and clean wall-mounted fittings are required. Below are high-level application scenarios you can reuse in project narratives, specification notes and client presentations.

Hospitality Bathrooms

Guest Rooms & Suites

Use Cylindra WM 210 with medium to large round vessel basins in guest rooms. The extended projection and streamlined formwork maintain generous freeboard while optimising cleaning around the basin.

Coherent look across standard and premium room categories.
Compatible with solid-surface and natural-stone countertops.
Low splash pattern ideal for frequent-use environments.

Public Zone Design

Lobby & Restaurant Washrooms

Pair Cylindra WM ECO with sculptural or colored vessel bowls on custom vanities in public restrooms. High visual impact with controlled water usage for high-traffic spaces.

Supports LEED / BREEAM low-flow strategies.
Strong visual identity for brand-led washrooms.
Robust construction suited to intensive use.

Residential & Multi-Unit

Premium Residential & Penthouses

Cylindra WM 240 combines with elongated or rectangular vessels to form a quiet, architectural composition – ideal for ensuite bathrooms, penthouses and high-end apartments.

Aligns with minimalist interior schemes.
Scales elegantly across multi-residential typologies.
Delivers a “boutique hotel at home” experience.

BIM, CAD & Documentation – Ready for the AEC Workflow

To support integrated design workflows, the Fontana Cylindra Wall-Mount collection includes BIM objects, CAD files and standardised documentation assets tailored for architectural practices, engineers and contractors.

Digital Assets

Parametric Revit families (.rfa) with projection and height parameters.
2D DWG blocks for plans, elevations and sections.
IFC geometry for openBIM coordination.
High-resolution PNG / JPG for mood boards and client decks.

All assets are dimensionally coordinated with vessel sink mounting recommendations to reduce on-site adjustments and RFIs.

Specification Language

You can reuse the following generic specification clause and tailor it to your project standards:

“Provide and install Fontana Cylindra Wall-Mount Vessel Faucet, model [WM 180 / 210 / 240 / ECO] or approved equal, wall-mounted mixer for use with above-counter vessel basin, [finish], [flow rate], complete with rough-in and trim as per manufacturer’s instructions. Coordinate outlet position with final basin model and height.”

FAQ

Use these questions and headings to enrich your SEO strategy around the ArchiExpo category page while keeping copy relevant to architects, designers and contractors.

What is a “Faucet with Vessel Sink Match” Category?

This category defines wall-mount faucets purpose-designed to work with vessel basins. It focuses on correct spout projection, controlled water fall, and geometry that visually complements above-counter bowls.

Why Choose Fontana Cylindra Wall-Mount Faucets for Vessel Sinks?

The Fontana Cylindra series offers multiple spout lengths, finish options and flow configurations, so architects can tailor a single family across different vessel types and project zones while maintaining a unified design language.

How Do I Select the Right Spout Projection?

Start from vessel diameter (or length) and distance from wall to center of the basin. Select a projection that lands the outlet approximately at the basin’s inner third, avoiding both the back wall and front rim.

Are These Wall-Mount Faucets Compatible with Existing Rough-Ins?

Rough-in compatibility depends on local standards. The series is designed around common 1/2" connections, but always coordinate with MEP engineers and verify wall build-up, insulation and waterproofing details.

Can I Download BIM Files and Cut Sheets for the Cylindra Series?

Yes. BIM families, DWG drawings and PDF technical sheets are available through the manufacturer and can be linked directly from your ArchiExpo product page for fast access by AEC teams.

AEC Support & Project Assistance

For large-scale projects, hospitality rollouts or bespoke finishes, our AEC support team can assist with product selection, value engineering and technical coordination around vessel sink layouts.
