Fontana Locri Chrome Deck-Mounted Touchless Faucet FAQ
Waterfall Outlet, Hot-Cold Supply;
Single-Hole Deck Mount & 0.6 MPa Pressure Validation

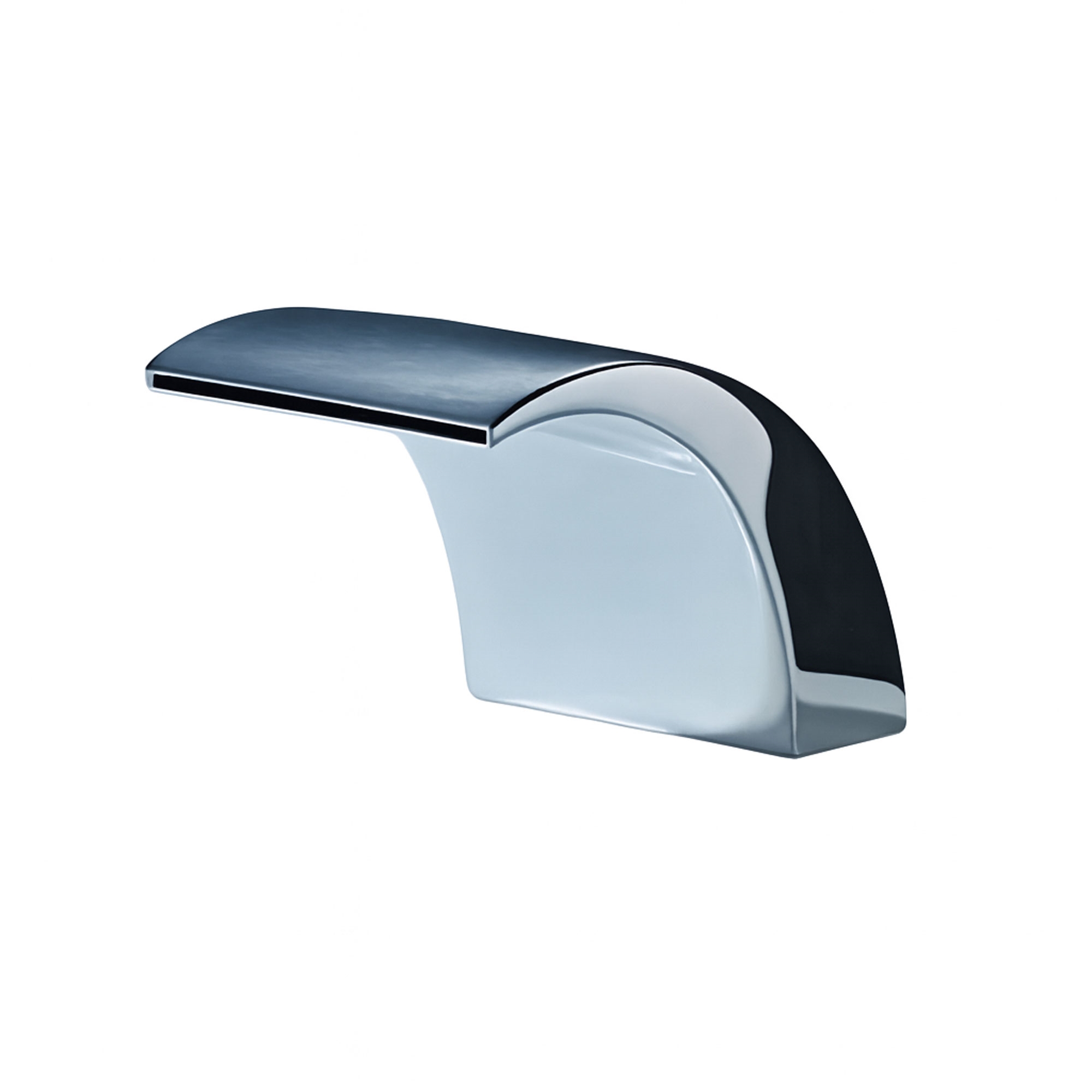

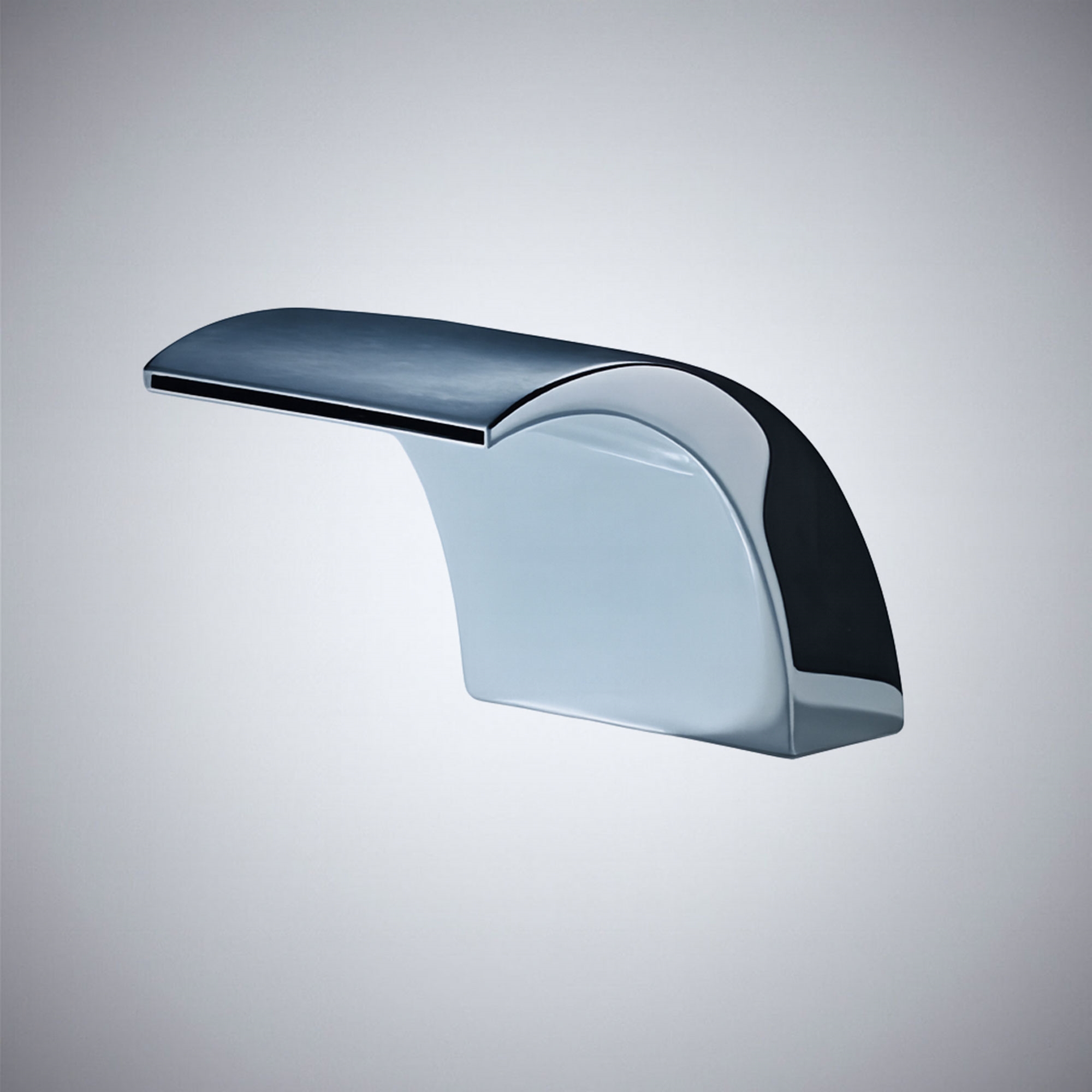

The Fontana Locri FS7949CH combines touchless operation,
brass construction, waterfall delivery, and single-hole
deck-mounted hot-cold water control.

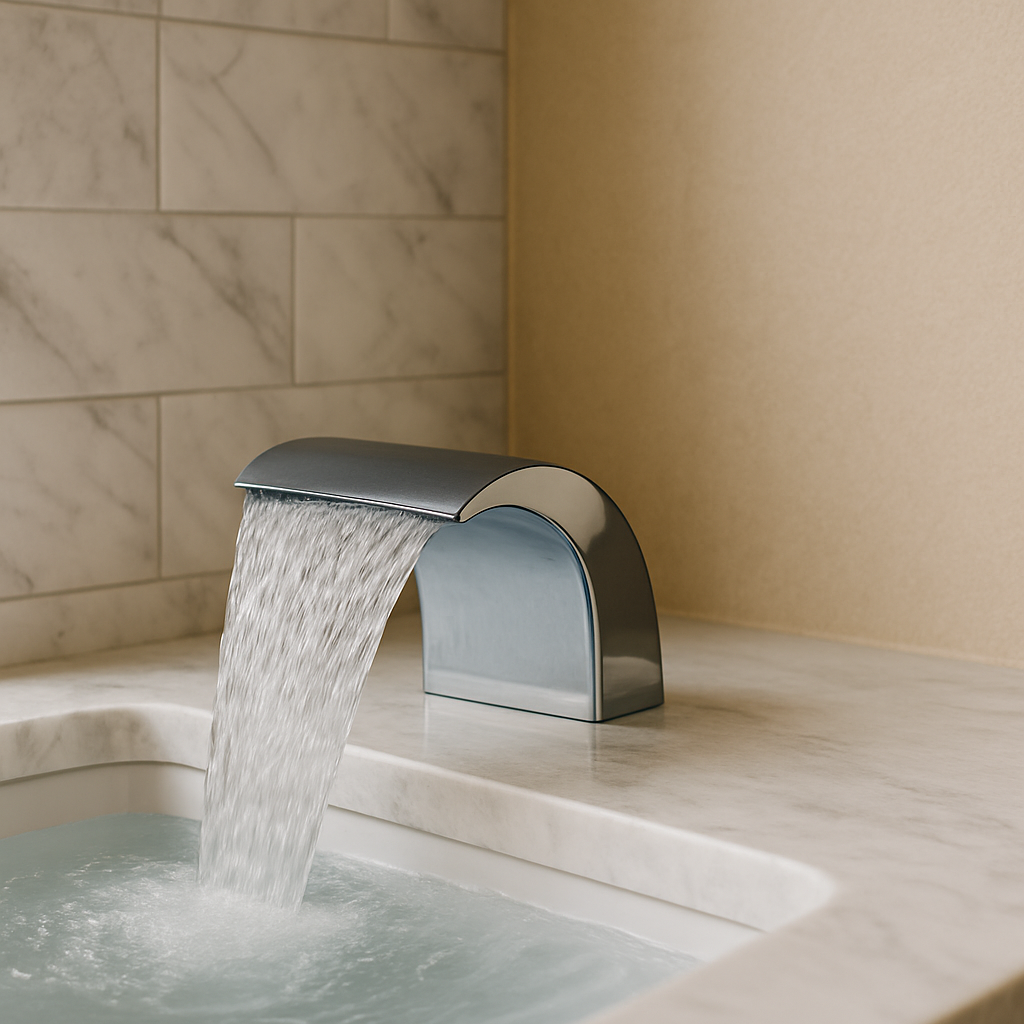

How should the waterfall stream be aligned with the basin?
Position the faucet so the waterfall sheet lands well inside the usable
bowl area rather than near the rim. Because a waterfall outlet creates
a wider discharge pattern than a conventional aerator, basin depth,
strike location, and countertop setback should be verified under live
operating conditions to limit splash and overspray.
How should the 0.6 MPa pressure rating be checked during commissioning?
Flush the supplies before final connection and bring the system to its
normal operating condition gradually. Inspect concealed joints,
mounting connections, and the waterfall outlet while cycling the faucet.
The product is specified with 0.6 MPa air-pressure testing, so any
seepage, vibration, or unstable discharge should be corrected before
project turnover.
How should hot and cold supply balance be verified for touchless operation?
Confirm correct hot and cold routing before completing the below-deck
connections. Test several consecutive sensor activations while
monitoring discharge temperature and flow stability. Significant
temperature drift may indicate unequal supply pressure, incorrect
mixing adjustment, or restricted flow in one of the supply branches.
What should be checked at the single-hole deck mounting point?
Verify that the countertop opening is centered, structurally sound,
and large enough for the mounting shank without excess clearance.
Tighten the mounting hardware evenly and confirm that the brass faucet
body remains rigid during repeated sensor cycles. Below-deck service
access should remain available for supplies and control components.
