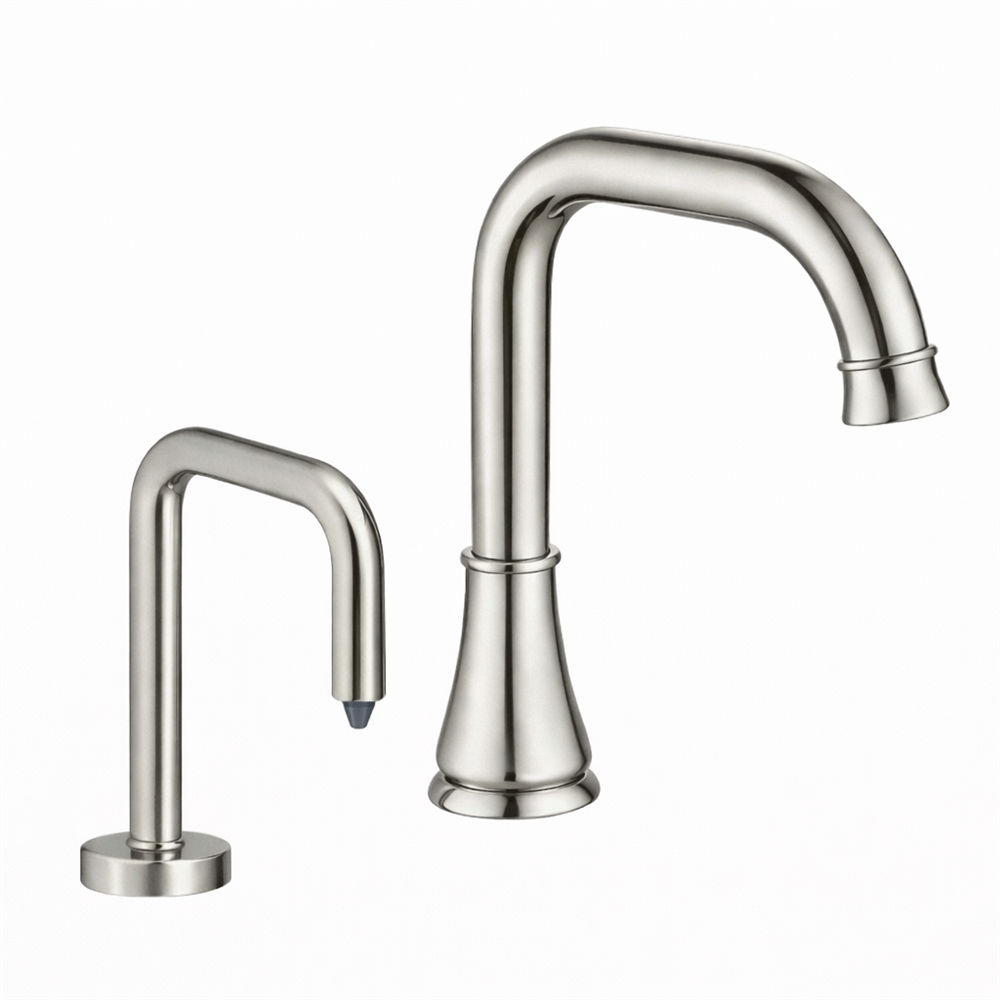

Fontana MonoCalyx Brushed Nickel Touchless Faucet with Soap Dispenser Combo

The Fontana MonoCalyx Brushed Nickel Touchless Faucet with Soap Dispenser Kit is a professional-grade fixture made for the modern commercial market with its stylish and functional brushed nickel finish. This reduces contact points in restrooms and helps maintain sanitary conditions in places with a lot of traffic. Diving into the details, the body is made of tough brass, and that is why it gets the double benefit of being strong and not corroding over time. The technical part of the sensing device includes an infrared sensor and a microprocessor that together make a digital plug-and-play connection, which is very stable and quick. While the sensing range is from 2" to 6", it requires only 0.6 seconds to detect the presence of hands and hence provide water flow. With a 2-second shut-off delay, the faucet reduces splashing, while a maximum of 60 seconds of running time aids water conservation. It is an Automatic handwash faucet with integrated cleanser. The system is designed for tough commercial conditions, and it works across a wide water pressure range from 1 PSI to 100 PSI and uses a reliable 6-volt magnet latching solenoid valve for consistent control. The battery has a performance rating of up to 200,000 cycles, thus reducing the maintenance requirement over time. Besides, it has a 50-mesh particle filter as an integrated feature to trap debris and water. This comes with a 2.2 GPM aerator installed, but flow rates on demand of 1.0 GPM or 0.5 GPM for more efficient operation are available as options. Installation is made easy with a 1/2" NPT male supply inlet and a two-hole deck-mounted.

• Brand Name: FontanaShowers®
• Model Number: FS10703BN
• Finish: Brushed Nickel
• Type: Touchless Faucet With Soap Dispenser
• Style: Contemporary
• Installation Type: Deck Mounted
• Material: Brass
• Number of Holes: Two Holes
• Battery life expectancy: 200,000 cycles
• Solenoid valve: 6 Volt magnet latching
• Working Water Pressure: 1 PSI -100 PSI
• Supply Inlet Size: 1/2" NPT Male
• Sensor type and Location: Active Infrared, Deck mount
• Sensor Microprocessor: Digital, Plug and Play
• Sensing Range: 2" to 6"
• Response Time: 0.6 Second
• Shut-Off Delay Time: 2 seconds
• Maximum Running Time: 60 Seconds
• Particle filter size: 50 Mesh
• Aerator: 2.2 GPM. Optional 1.0 GPM, 0.5 GPM
• Automatic Dispenser: Yes
• Dispenser Feature: Foam Soap Dispenser
• Dispenser Application: Hygiene Hand Washing
• Compliant: ADA
• Uses: Commercial
