How should the FS-1194 brass mixer body be supported to prevent movement behind the finished wall?

Fasten the one-piece brass body to rigid structural backing rather than relying on connected pipework for support. Check valve depth against the complete wall build-up so the Brushed Nickel trim seats evenly and operating loads from the mixer and diverter do not transfer into concealed joints.

What pre-commissioning flush procedure protects the ceramic valve core and three-way diverter?

Flush the hot supply, cold supply, and all three outlet branches independently before exposing the internal control components to flow. Continue flushing until construction debris, metallic particles, excess sealant, and scale are removed, then cycle the ceramic valve and diverter to confirm unrestricted movement.

How should the three-way diverter indexing be validated during functional testing?

Mark each diverter position and verify that it consistently activates the intended outlet after repeated clockwise and counterclockwise cycling. Confirm positive detent engagement, stable discharge, and complete shutoff of the two inactive branches at every indexed position.

What dynamic pressure test can reveal internal crossover between the three outlet circuits?

Operate one outlet at a time under normal flowing pressure while monitoring the inactive branches for seepage or pressure rise. Repeat the test while varying supply pressure; any discharge from an unselected outlet indicates incomplete diverter sealing or incorrect internal assembly.

How should the ceramic mixer cartridge be checked for balanced hot-and-cold modulation?

Move the zinc-alloy handle gradually from cold through mixed to hot while recording discharge temperature and observing flow continuity. The ceramic core should provide progressive blending without abrupt temperature jumps, excessive operating torque, chatter, or leakage after shutoff.

How can installers verify that connected shower heads and arms will not impair three-way valve performance?

Confirm thread compatibility and compare the hydraulic resistance of all downstream fittings before final assembly. Test each outlet with its intended shower head or arm installed to ensure the accessories do not cause excessive backpressure, unstable switching, or unequal flow between circuits.

What service procedure is recommended if one outlet continues to drip after another function is selected?

Isolate the water supply, relieve pressure, and inspect the diverter sealing surfaces for scale, debris, or wear. Clean serviceable components without abrasives, replace damaged seals where required, reassemble the valve, and repeat inactive-outlet isolation testing under dynamic pressure.

Which final acceptance criteria demonstrate that the FS-1194 is ready for handover?

Acceptance should confirm rigid brass-body support, correct trim depth, leak-free precision threaded joints, smooth ceramic-cartridge modulation, accurate diverter indexing, full isolation of inactive outlets, accessory compatibility, and repeatable three-way operation without pressure instability or residual discharge.

Free Shipping

We Ship Internationally!

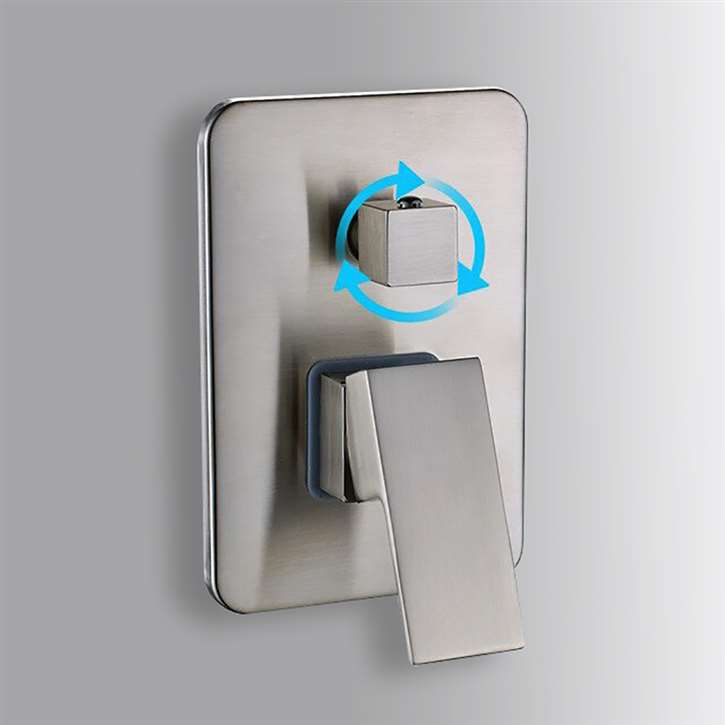

Fontana Showers 3 Way Wall-mounted Shower Faucet Mixer Valve, Brushed Nickel

Fontana Shower 3 Way Wall-mounted shower faucet Mixer valve mixer Brushed Nickel

Alternative Views:

Retail Price: $466.80

Sale Price: $280.08

Savings: $186.72

Availability: Usually Ships in 1 to 2 Weeks

Product Code: FS-1194

Qty:

Description

Technical Specs

Extended Information

Gold

Matte Black

Chrome

Fontana Showers 3 Way Wall-mounted Shower Faucet Mixer Valve, Brushed Nickel

Shower mixer valve offers precise water control, durable construction, and modern design for seamless bathroom installations. This Fontana Shower Mixer is capable of delivering superior performance with a solid construction for long durability that will upgrade your bathroom with a modern and cool look for a long period of time. When it comes to new bathroom upgrades, FontanaShowers offers shape, finishes and styles that you've been looking for. Upgrade your shower system with advanced mixer delivering smooth operation, reliability, and efficient performance. Shower Mixer Control System; Engineered for precise water control with smooth operation, durable construction, and modern design for efficient shower performance. Shower mixer improves outlet balancing and minimizes multifunction pressure fluctuation issues. Premium shower mixer featuring precise water temperature control, durable brass construction, smooth operation, and reliable performance for luxury shower systems.

Fontana Showers 3 Way Wall-mounted Shower Faucet Mixer Valve Features:

Brand Name: FontanaShowers

Model Number: FS-1194

Color: Chrome

Specification: Shower Mixer available in Revit Families, and BIM Object

Surface Finish: Brushed Nickel

Bathroom Faucet Spout Feature: With Diverter

One-piece brass body with Zinc Alloy handle

Durable shower diverter

Fits most shower heads and shower arms

Ceramic core of the valve, tough and durable.

High accuracy of screw thread, watertight.

Quantity: 1Pc
