Fontana SmartWave™ – Bronze Duo
Fontana SmartWave™ – Bronze Duo

Alternative Views:
Retail Price: $1,000.00
Sale Price: $1,000.00





Free Shipping
Availability: Usually Ships in 3 to 5 Business Days
Product Code: FS10502ORB
Qty:

Description Technical Specs Extended Information

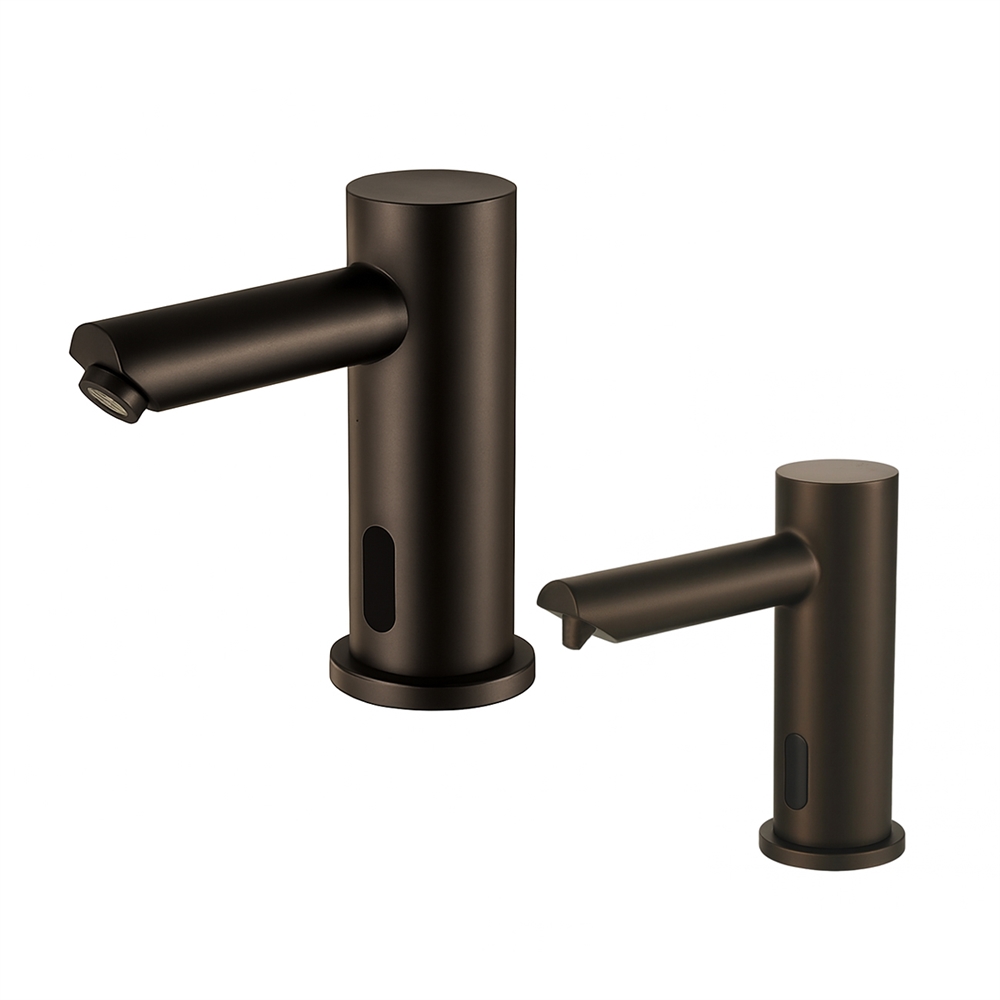

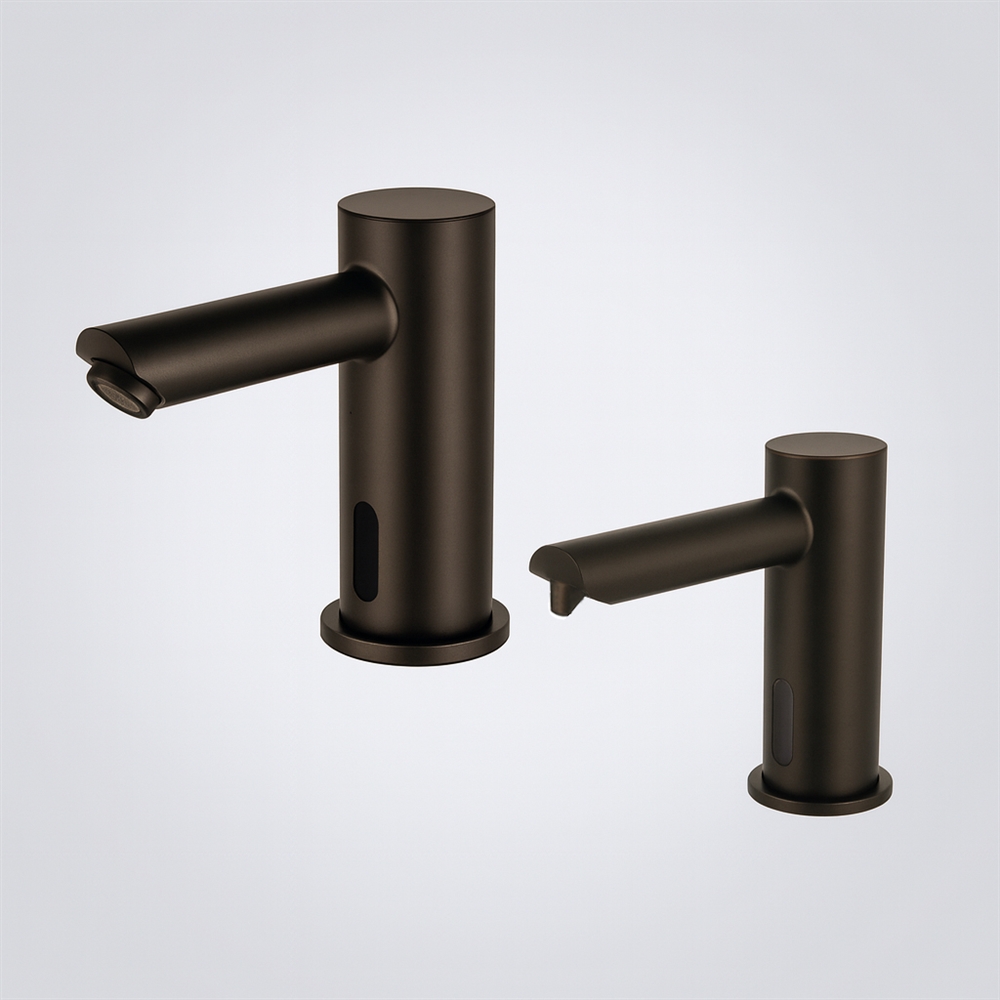

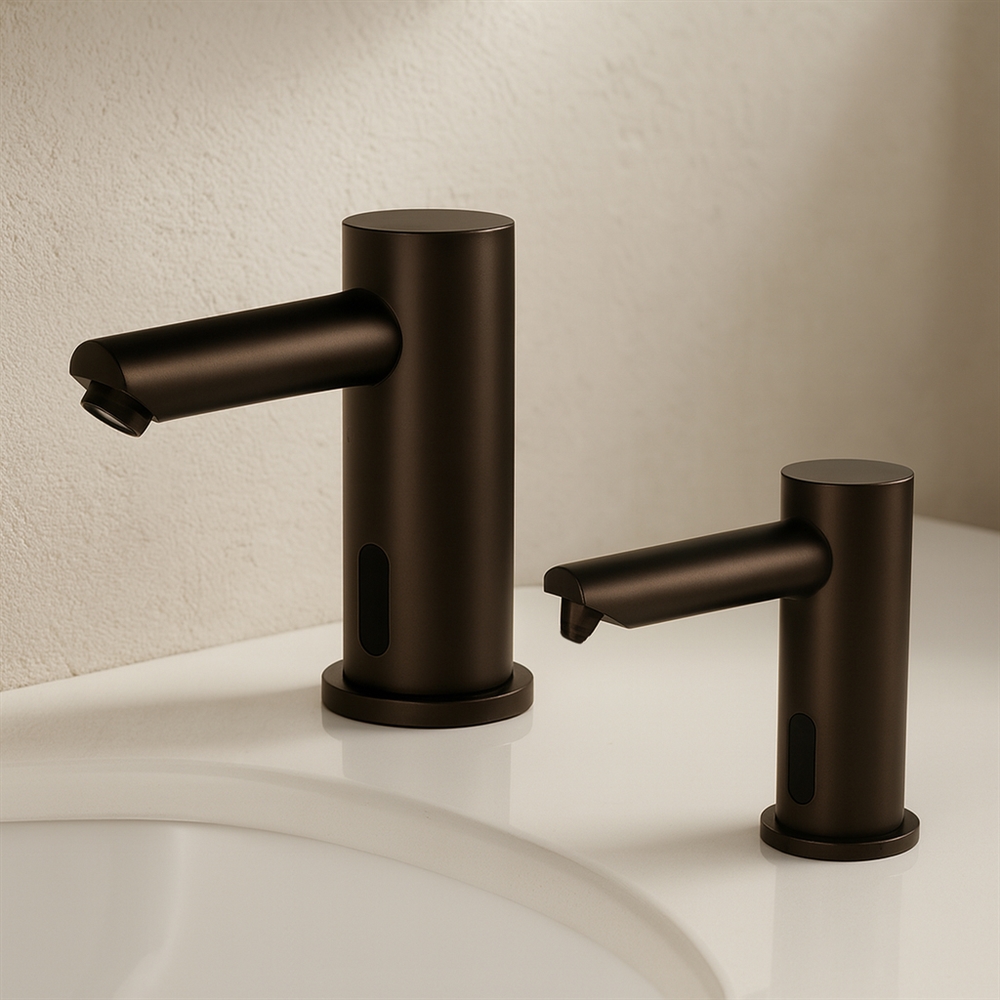

Fontana SmartWave Oil Rubbed Bronze Automatic Sensor Faucet and Soap Dispenser

The Fontana SmartWave™ Oil Rubbed Bronze fixture shouts of timeless grace fused with intelligent sensor automation to provide a higher platform for contemporary and commercial cleaning facilities. With its very active infrared technology, it ensures an on-demand precision on water flow and soap dispensing, from an absolute no-contact means to another promotion of hygiene and effectiveness. Oil-rubbed-bronze finishing instills a classical, elegant feel that serves either an upstairs or a modern setting. Equipped with deck installation, it accepts DN15 inlet and outlet connections for flawless integration. Two power options offer more flexibility: AC110V or DC6V. The intelligent dispenser is a low-power consumption device that offers a speedy 0.5-second response time. The dispensing unit allows the shown soap volumes to be adjusted between 0.5ML and 1.5ML per dispensing cycle, and it holds 800ML with an optional 1-gallon container. ADA compliant for accessibility, all stand amply in the inclusion department. This two-function wonder-aestheticizes handwashing as a style to the tune of hands-free luxury, forever rebranding the standards of patios.

Bronze Duo, Smart Sensor Control

  • Brand Name: FontanaShowers®
  • Model Number: FS10502ORB
  • Type: Sensor Faucet & Soap Dispenser
  • Installation Type: Deck Mounted
  • Style: Contemporary
  • Surface Finish: Oil Rubbed Bronze
  • Material: Solid Brass
  • Water Pressure: 0.5 - 7.0 KGS/cm, 10-125 PSI
  • Power Supply: AC110V And DC6V (batteries not included)
  • Ambient Temperature: 1 - 45 °C / 33.8 -113°F
  • Time Delay: 0.5 Seconds
  • Diameter of Inlet Pipe: DN15
  • Diameter of Outlet Pipe: DN15
  • Power Consumption: 0.5MW
  • Detection Zone: Factory set 25cm/10" (Based on Standard Inductive Board)
  • Battery: 4 x 'AA' Size Cells
  • ADA Compliant: Yes
  • Sensing Distance: 9.84" (25cm)
  • Dispenser Shank and Mounting Hardware: Stainless Steel, Brass, Zinc
  • Dispenser Power: 4 (D) Batteries / AC Adapter Optional
  • Dispenser Sensor type: Active Infrared, Self-Adjusting
  • Dispenser Sensing Range: Adjustable with optional remote control
  • Working Soap: Standard liquid Soap
  • Soap Bottle Capacity: 800ML(optional 1 gallon containers)
  • Soap Amount Per Use: 0.5ML to 1.5ML(adjustable)
