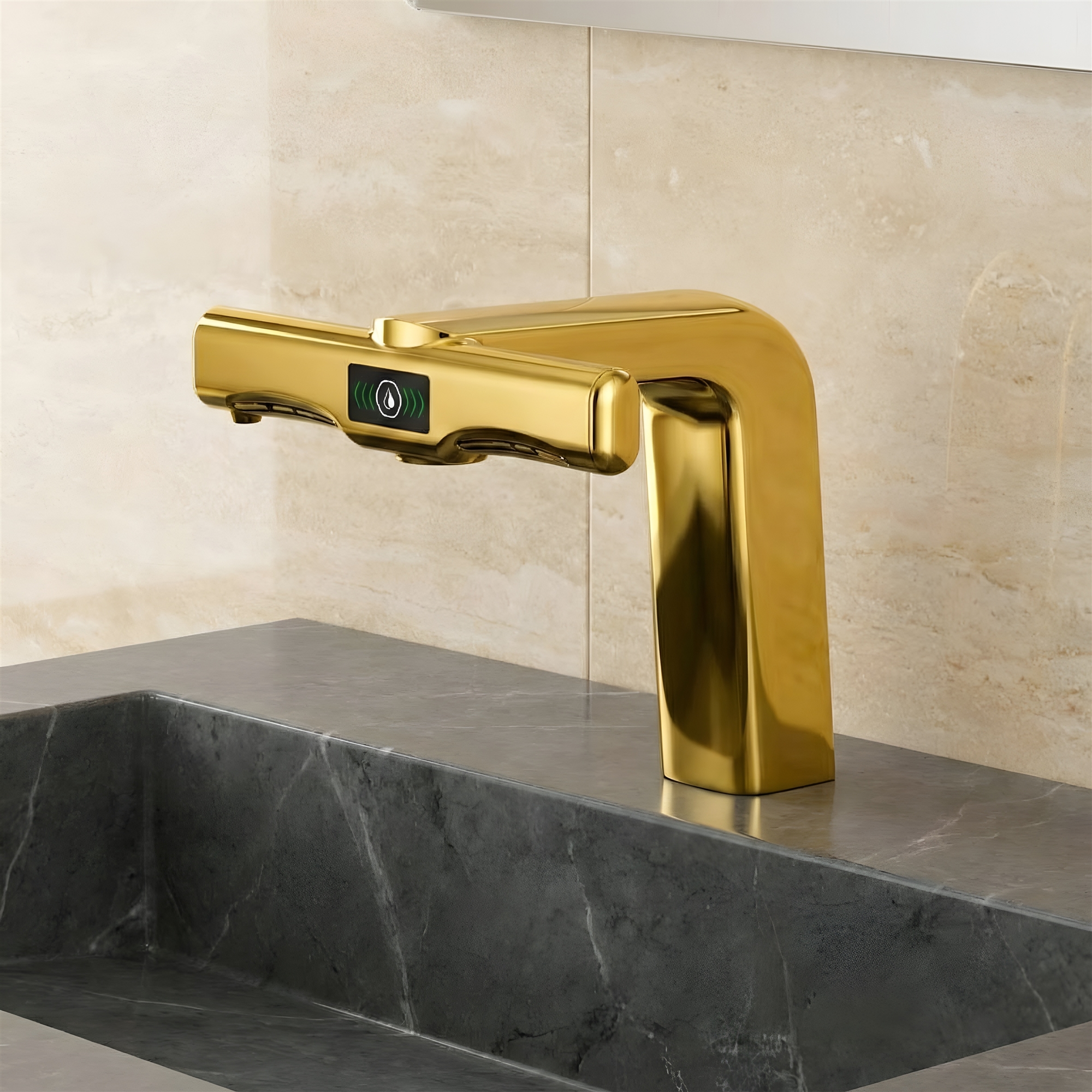

The single-hole deck-mounted installation emphasizes the clean lines and the smooth integration of the product into the modern countertops. The product is made of solid brass which guarantees durability, corrosion resistance, and reliable longevity even in continuous use. Cold-water sensor functionality adds to the efficiency while ensuring consistent performance. The water is delivered at a controlled flow rate of 1.5 GPM which is the perfect balance between water conservation and effective rinsing. Thoughtfully engineered sequencing allows washing, dispensing, and drying to be performed within one unified zone, which reduces splashing and keeps the countertop clean. The contemporary design fits perfectly into luxury commercial spaces like hotels, offices, airports, and premium public restrooms among others. Every interaction shows perfect engineering and artistic sophistication. This system not only exceeds the standard fixture but also makes a new hygiene benchmark, besides, it creates a restroom experience that is a combination of three characteristics - elegance, efficiency, and high-tech design, which are all defined by touchless features.

FontanaZenWhisper™ Gold 3-in-1 Touchless System FAQ

Sensor Sequencing, 1.5 GPM Commissioning; Gold Surface Protection

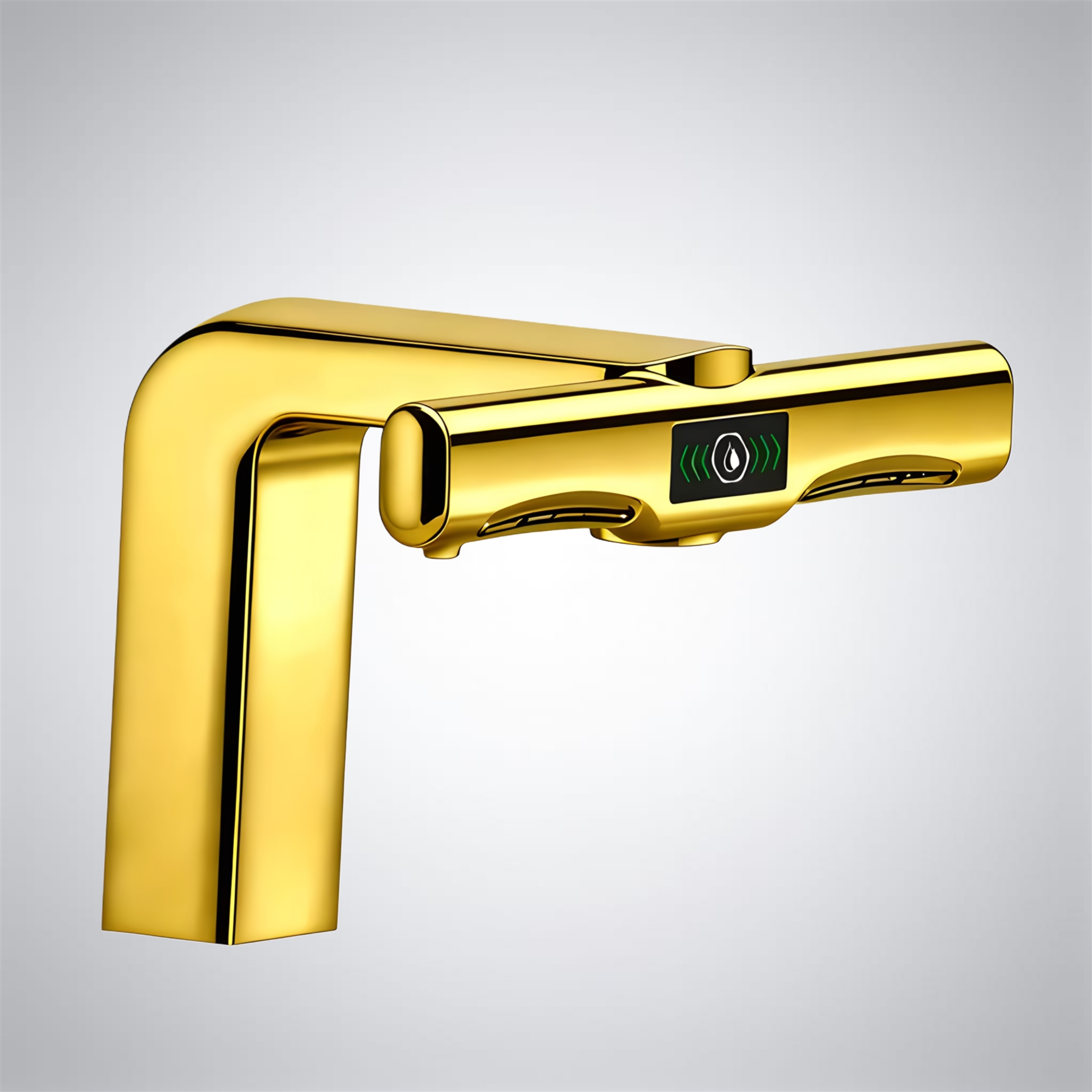

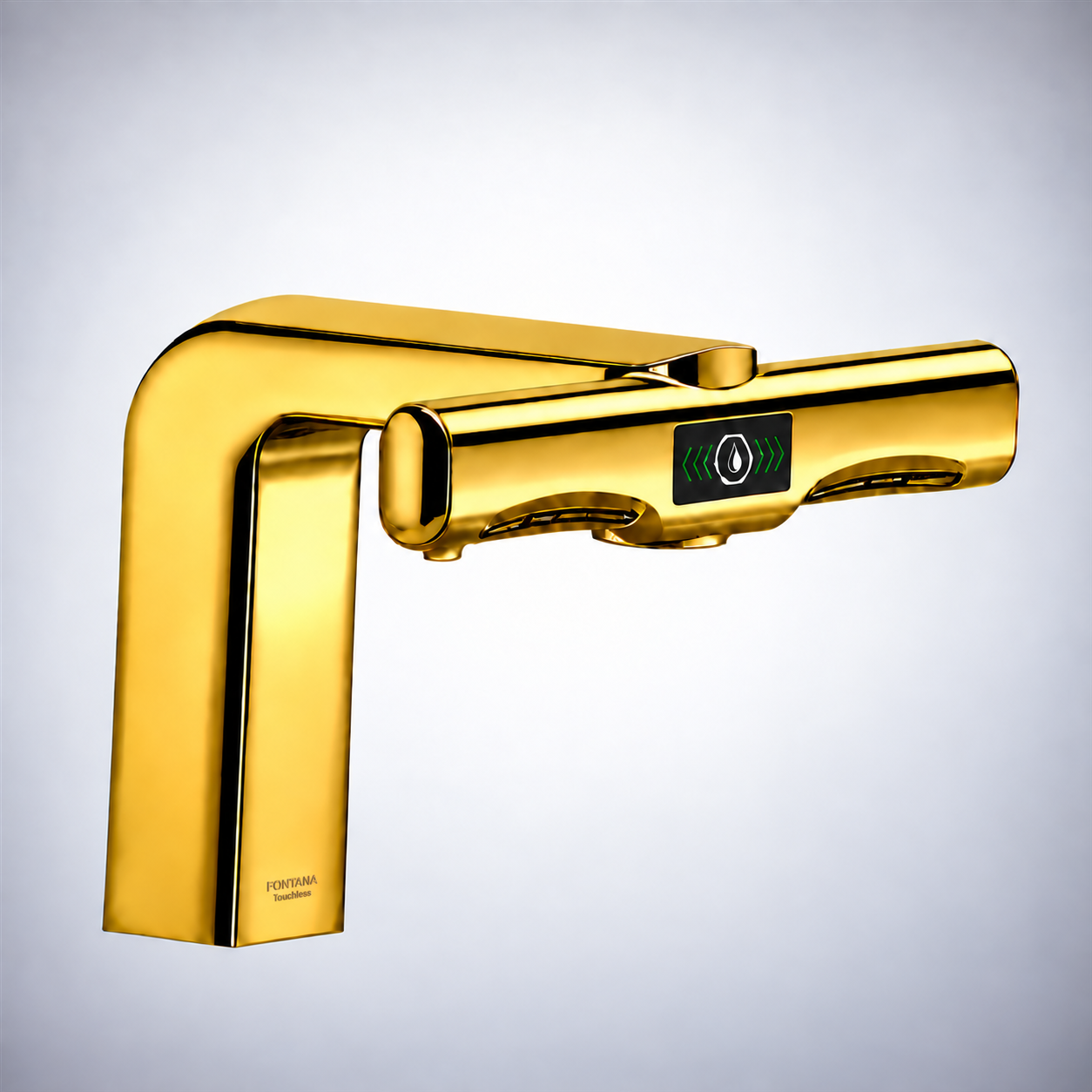

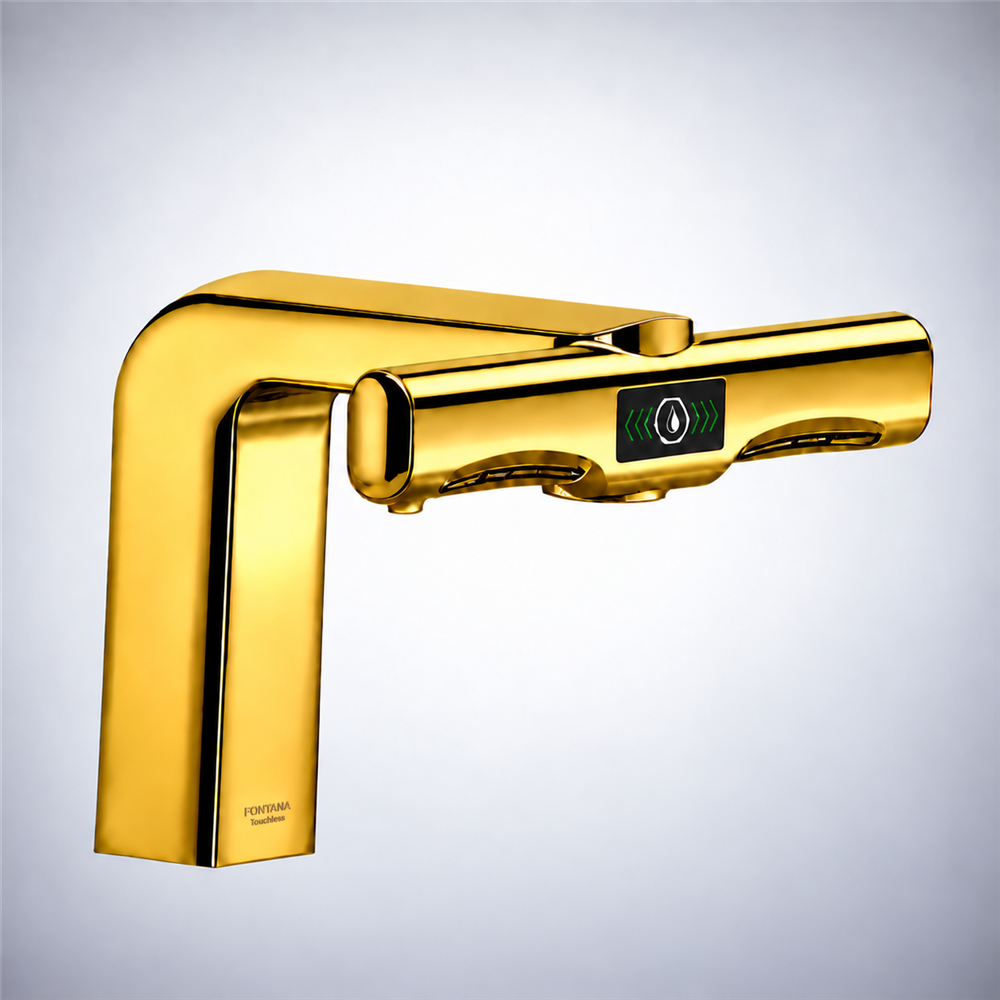

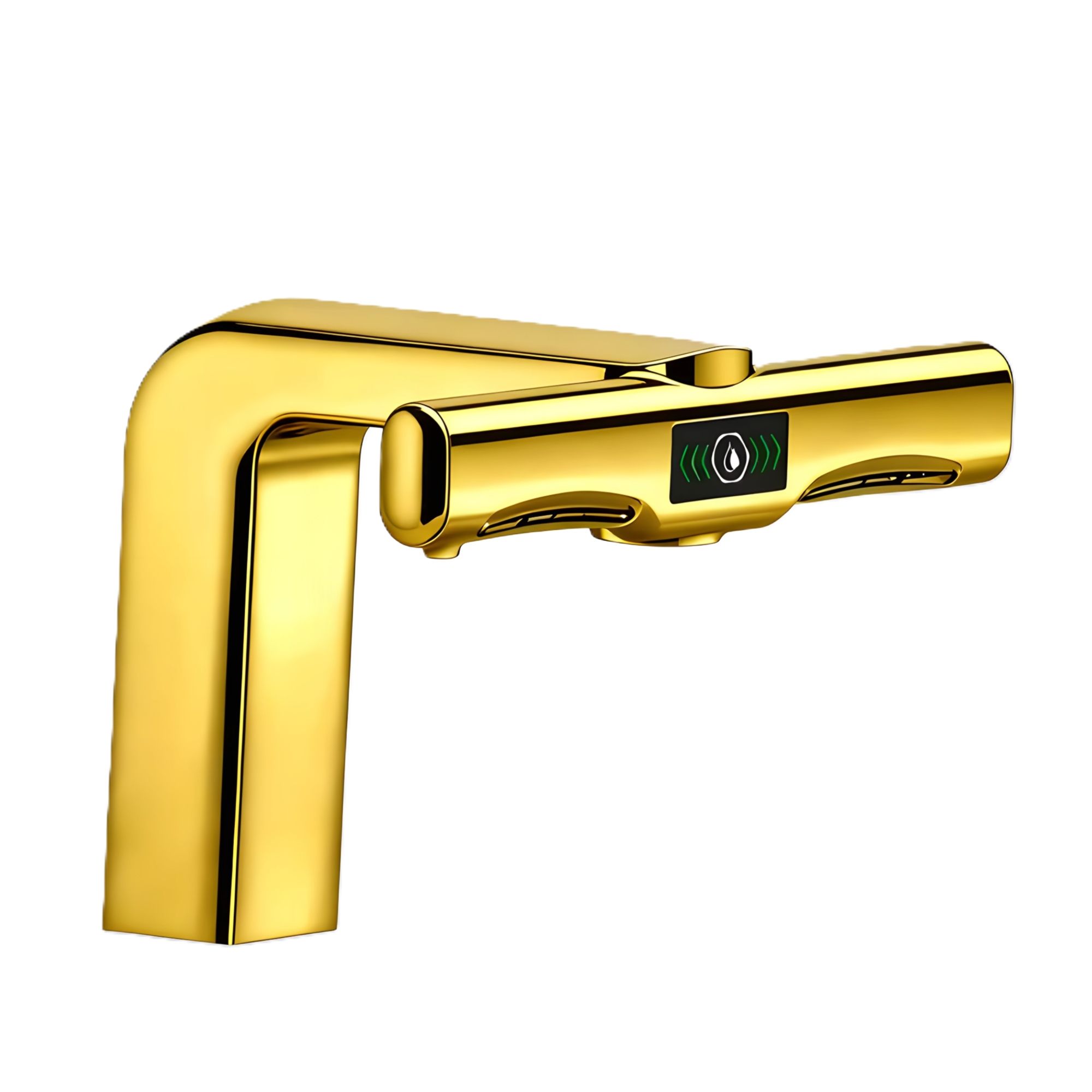

The FontanaZenWhisper™ Gold system integrates an infrared water faucet, automatic soap dispenser, and hand dryer within a solid-brass, single-hole deck-mounted fixture engineered for touch-free operation and controlled 1.5 GPM water delivery.

How should the water, soap, and dryer sensor zones be tested after installation?

Complete commissioning after the basin, backsplash, mirror, and nearby accessories are installed. Move hands through each intended operating zone separately and confirm that the selected function activates promptly without triggering either adjacent function or responding to reflective surfaces outside the washing area.

What hydraulic checks are required before confirming the rated 1.5 GPM flow?

Flush the branch line before connection, inspect the inlet filter, fully open the service stop, and purge trapped air. Measure discharge under normal dynamic pressure using a timed collection test, because restricted tubing, construction debris, or a partially closed stop can reduce actual flow.

How should the single-hole deck mounting be reinforced for continuous commercial use?

Verify that the countertop is structurally sound, the mounting opening matches the specified diameter, and the underside hardware bears evenly against a rigid surface. Tighten the assembly without twisting the brass body, then confirm that operating vibration does not produce rotation or movement.

How should the polished Gold finish be cleaned without dulling its reflective surface?

Remove fingerprints, soap residue, and water spots using a soft damp microfiber cloth, then dry the fixture immediately. Use diluted pH-neutral soap only and avoid abrasive pads, acidic descalers, bleach, ammonia, metal polish, stiff brushes, and concentrated disinfectants.
