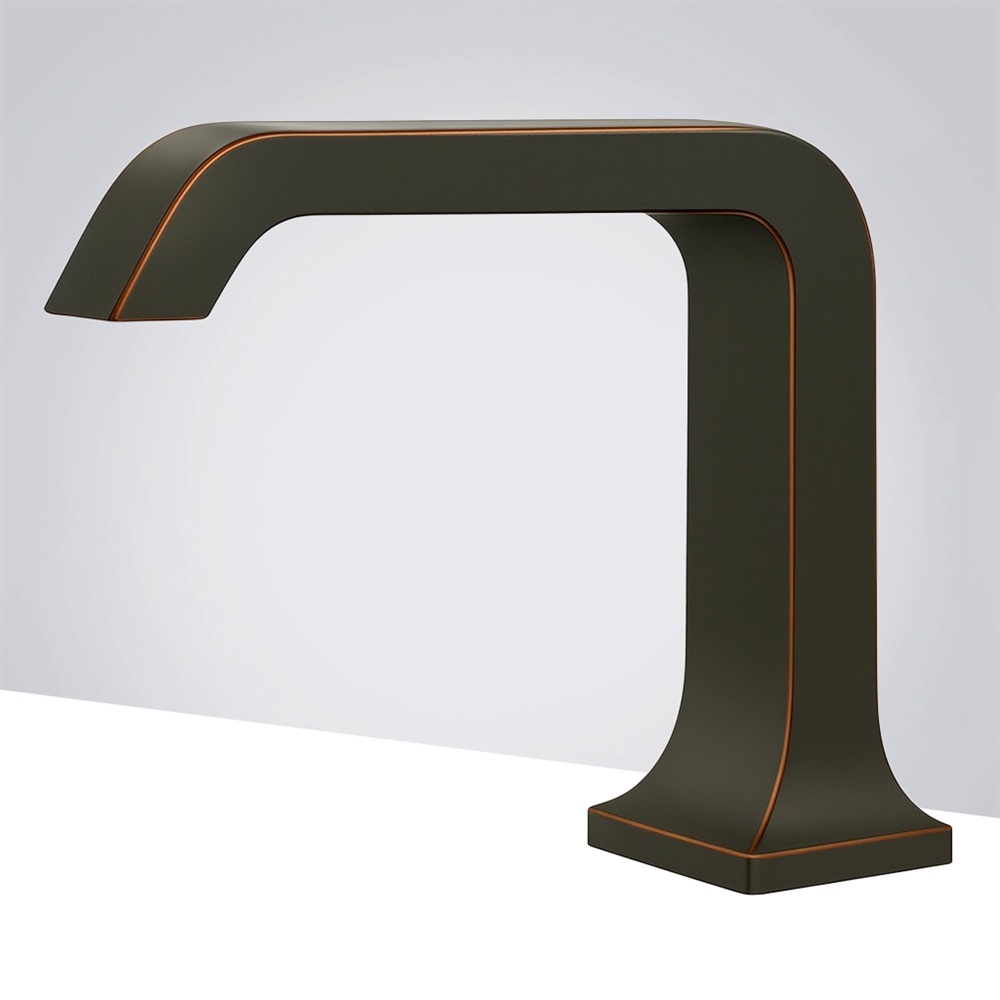

FontanaAquivion Warm Charcoal Copper Single Hole Automatic Sensor Faucet

A modern countertop faucet with charm and a slight whisper of understated glamour, with split-second response from the sensor. The distinguished charcoal-copper hue lays a touch of warmth on the interior--ideal for any fine commercial or hospitality space. The faucet is made out of a heavy-gauge brass body that offers durability and corrosion resistance, and clings to a clean-line, minimal aesthetic.

The cutting-edge infrared sensing technology allows for instant, hands-free operation to provide maximum hygiene and efficiency. The faucet is designed for single-hole, deck-mount installation and combines sleek good looks with functionality. Flow is optimized at the water-saving 1.5 GPM to prevent any type of wastage. It also takes AC and DC power, so that it is dependable in any environment whatsoever. It is fully ADA compliant and assists universal access with its style and elegance. FontanaAquivion™ Charcoal Stream is where craftsmanship, innovation, and design meet to transform everyday routines into a seamless, elevated, touch-free experience.

FontanaAquivion™ Warm Charcoal Copper Automatic Sensor Faucet FAQ

Infrared Response Testing, 1.5 GPM Commissioning; Warm Charcoal Copper Surface Protection

The FontanaAquivion™ Warm Charcoal Copper automatic faucet combines heavy-gauge brass construction, single-hole deck mounting, infrared touchless activation, AC or DC power compatibility, water-efficient 1.5 GPM delivery, and ADA-compliant operation for commercial and residential washrooms.

How should the infrared sensing zone be commissioned after installation?

Complete sensor testing after the basin, mirror, backsplash, soap dispenser, lighting, and countertop accessories are installed. Confirm that normal hand placement produces immediate activation without detecting reflective surfaces, passing movement, cleaning equipment, or objects outside the intended washing zone.

How should the specified 1.5 GPM flow rate be verified?

Flush the supply branch, inspect the inlet passage, fully open the service stop, and perform a timed volumetric collection test while the faucet operates under normal dynamic pressure. Restricted tubing, construction debris, trapped air, or a partially closed stop can reduce the expected 1.5 GPM discharge.

What should be checked if automatic activation or shutoff becomes inconsistent?

Clean the infrared sensor window, verify stable AC 110V or DC 6V power, inspect the sensor and valve connections, and remove reflective objects from the detection field. Sediment within the water-control valve or unstable power can cause delayed activation, repeated cycling, or incomplete shutoff.

How should the Warm Charcoal Copper finish be cleaned without altering its contrasting copper details?

Remove fingerprints, soap residue, and water spots with a soft damp microfiber cloth, then dry the faucet immediately. Use diluted pH-neutral soap only and avoid abrasive pads, acidic descalers, bleach, ammonia, steel wool, metal polish, and concentrated disinfectants that may brighten or discolor the dark charcoal and copper surfaces.

Warm Charcoal Copper

• Brand Name: FontanaShowers®
• Model Number: FS10514WCC
• Style: Contemporary
• Type: Touchless Faucet
• Material: Brass
• Finish: Warm Charcoal Copper
• Number of Holes: Single Hole
• Installation Type: Deck Mounted
• Sensor Type: Infrared Motion Sensor
• Power Supply: AC 110V / DC 6V
• Water Pressure:
• Flow Rate: 1.5 GPM (5.7 L/min)
• ADA Compliant: Yes
• Usage: Commercial / Residential
