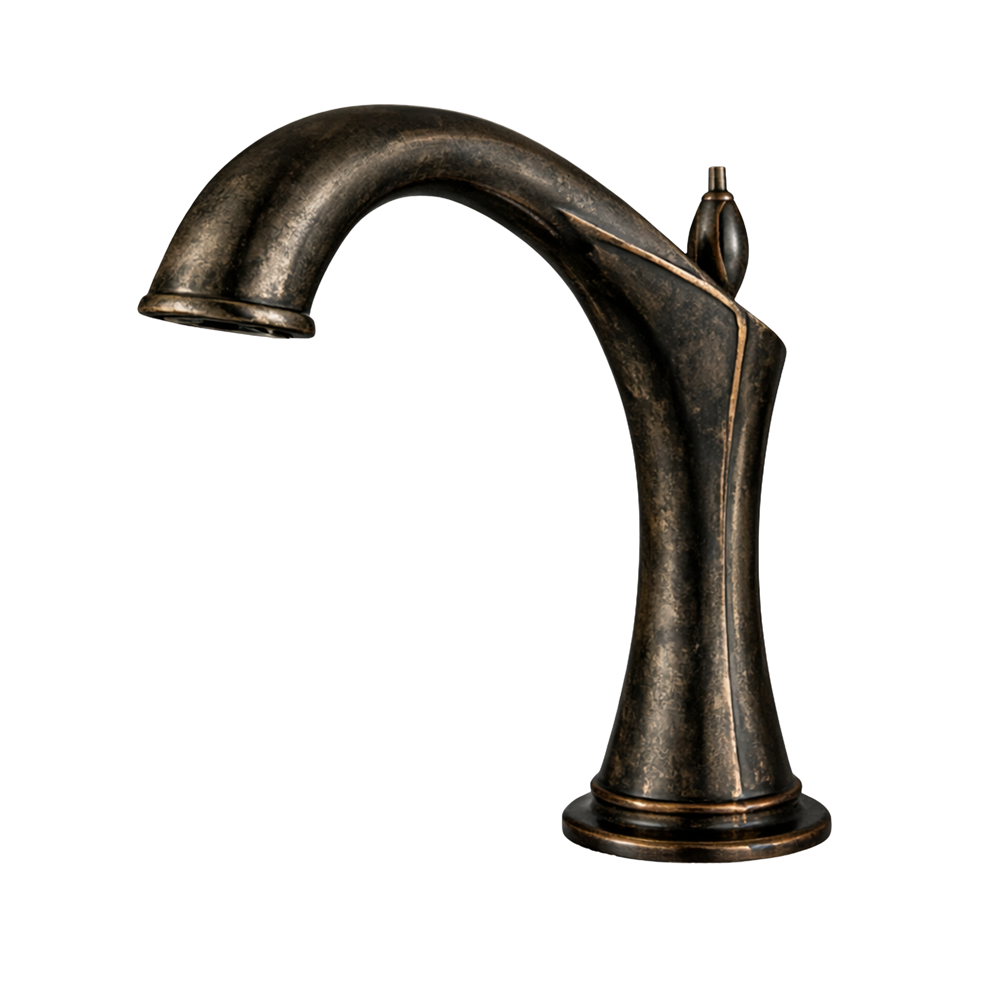

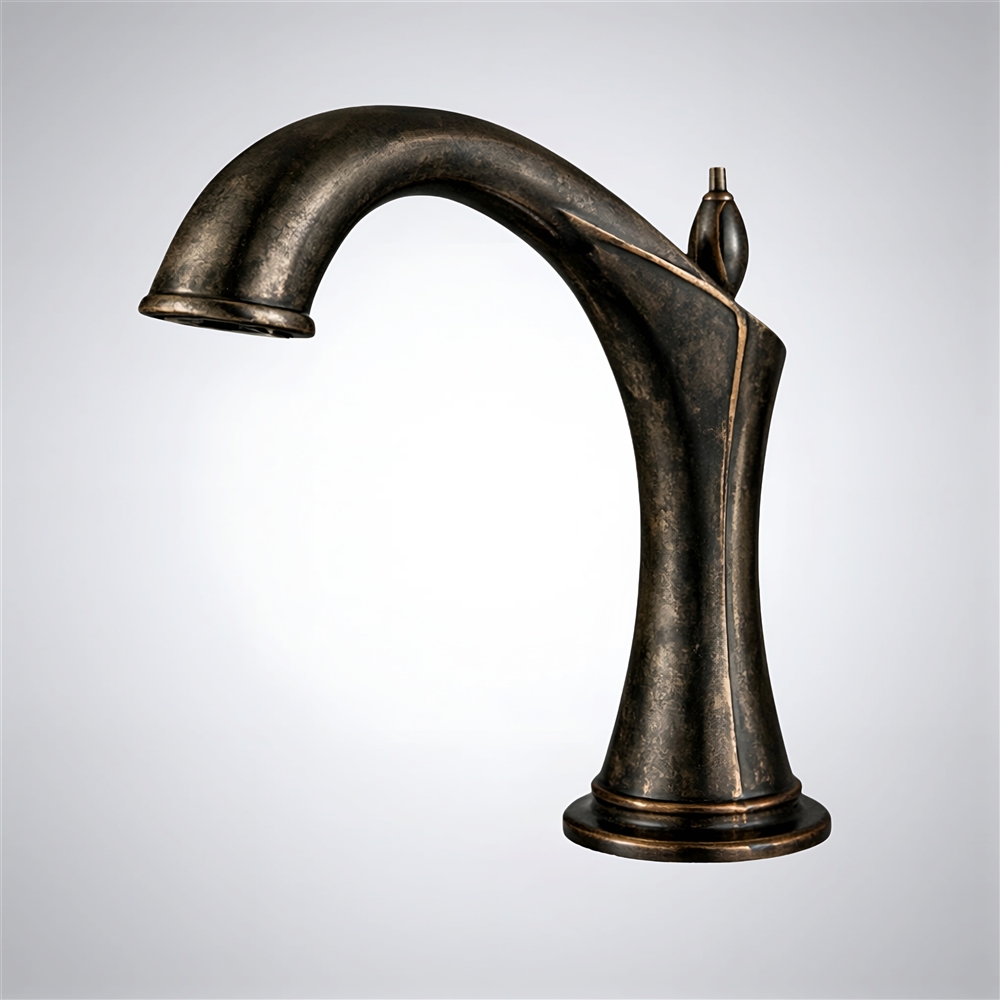

FontanaHelix SmartFlow Hammered Bronze Automatic Deck Mounted Bathroom Faucet

The FontanaHelix SmartFlow™ – Hammered Bronze touchless bathroom faucet is a superior hygienic, efficient, and high-impact visually solution. It is made for crowded areas, such as hotels, offices, airports, and hospitals. This faucet comes with a top-tier sensor-activated feature that is contactless, hence, cross-contamination risk is dramatically cut down while the cleaning of restrooms is uplifted. It is made of strong solid brass which guarantees long-term service and immunity to rust even when used extensively every day. The one-of-a-kind hammered bronze has an artistic, architectural character, mixing the artisan’s feel with modern function for sophisticated commercial interiors. The water tap is for single-hole, deck-mounted installation, making it fit perfectly into standard basins while occupying little space and being uncluttered. The faucet boasts a total height of 6.69 inches, with 4.92 inches for the spout and 3.93 inches for the height of the spout. The overall dimensions are very thoughtfully considered to give a proper hand clearance and a very accurate water delivery without splashing at all. The SmartFlow™ system that is very effective in the water pressure range of 0.05 MPa to 0.8 MPa grants a controlled dispensing of 6 liters per use, which contributes to the water saving initiatives, making it the best choice in terms of performance as no one gets a complaint about it. It is totally ADA compliant, which implies that it meets the standards of the great accessibility set for easy use by everyone. The FontanaHelix SmartFlow™ merges the smart touchless technology, water-saving efficiency, and the rainbow-like hammered bronze appearance to offer a solution that is premium, hygienic, and visually outstanding, specifically aimed at modern commercial restroom applications.

Fontana Helix SmartFlow FAQs

Hammered Bronze Finish, Sensor Flow & Deck-Mounted Brass Body

Fontana Helix SmartFlow hammered bronze automatic faucet delivers deck-mounted touchless operation with solid brass construction, single-hole installation, sensor-activated flow, ADA-compliant use, and commercial restroom water-saving performance.

How does sensor activation improve restroom hygiene?

The sensor activates water without handle contact, reducing shared touchpoints in commercial restrooms.

What pressure range should be confirmed?

The faucet operates within 0.05MPa to 0.8MPa, so supply pressure should be verified before commissioning.

How does the 6L water-saving volume help?

The controlled 6L dispensing volume helps limit excess water use while maintaining reliable handwashing flow.

What dimensions support basin planning?

The 6.69 inch height, 4.92 inch spout length, and 3.93 inch spout height help confirm basin clearance.

FontanaHelix SmartFlow Hammered Bronze

• Brand Name: FontanaShowers®
• Model Number: FS6150HB
• Finish: Hammered Bronze
• Type: Touchless Bathroom Faucet
• Style: Contemporary
• Faucet Mount: Single Hole
• Installation Type: Deck Mount
• Material: Brass
• Water Pressure: 0.05 Mpa-0.8 Mpa
• Water Saving: Volume 6L Each Time
• Usage: Commercial
• Faucet height: 6.69" (170mm)
• Spout length: 4.92" (125mm)
• Spout height: 3.93" (100mm)
• ADA Compliant
