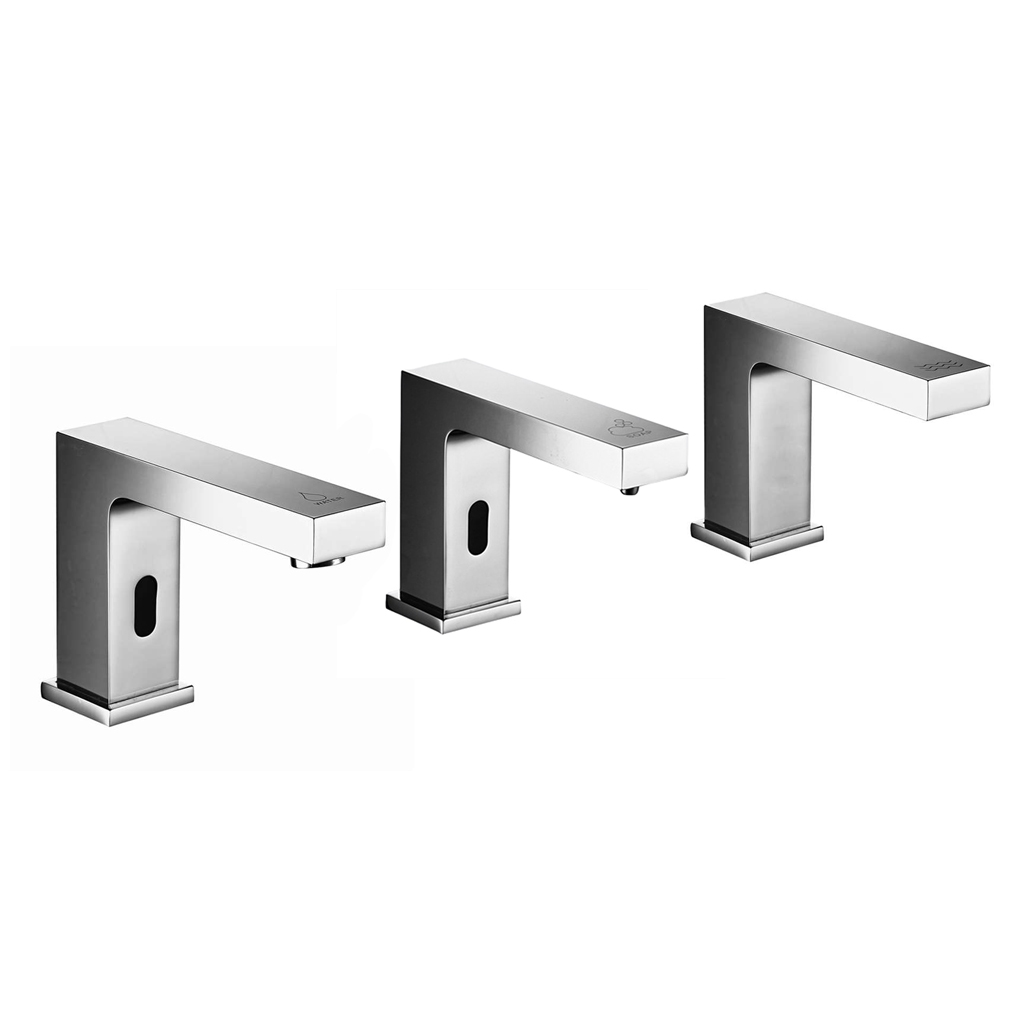

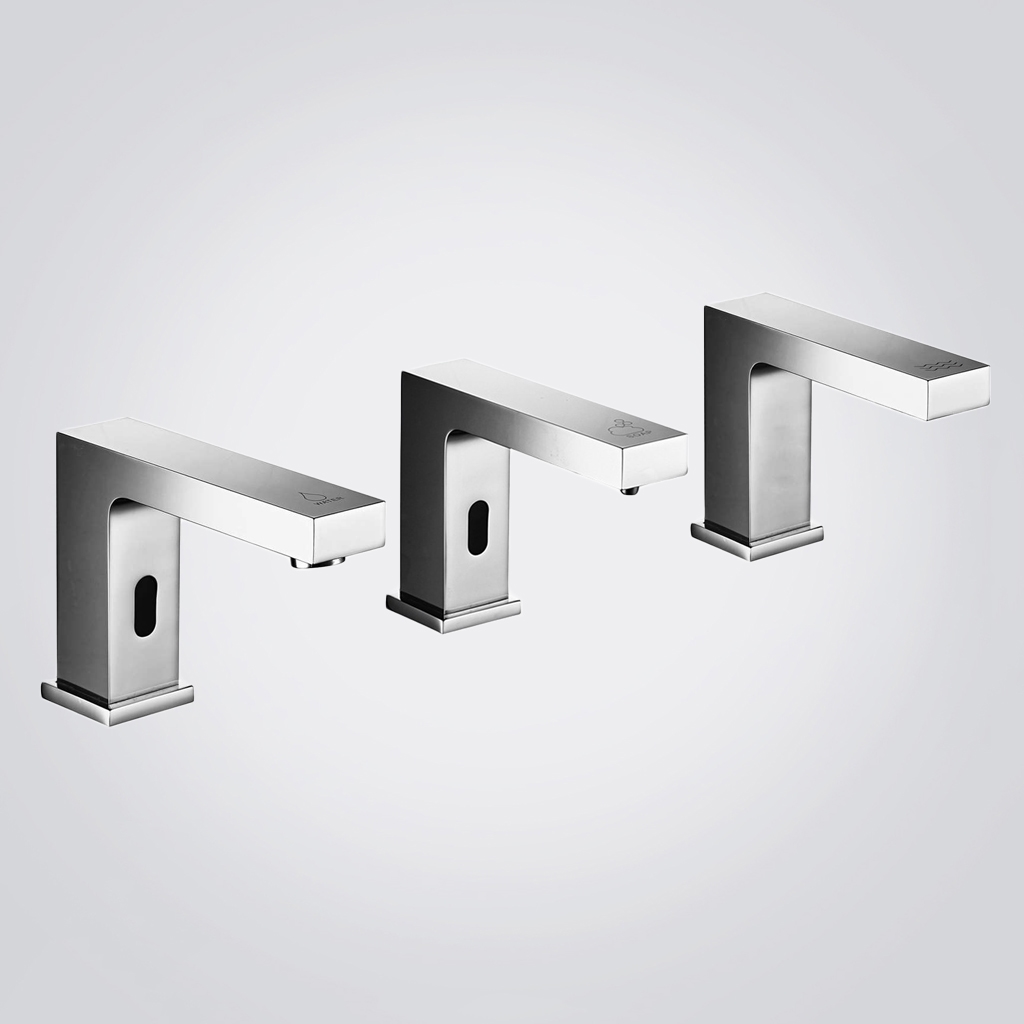

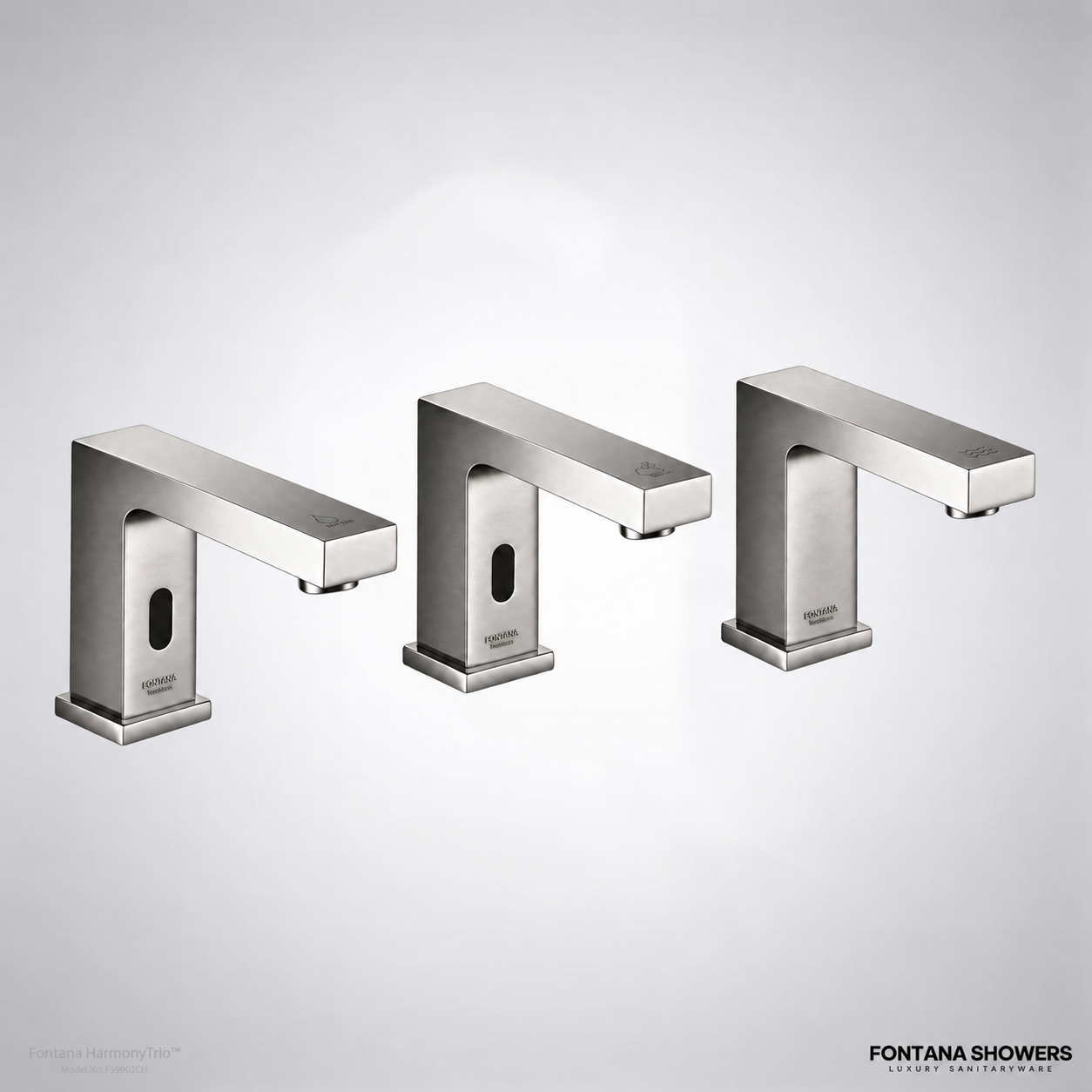

Fontana HarmonyTrio Chrome 3 in 1 Smart Touchless Combo Soap Dispenser, Water Tap & Hand Dryer
The Fontana HarmonyTrio™ Chrome Combo by FontanaShowers® is a luxury fixture that contains three functions all in one. The touchscreen technology serves as a faucet, soap dispenser and hand dryer, redefining how modern bathrooms will be used. Designed from all brass construction finished in polished chrome for durability and reliability with superior style. The faucet maintains water flow from a broad range of pressures. The soap dispenser has a 1L soap reservoir to minimize refills.
The hand dryer has a powerful 38,000 RPM motor to obtain airflow of 90 m/s while maintaining comfortable temperatures of 30-40C, completely drying hands in roughly 10-15 seconds. The hand dryer has a HEPA filtration system built into the dryer unit, which purifies air output as well. The PCB also has a very low standby energy consumption of only 1W. The Fontana HarmonyTrio™ Chrome Combo is ADA-compliant, runs quieter than 75 DB and utilizes both AC and DC power - making it the perfect choice for high-end hotels, boutique office space, exclusive restaurants and/or those throughout the residential market. The efficiency of the combo will also improve hygiene and save valuable space.
FontanaVortexTrio™ Chrome 3-in-1 Touchless Faucet, Soap Dispenser & Hand Dryer FAQ
38,000 RPM Brushless Drying, HEPA Filtration;
0.05–0.6 MPa Water Control & Chrome Surface Protection

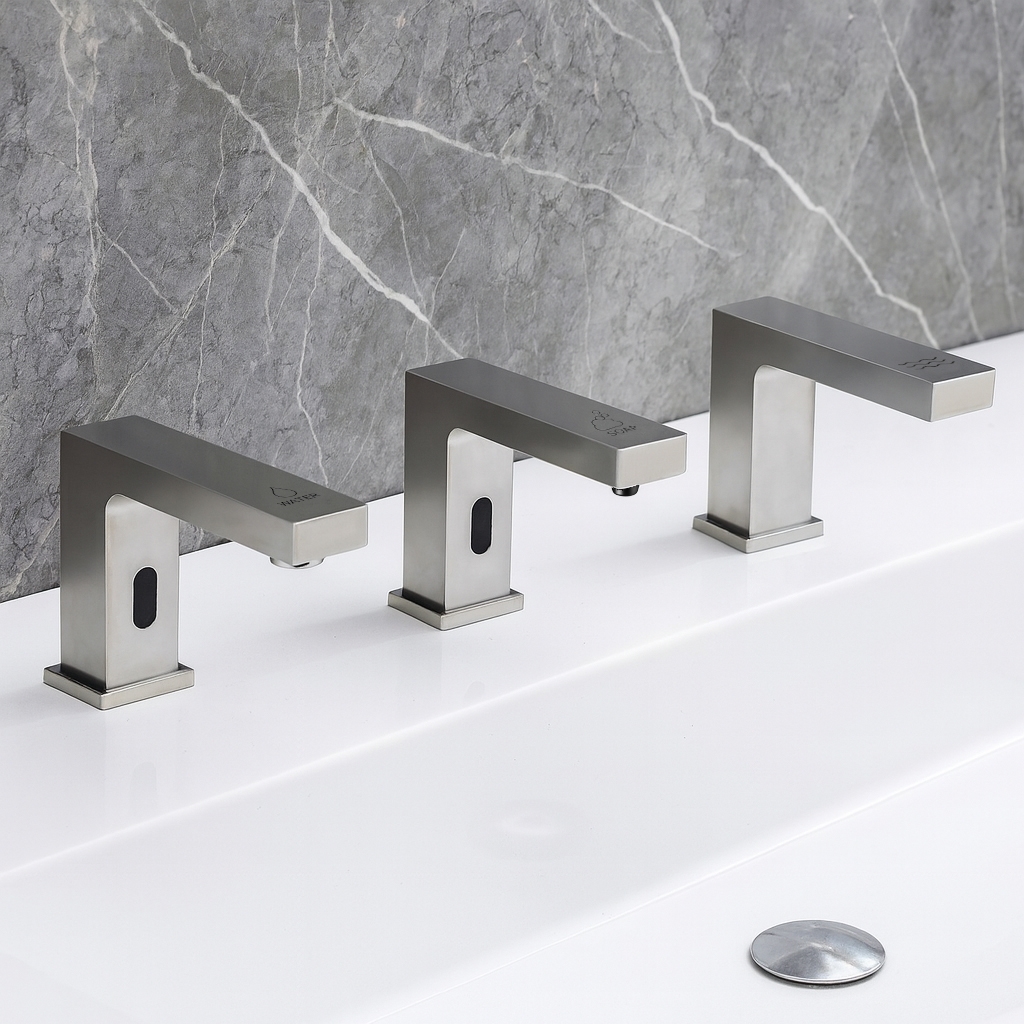

The FontanaVortexTrio™ Chrome 3-in-1 system combines a touchless
water faucet, automatic soap dispenser, and high-speed hand dryer in a
coordinated deck-mounted configuration. It features brass construction,
0.05–0.6 MPa faucet operating pressure, 0.1–50 °C water operation,
a 1-liter soap reservoir, a 38,000 RPM brushless dryer motor, 90 m/s
airflow, HEPA filtration, 1300W dryer power, and approximately
10–15 second hand-drying performance.
How should the faucet, soap dispenser, and dryer sensor zones be commissioned?
Complete commissioning after the basin, countertop, backsplash, mirror,
lighting, and surrounding accessories are fully installed. Test the water,
soap, and dryer functions independently from normal handwashing positions
and verify that each sensor activates only its assigned component. Confirm
prompt water shutoff, controlled soap delivery, and reliable dryer activation
without cross-triggering adjacent sensors or unintended response from
reflective basin and countertop surfaces.
What should be checked if drying takes longer than the specified 10–15 seconds?
Inspect the HEPA filter, air intake, dryer outlet, undercounter motor case,
and connecting air path for restriction. The dryer uses a 38,000 RPM motor
producing approximately 90 m/s airflow with 30–40 °C drying air. A loaded
filter, obstructed intake, restricted outlet, loose air connection, or
inadequate ventilation around the 1300W dryer assembly can increase drying
time even when the motor continues to operate.
How should the 0.05–0.6 MPa water system and 1-liter soap reservoir be serviced?
Flush the water supply before final connection and verify that dynamic
pressure remains within the specified 0.05–0.6 MPa range during faucet
operation. Maintain accessible undercounter clearance around the water
controller, 1-liter soap reservoir, pump, tubing, sensor wiring, and dryer
equipment. Avoid compressed hoses, sharp cable bends, and locating electrical
components directly beneath plumbing or soap connections where leakage could
compromise service reliability.
How should the Chrome finish and exposed operating surfaces be maintained?
Remove fingerprints, soap film, and mineral deposits with a soft damp
microfiber cloth and dry the exposed Chrome surfaces immediately after
cleaning. Keep sensor windows, soap outlets, water outlets, dryer air
openings, and HEPA intake areas free from residue. Use diluted pH-neutral
soap when required and avoid abrasive pads, steel wool, acidic descalers,
bleach, ammonia, aggressive metal polish, and concentrated disinfectants
that may scratch or dull the polished Chrome finish.
More About Touchless Combo DEtails
- Brand Name: FontanaShowers®
- Model Number: FS9902CH
- Finish: Chrome
- Feature: Touchless Faucet, Soap Dispenser & Dryer (3-in-1)
- Material: Brass
- Installation Type: Deck Mount
- Voltage: 220–240V / DC6V (AC & DC Compatible)
- Frequency: 50Hz
- Total Power (Dryer): 1300W
- Standby Power: 1W
- Water Pressure (Faucet): 0.05–0.6 MPA
- Operating Temperature (Water): 0.1–50°C
- Soap Volume Capacity: 1L
- Dryer RPM: 38,000
- Hand Dryer Air Speed: 90 m/s
- Dryer Temperature: 30–40°C
- Noise Level: 75 dB
- Filter: HEPA
- Hand Dryer Dry Time: 10–15s
- Tap Height: Water Tap: 4.92 in | Dispenser: 4.92 in | Dryer: 5.91 in
- Tap Width: Water Tap: 1.97 in | Dispenser: 1.57 in | Dryer: 1.97 in
- Tap Depth: Water Tap: 6.69 in | Dispenser: 4.92 in | Dryer: 7.48 in
- Motor Case Height: Water Tap: 5.71 in | Dryer: 11.42 in
- Motor Case Width: Water Tap: 4.59 in | Dryer: 8.27 in
- Motor Case Depth: Water Tap: 3.37 in | Dryer: 7.48 in
- ADA Compliance
|
|
|
