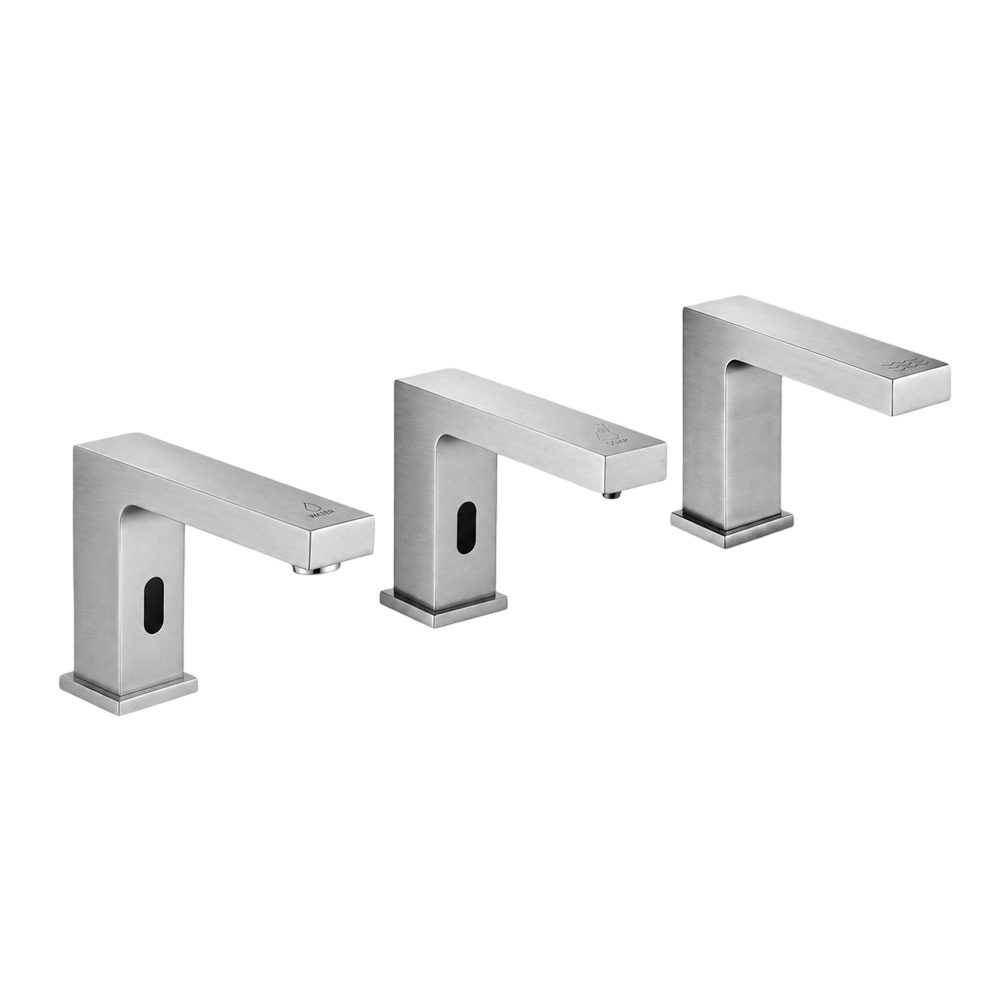

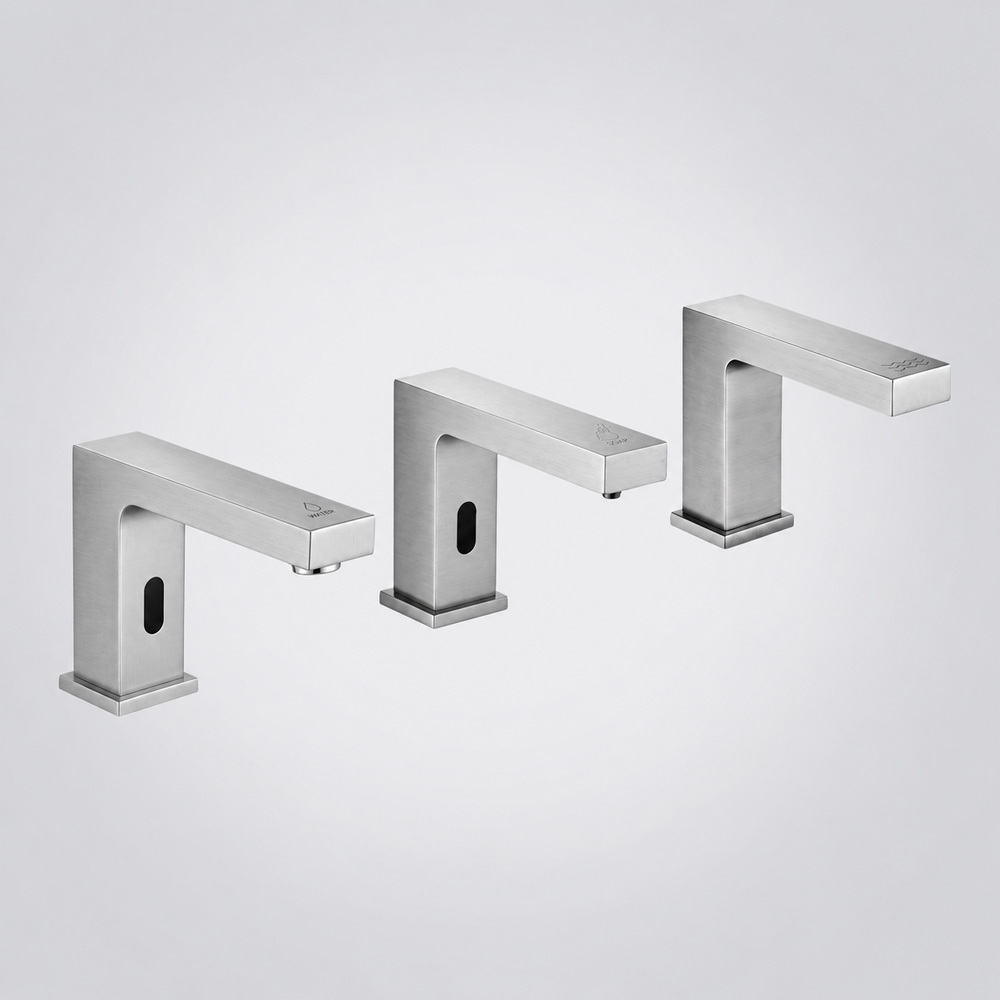

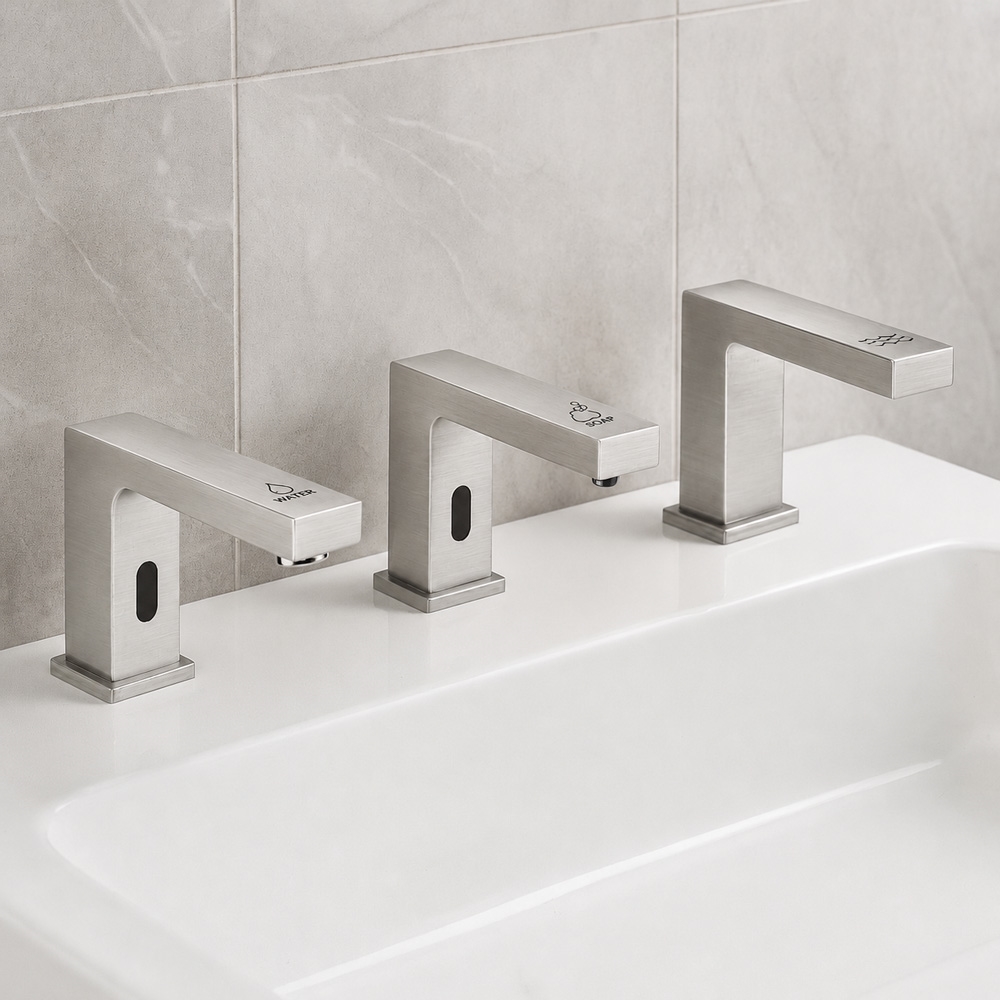

Fontana HarmonyTrio Brushed Nickel 3 in 1 Touch Free Combo Soap, Water & Hand Dryer
The Fontana HarmonyTrio™ –Brushed Nickel 3-in-1 Set by FontanaShowers® is modern, efficient and hygienic with an integrated touchless faucet, an Automatic soap dispenser and a high-speed dryer. Made of durable brass combined with brushed Nickle finish - a deck-mounted model, it has mechanical and aesthetic enhancements for contemporary bathrooms.
With water pressure of 0.05–0.6 MPA, and a water temperature range of 0.1–50°C, this mechanism provides a continuous flow of water, and a 1L soap dispenser will last a long time without refilling. The motor of the dryer boasts a brushless 38,000 rpm for airflow of 90m/s, which dries hands in ten to fifteen seconds and holds the warmth between 30-40°C, and produces only 75 dB. Air is filtered by a HEPA filter, and the standby motor uses less than 1W of power. The proportions of the products are also modest, with a tap height of 4.92 in, a soap dispenser including a capacity of 1L, and a dryer height of 5.91 in, with engineer-sized motor cases. This product is compliant with ADA and was created for ease of use and durability - the Fontana HarmonyTrio™ a premium, hands-free, contemporary product combining style, hygiene and advanced technology.
Fontana HarmonyTrio™ Brushed Nickel 3-in-1 Touchless System FAQ
Sensor-Zone Coordination, HEPA Filter Loading; Brushed Nickel Surface Protection
The Fontana HarmonyTrio™ Brushed Nickel system integrates a touchless water faucet, automatic soap dispenser, and high-speed hand dryer within a brass deck-mounted configuration featuring a 1-liter soap reservoir, 38,000 RPM brushless motor, 90 m/s airflow, HEPA filtration, and AC or DC power compatibility.
How should the three touchless operating zones be validated during commissioning?
Complete testing after the basin, countertop, backsplash, mirror, and surrounding accessories are installed. Move hands beneath the soap, water, and dryer outlets separately and confirm that each sensor activates only its assigned function without cross-triggering adjacent components or responding to reflective surfaces.
What undercounter arrangement supports reliable servicing of the complete system?
Position the faucet controller, 1-liter soap reservoir, pump, dryer motor case, HEPA filter, wiring, water supply, and air connections so every component remains independently accessible. Avoid compressed tubing, sharp cable bends, blocked ventilation, or placement beneath connections where leakage could reach electrical equipment.
What should be inspected if the dryer exceeds its normal 10–15 second drying cycle?
Check the HEPA filter for loading, verify that the intake and outlet paths remain unobstructed, and confirm stable 220–240V power. Restricted cabinet ventilation, loose air connections, or contamination within the motor path can reduce the specified 90 m/s airflow and increase drying time.
How should the Brushed Nickel surfaces be cleaned without changing their directional grain?
Wipe each exposed component in the direction of the brushed grain using a soft damp microfiber cloth, then dry immediately. Use diluted pH-neutral soap only and avoid abrasive pads, acidic descalers, bleach, ammonia, steel wool, metal polish, and concentrated disinfectants that may create bright or uneven areas.
See More
- Brand Name: FontanaShowers®
- Model Number: FS9902BN
- Finish: Brushed Nickel
- Feature: Touchless Faucet, Soap Dispenser & Dryer (3-in-1)
- Material: Brass
- Installation Type: Deck Mount
- Voltage: 220–240V / DC6V (AC & DC Compatible)
- Frequency: 50Hz
- Total Power (Dryer): 1300W
- Standby Power: 1W
- Water Pressure (Faucet): 0.05–0.6 MPA
- Operating Temperature (Water): 0.1–50°C
- Soap Volume Capacity: 1L
- Dryer RPM: 38,000
- Hand Dryer Air Speed: 90 m/s
- Dryer Temperature: 30–40°C
- Noise Level: 75 dB
- Filter: HEPA
- Hand Dryer Dry Time: 10–15s
- Tap Height: Water Tap: 4.92 in | Dispenser: 4.92 in | Dryer: 5.91 in
- Tap Width: Water Tap: 1.97 in | Dispenser: 1.57 in | Dryer: 1.97 in
- Tap Depth: Water Tap: 6.69 in | Dispenser: 4.92 in | Dryer: 7.48 in
- Motor Case Height: Water Tap: 5.71 in | Dryer: 11.42 in
- Motor Case Width: Water Tap: 4.59 in | Dryer: 8.27 in
- Motor Case Depth: Water Tap: 3.37 in | Dryer: 7.48 in
- ADA Compliance
Sensor Activated Handwashing Station
|
Triple Set
