How to install Milo Luxury Antique Bronze Copper Carving Deck Mount Bathroom Sink Faucet | FS-9701A
Easy step by steps Installation Instructions for Faucet
Visit Product Page
Before you begin, please read the installation instructions below. Observe all local building and safety codes.
Unpack and inspect the products for any shipping damages. If you find damages, do not install.
Please note all products must be installed by a professional and certified plumber otherwise warranty might be voided.
faucet
Faucet Installations Instructions

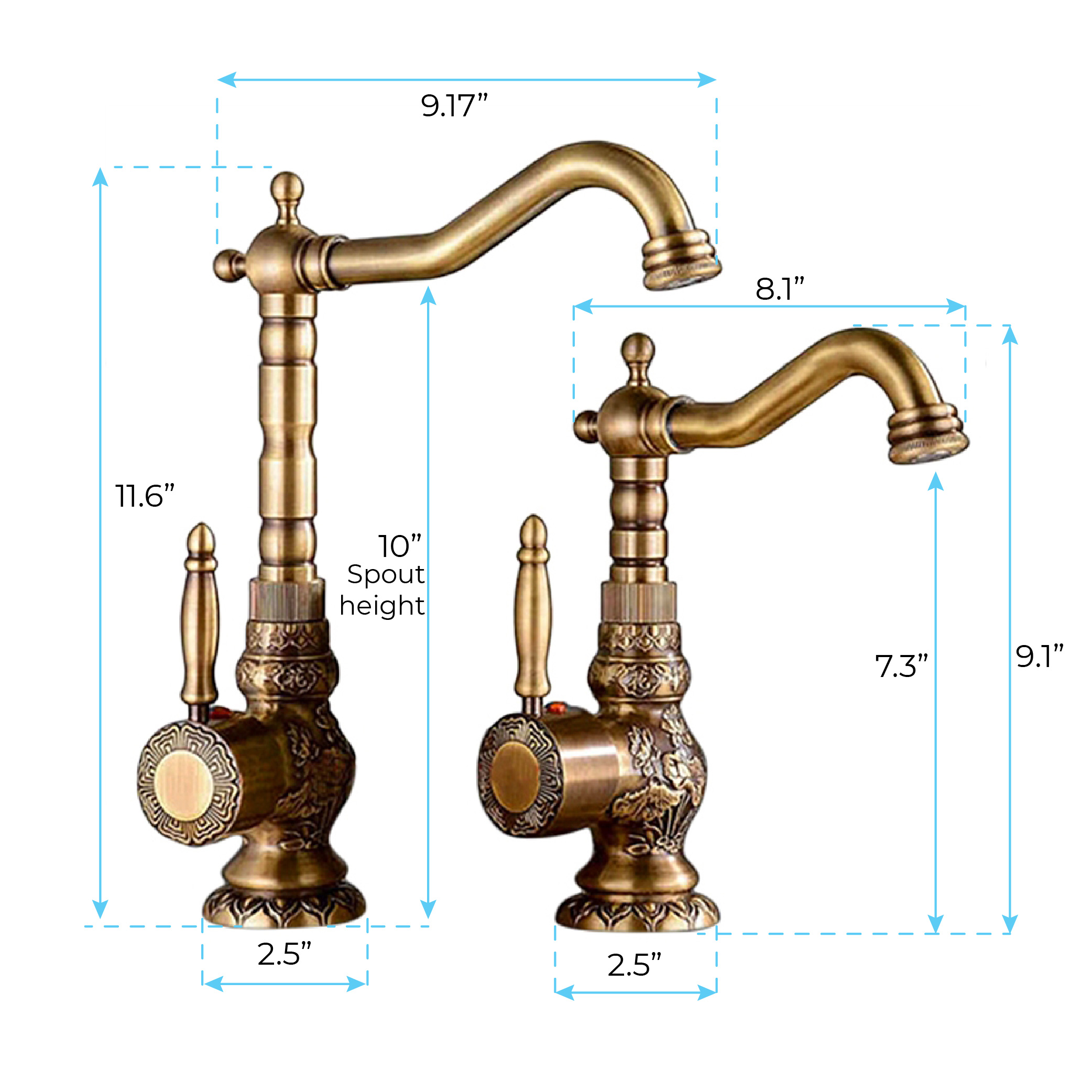

Size
Deck Hole Size
faucet
Specs: Type : Hot & cold Material: Brass Test pressure: 0.5 ~ 0.6mpa Valve type: Ceramic GPM: 1.4
Step 1:
Step 2:
faucet
Step 3:
Step 4:
1. Remove the mounting nut, metal washer, and rubber washer from the threaded pipe. 2. Fit the O-ring into the groove of the faucet body. Screw waterlines into the corresponding screw-hole of the faucet body. 3. Insert waterlines and threaded pipe into the hole of the sink. 4. Install rubber washer, metal washer, and mounting nut back to the threaded pipe. Adjust the faucet body correctly and secure with mounting screws tightly. 5. Connect waterlines to angle stops. Turn on the angle stops and check for leaks (DO NOT TURN FAUCET ON). 6. Turn faucet on for 1 minute to flush any debris.
Important: Turn on hot and cold water supplies and flush water lines into a container for one minute. This flushes away any debris that could cause damage to internal parts.
Flexible Connecting Hose Care must be taken when connecting the flexible connection hose from the power supply box to the spout to ensure it does not bend sharply and kink or twist. See above for recommended ways to fit the flexible connecting hose.
Important: Failure to follow these guidelines may result in poor performance and damage to the flexible connection hose.

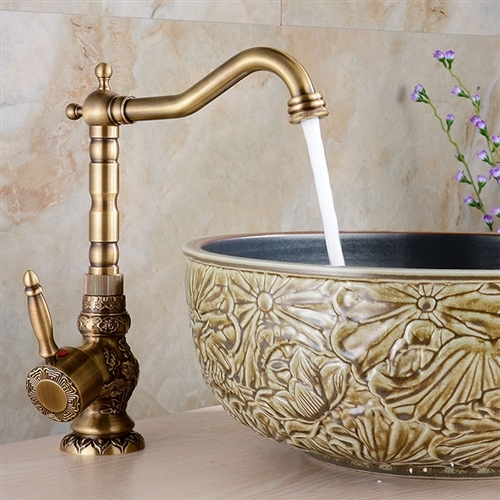

Our Copper Faucet the Milo Luxury Antique Bronze Copper Carving Deck Mount Bathroom Sink Faucet was specially designed to fulfill the needs of a modern bathroom faucet. The antique Bronze finish and the robust looking shape with straight angles bring back the atmosphere of times long passed, but the functionality is perfectly adjusted to our modern times. This antique copper bathroom faucet installation method is deck mount, single hole, with one handle and built-in hot and cold water mixer. The copper bathroom sink faucet spout height is 6.6 inches, making it ideal for bowl sinks as well. Only the best materials have been used, for a long lasting life time. It comes with complete accessories and installation instructions.
Features:
Visit Product Page
Brand Name: FontanaShowers
Model Number: FS-9701A
Type: Copper Sink Faucet
Body Material: Brass body and ceramic base
Material of Faucet handle: Brass
Feature: 360 degree rotating for spout
Style: Classic
Finish: Antique brass
Function: Cold & hot water
Number of handles: Single handle
Installation Method: Deck mount
Hole Count: Single hole
Cold/Hot Water Control Type: Single Holder Dual Control
