How to install Fontana Milan Wall Mount Hot And Cold Water Concealed Box Faucet | FS9574
Easy step by steps installation instructions for Faucet
Visit Product Page
Before you begin, please read the installation instructions below. Observe all local building and safety codes.
Unpack and inspect the products for any shipping damages. If you find damages, do not install.
Please note all products must be installed by a professional and certified plumber otherwise warranty might be voided.
faucet
Faucet Installations Instructions
Step 1:
Step 2:
faucet
Step 3:
Step 4:

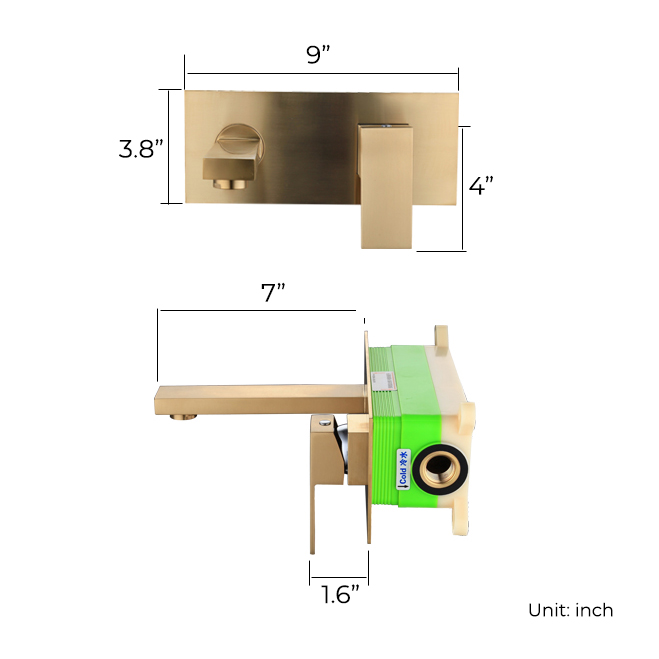

Drill the wall as the above drawing according to the dimensions of the faucet. They include the main body conceal the hole. Coldwater pipe, hot water pipe hole.
Fix the faucet body in the inner wall. Connect it with cold water and hot water pipe, and turn on the water supply to confirm it’s no leakage. After adjusting use azimuth, use the concrete close cover the pipeline.
Step 5:
Step 6:
Install the cover, and then install the handle to the faucet body.
Position and fix the valve body (A) into the wall with screws. Make sure the valve body (A) is completely level.
Step 7:
Step 8:
Connect hot and cold water inlets of the valve body (A) to the main water supply. Turn on the water supply and open the cartridge to check for leaks. (Solid copper pipes are recommended for the connection.)
Attach the spout (B) to the valve.
Step 9:
Step 10:

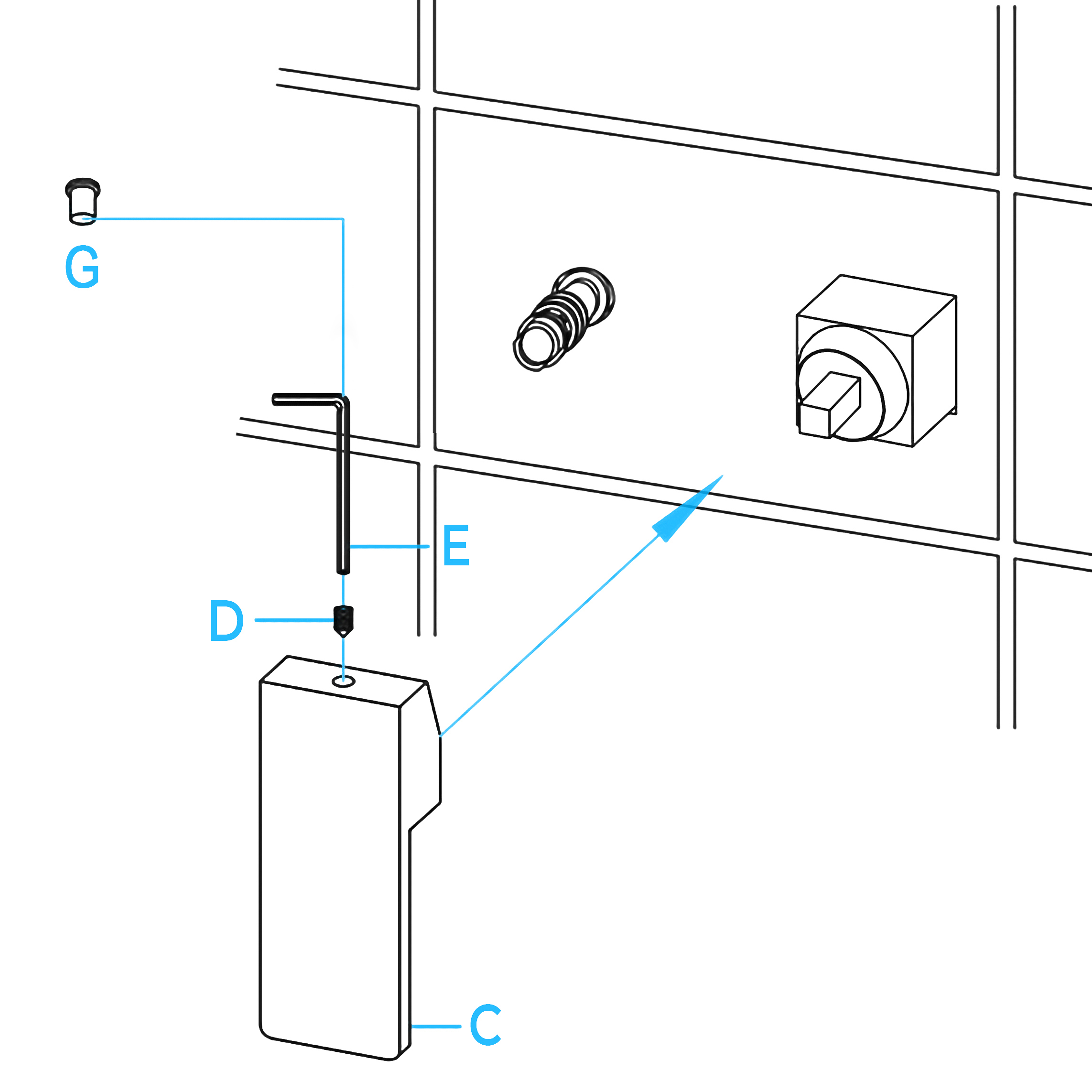

Place the handle (C) onto the valve and fix the set screw (D) with Allen key (E), then put on the indication button (G).
Flexible Connecting Hose Care must be taken when connecting the flexible connection hose from the power supply box to the spout to ensure it does not bend sharply and kink or twist. See above for recommended ways to fit the flexible connecting hose.
Important: Failure to follow these guidelines may result in poor performance and damage to the flexible connection hose.

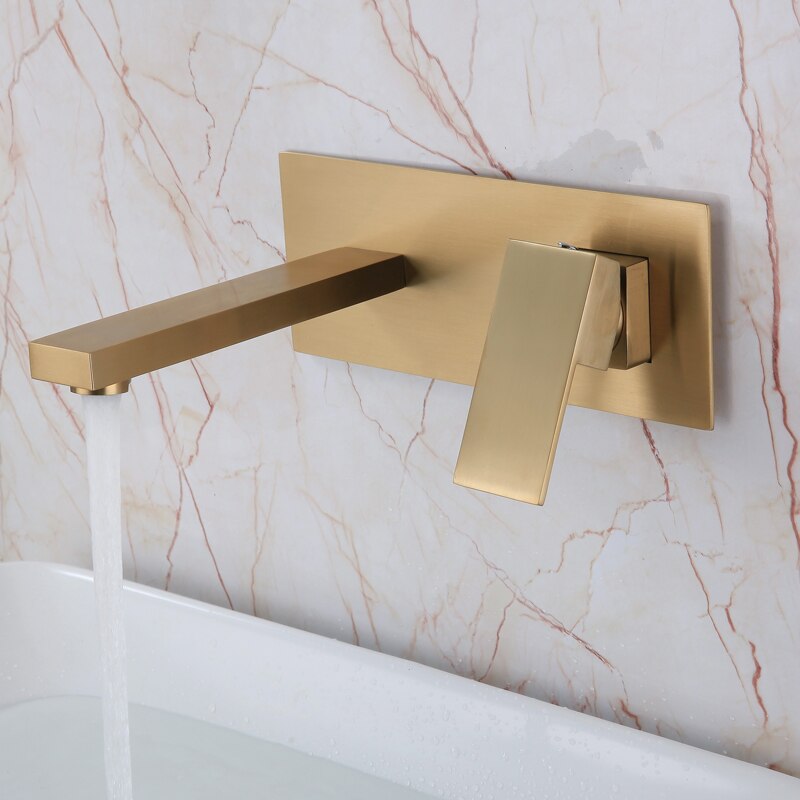

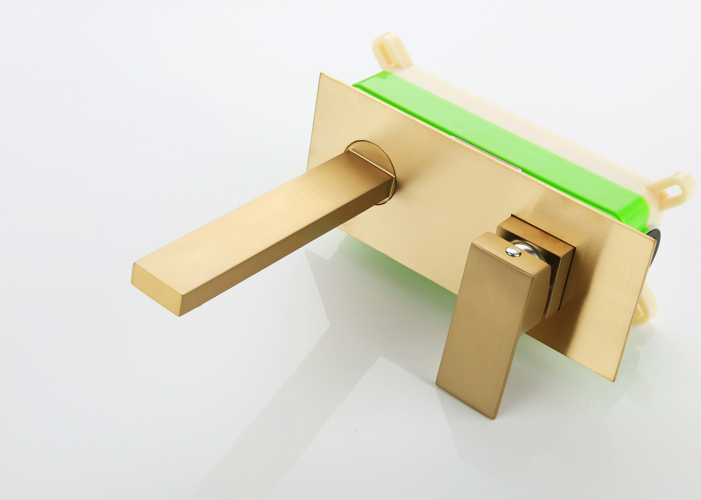

Fontana Milan Wall Mount Hot And Cold Water Concealed Box Faucet
