How to install Bravat Luxury Chrome Wall Mount Shower Mixer | FS9511


Easy step by step Installation Instructions for Way Wall-Mounted Shower Faucet Mixer Valve

  • Before you begin, please read the installation instructions below. Observe all local building and safety codes.
  • Unpack and inspect the product for any shipping damages. If you find damages, do not install.
  • Please note all products must be installed by a professional and certified plumber otherwise warranty might be voided.
Shower
Mixer		Bravat Luxury Chrome Wall Mount Shower Mixer

Shower Mixer Installation Instructions

Step 1:mixer Step 2:

Step 3:Step 4:

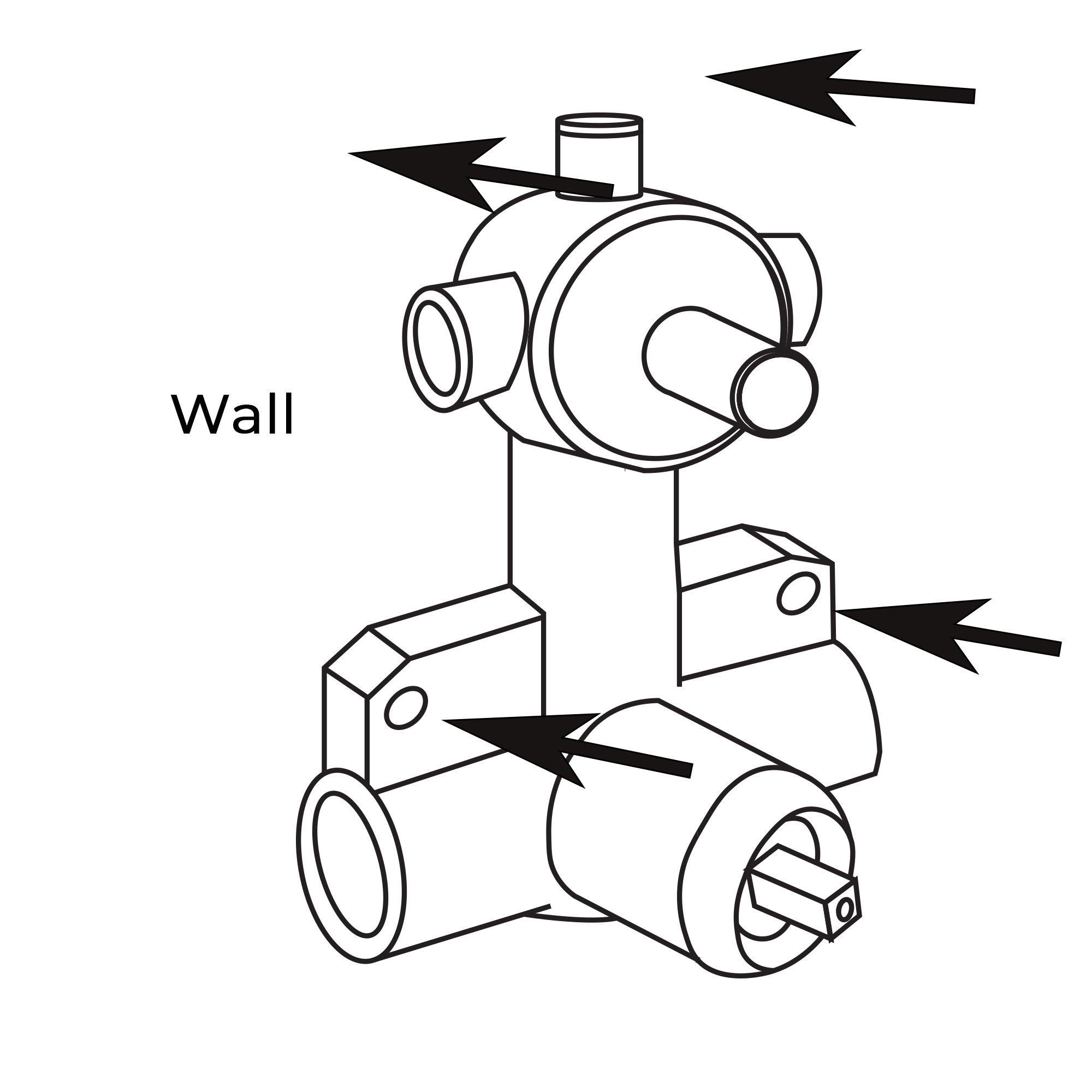

1) Fix the shower valve into the wall with screws. Use a level to ensure that the valve is straight and level. (Important: Flush the water supply pipes to remove any dirt and debris before installing the valve body)

2) Wrap Teflon tape around the pipe thread. Connect hot and cold water supply lines and all the in-wall pipes (not included) as desired to the valve. Turn on the water supply and open the cartridge to check for leaks. Then, put on the protective cover.

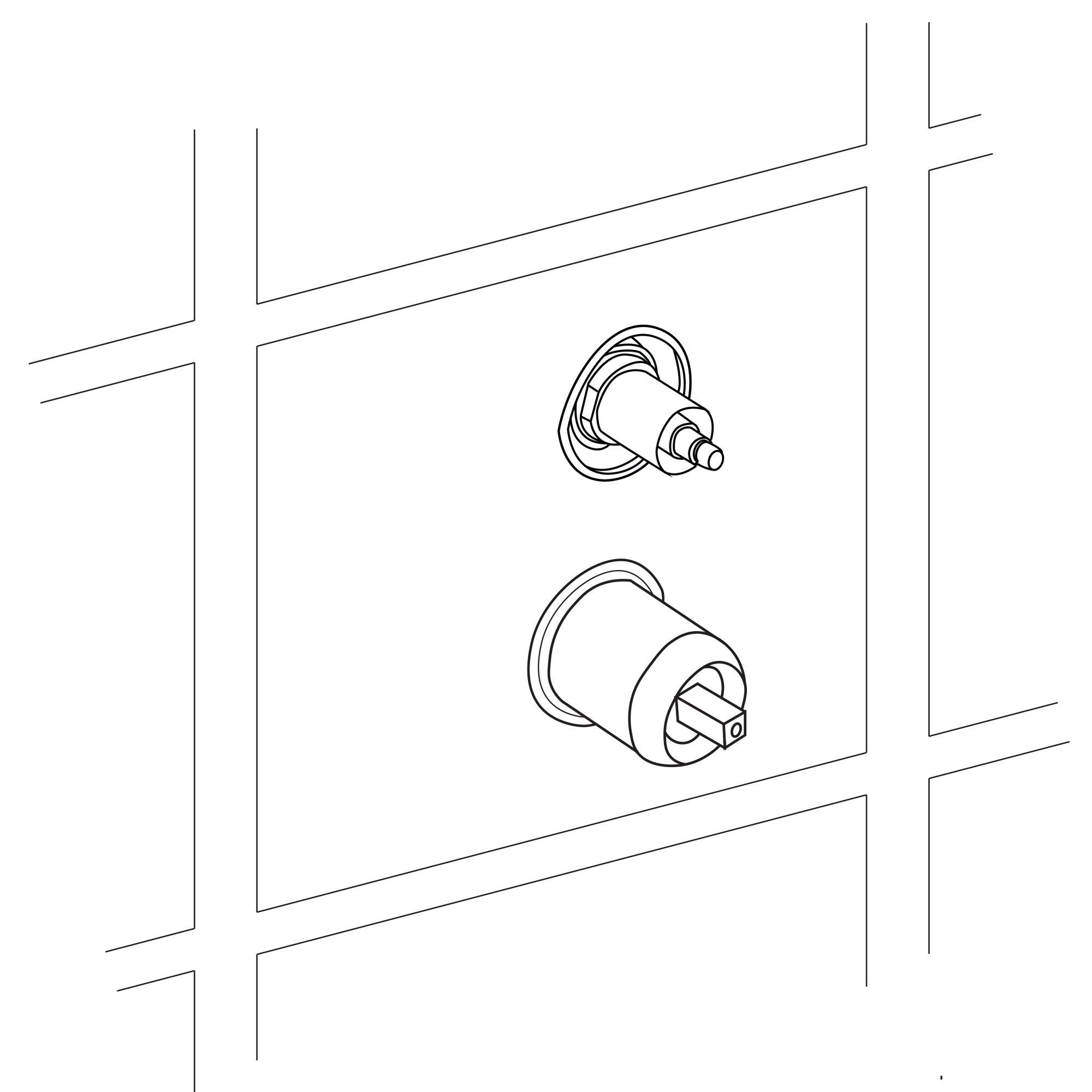

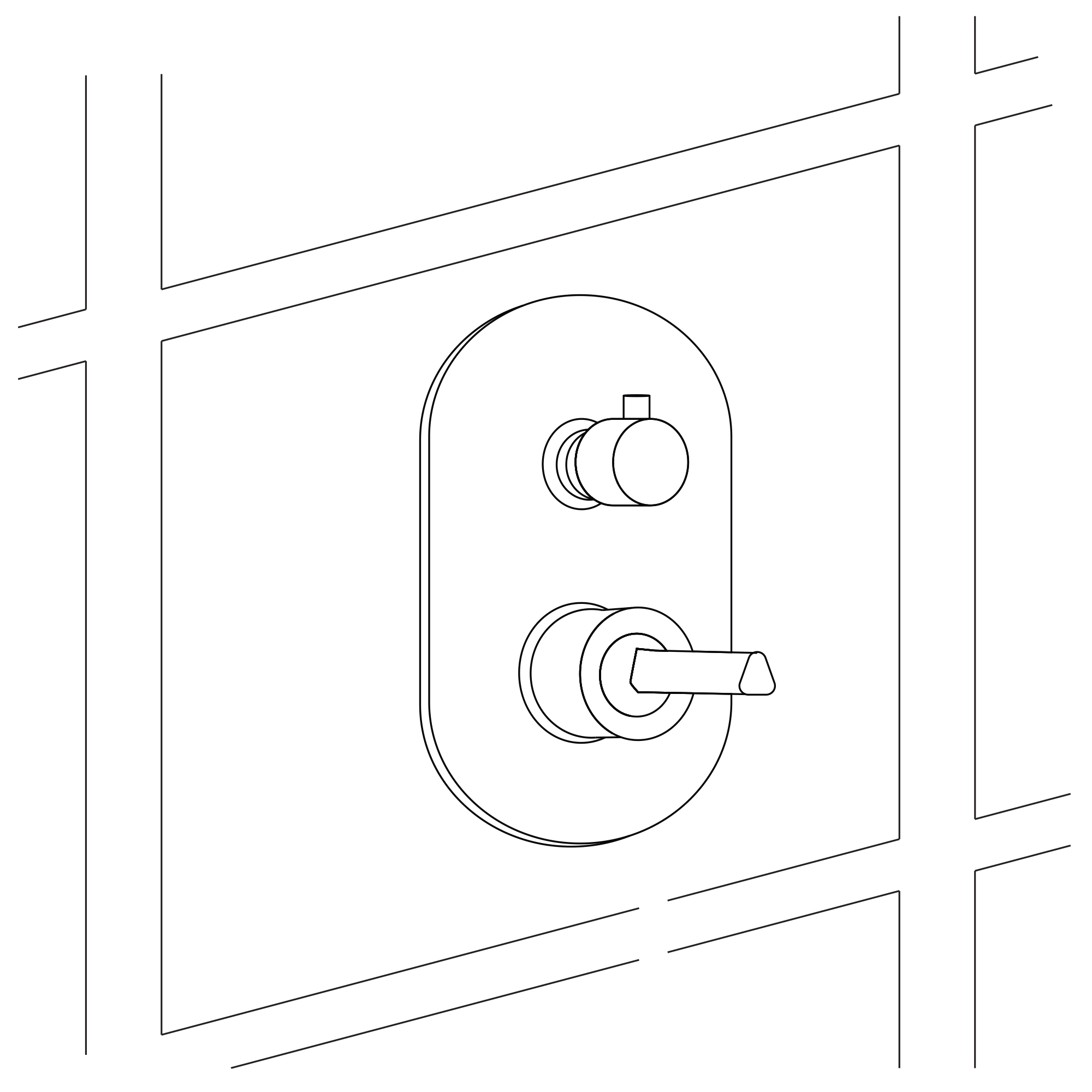

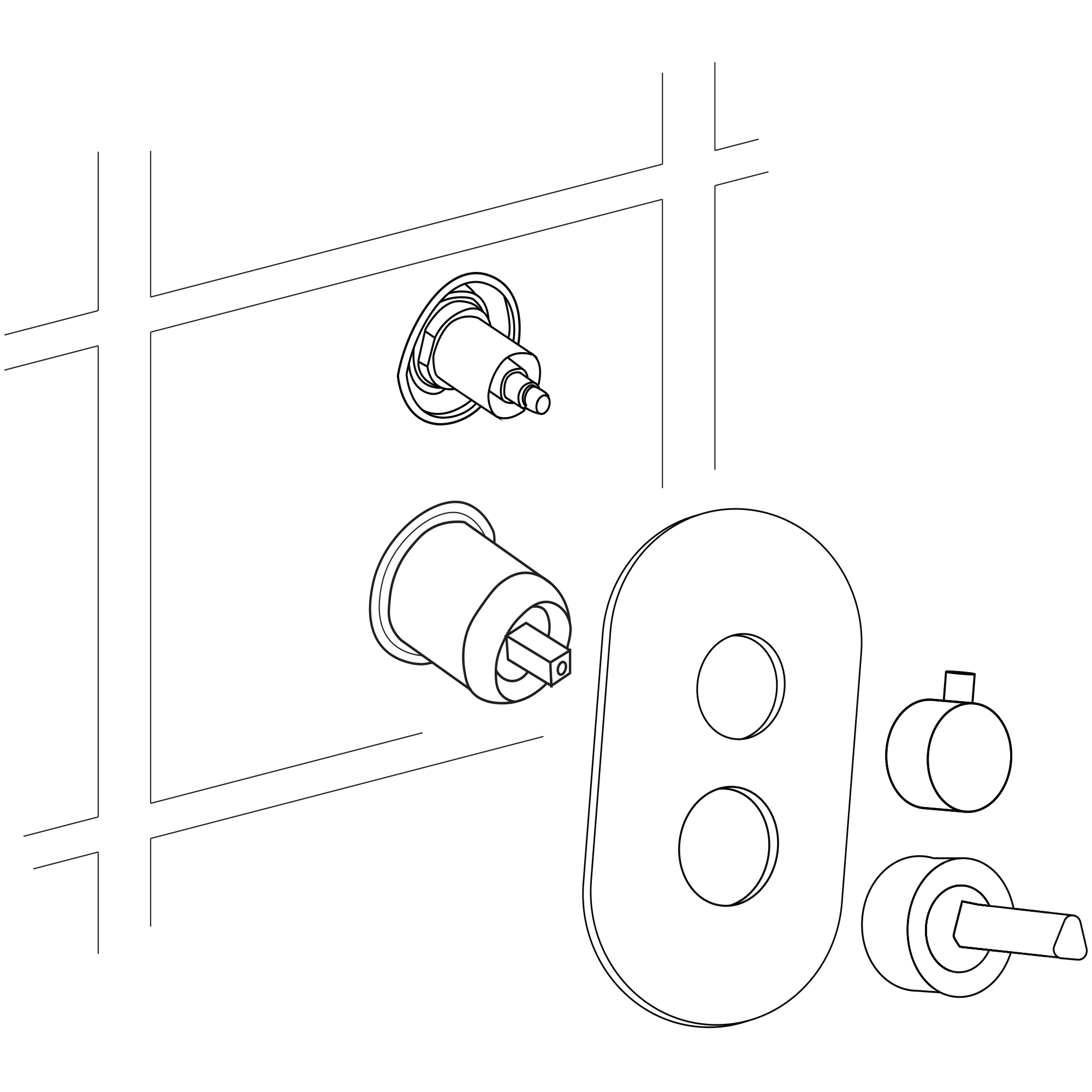

3) Remove the protective cover when the wall finished wall is completed. Install escutcheon onto the shower valve and press it against the finished wall. Then, install the handle and diverter knob to the valve and tighten set screws with the Allen key and put on the indication button.


Function: Check connections for leaks and check function of fitting. Flow is diverted automatically from shower outlet to bath inlet when the fitting is closed.

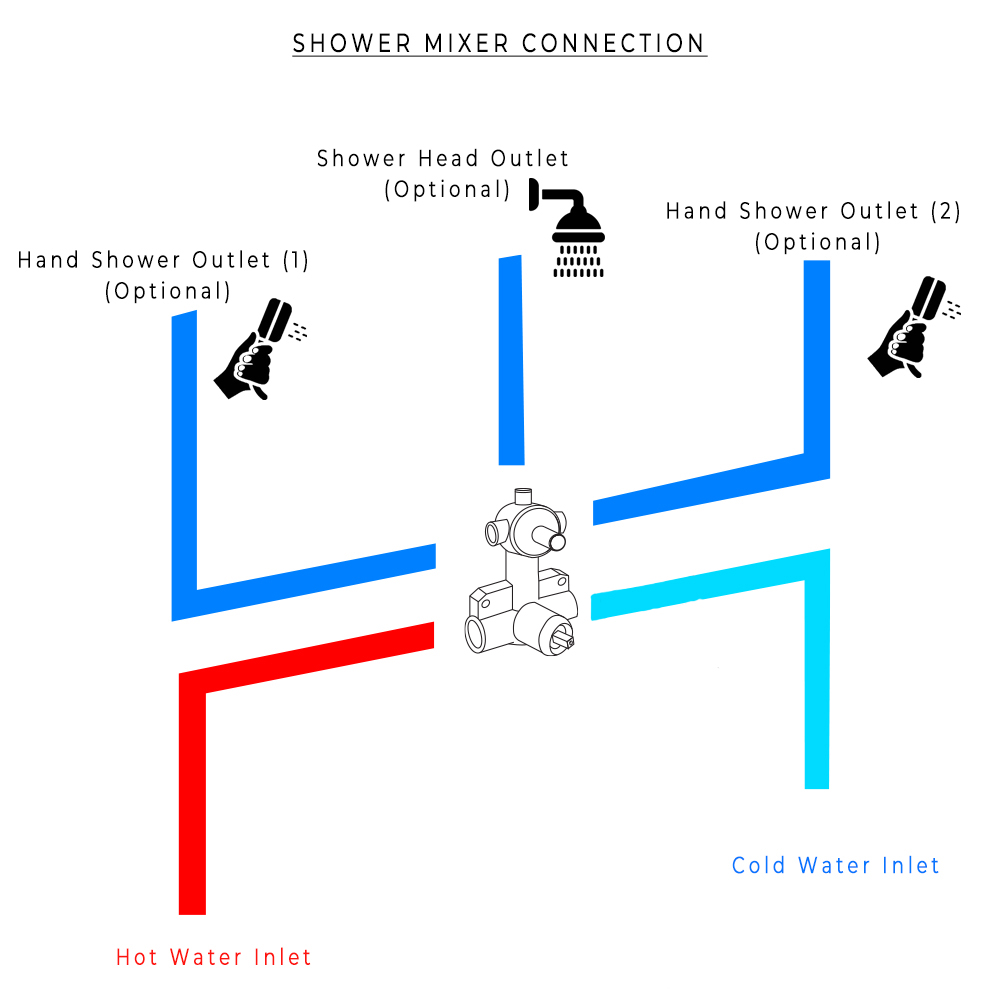

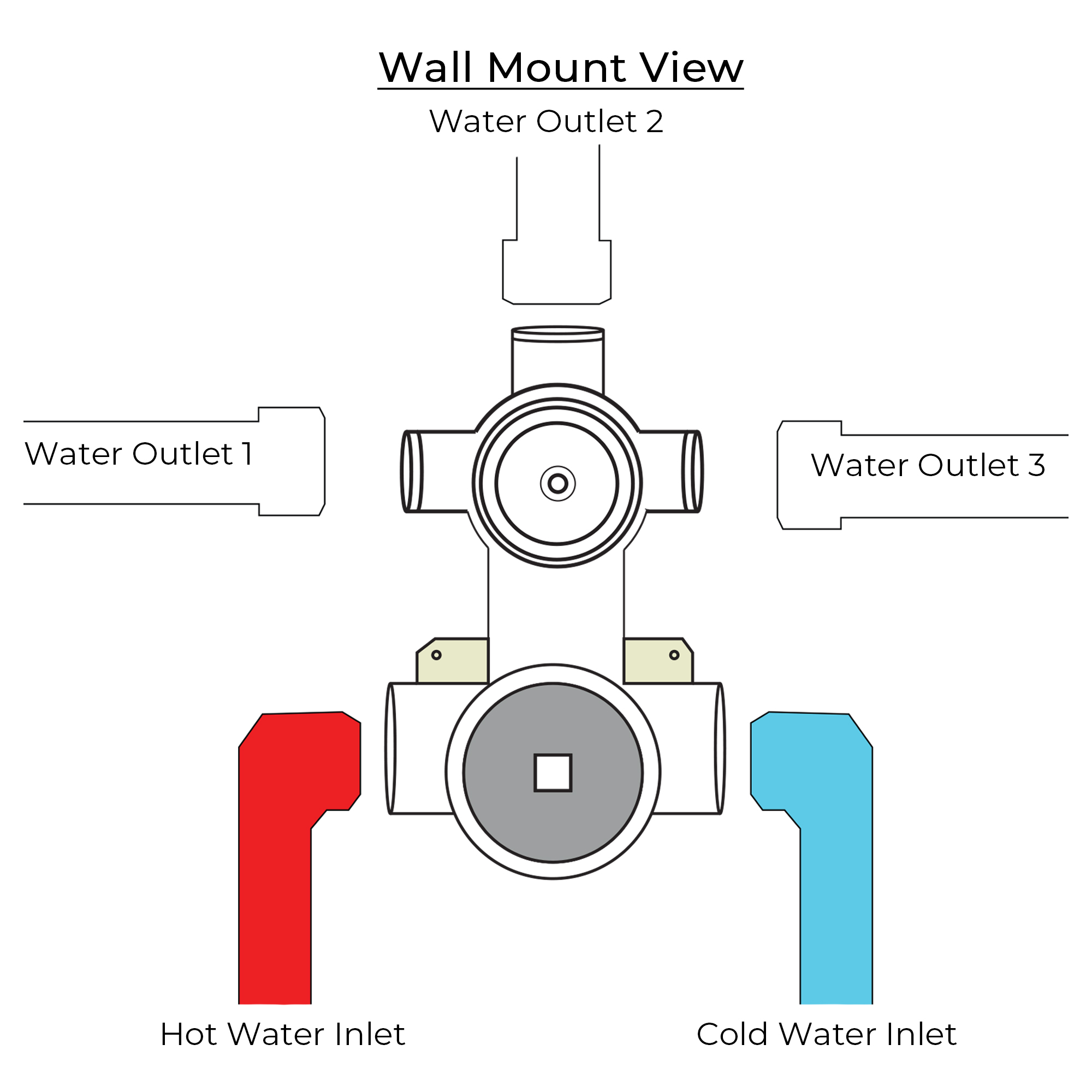

Shower Mixer Wall Mount View ConnectionShower Mixer Connection Overview

Shower
Mix

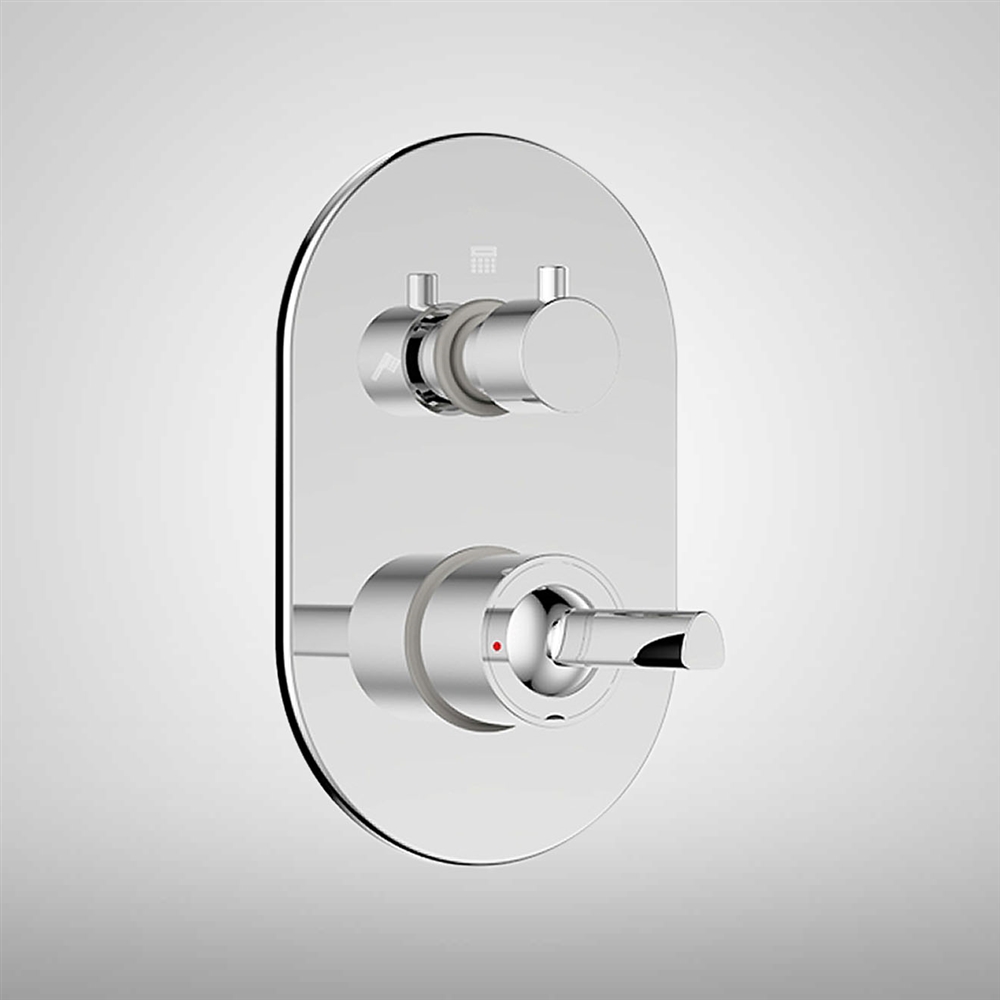

Bravat Luxury Chrome Wall Mount Shower Mixer

Bravat chrome plated Thermostatic shower mixer. The contemporary styling of this shower is the perfect solution for updating your existing bathroom hardware. This shower mixer has been made with premium grade lightweight.

Features:
  • Brand Name: Bravat
  • Product Code: FS9511
  • Type: Bathroom Shower Mixer
  • Installation Type: US Standard
  • Install: Wall Mount
  • Number of Handle: Single
  • Installation Hole: Single
  • Color: Chrome
  • Faucet: Brass
  • Style: Contemporary
  • Hot & Cold Water: Yes
  • Surface Finish: Chrome
  • Surface Treatment: Blackened
  • Core Material: Ceramic
  • Plating Thickness: 10 um
  • Function: Fixed Support Type
