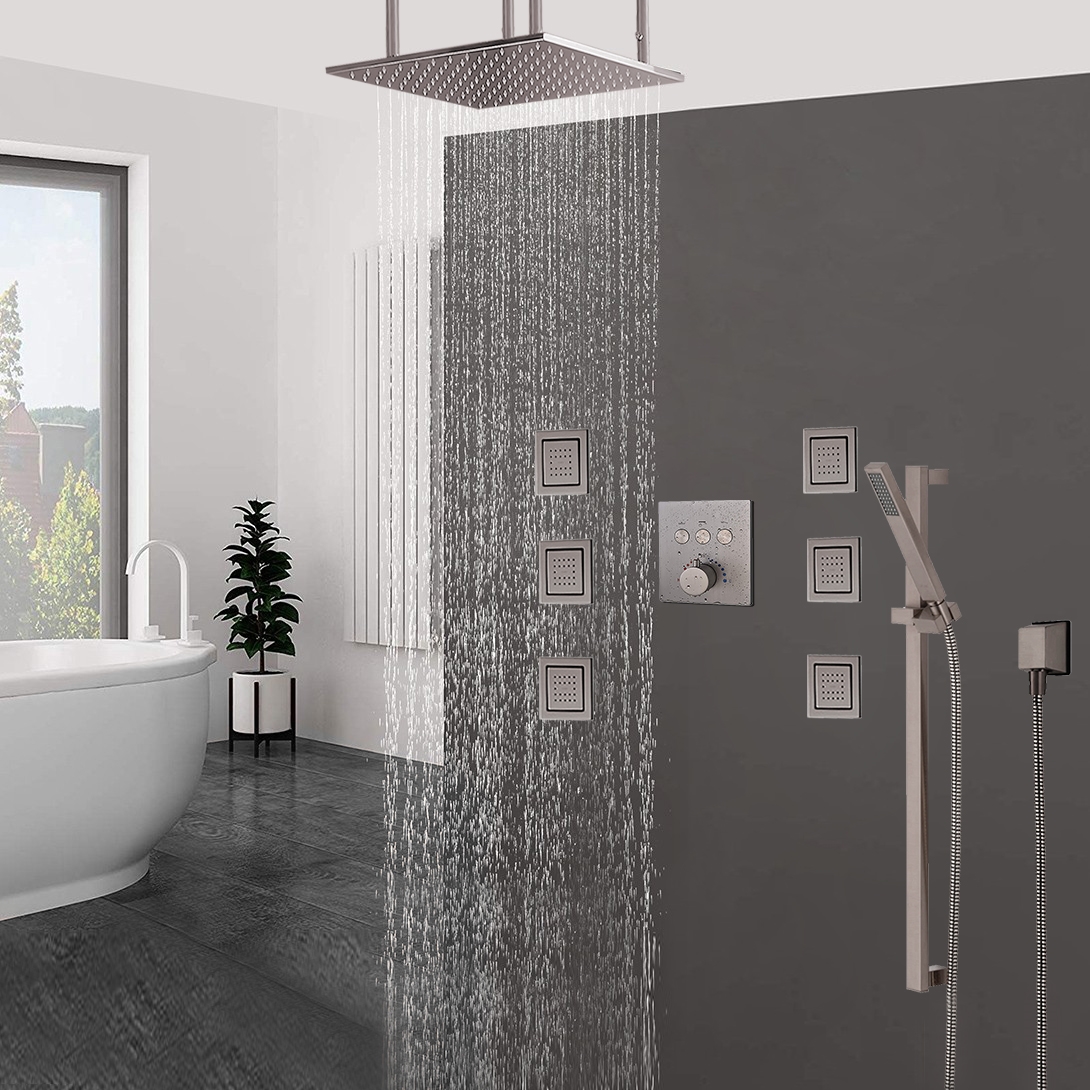

How to install FontanaShowers Brushed Nickel Ceiling Mount Rainfall Shower Set With Thermostat Mixer Jet Spray And Handshower | FS1522B


Easy step by step Installation Instructions for Thermostatic Rainfall Shower System

  • Before you begin, please read the installation instructions below. Observe all local building and safety codes.
  • Unpack and inspect the product for any shipping damages. If you find damages, do not install.
  • Please note all showers must be installed by a professional and certified plumber otherwise warranty might be voided.
shower

Shower Head Installation Instructions



shower

Step 1: Step 2:
According to the template (B) mark the location of the mounting holes (1). Use a drill with a 6mm bit to drill mounting holes into studs or blocking.

Install the mounting brackets (C) with the tapping screws (D1). Thread the shower bars (E) onto the mounting brackets, and the inlet hose (F) onto the water inlet.


Step 3: Step 4:
Attach the shower head (A) to the shower bars (E). Connect the inlet hose (F) to the showerhead.






Step 5:





Hand Held Shower Installation Instructions

Size

Parts Included:

1. Wall Outlet

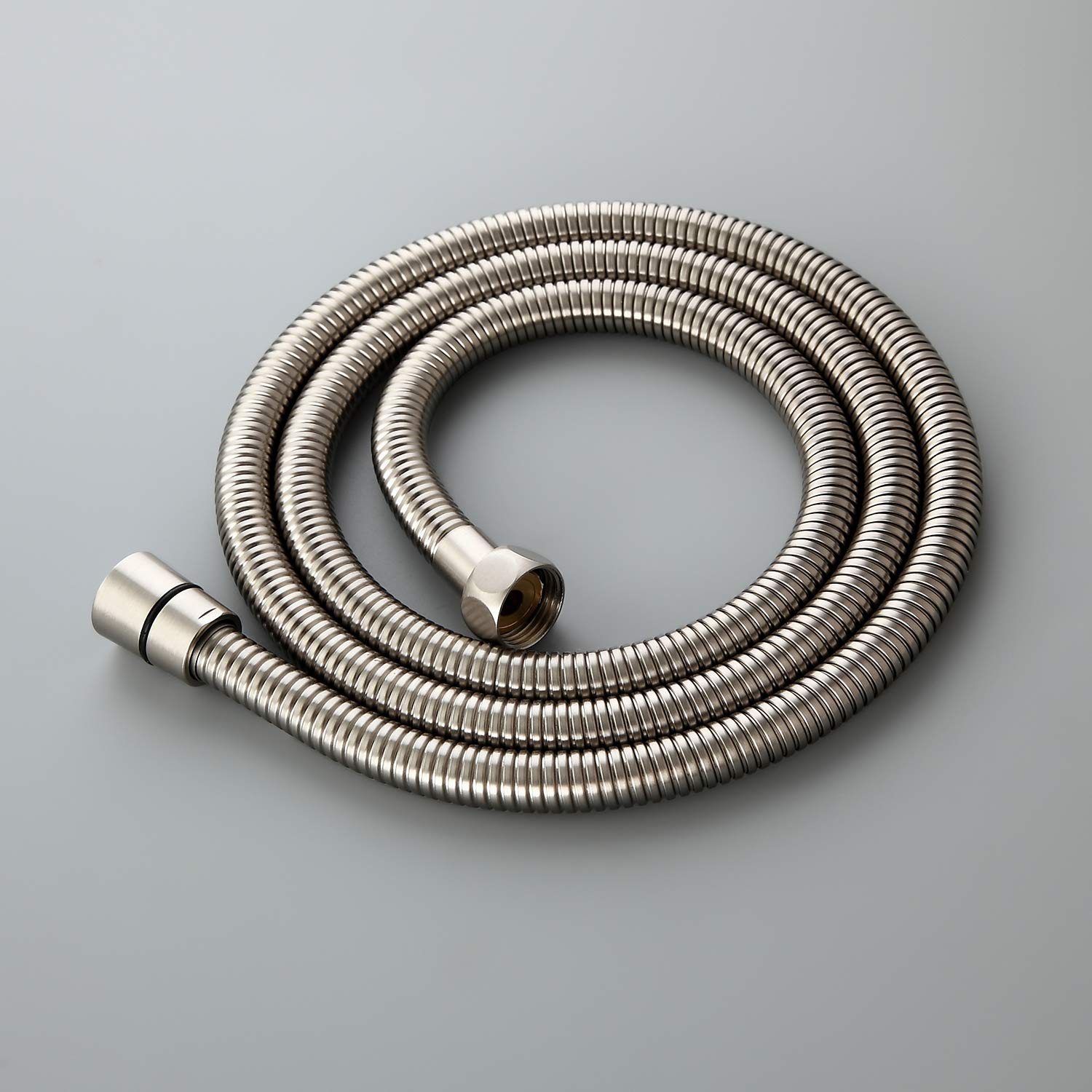

2. 60" Shower Hose With Gaskets
3. Complete Slide Bar With Mounting Parts / Posts, Screws & Anchors
4. Adjustable Shower Mount (Attached To Slide Bar)

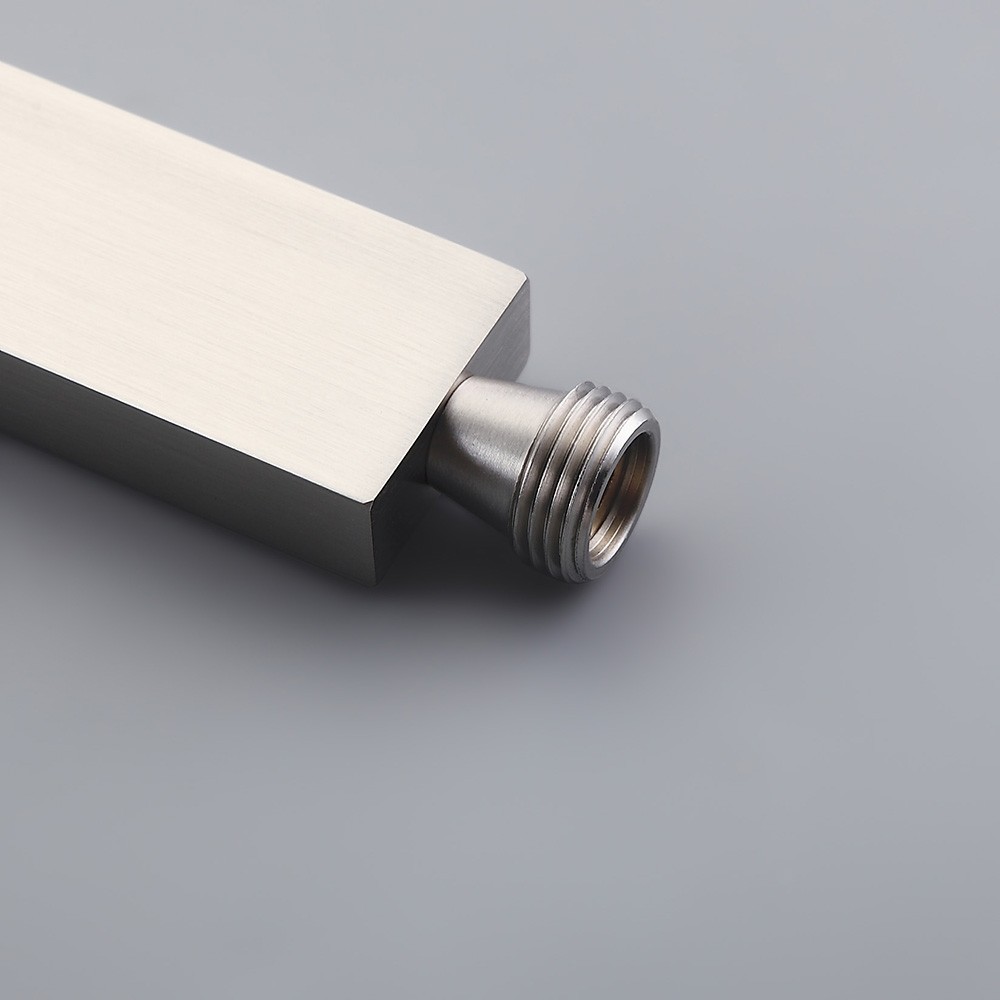

5. Hand Held Shower











HandHeld Shower Installation InstructionsHandshower
Installation Instructions
Supply Elbow InstallationWall Bar Installation
Step 1:Step 2:

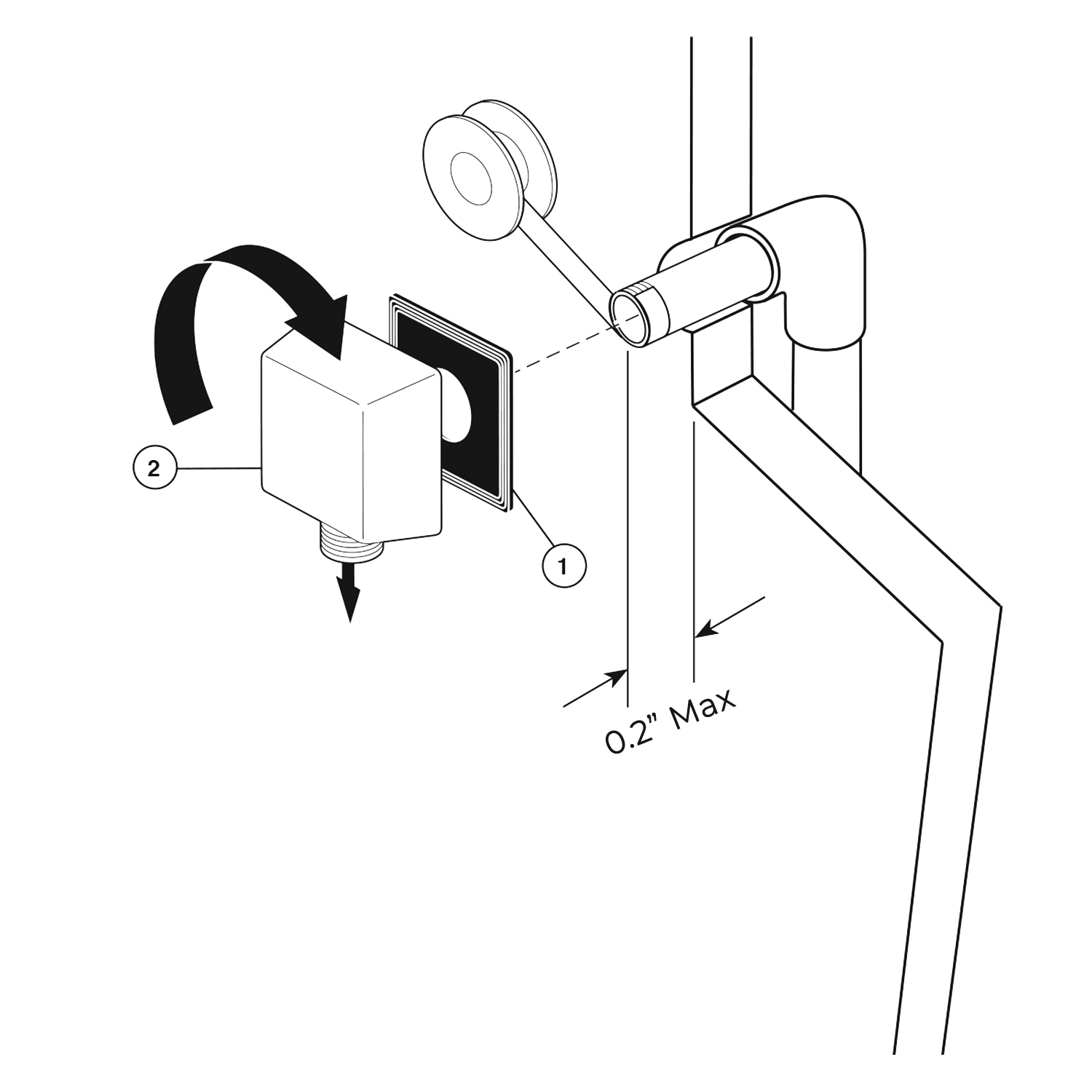

Apply Plumber Tape To Threaded Ends Of 1/2" (13 Mm) Iron Pipe Nipple (Not Supplied) And Thread Into Shower Riser Elbow So That Nipple Extends Past The Finished Wall No More Than 0.2" (4.8 Mm) And No Less Than 1/16" (1.6 Mm). Place The Supplied Installation Gasket (1) Behind The Elbow (2). Screw The Supply Elbow Onto The Nipple Making Sure That The Supply Elbow Outlet Is In A Downward Facing Position. Minimum Diameter For Hole Is 1" (25 Mm) With A Maximum Of 1½” (38 Mm).

Caution: To Avoid Damage To The Supply Elbow Or Hose Finish During Installation, Wrap With A Cloth Or Tape And Use Only A Smooth-Jawed Wrench. DO NOT OVERTIGHTEN CONNECTIONS.

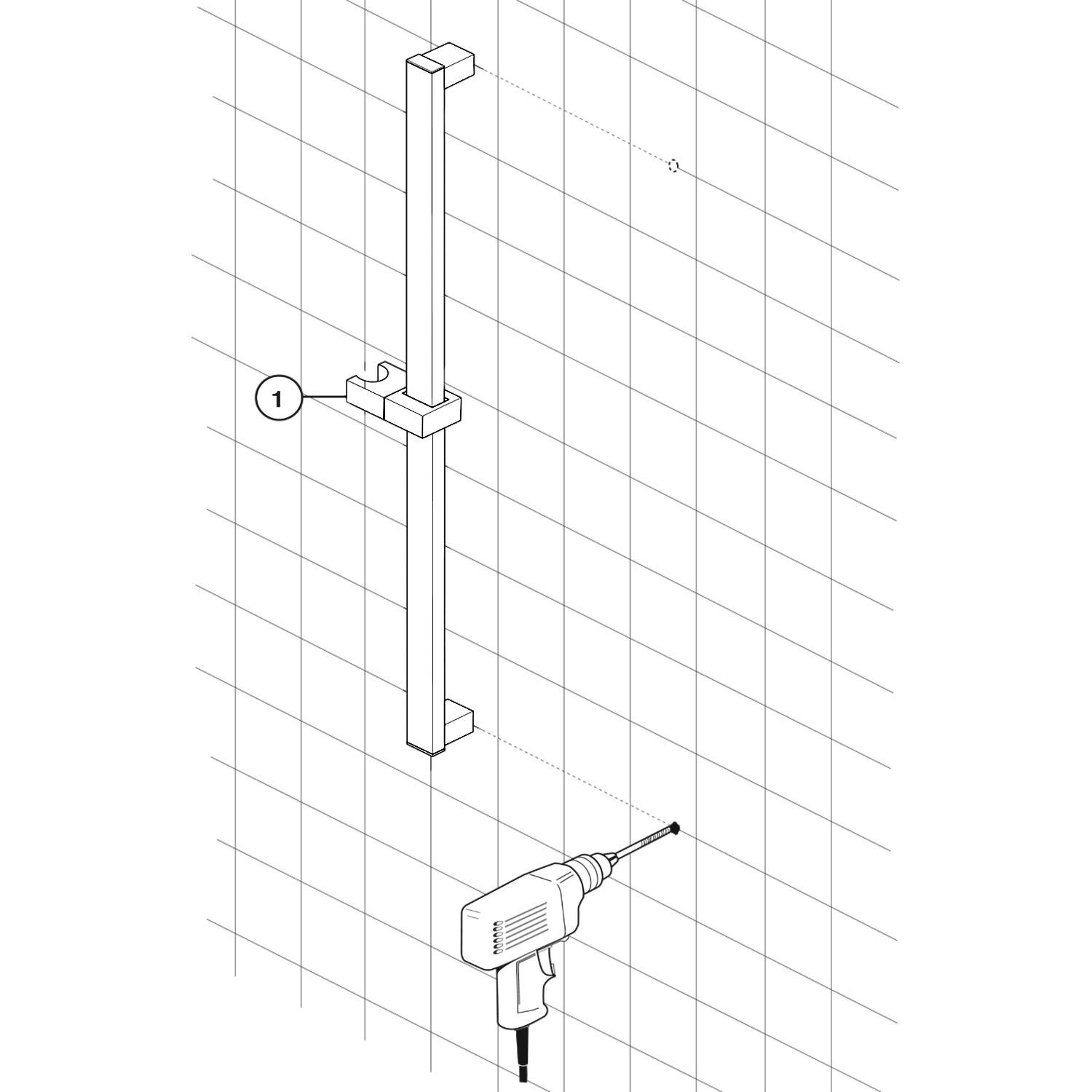

A. Select A Convenient Height To Place The Shower Rail Based On Your Personal Needs. Be Sure To Leave Enough Slack For The Hose Of The Hand Shower To Operate Freely When The Hand Shower Is Placed In The Extreme Up Or Down Positions. Note: If Possible It Is Recommended That The Slide Bar Brackets Be Secured Into The Wall Studs. For Ceramic Tile Installation, Drill Holes In Grout If Possible.

B. Mark The Place For Drilling The Hole For The Lower Post. Mark Using A Level, In A Vertical Line From The Lower Hole, The Placement Of The Upper Post Hole. Distance Approximately 25.7" (653 Mm).




Step 3:Step 4:


Note: Hole Size Will Be Determined By Your Use Of Just The Screw Or Anchor And Screw For Installation. Drill Hole For Mounting Of Bottom Post. Start With A Smaller Drill Bit Size, 1/8" Is Recommended, And Drill Hole. If You Hit A Wall Stud, Go To Next Step. If You Do Not Hit A Wall Stud, Change To A Drill Bit Size Suitable For The Anchors, 1/4" Is Recommended, And Re-Drill Hole.
Anchors Are For Use On Drywall Or Tile. For Fiberglass, Acrylic And Flat Plastic Surfaces, Use Toggle Bolts (Not Included).
Before Drilling Top Mounting Hole, It Is Recommended That You Place The Assembled Slide Bar And Post Assembly (1) On Its Side Next To The Hole Locations You Have Marked. Make Sure Posts Are Pressed Fully Onto Bar. Align Centre Of Bottom Post With Bottom Hole That Was Just Drilled And Make Sure Centre Of Top Post Aligns With Mark For Top Hole. If Not, Re-Mark Top Hole Location. If It Aligns, Drill Top Hole In Location As Marked.

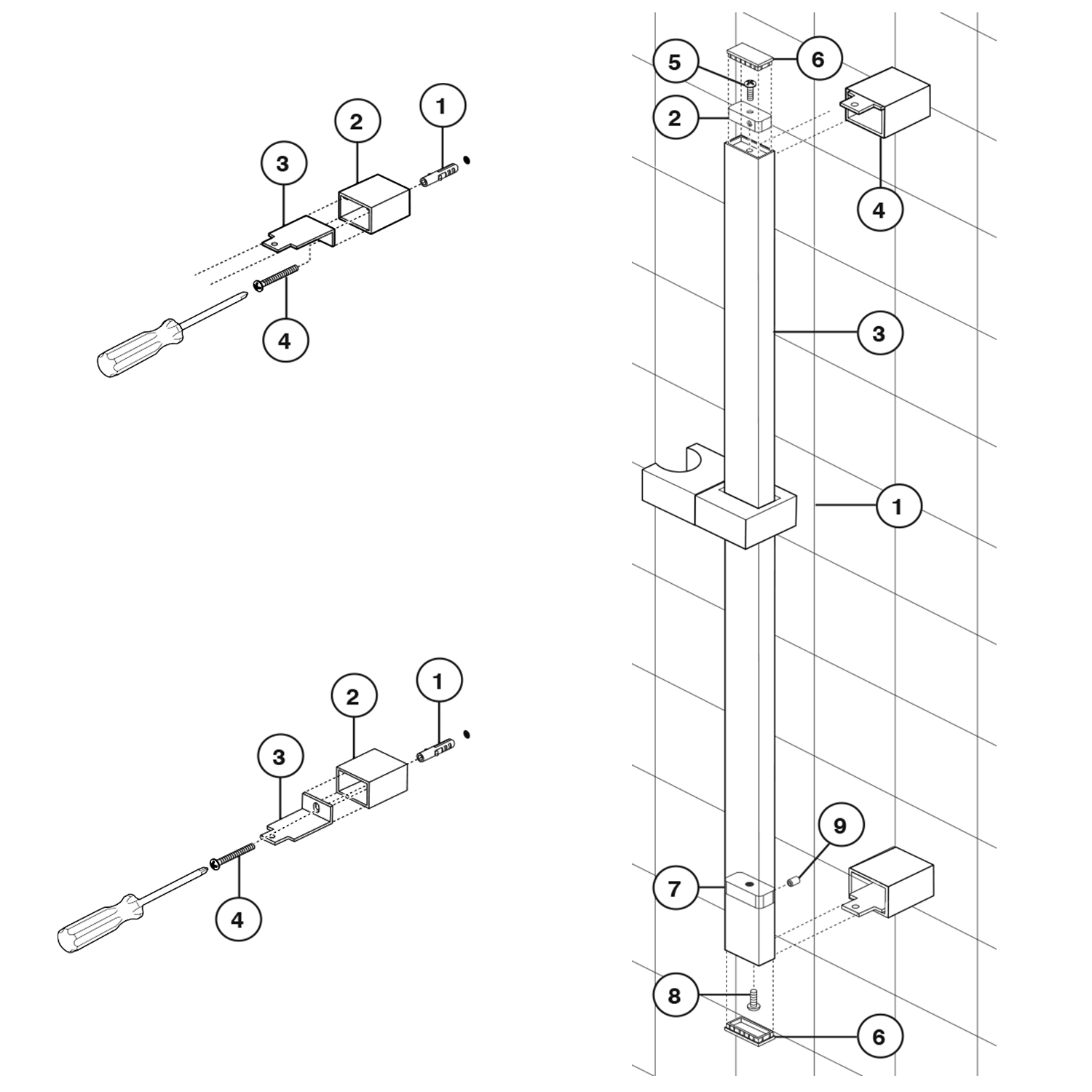

Insert Anchors (1) Into Drilled Holes. Slide Covers (2) Over Brackets (3), And Insert Screws (4) Into Bracket/Cover Assembly. Secure Assembly To Wall With Screws.

Slide The Slide Mechanism (1) And Elbow (2) Onto The Wall Bar (3). Slide Wall Bar Over Bracket Tabs (4) And Secure The Wall Bar Unit With Screws (5) Provided. Install Caps (6) Into Ends Of Wallbar. Lower Elbow (7) & Screw (8) Was Pre-Installed Prior To Shipping, Tighten Screw (9) If You Find It Is Sliding Inside Bar.










Step 5:Step 6:


Connect The Shower Hose To The Wall Outlet (1) And The Hand Held Piece (2), Ensuring That The Internal Gaskets (3) Are Present In The Shower Hose Nuts. Normal 1/2" Rubber Gaskets Can Be Used.

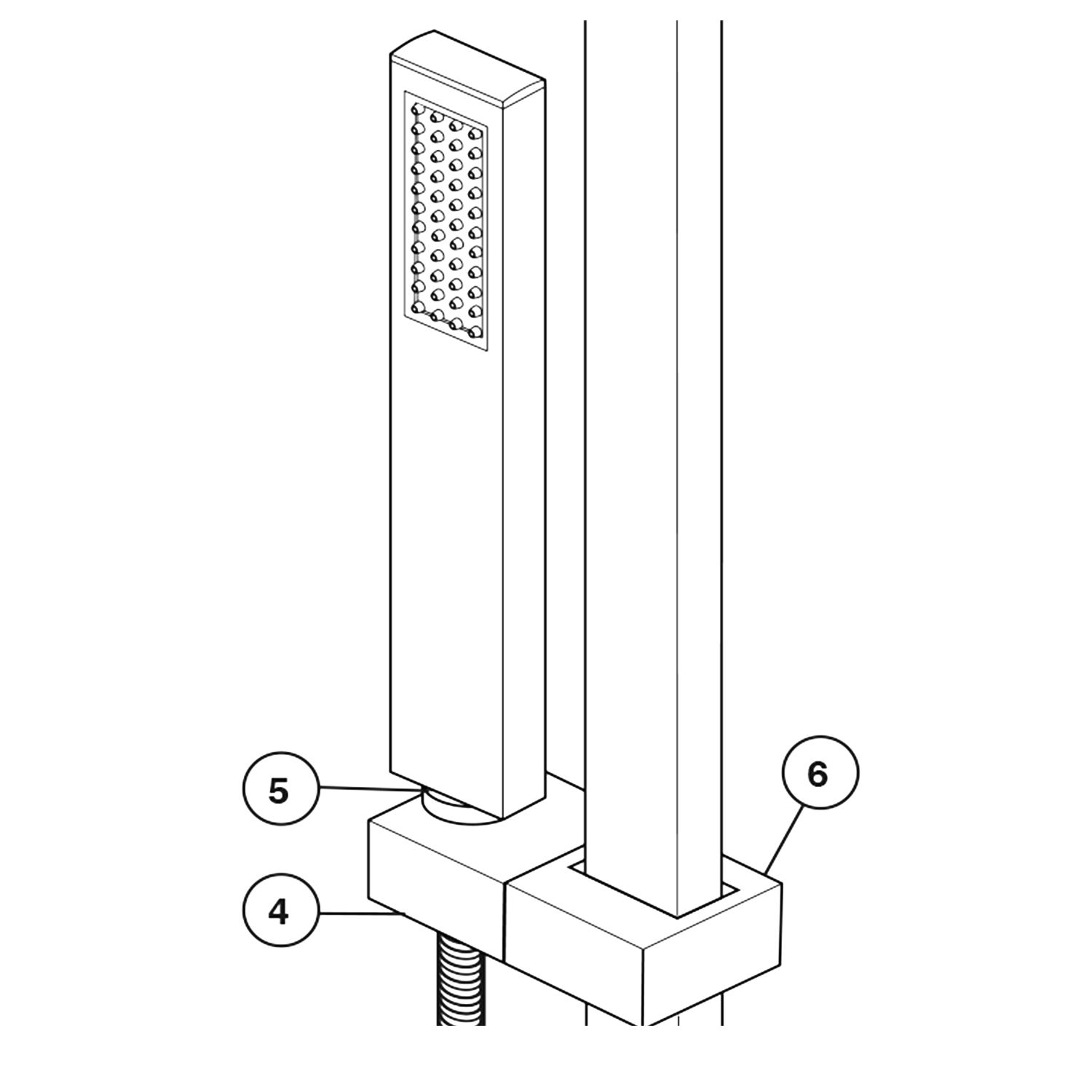

Place The Conical Nut Of The Hose (4) That Is Connected To The Hand Held Piece, In The Slide Bar Holder (5) And Turn It To Desired Position.
To Slide The Mechanism Up Or Down, Push In On The Button (6) Of The Mechanism And Slide It On The Bar.








Step 7:


Care Should Be Given To The Cleaning Of This Product. Although Its Finish Is Extremely Durable, It Can Be Damaged By Harsh Abrasives Or Polish. To Clean, Simply Wipe Gently With A Damp Cloth And Blot Dry With A Soft Towel.
Maximum Flow Rate: 2.5 GPM
















Shower Body Jets Installation Instructions




Step 1:Step 2:

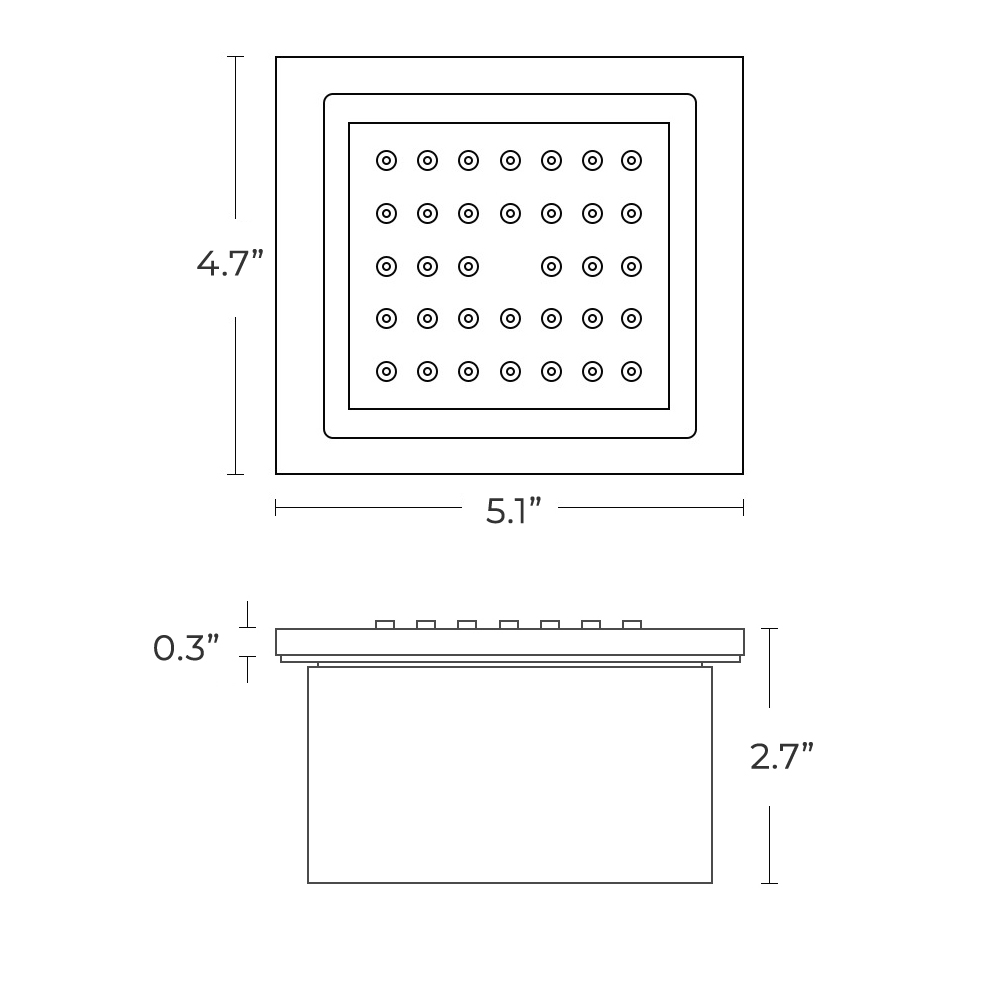

Bodyspray

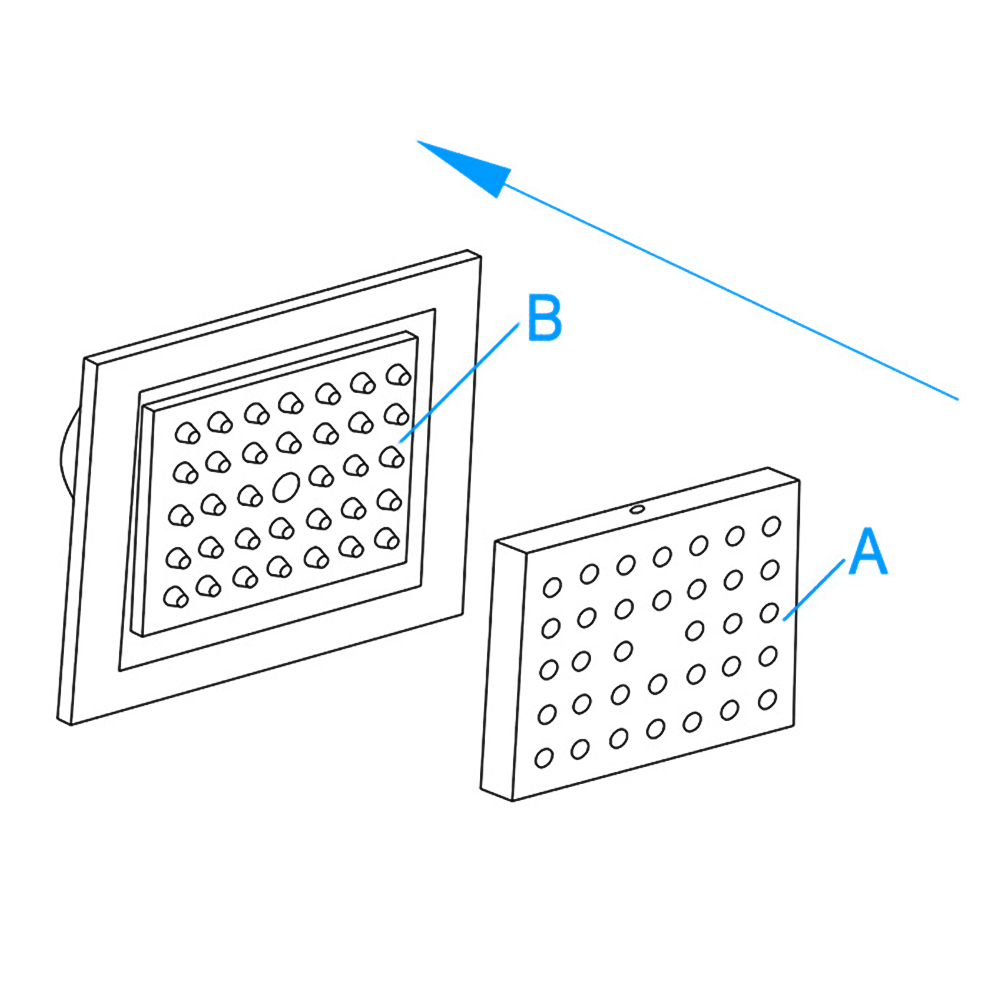

Remove the decorative plate (A) out of the body.

Remove the screws from the outlet face (B) and connector body (C) with the Allen key (D).
Body Spray Installation Instructions
Step 3:Step 4:


Screw the threaded pipe (E) to the water supply fittings. Push the plastic box (F) into the wall through the threaded pipe (E). Then, install the decorative plate (I) into the plastic box (F). Make sure the position is correct according to the diagram.

Screw the connector (G) into the threaded pipe (E) with the Allen key (H). Install the connector body (C) to the connector (G). When finish installation, please check to make sure the connection is completed. Then, fix the screws into the body (C) with Allen key (D) and make sure the body (C), connector (G) and decorative plate (I) are tightened. Make sure the one side with the bulge is in the top position.
Body Spray Installation Instructions
Step 5:Step 6:


Install the outlet face (B) to the body (C). Make sure the connection of body (C) and outlet face (B) are completed. Tighten the screw through the outlet face (B) into the body (C) with the Allen key (D).Install the decorative plate (A) into the outlet face (B) tightly. Make sure the hole and the raised dot are in the correct position when you push the decorative plate (A) into the outlet face (B).

Body Spray Installation Instructions

Thermostatic Shower Mixer Installation Instructions




Step 1:Step 2:
thermostatic
Step 3:Step 4:
Step 5:Step 6:
Step 7:Step 8:
Step 9:Step 10:


According to the basic picture of the product, refer to the above picture, open the wall to dig the main body embedded port, the hot and cold water inlet, and the mixed water outlet.
Drill5 6mm(0.2") holes with impact drill according to product size.
Use a hammer to break four expanded capsules into the drilled holes.
Connect each takeover, then connect the water source to confirm that there is no leakage.
Adjust the embedded body to the horizontal line, and fix the embedded body on the wall with a cross screwdriver to lock the 4 self- tapping screws. Seal the pipeline with cement filler.
Loosen the two M5 screws on the sheath counter-clockwise with a cross screwdriver and remove the sheath.
First, remove the color button of the constant temperature handwheel, loosen the main handwheel in the counterclockwise direction with the 2.5mm hex plate, and remove it. When taking out the constant temperature handwheel, do not turn the constant temperature handwheel to ensure that the constant temperature handwheel button is aligned with the 38-degree dial line on the panel.
Tighten the three long poles on the key-value core, flatten the wall on the set, and cut off the extra parts with a cutting machine or blade to extend the positioning plate plane of the long rod. Then go to the positioning board and press the icon.
Positioning board
Long pole
The excess part of the long bar.
Tight on the wall.
Balance the panel on the main body. Put the accessories of the constant temperature handwheel in the opposite direction of the unloading on the main body,(pay attention to the constant temperature handwheel installation to ensure that the valve core does not turn, the button direction is aligned with the direction of the outlet pipe.)





FontanaShowers Brushed Nickel Ceiling Mount Rainfall Shower Set With Thermostat Mixer Jet Spray And Handshower
