How to Install FontanaShowers Brushed Nickel Ceiling Mount Rainfall Dual Shower Head Set With Handshower | FS1320D

Easy Installation Steps For Shower Set		Visit Product Page
Before you begin, please read the installation instructions below. Observe all local building and safety codes. Unpack and inspect the products for any shipping damages. If you find damages, do not install. Please note all products must be installed by a professional and certified plumber otherwise warranty might be voided.	shower

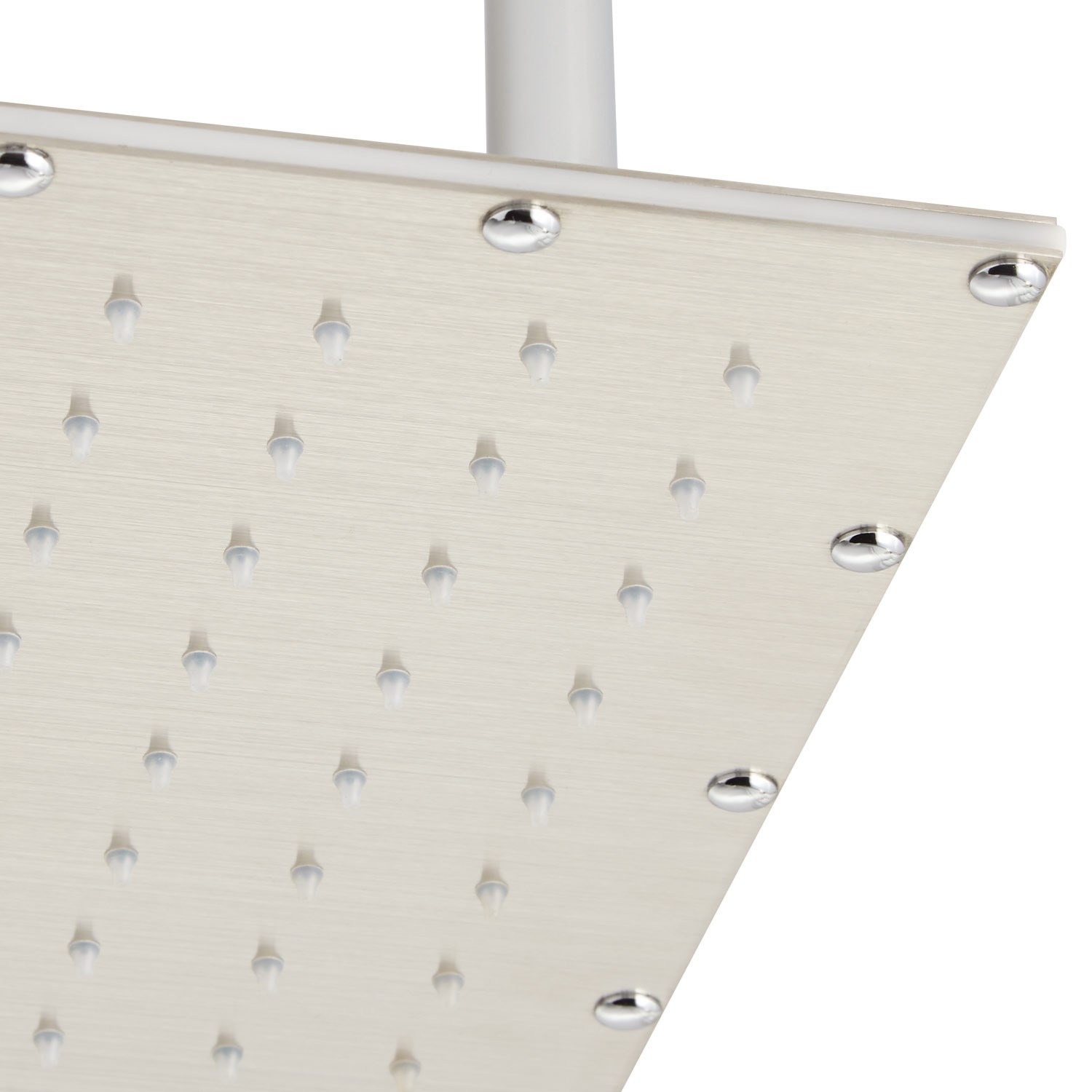

Shower Head Installation Instructions

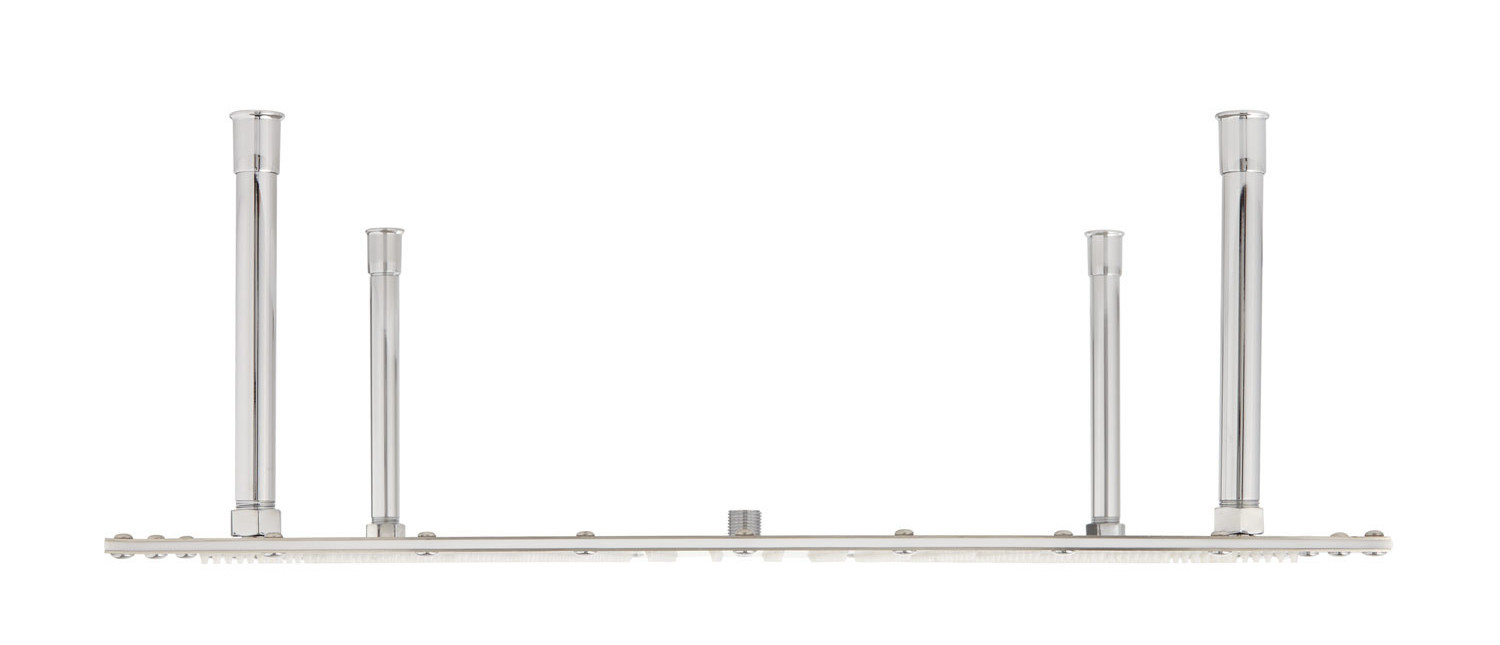

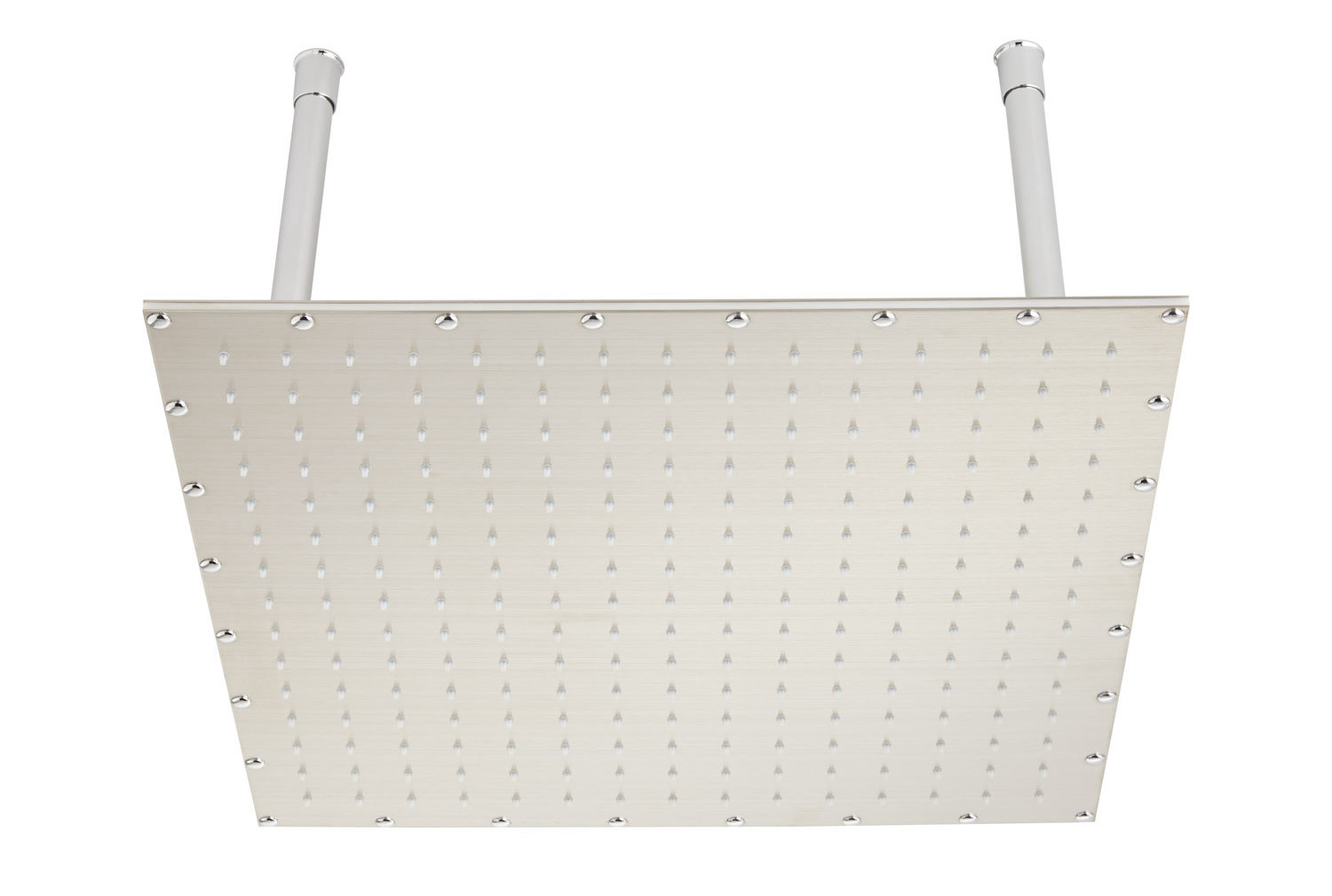

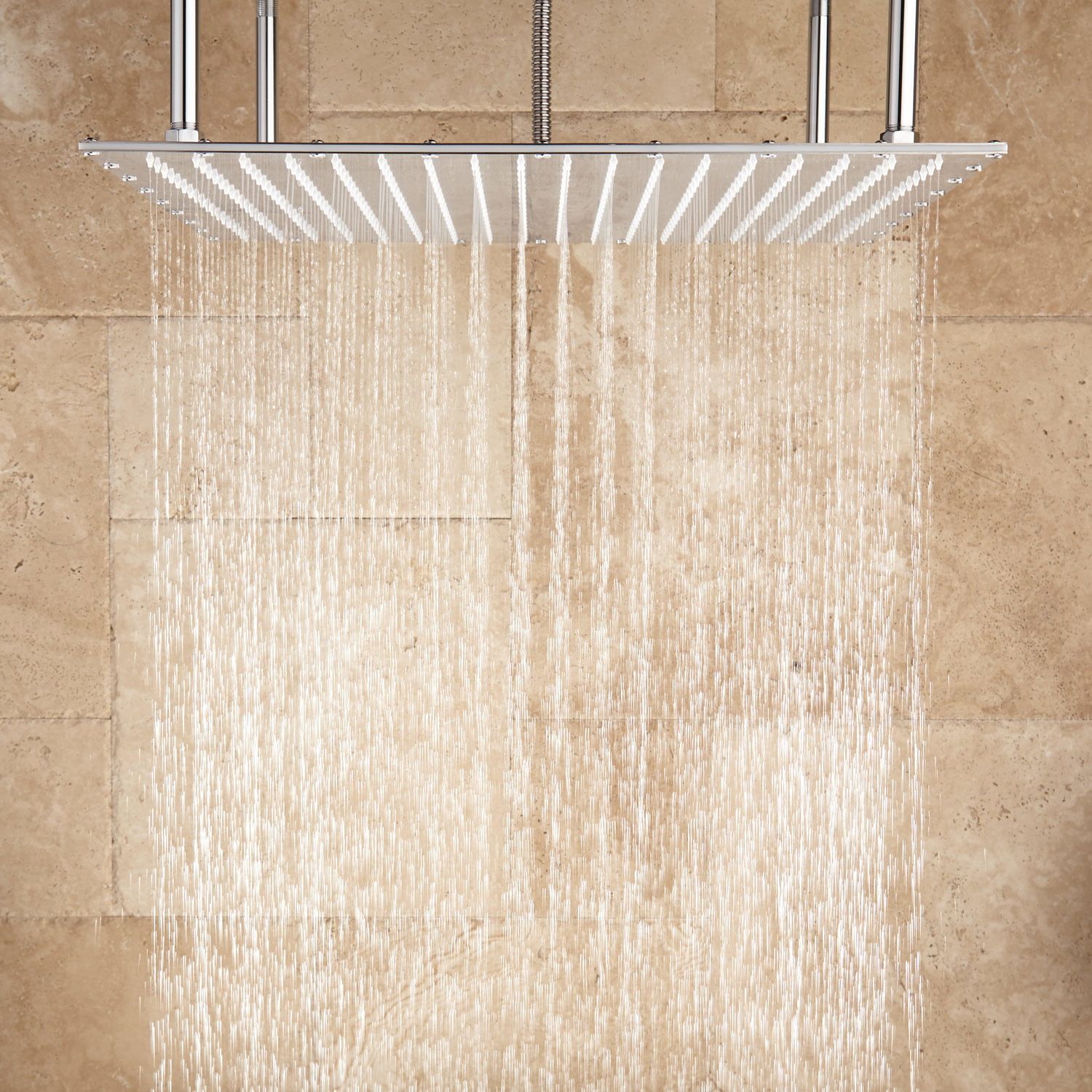

Ceiling Mount Installation Instructions



	shower

Step 1:		Step 2:

According to the template (B) mark the location of the mounting holes (1). Use a drill with a 6mm bit to drill mounting holes into studs or blocking.		Install the mounting brackets (C) with the tapping screws (D1). Thread the shower bars (E) onto the mounting brackets, and the inlet hose (F) onto the water inlet.

Step 3:		Step 4:

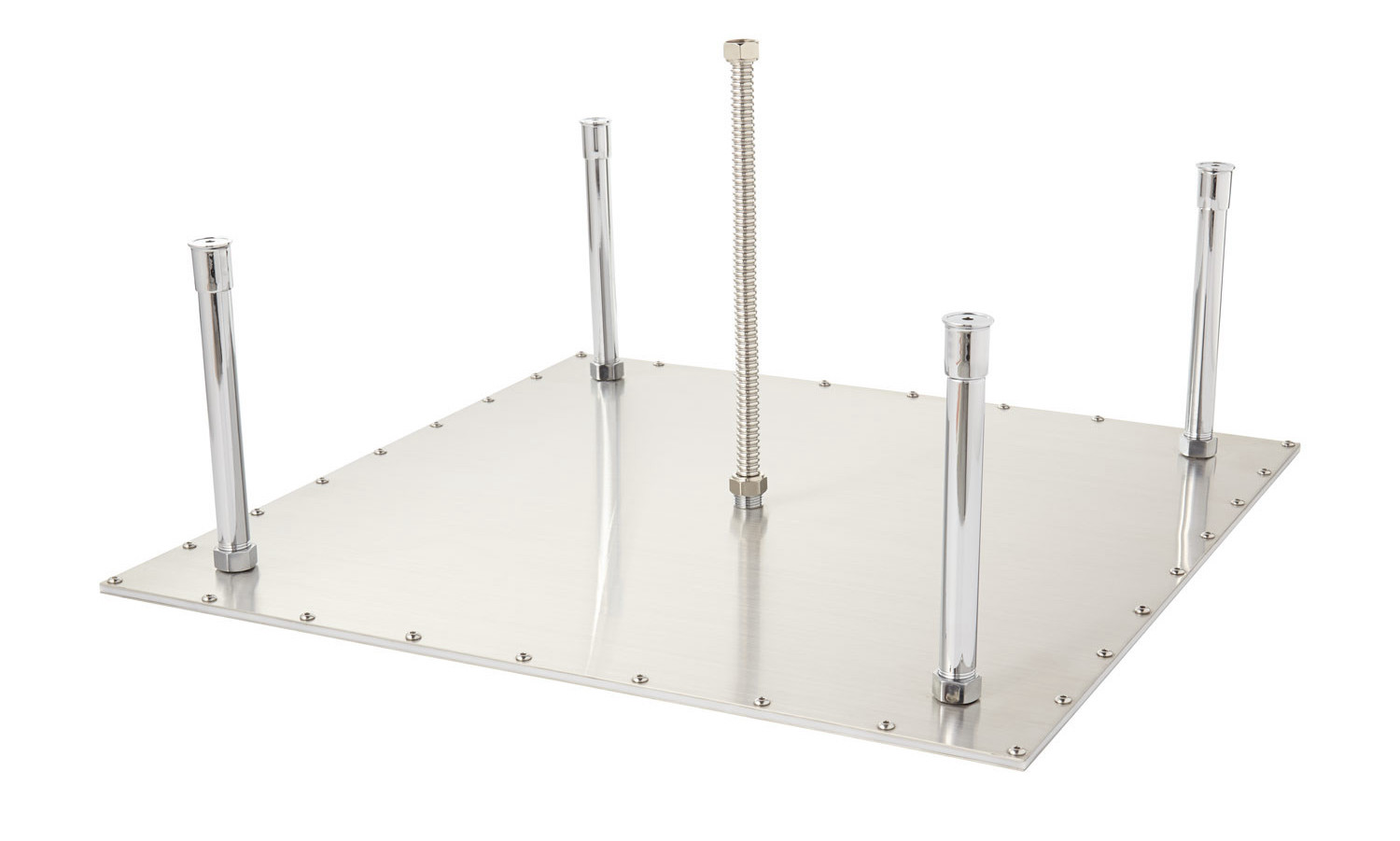

Attach the shower head (A) to the shower bars (E). Connect the inlet hose (F) to the showerhead.		2 inlets are provided in big shower heads so the water disperses equally throughout the showerhead.

Step 5:

Additional Information: - The LED lights are powered by water flow and will be activated once the water is turned on. - The LED light will change its color by detecting water temperature: - 0-30 °C (32-86 °F): Blue LED - 30-40 °C (86-104 °F): Green LED - 40-50 °C (104-122 °F): Red LED - 50-100 °C (122-212 °F): Flashing Red LED

Specs :
Shower Head Width: 23-5/8" (left to right) Shower Head Height: 8-1/2" (top to bottom) Flow Rate (GPM): 2.5 gallons-per-minute

Wall Mount Installation Instructions

Step 1:	Round	Shower	Step 2:

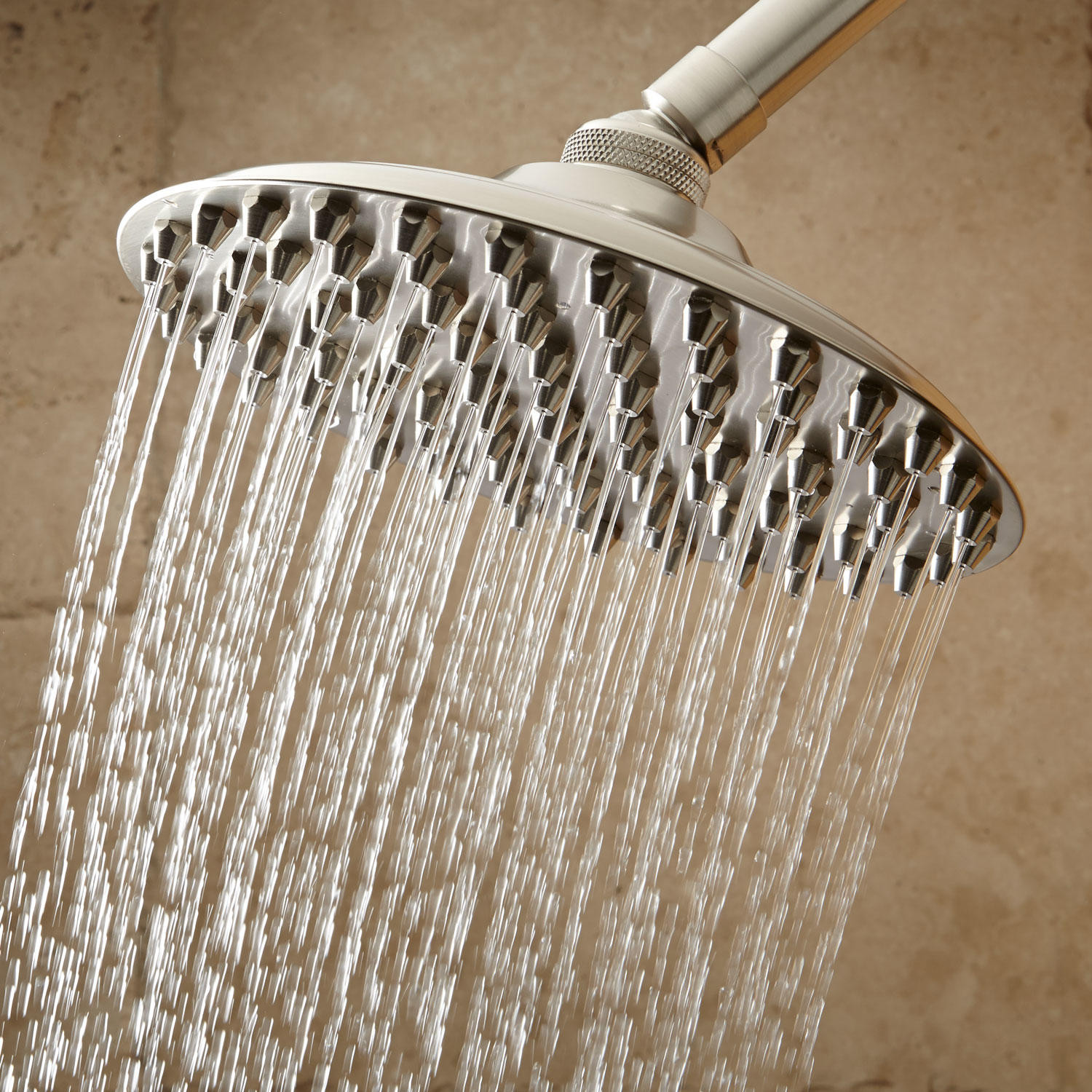

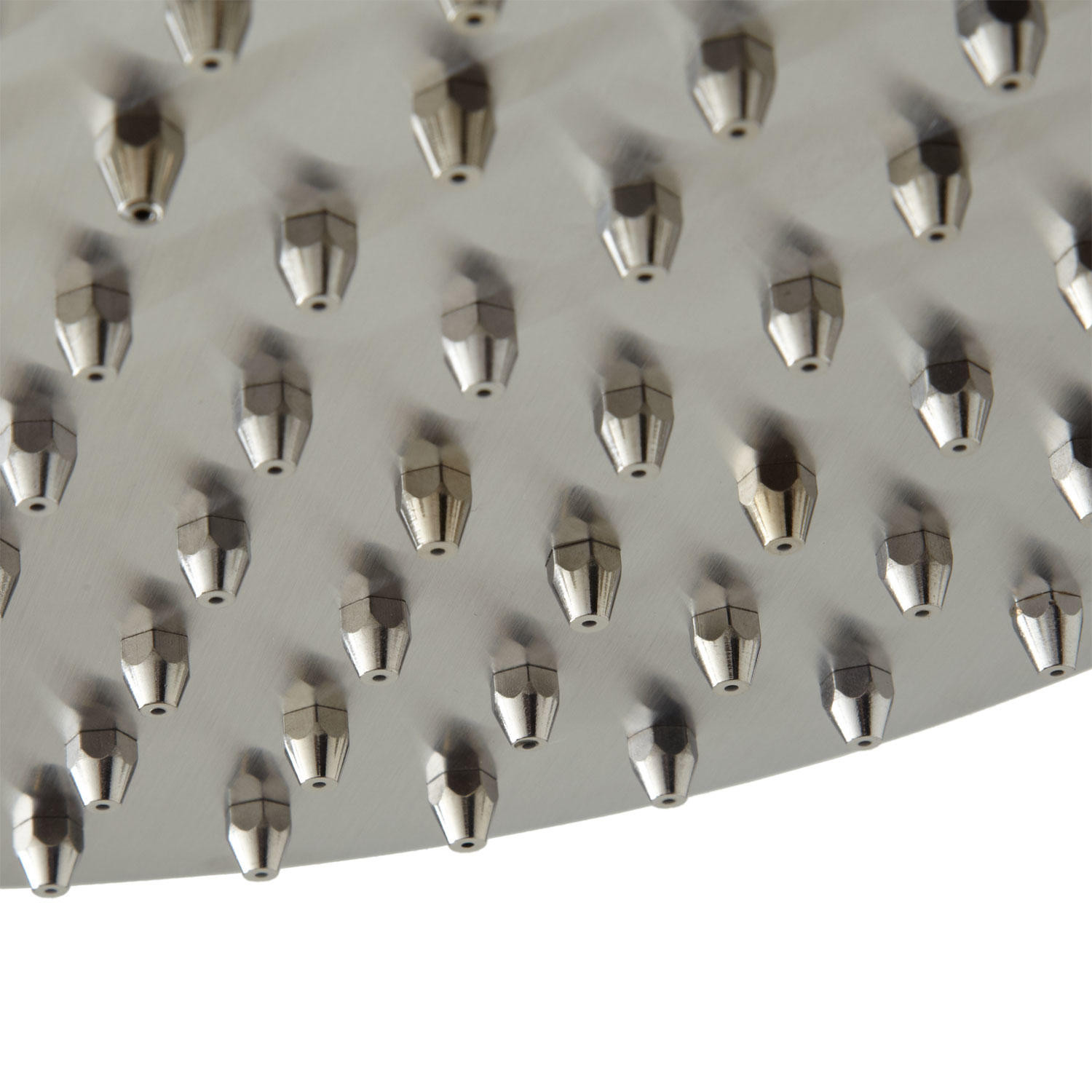

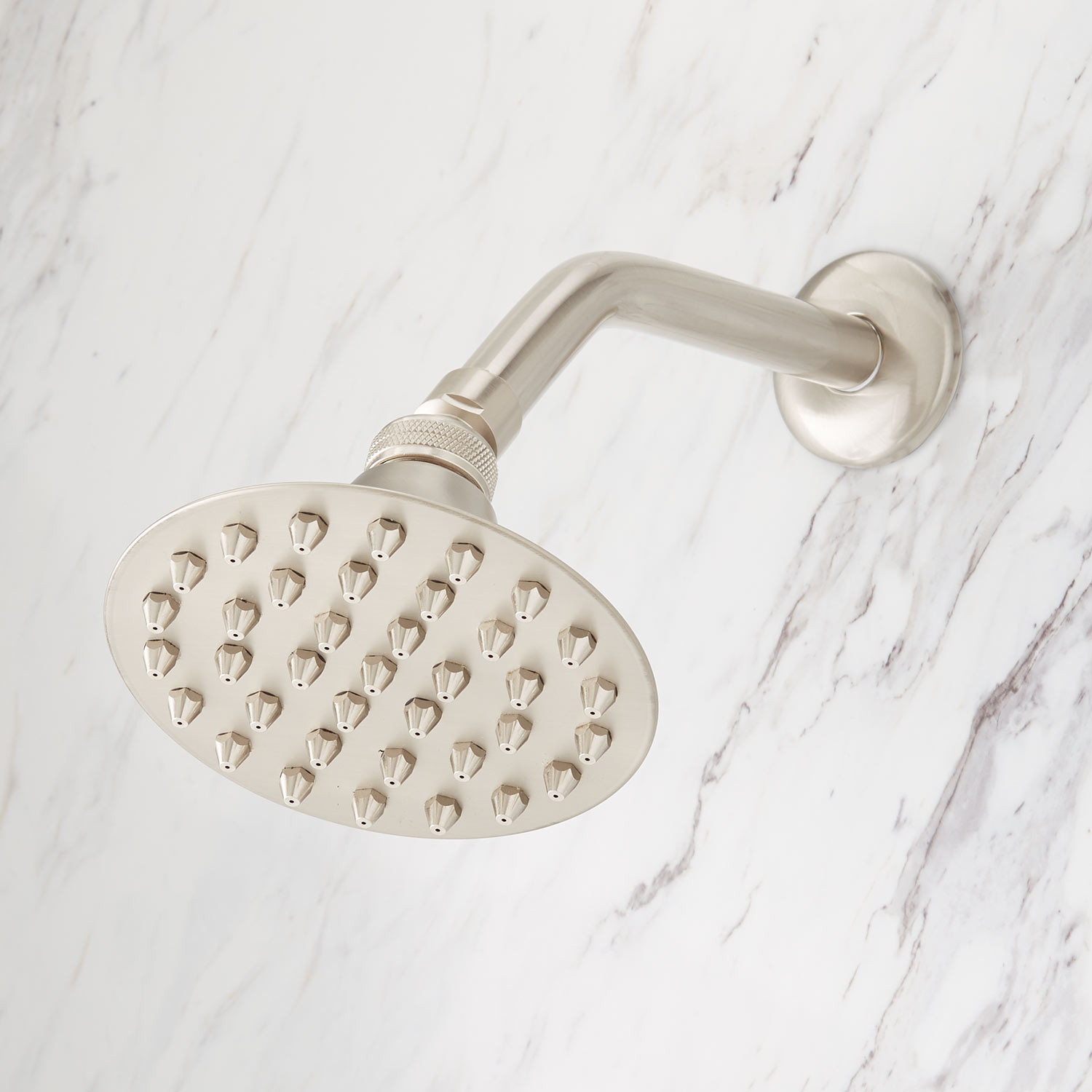

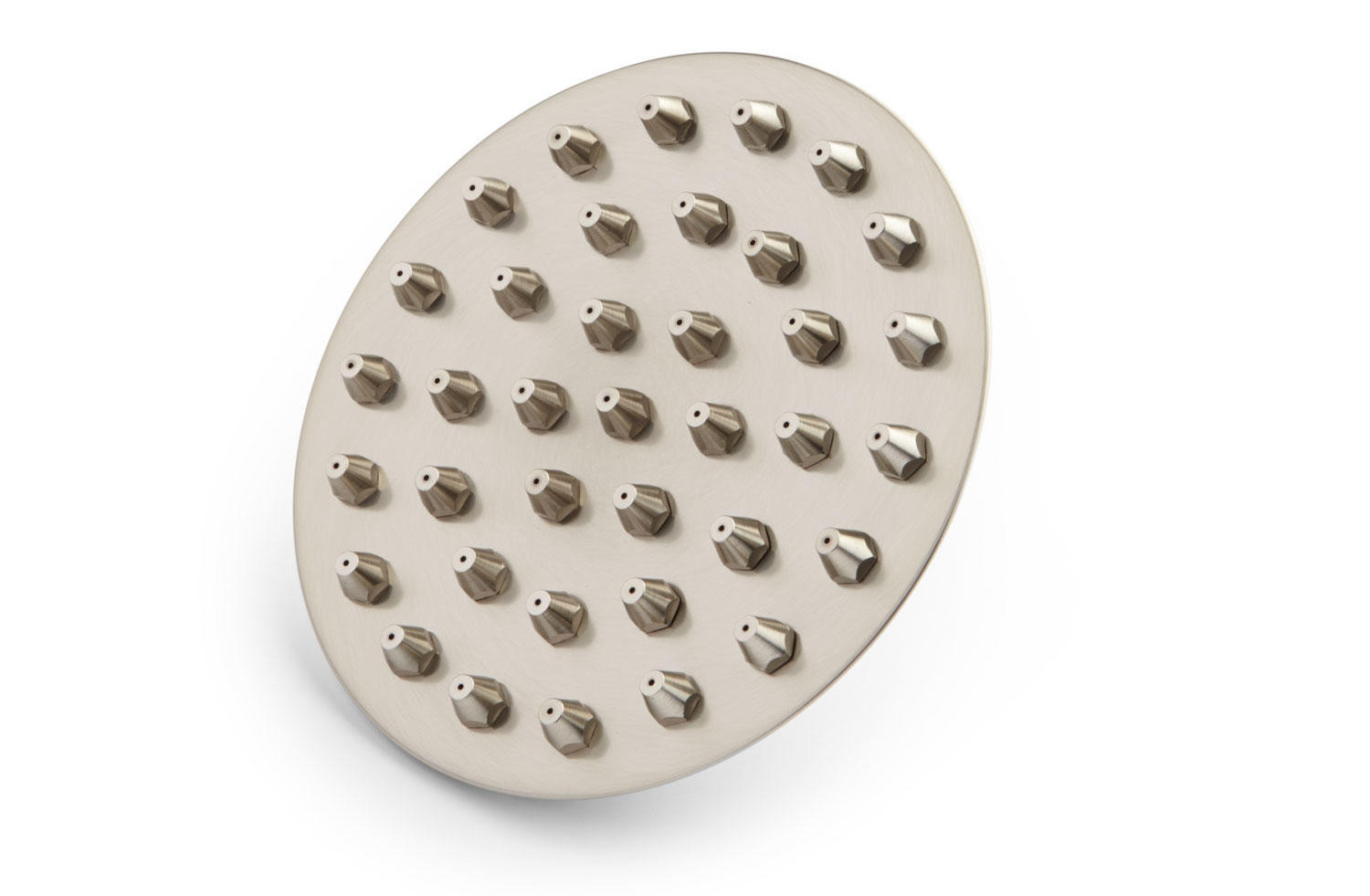

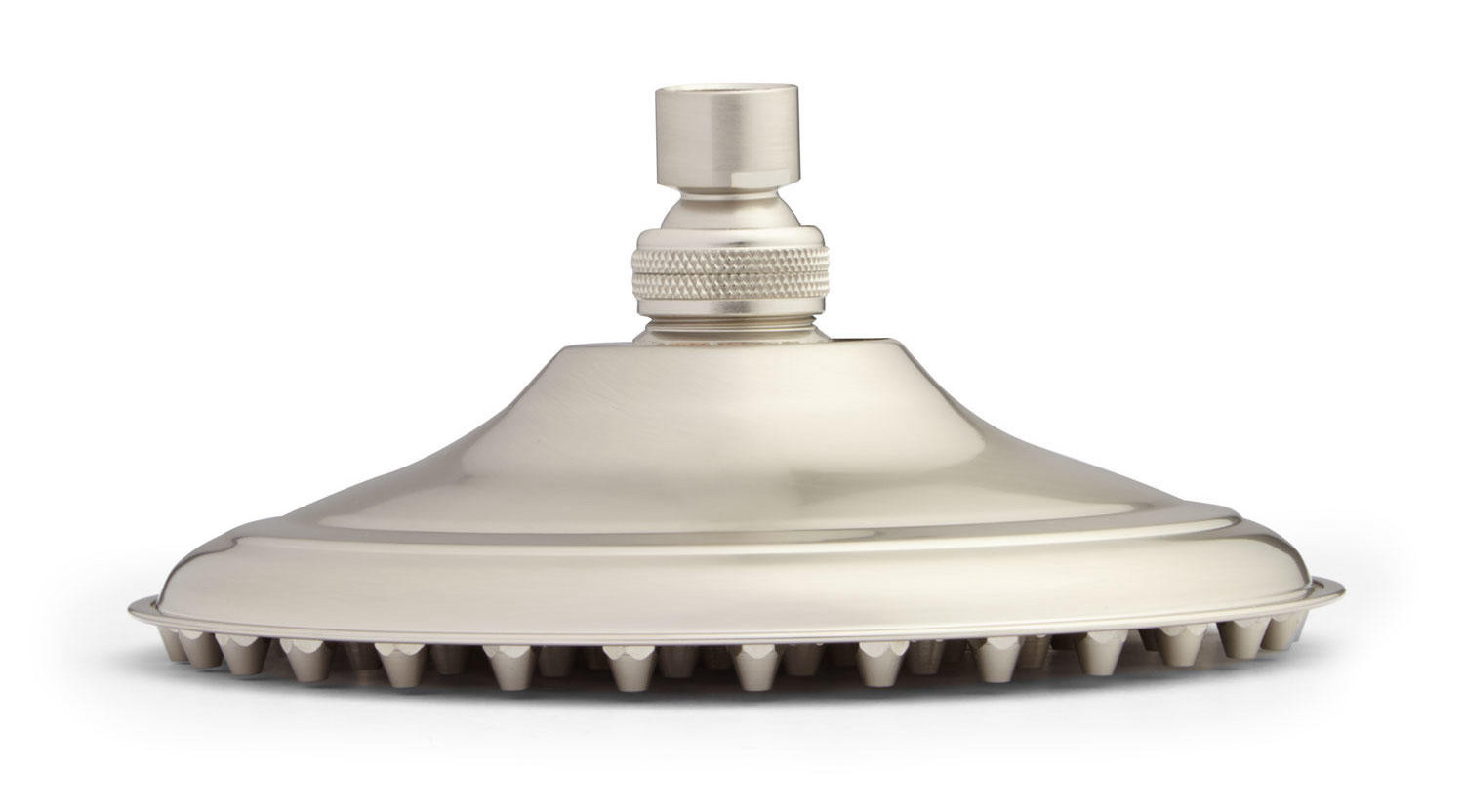

Wall Mount Round Showerhead


Step 3:			Step 4:


Step 5:			Step 6:

1. Remove the old shower head by using the channel lock pliers or monkey wrench. Be sure to turn the pliers counter-clockwise to loosen the old shower head. (Tip: Right is tight, left is loose.) 2. Remove the shower arm by turning it by hand counter-clockwise.Make sure you remember to apply putty or tape to the new arm. (Tip: Using teflon tape is less messy) 3. Apply teflon tape to the threading of the shower arm by wrapping it around the threads, go all the way around 3 or 4 times depending on the quality of the Teflon tape. 4. Install the new shower arm by going clockwise by hand until it is tight, then put painters tape around the arm and tighten the arm with the channel lock or monkey wrench. 5. Place Teflon tape around the threads on the shower head and then place the shower head onto the shower arm by turning the shower head clockwise after the shower arm is already in the wall.

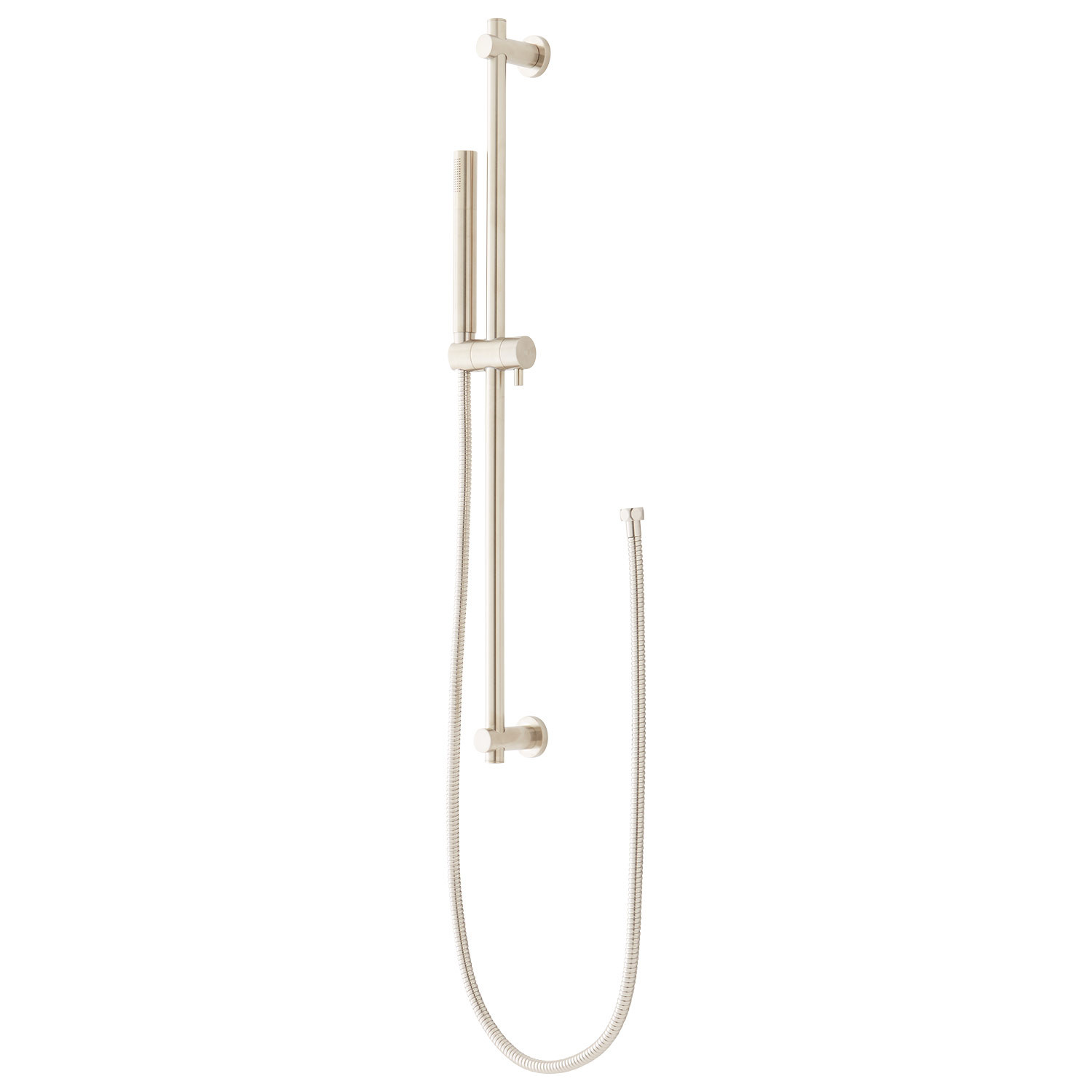

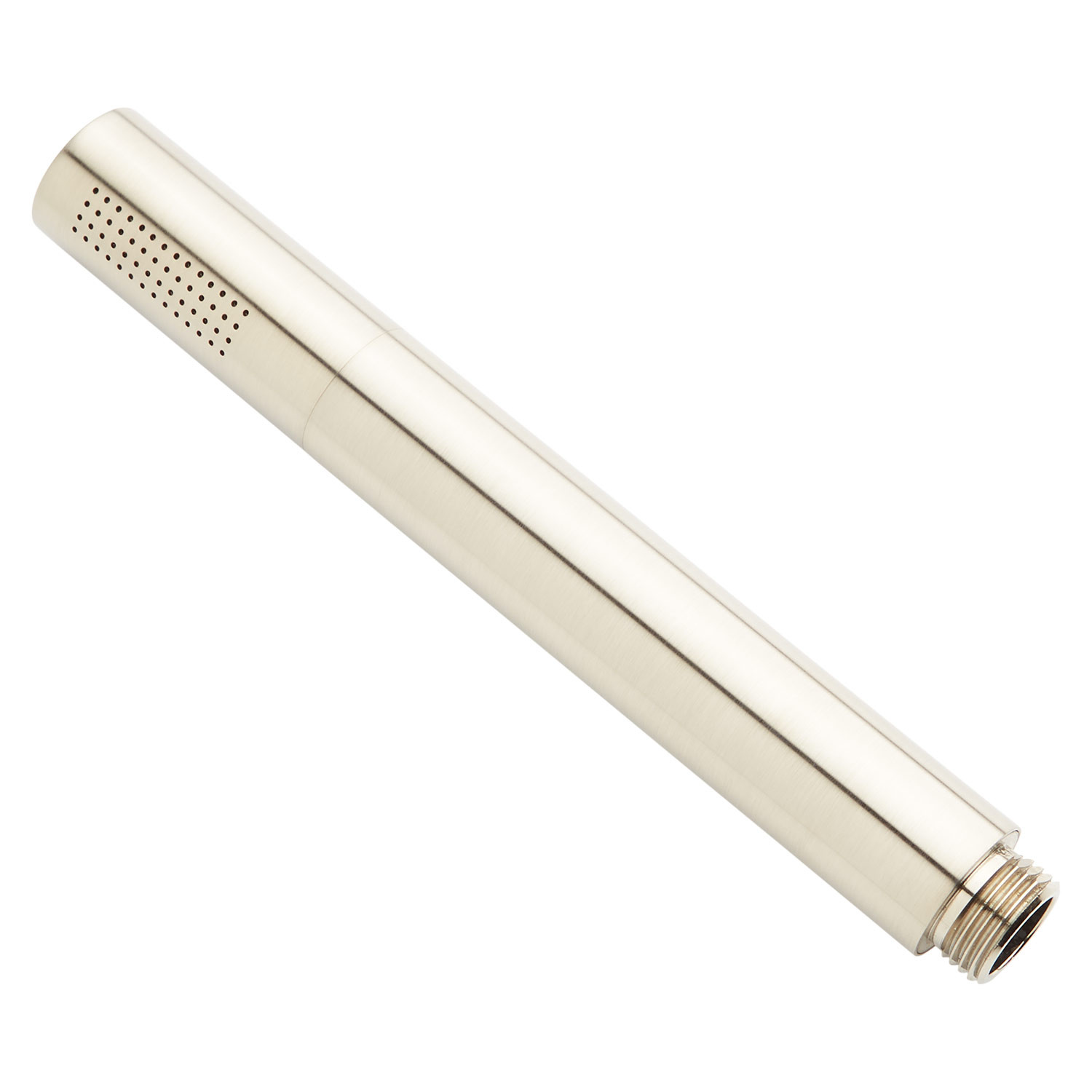

Hand Held Shower Installation Instructions

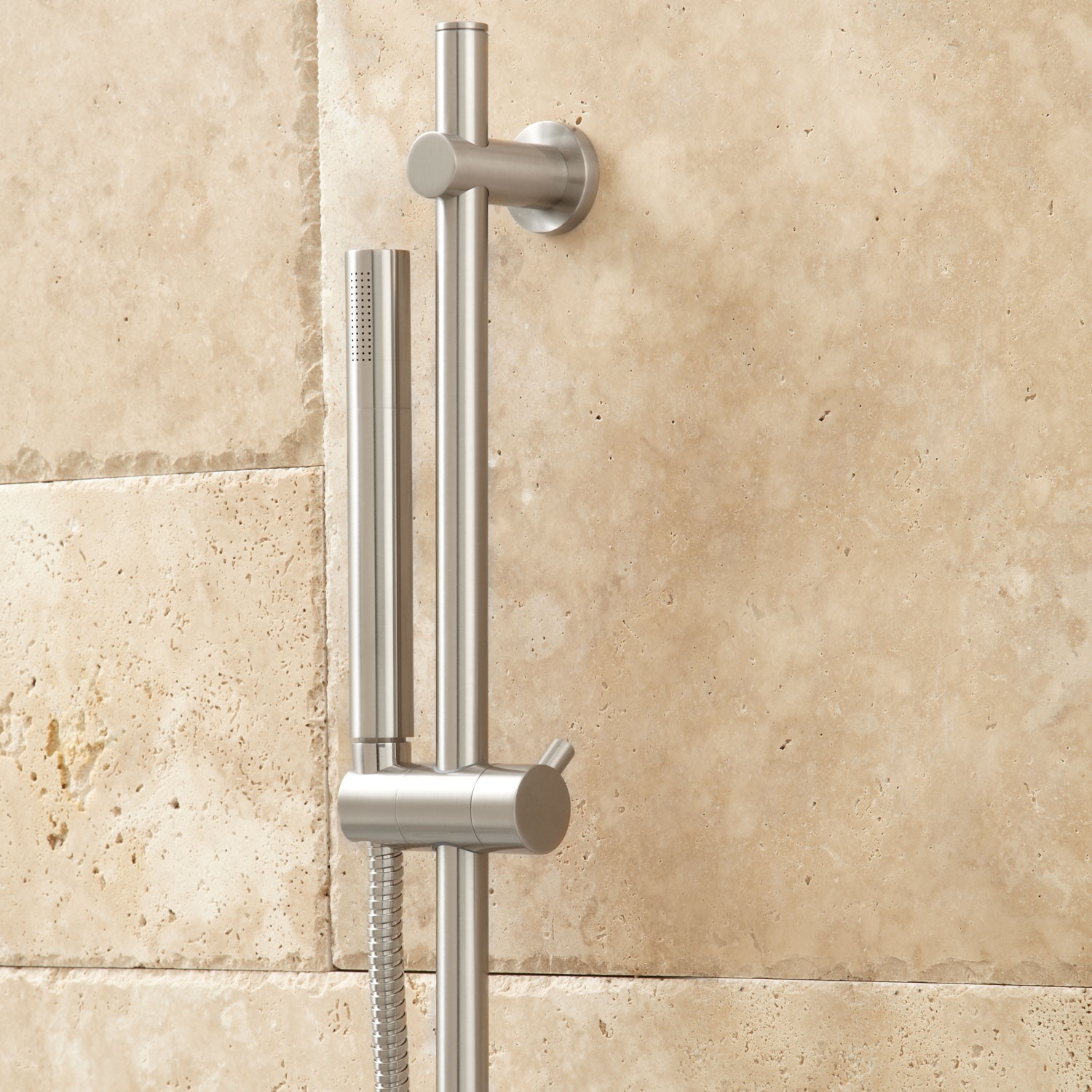

Step 1: (Hand Shower Slide Rail Installation)		Step 2:
	hand shower
Hand-Held Shower Installation Instructions
Step 3:		Step 4:

Hand-Held Shower Installation Instructions
Step 5:		Step 6:

Hand-Held Shower Installation Instructions
Step 7:		Step 8:

Hand-Held Shower Installation Instructions
Step 9:		Step 10:

Hand-Held Shower Installation Instructions
Step 11:		Step 12:

Hand-Held Shower Installation Instructions
Step 13:		Step 14:

Hand-Held Shower Installation Instructions
Step 15: (Hand Shower Elbow Installation)		Step 16:

Hand-Held Shower Installation Instructions
Step 17:		Step 18:

Hand-Held Shower Installation Instructions
Step 19:		Step 20:

Hand-Held Shower Installation Instructions
Step 21:		Step 22:

Open the closed cover of the shower holder and take out the screws.
Drill two holes size 0.2" (6mm) on the wall according to the hole position of the shower holder
Use a hammer to break 2 plastic wall plug into two holes. Tighten the screws with the plastic wall plug and locking with the shower holder.
Then install the closed cover

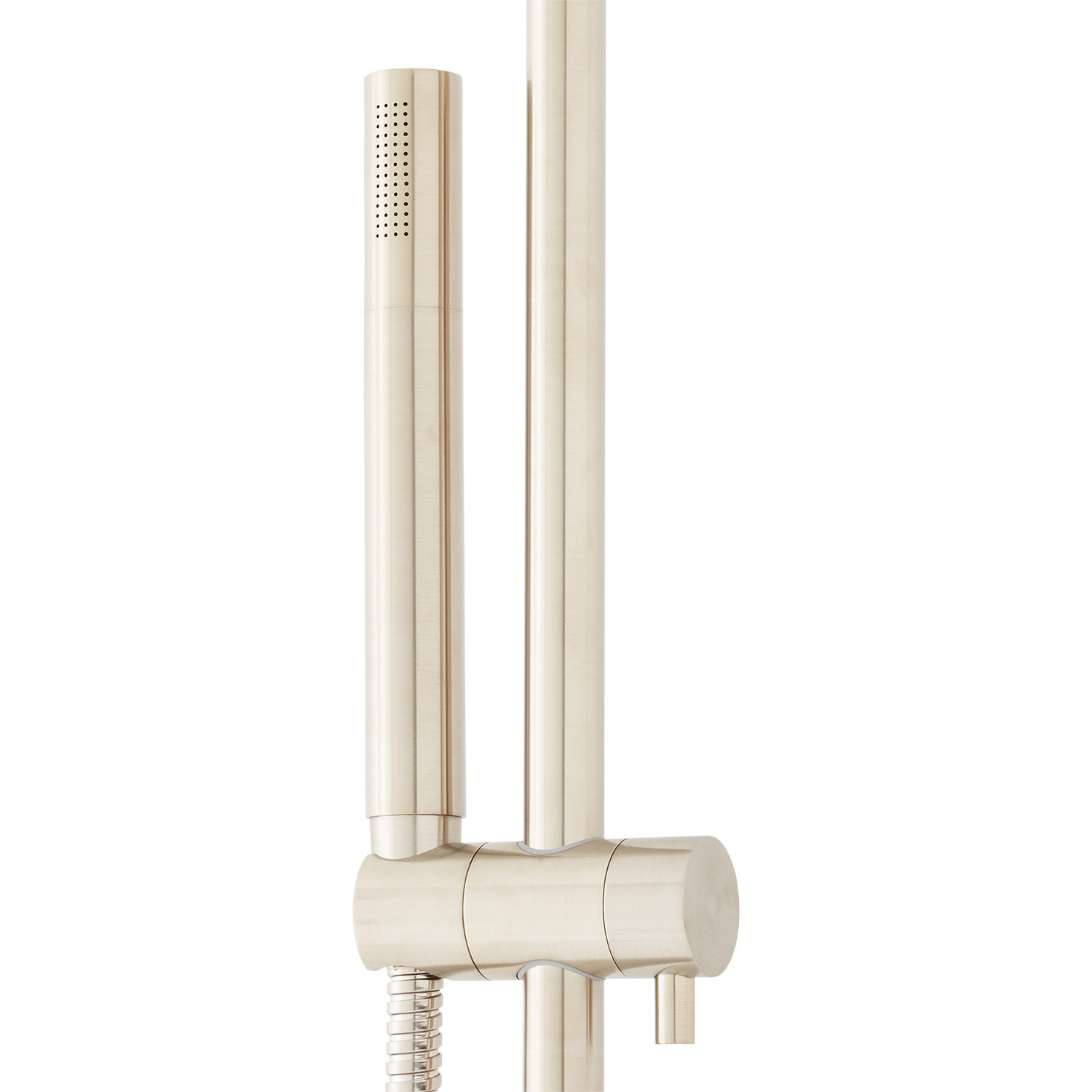

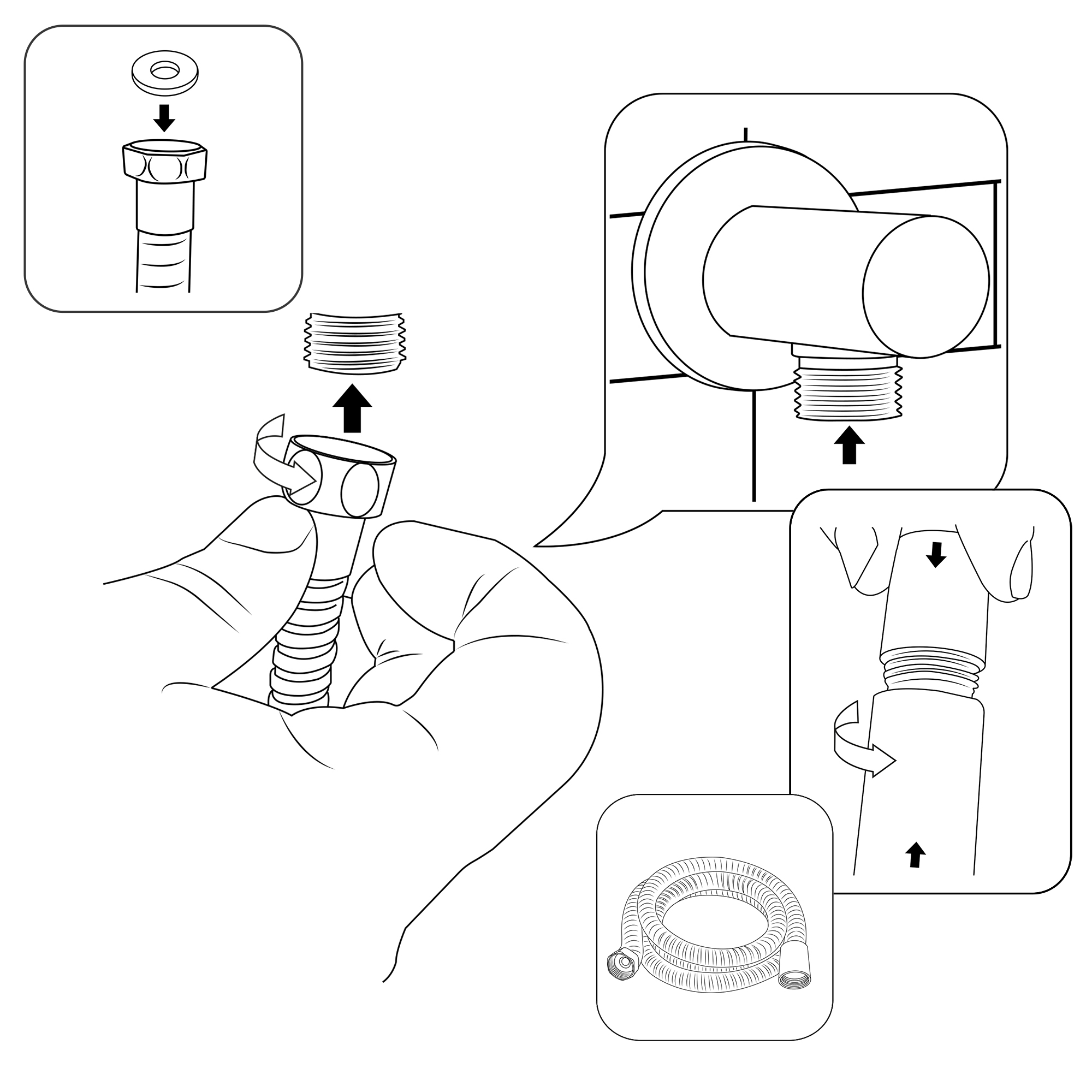

Connect the shower hose with the water outlet connection part and hand shower. Plug the hand shower in the shower holder.

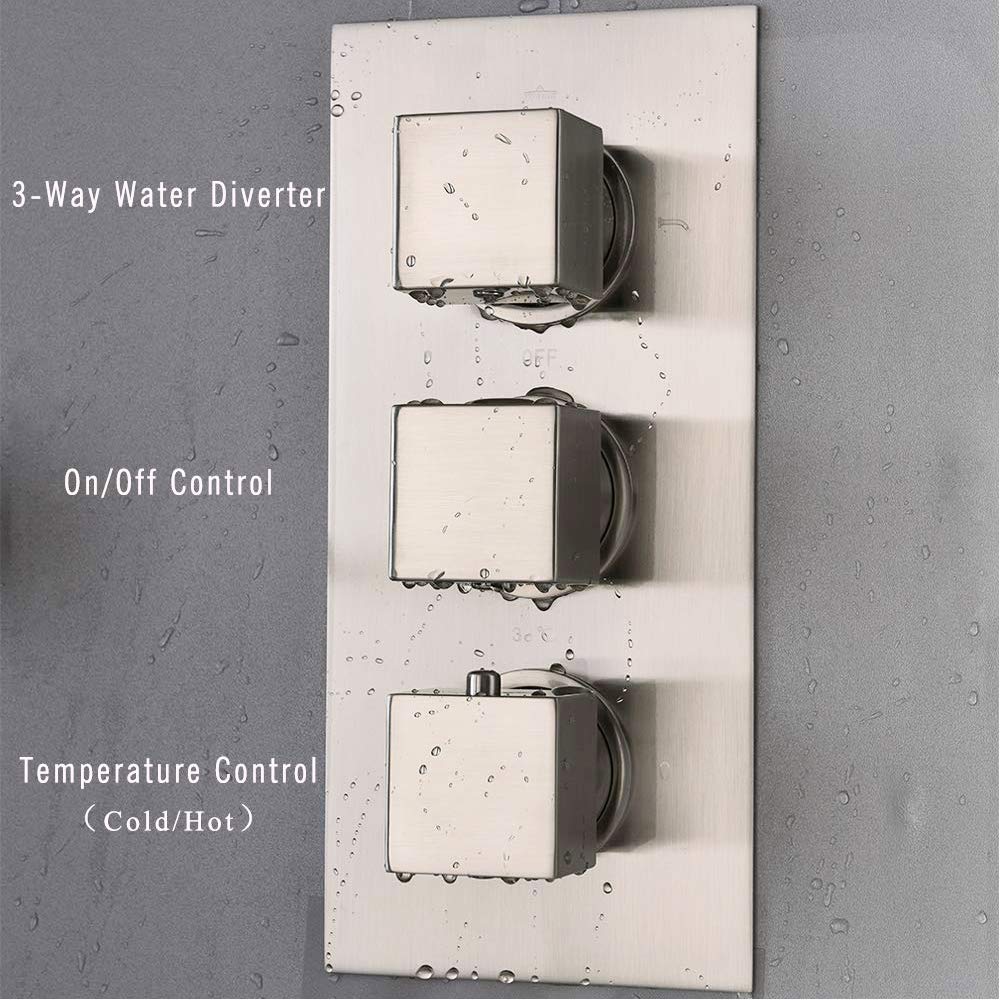

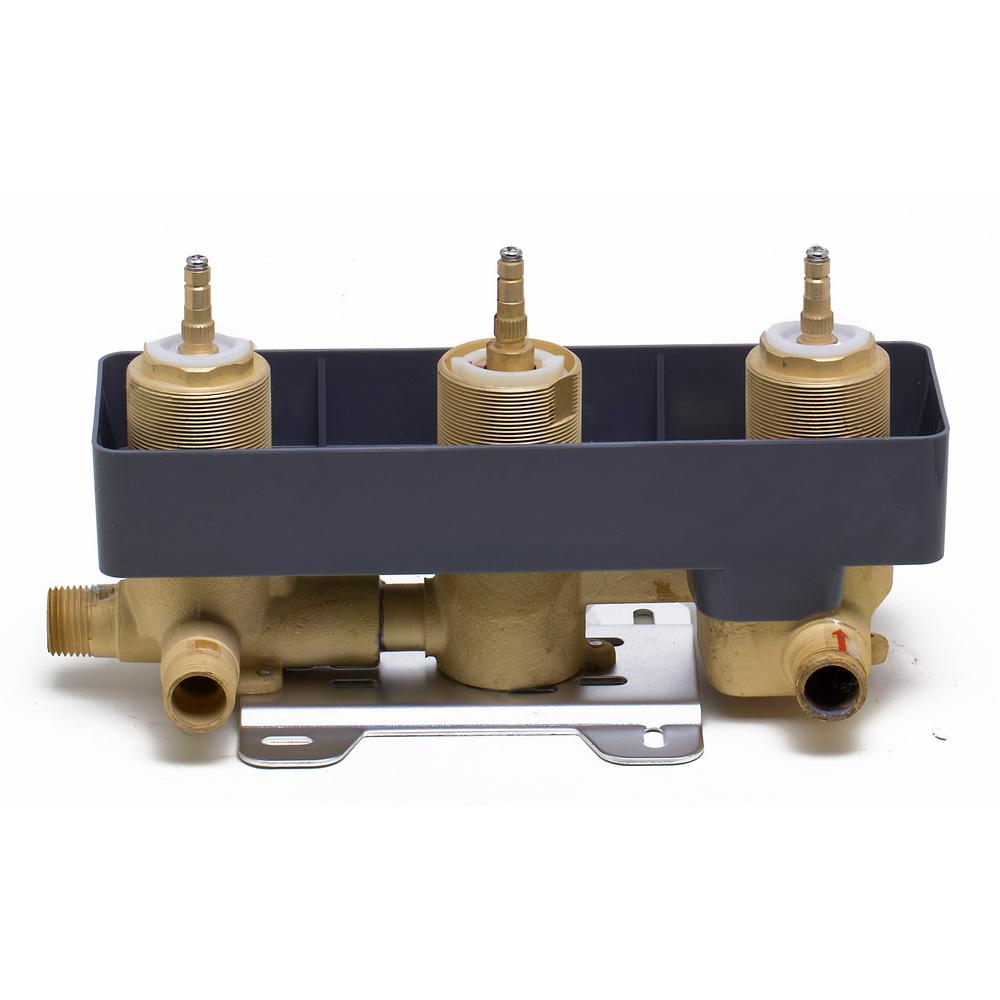

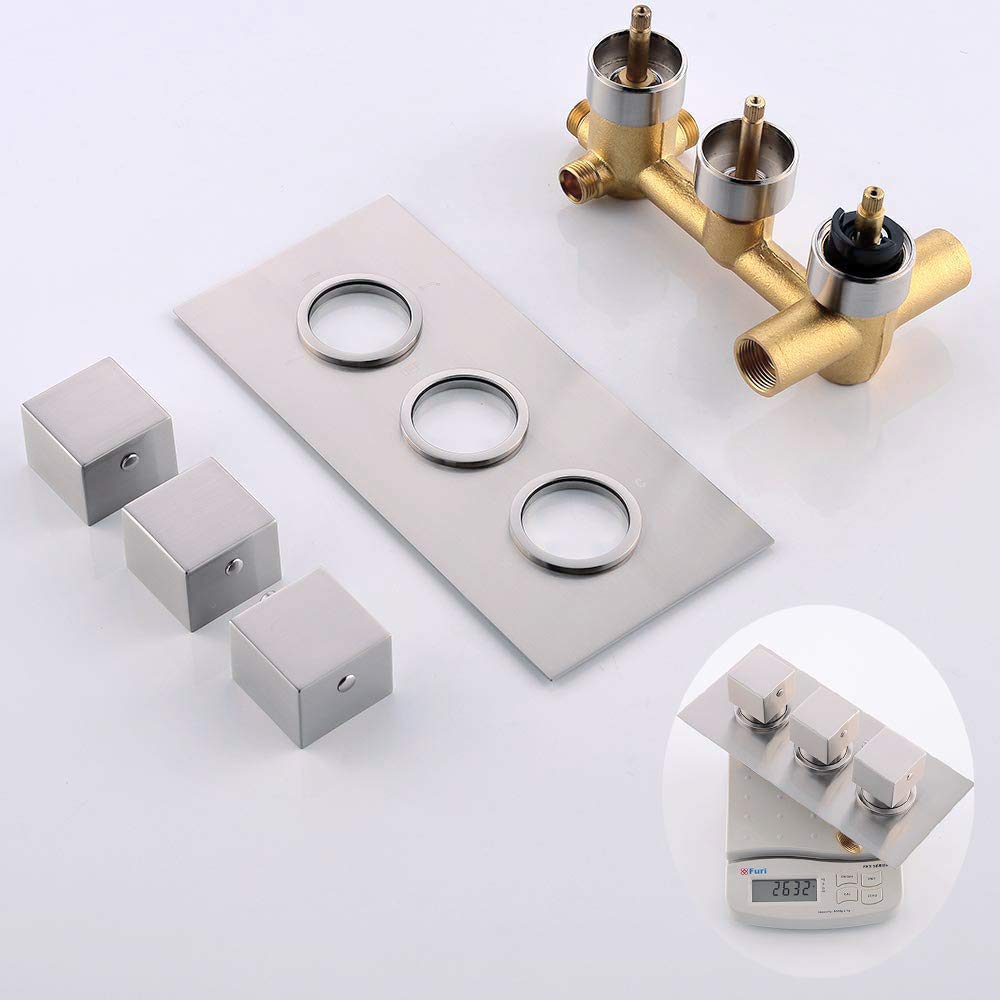

Thermostatic Mixer Installation Instructions

Fontana Wall Mounted Dual Round Shower Heads With Handshower Triple Handle Thermostatic Mixer

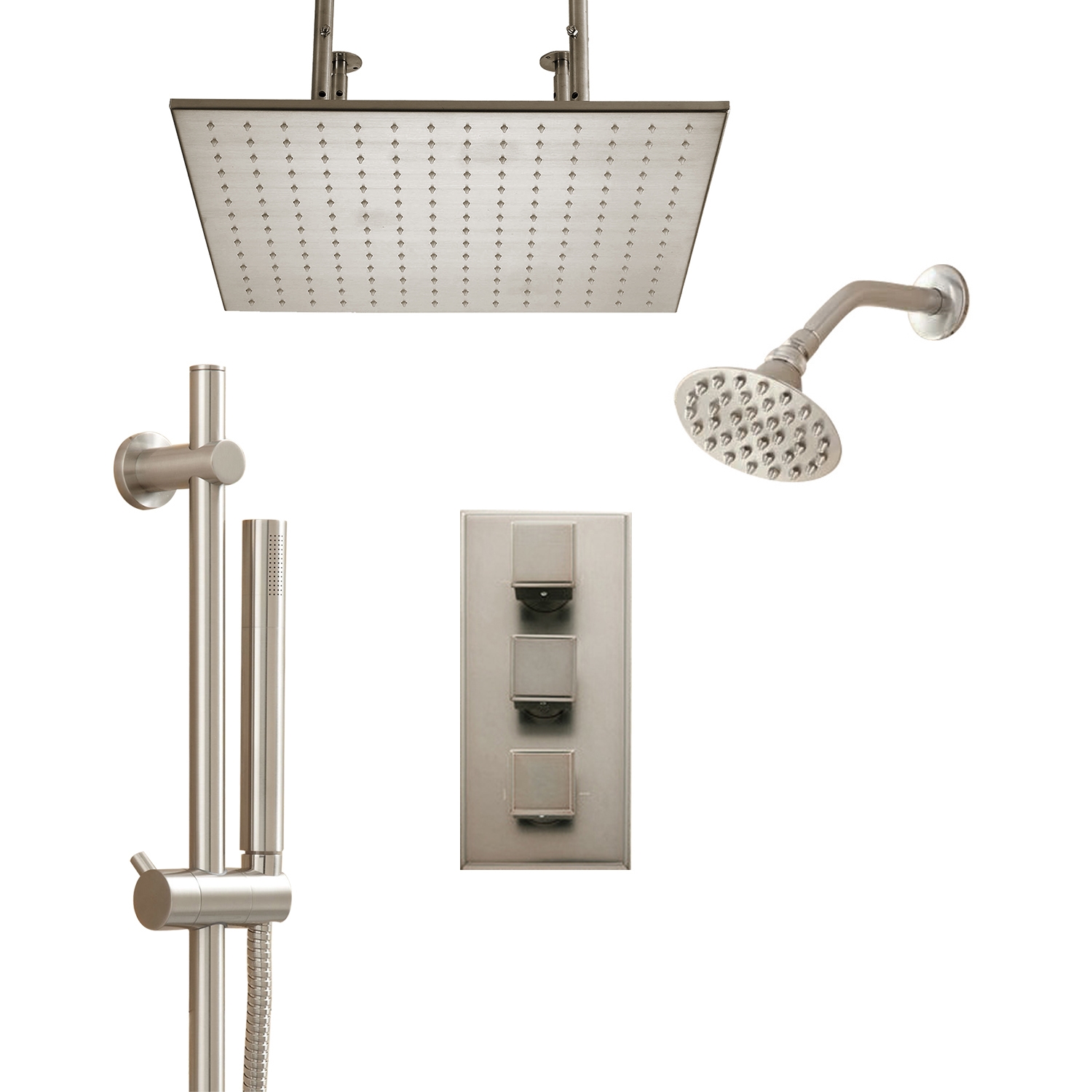

This Brushed Nickel Rainfall Shower Set is a ceiling mount shower with a brushed nickel plated finish and comes with a handheld shower. When it comes to new bathroom upgrades, FontanaShowers is offering shape, finishes, and styles that you've been looking for. Give your bathroom an elegant glance with sink faucets and fixtures. This is one of the trendiest finishes across decor styles in the bathroom. This has an elegant design and elevates the appeal of your decor made from the highest quality and for great tastes. High-Quality Great Designs.
