Before you begin, please read the installation instructions below. Observe all local building and safety codes. Unpack and inspect the products for any shipping damages. If you find damages, do not install. Please note all products must be installed by a professional and certified plumber otherwise warranty might be voided.	sensor

Bathroom Sink Installation Instructions

Size:
	basin

Drop-in Sink Installations
Step 1:	sink	Step 2:


Step 3:		Step 4:


Step 5:		Step 6:

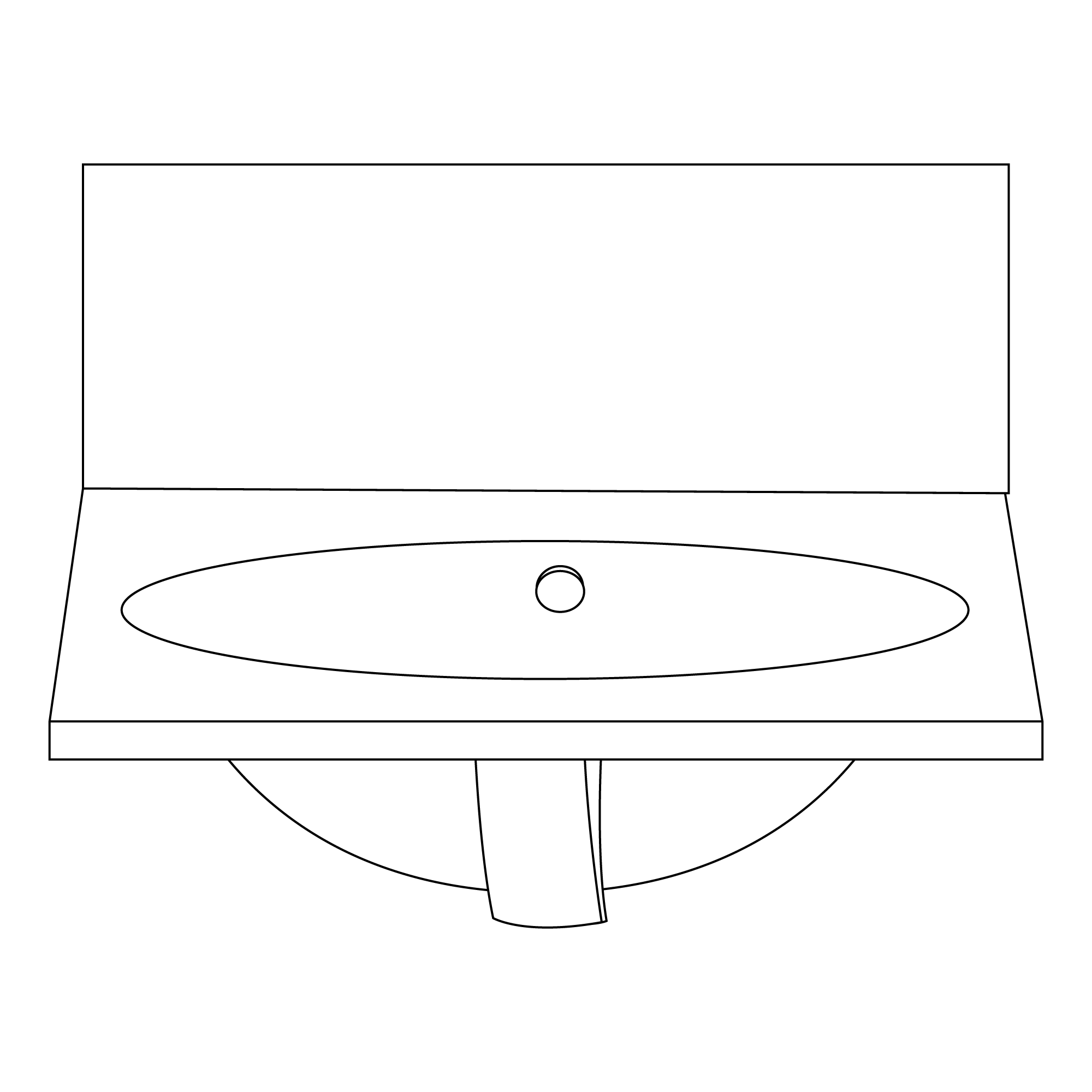

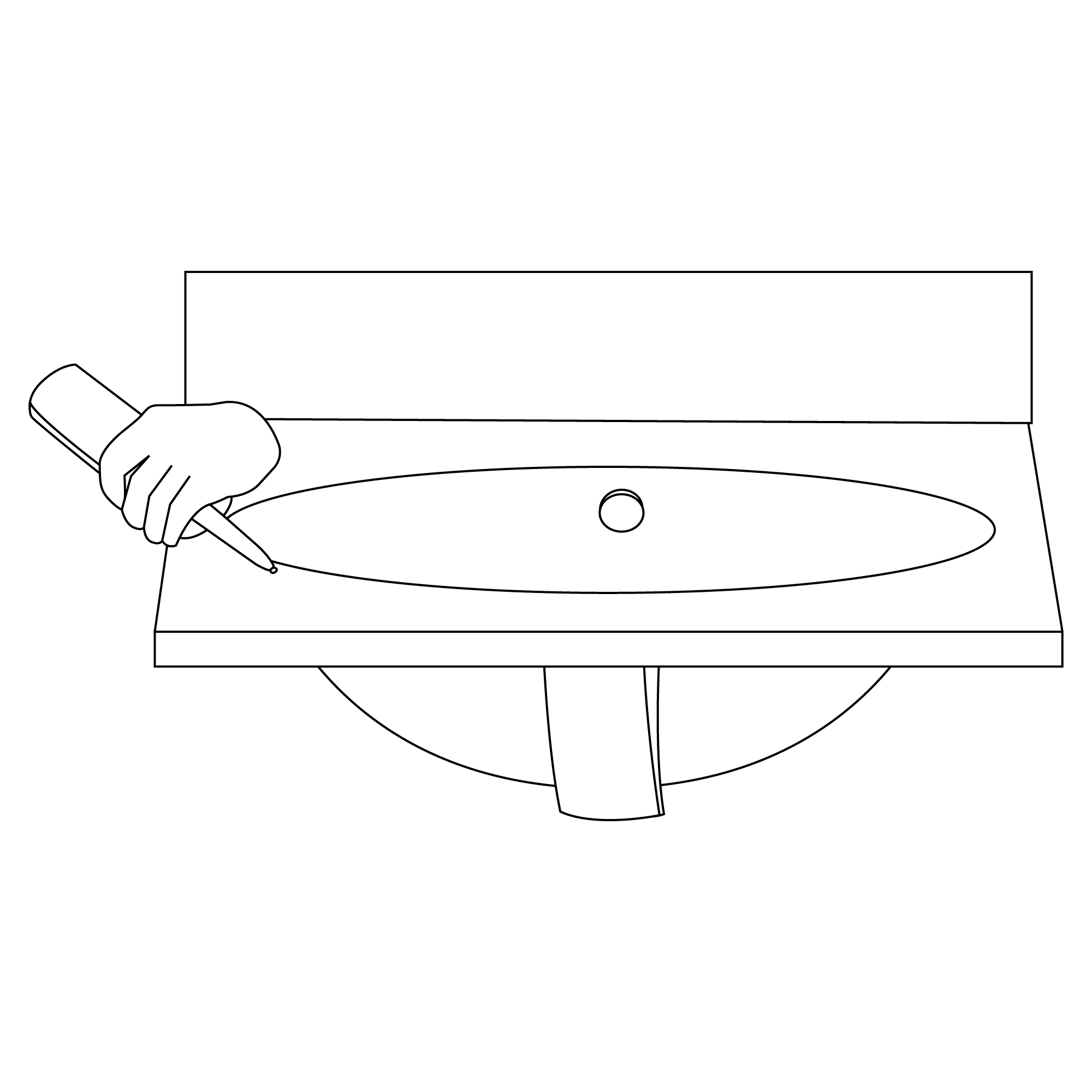

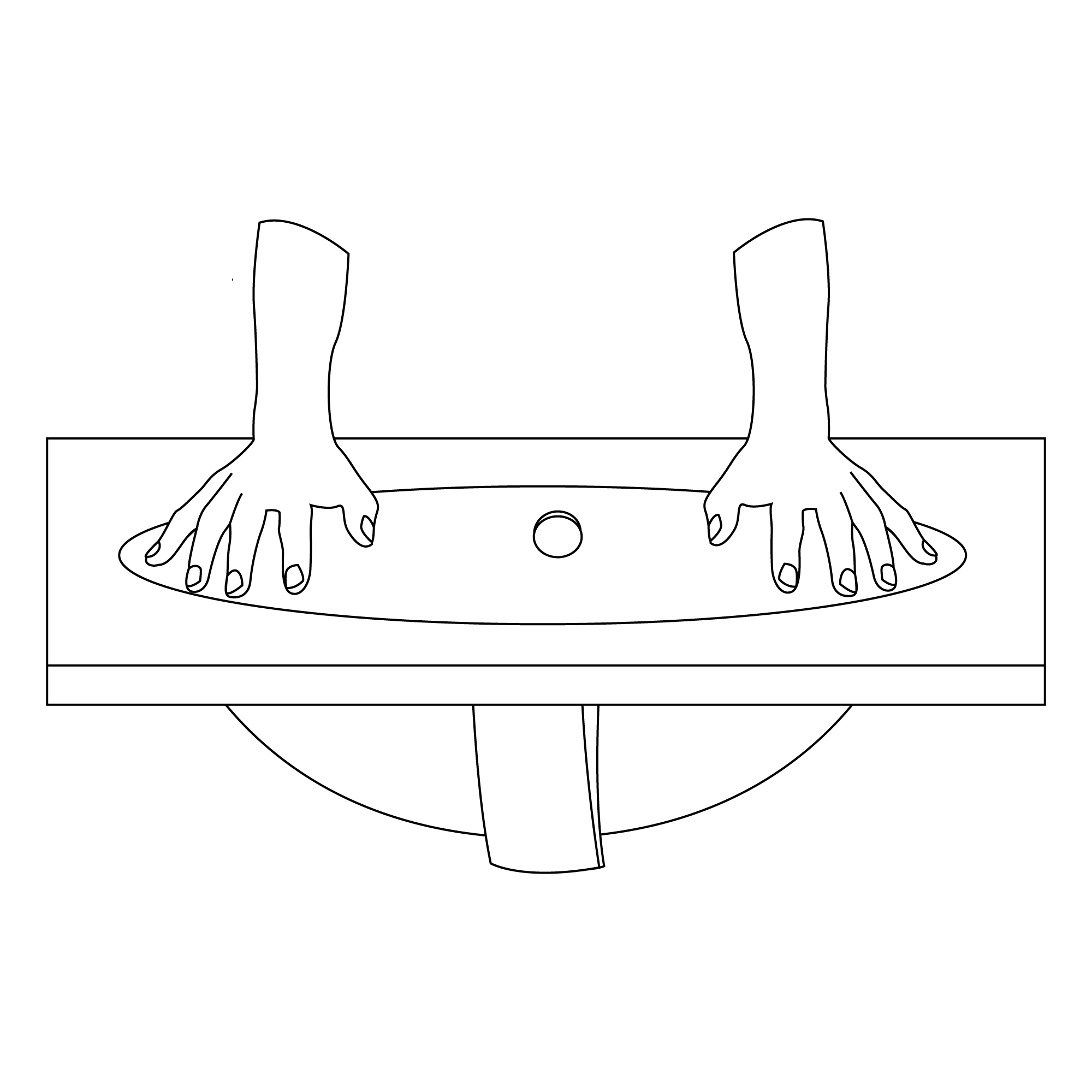

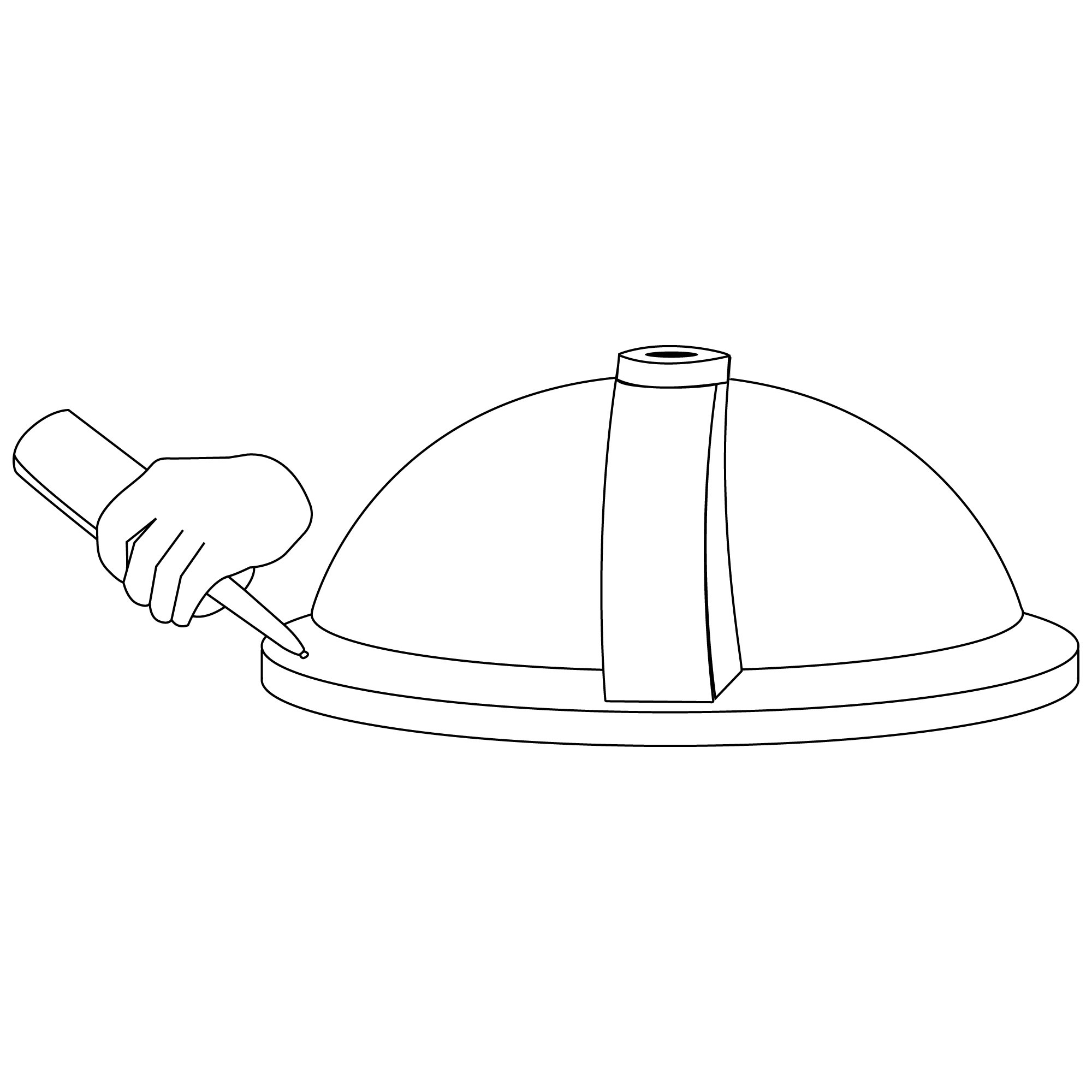

Drop-In Installation: 1. Install your counter top onto your vanity cabinet. 2. Lower the sink into the cutout on the counter to confirm the sink will fit properly. The rim of the sink should sit flat on the counter top. 3. Remove the sink and run a bead of neutral cure silicone sealant around the underside of the rim. 4. Carefully lower the sink back into the cutout and press the sink firmly into place. Wipe away any excess sealant with a damp cloth. Position the sink under the opening. Hold the sink in place and rotate each clip over the rim. Evenly tighten the clips to secure. 5. Apply a thin bead of silicone sealant around the perimeter of the sink, where the sink meets the counter top. This will prevent moisture from getting underneath the rim of the sink. 6. Proceed to the installation of your drain and faucet. Allow 24 hours for the silicone sealant to fully dry.

Faucet Installation Instructions

Step 1:	sink faucet	Step 2:	faucet


Step 3:		Step 4:

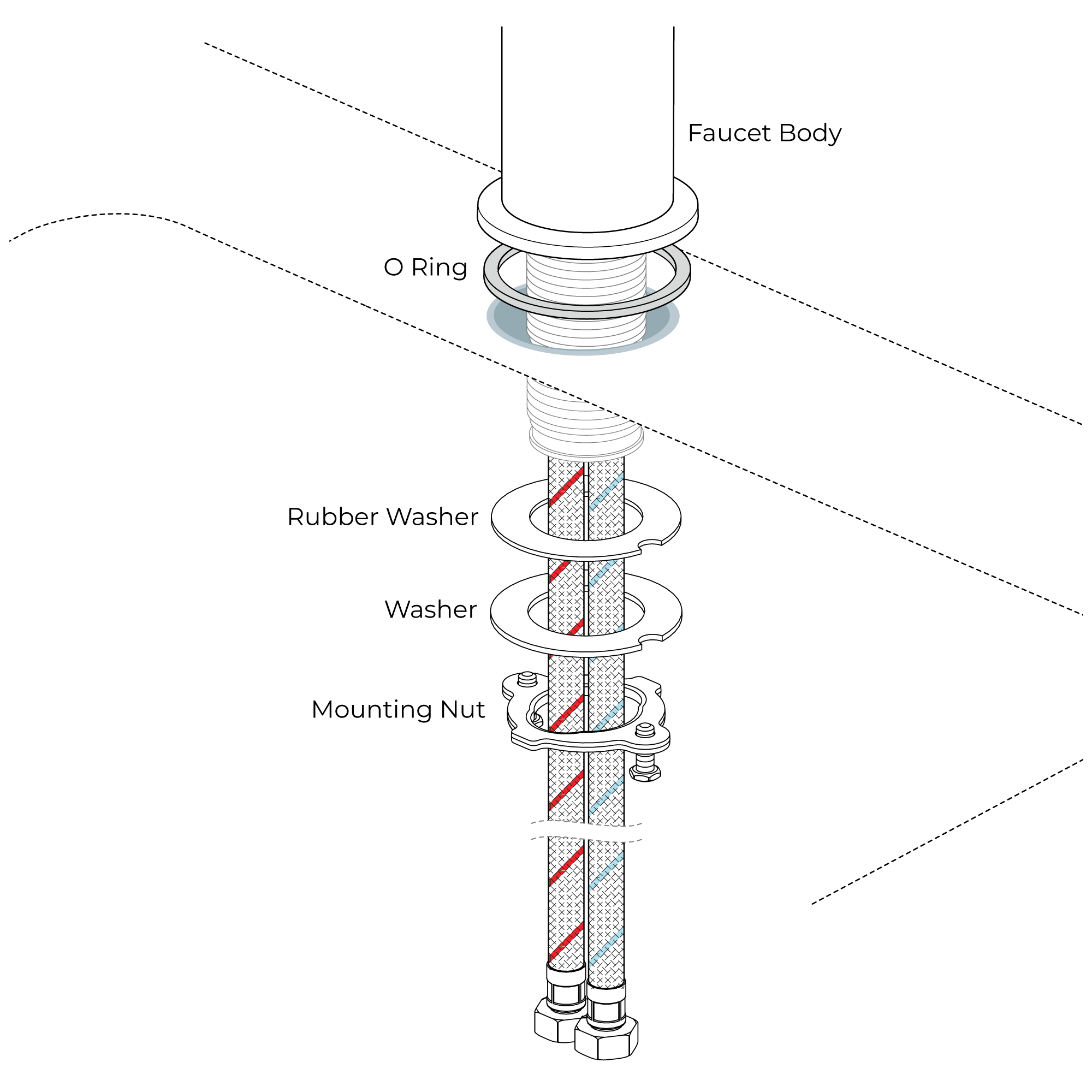

1. Remove the mounting nut, metal washer, and rubber washer from the threaded pipe.
2. Fit the O-ring into the groove of the faucet body. Screw waterlines into the corresponding screw-hole of the faucet body.
3. Insert waterlines and threaded pipe into the hole of the sink.

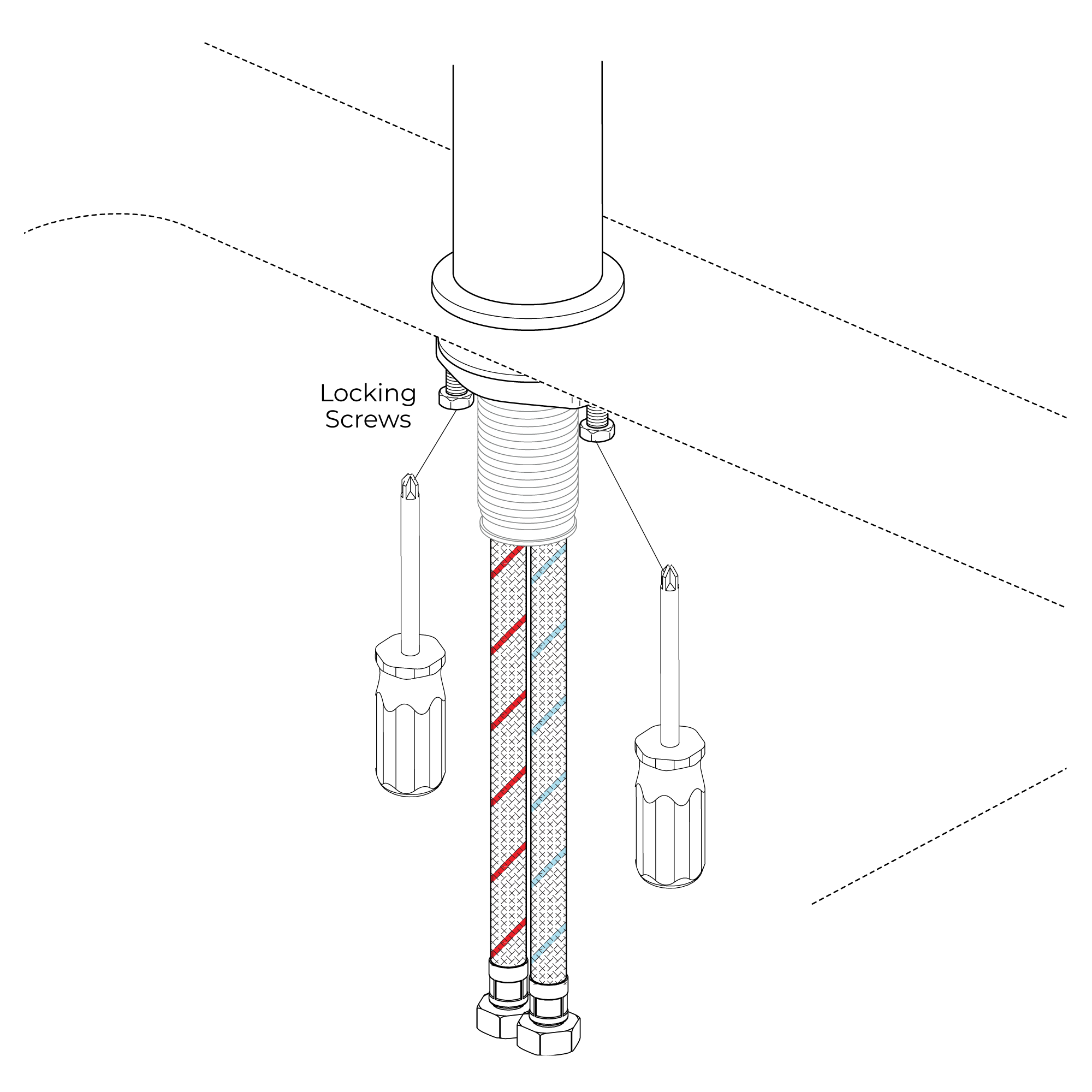

4. Install rubber washer, metal washer, and mounting nut back to the threaded pipe. Adjust the faucet body correctly and secure with mounting screws tightly.
5. Connect waterlines to angle stops. Turn on the angle stops and check for leaks (DO NOT TURN FAUCET ON).
6. Turn faucet on for 1 minute to flush any debris.

Important: Turn on hot and cold water supplies and flush water lines into a container for one minute.
This flushes away any debris that could cause damage to internal parts.

Sink Drain Installations :
Step 1:	sink	Step 2:


Step 3:		Step 4:


Step 5:		Step 6:


Step 7:

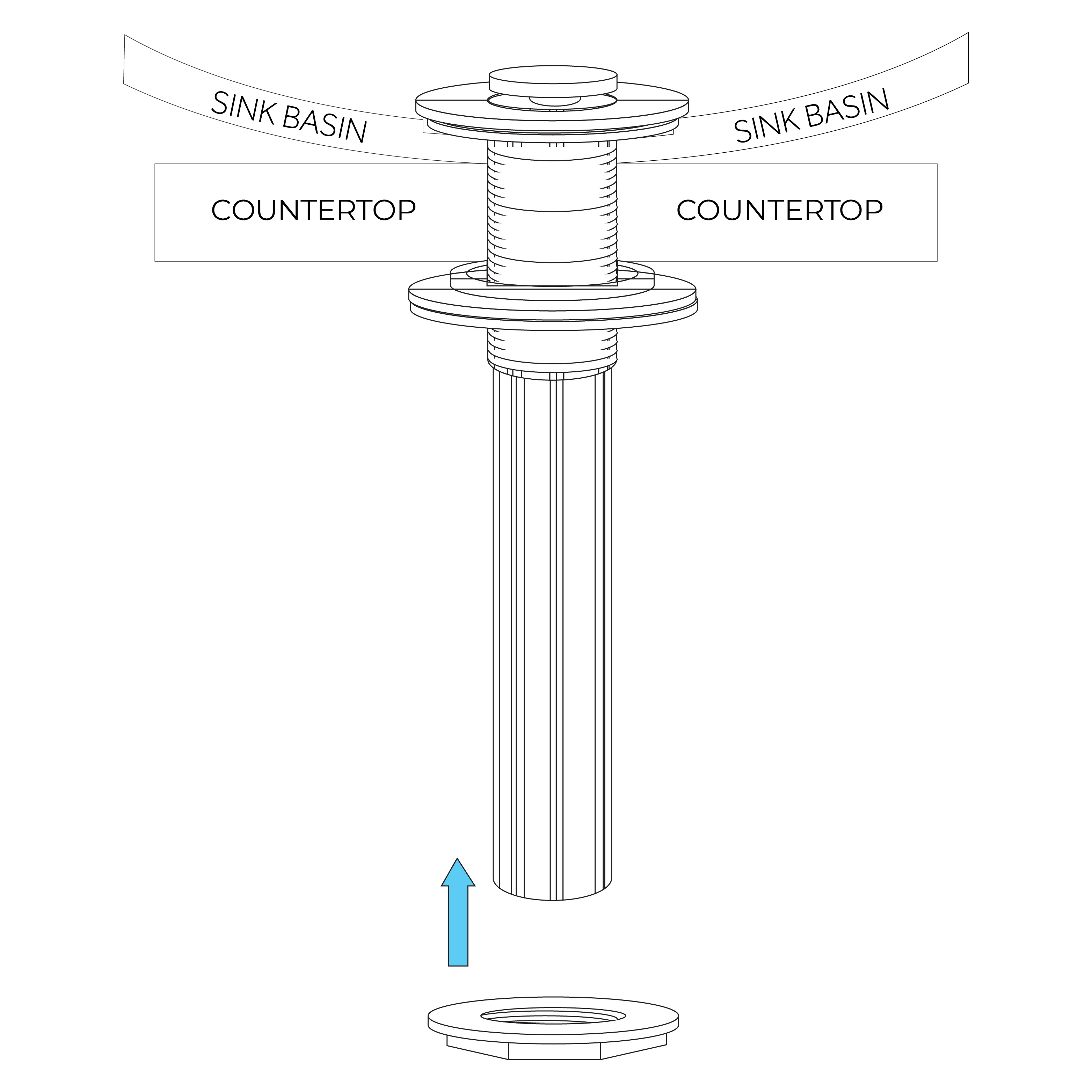

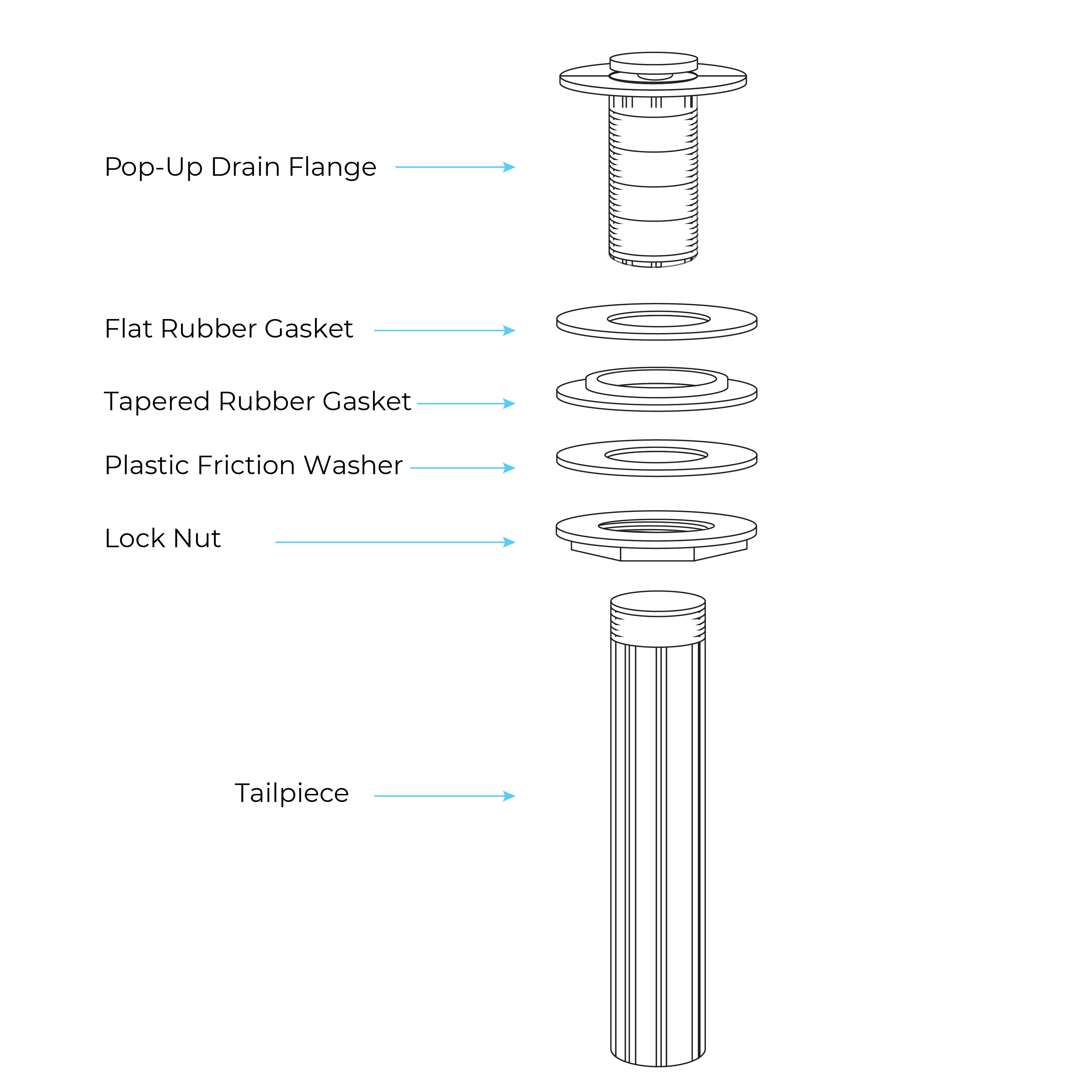

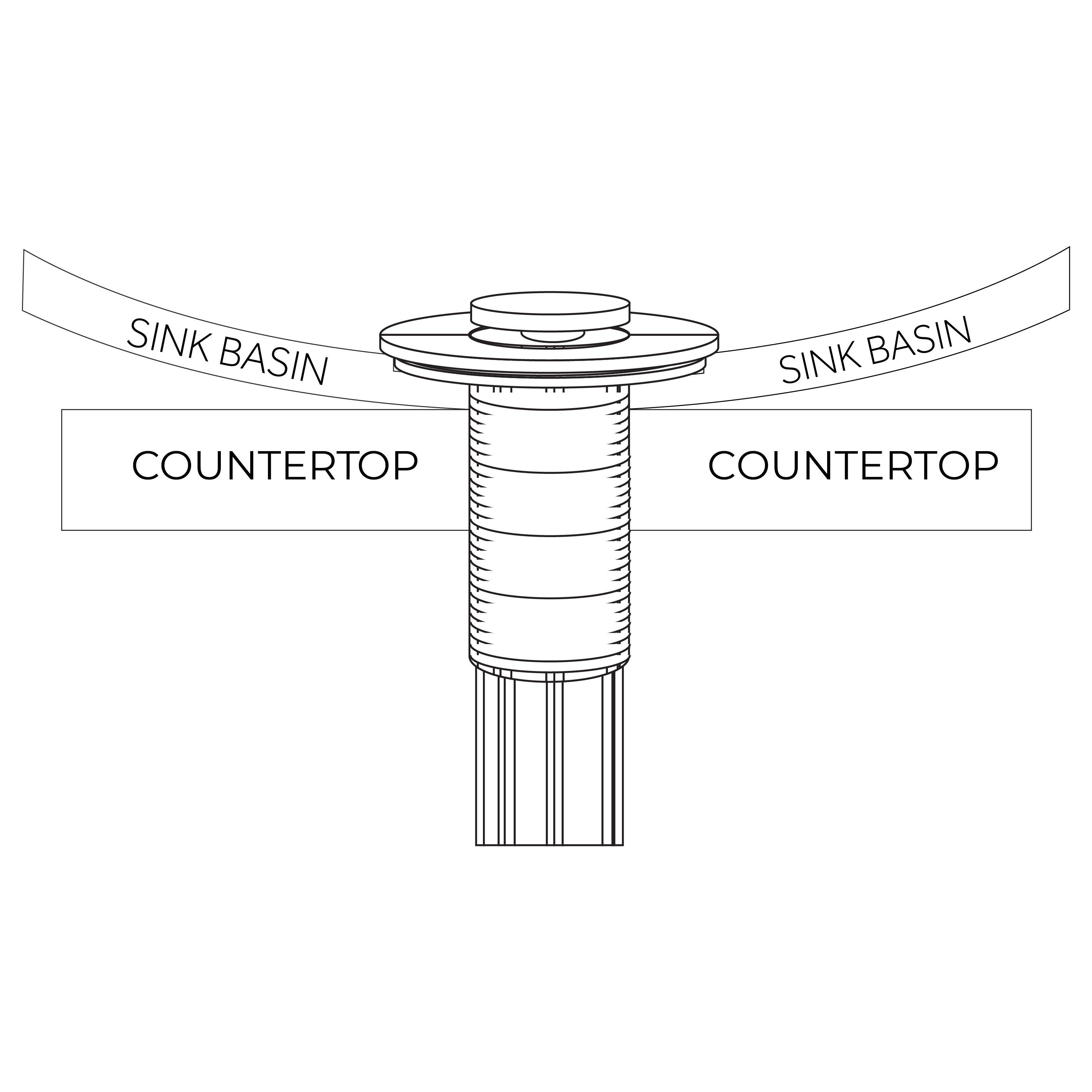

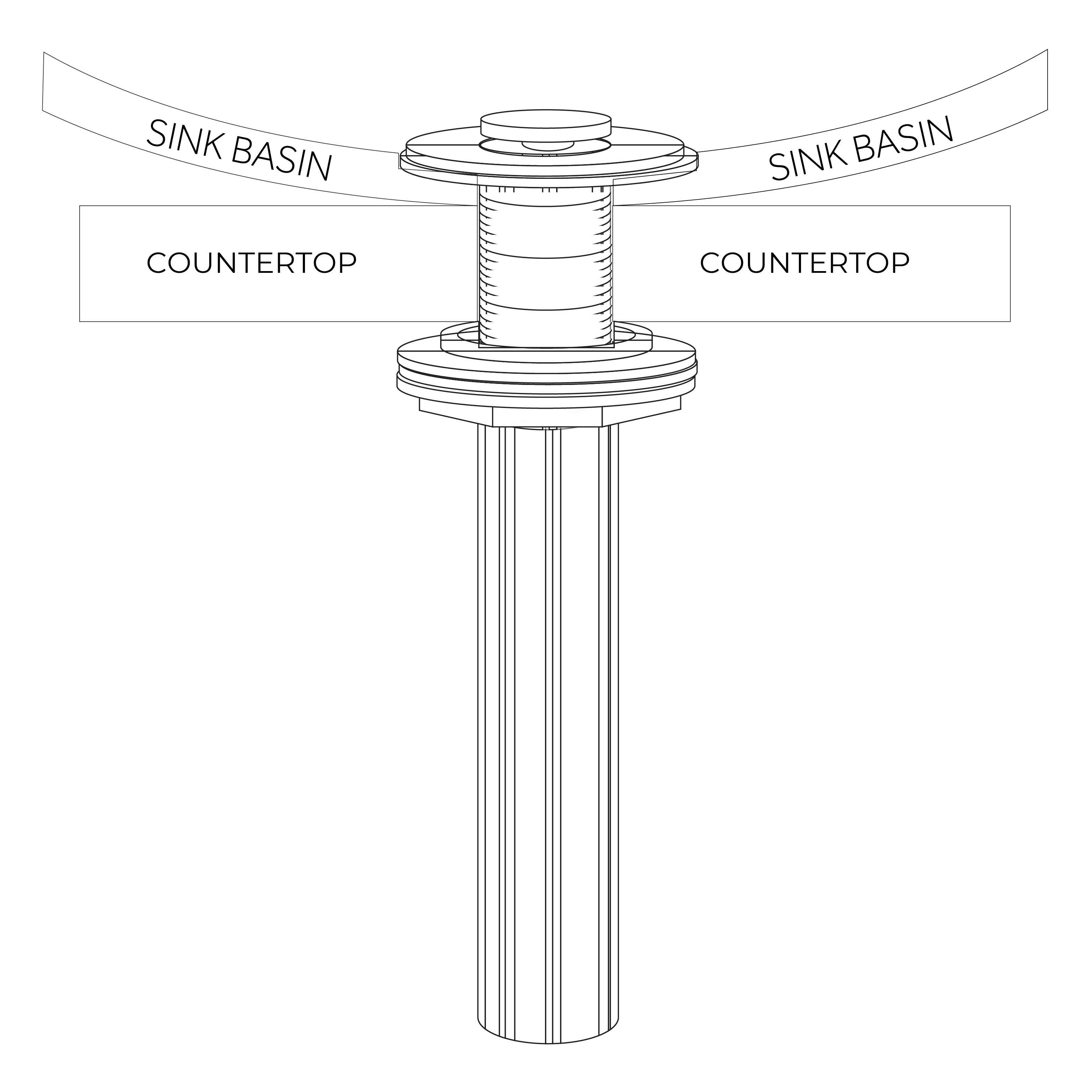

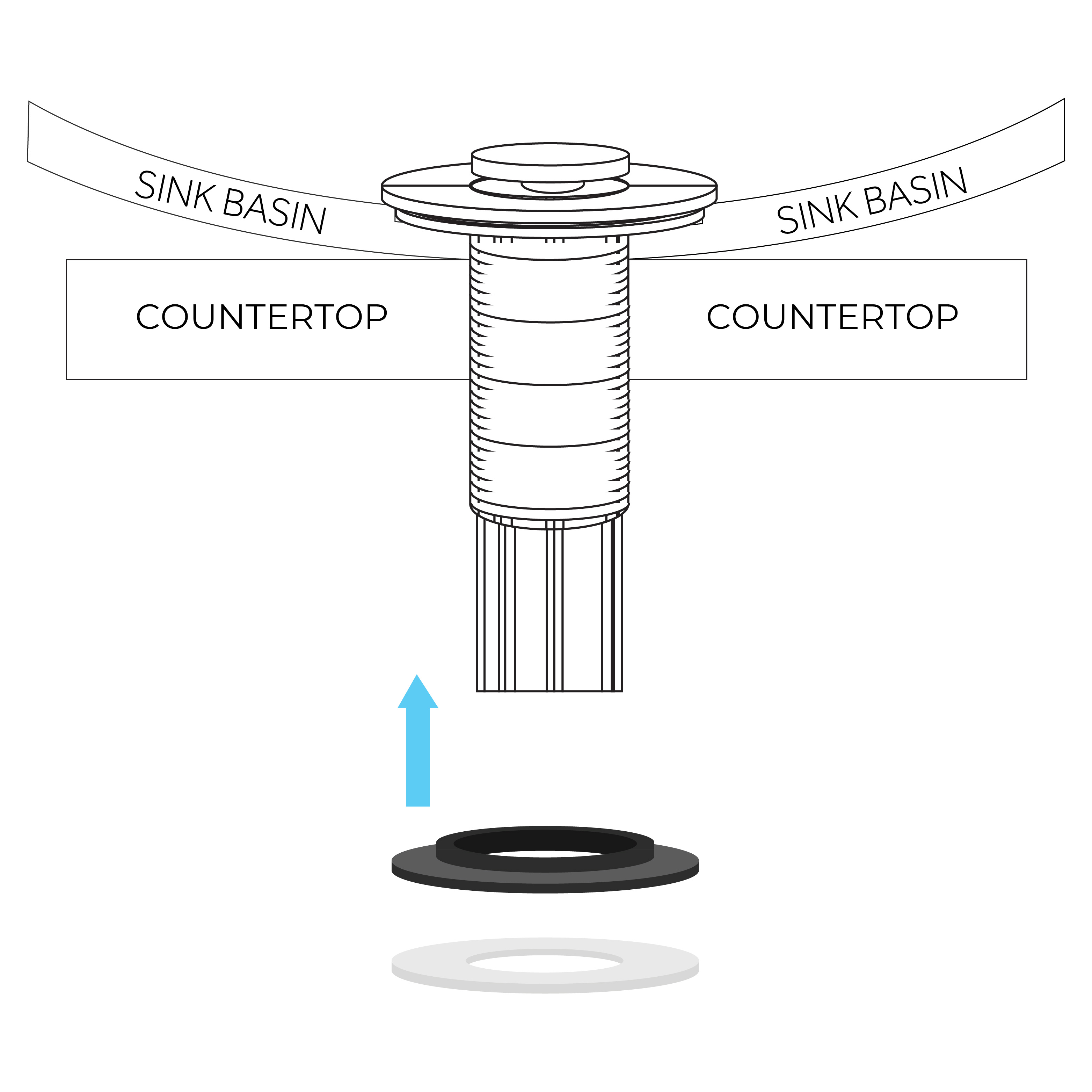

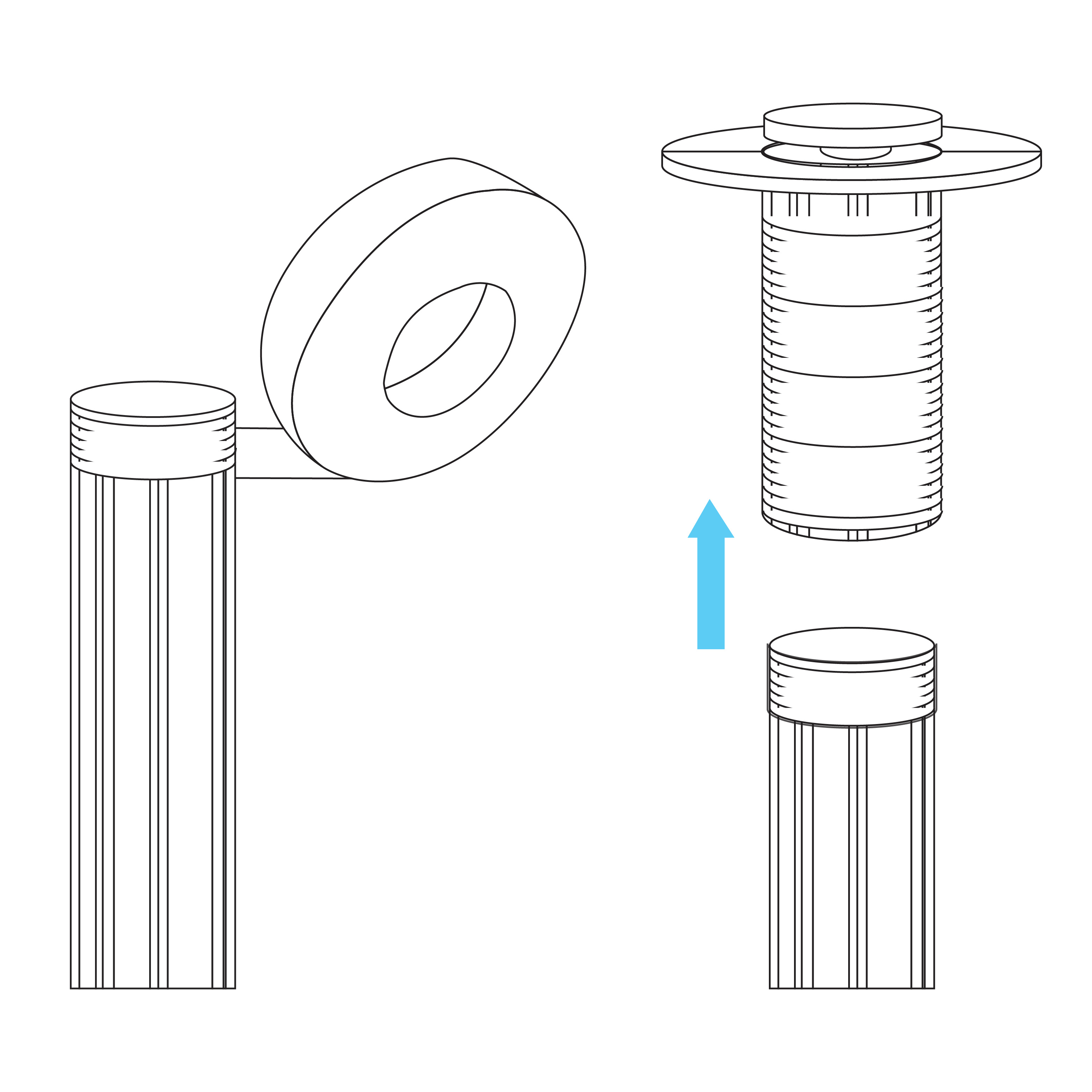

Sink Drain Installations : STEP 1. Dissasemble the drain assembly and lay the parts aside, in the same order they were removed. See the illustration below as a reference if needed. STEP 2. Apply plumber’s tape to the threading on the tailpiece, then reattach the tailpiece to the pop-up. STEP 3. Slide the ﬂat rubber gasket up the tailpiece until it meets the lip of the pop-up drain ﬂange. STEP 4. Insert the drain ﬂange and tailpiece through the top of your sink’s drain hole. STEP 5. From under your counter, slide the tapered rubber gasket followed by the plastic friction washer onto the tailpiece until they meet your sink or countertop. Be sure that the tapered side of the rubber washer is facing up. STEP 6.Thread the lock nut onto the drain ﬂange. Hand tighten until secure, then ﬁnish tightening with a basin wrench once the drain is properly aligned. Important: Be careful not to overtighten, which could crack a porcelain sink or stone countertop.

Drain Connection
Step 1:	sink	Step 2:

Cleaning and Maintenence
It is recommended that you use a cleaner or polish that is designed specifically for copper products. You may use a gentle soap, such as dishwashing liquid and warm water. We recommend the use of a soft sponge or microfiber washcloth. Do not use any abrasive cleaning pads or materials. Rinse with warm water and dry with a clean, soft cloth.
Complete the faucet and drain installations.
Run water into the sink and check all connections for leaks.

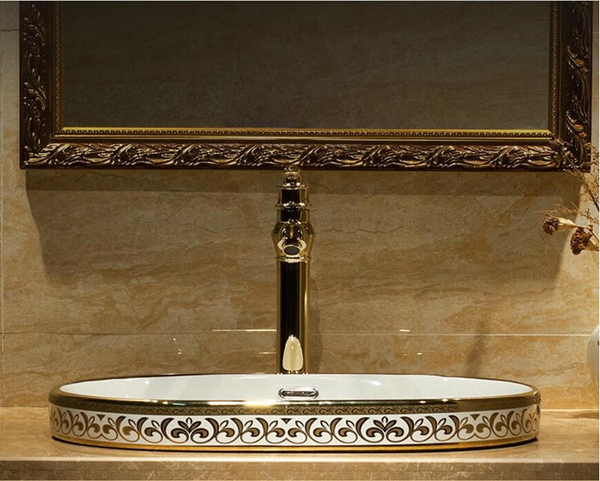

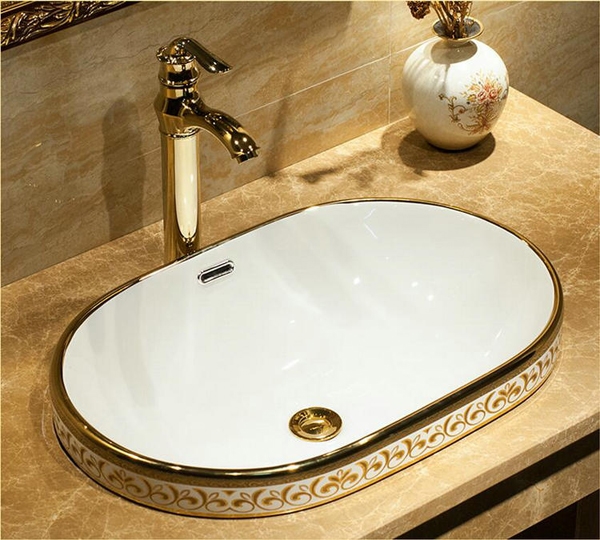

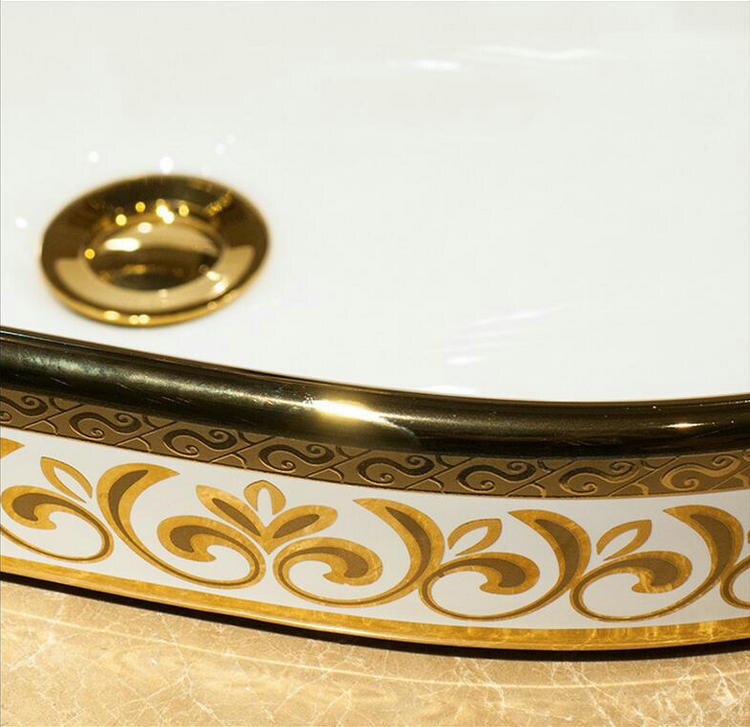

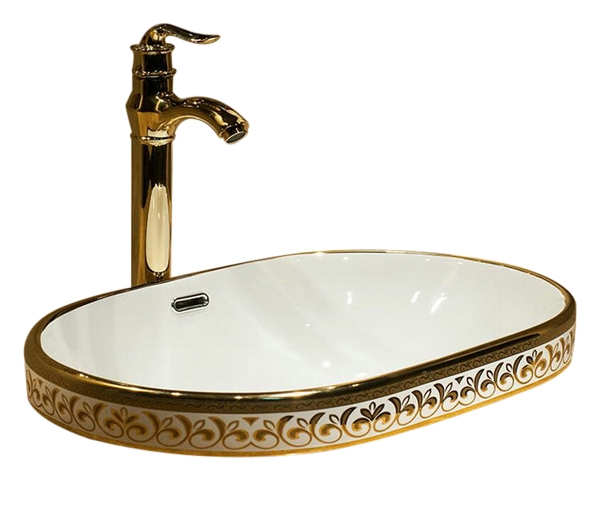

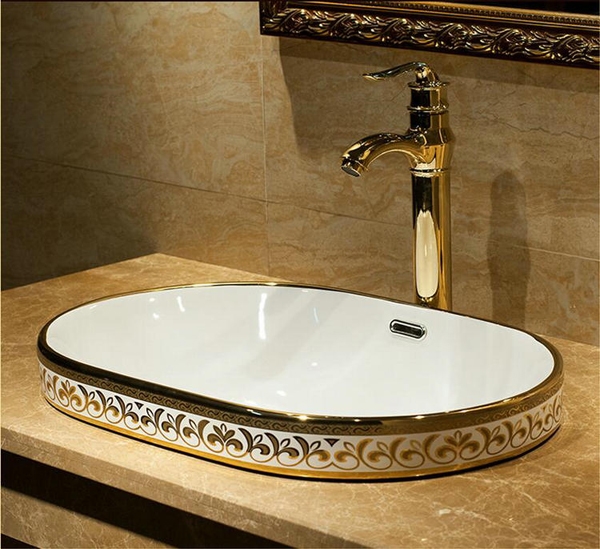

Cannes Oval Bathroom Sink With Overflow

The Cannes Bathroom Sink is an Oval Shaped Sink that comes in Ceramic Body with a Mosaic Gold Finish. Cannes Bathroom Sink is 12L Capacity & is 60 x 39 x 19 CM.
