Installation Instructions for Bathroom Shower Set
Visit Product Page
Before you begin, please read the installation instructions below. Observe all local building and safety codes.
Unpack and inspect the product for any shipping damages. If you find damages, do not install.
Please note all products must be installed by a professional and certified plumber otherwise warranty might be voided.
shower
Shower Head Installation Instructions
Step 1:
shower
Step 2:
Step 3:
Step 4:
Step 5:
Step 6:
Step 7:
Step 8:
1. Apply plumber's tape to the threads on both ends of the shower arm and slide on the decorative escutcheon.
2. Insert the new arm into the fitting in the wall and twist to tighten. Finish tightening with your adjustable wrench. Wrap a dry cloth around the shower arm to protect the finish while tightening with an adjustable wrench.
3. Thread the new showerhead onto the arm and hand-tighten. Hold the shower arm in place with groove joint pliers and finish tightening the shower head with your adjustable wrench. Wrap both in a dry cloth to protect the finish.
4. Before securing the decorative escutcheon, turn on the water supply to make sure that all connections are tight and there is no leaking. If no leaks are detected, continue with the installation. If leakage does occur, use your adjustable wrench to tighten the connections as necessary.
5. Apply a bead if silicone sealant to the back of the escutcheon and press firmly into place against the installation surface. Wipe away any excess sealant with your damp cloth.
Hand Held Shower Installation Instructions
Step 1:
Step 2:
Hand
Held
Shower
Hand Held Shower
Handheld Shower
Step 3:
Size:
Handheld Shower
Holder Size
Hand Shower Outlet Installation • Complete the outlet pipework ensuring it ends in an appropriate 15mm x 1/2" BSP female thread elbow. Note: This fitting is not supplied as variations in installations require the selection of a suitable solder or compression fitting.
• Install the 'Wall Outlet', thread long male 1/2" BSP into the appropriate female fitting using PTFE tape to give a watertight joint. Note: The thread can be cut to size if required. Make sure that all debris is removed from the connector and the section that has been cut is dressed correctly, before installation.
The minimum required water pressure is 0.05 MPa (0.5 bar). Flow rate 2.5 GPM (9.5 LPM).
Shower Body Jets Installation Instructions
Step 1:
Step 2:
Body
I
Step 3:
Step 4:
Step 5:
Step 6:
Step 8:
Step 8:
Multiple body jets will require installation in parallel using a pressure-balancing loop (not included).
1. Attach the escutcheon to the body spray. 2. Apply Teflon tape to the threaded tailpipe of the body spray. 3. Screw the body spray tightly into the female of water supply. 4. Press the escutcheon against the finished wall.
Instructions
Body jets should be arranged in your system to provide the necessary spray outlets to suit the application. 1. Identify all components and check for completeness, particularly before arranging fitting. 2. Depending on the application the body jet can be panel mounted using a backnut (not supplied) or set into the wall on rigid pipe work. If panel mounting care should be taken to ensure connection can be made after securing with the backnut. 3. Connect body jet to pipe work using recommended ½” BSP connections (not provided) with thread sealing compound where necessary. Note: - Before finishing wall turn on water supplies to check both correct system function and for leaking from joints/connections. 4. Complete wall finish.

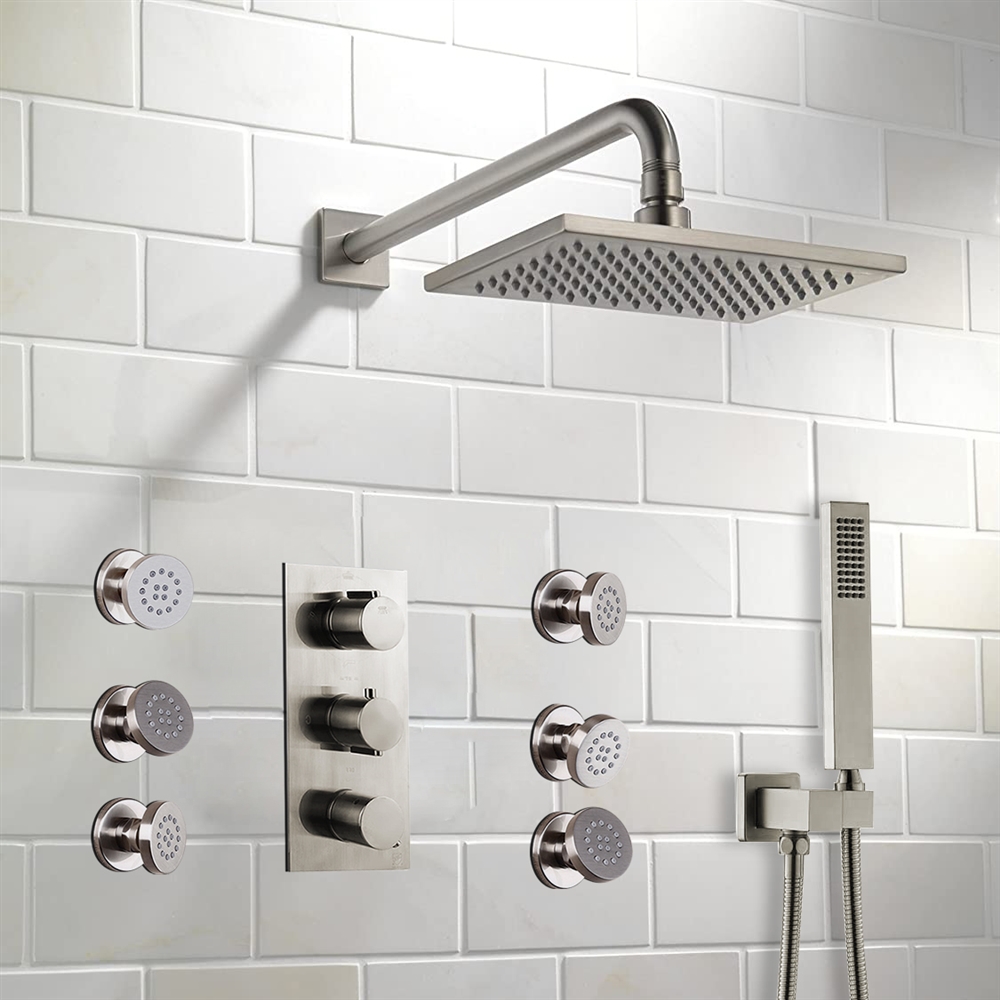

FontanaShowers Brushed Nickel Touch Clean Rainfall Shower Set With Thermostat Mixer Jet Spray And Handshower
