Installation Instructions for Bathroom Shower Panel		Visit Product Page
Before you begin, please read the installation instructions below. Observe all local building and safety codes. Unpack and inspect the products for any shipping damages. If you find damages, do not install. Please note all products must be installed by a professional and certified plumber otherwise warranty might be voided.	shower

Step 1:	shower	Step 2:
Step 3:		Step 4:
Step 5:		Step 6:

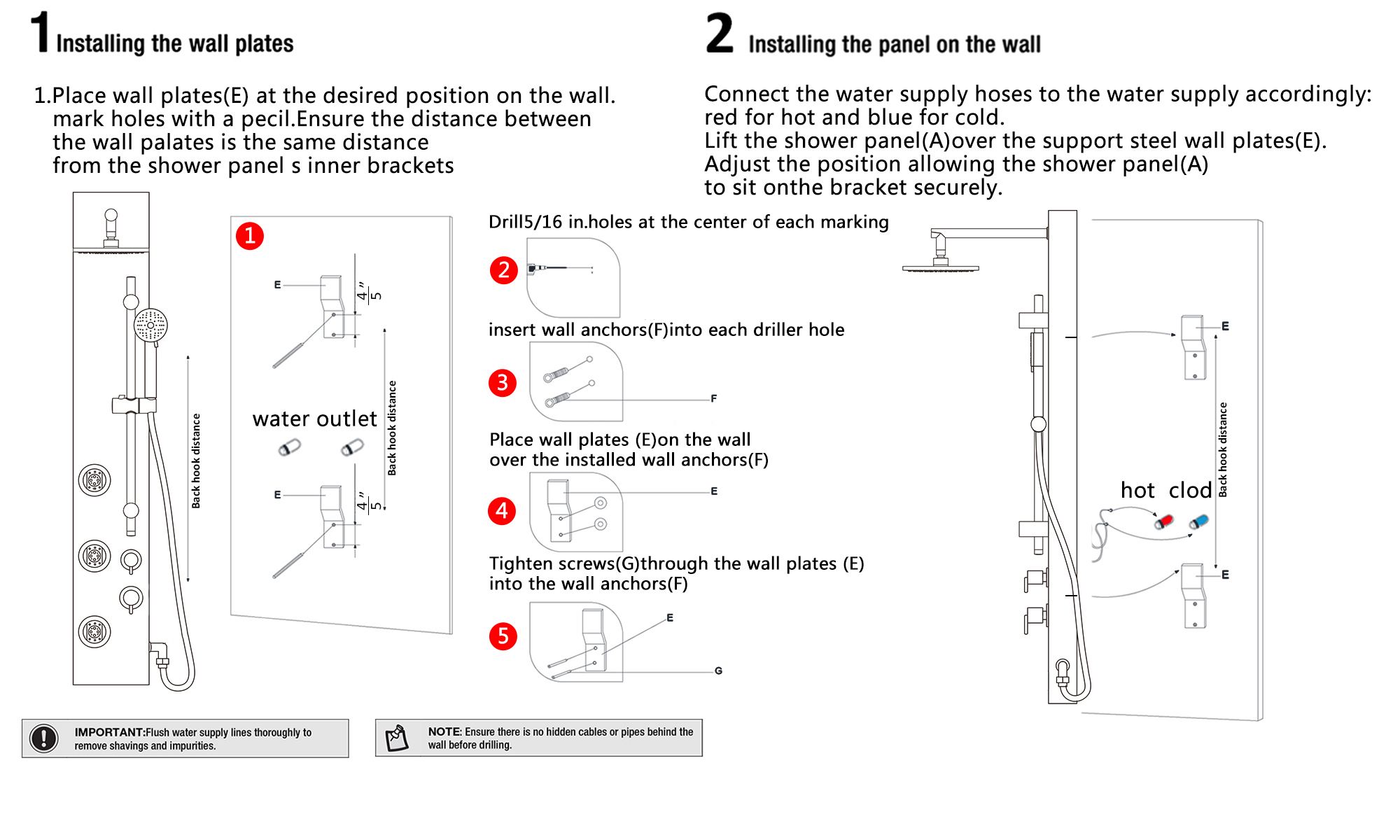

IMPORTANT Before drilling any holes for the shower panel brackets, ensure there are no hidden cables or pipelines aligned with the desired drilling position. Drill the two holes for the top bracket 1” apart at the desired height. Drill the two holes for the bottom bracket 1” apart at approximately 45” below the top bracket. Insert the wall anchors into the pre-drilled holes as shown in Figure B. Place the shower panel brackets aligned with the drilled holes and using a Philips screw-driver tighten the screws to secure the brackets. Insert the shower wand holder through the pre-drilled hole on the shower panel. Install the water supply hose for the shower wand onto the holder, as shown. Make sure all O-rings are inserted to prevent leakage. Once the shower panel is fully installed and hung on the bracket, you can install the shower wand hose to the holder connection. Finally, install the hand shower to the hose. Screw the cold and hot water hose from the shower panel to the supply lines in the wall. Carefully hang the shower panel on the secured mounting brackets.

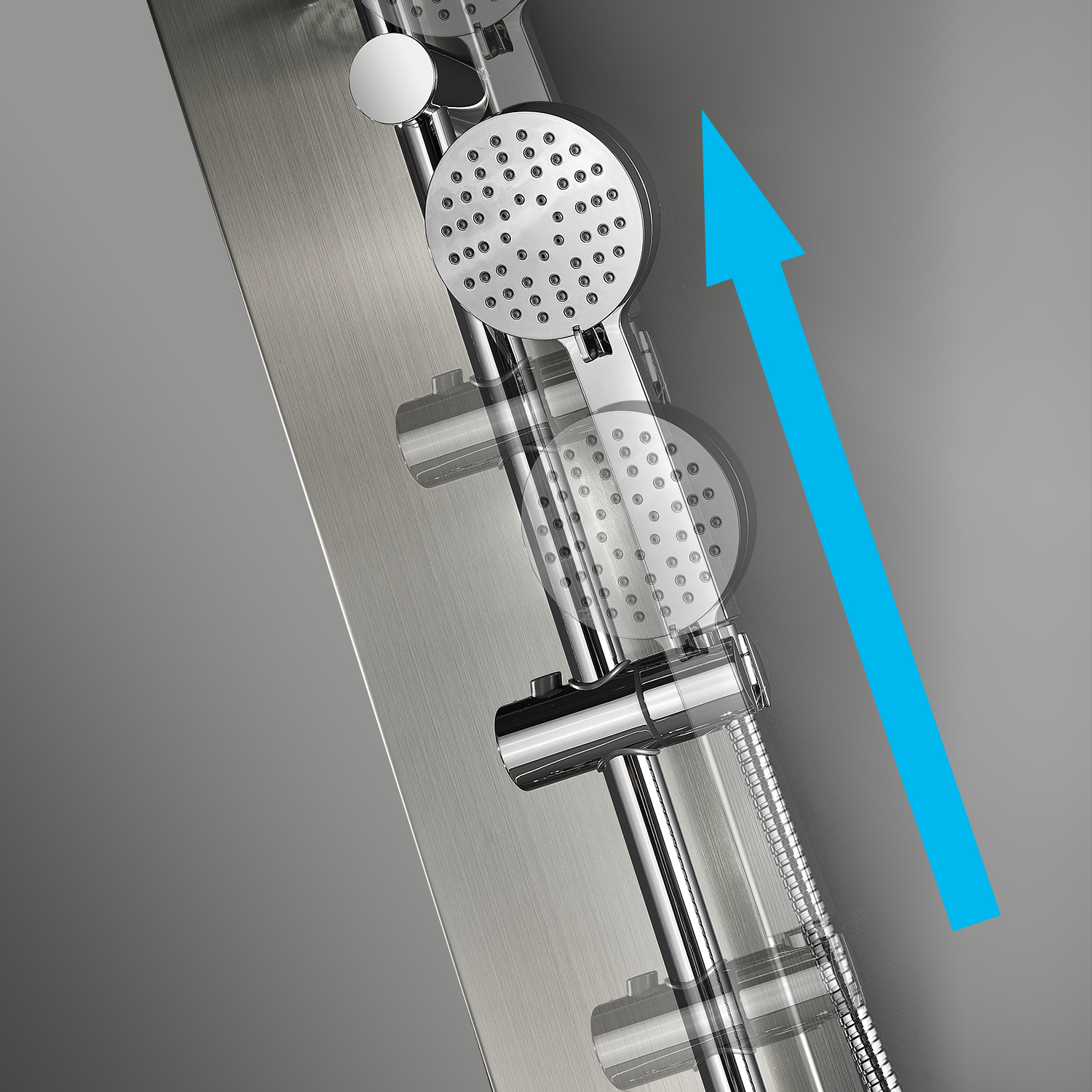

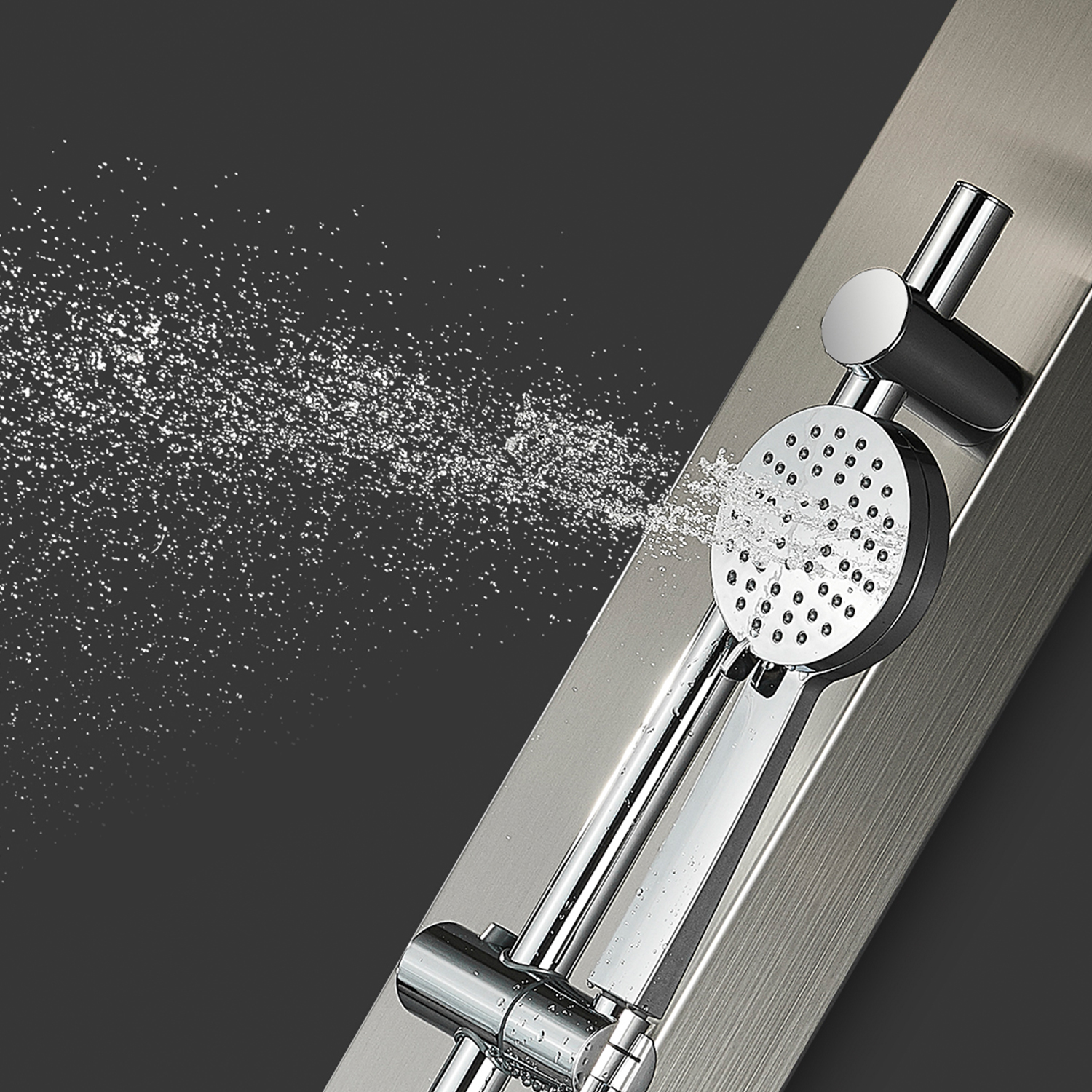

- SUS 304 stainless steel -Shower Panel System Brushed Nickel | Elegant and avant-garde curved design | Easy to clean. - 3 stage shower function (Rainfall, Horizontal Massage Spray, Shower Spa, Hand Shower) | All functions work independently to ensure the proper water pressure - 3 High-powered Jets - shower Spa has two functions | Stiff jet with hard water pressure to massage your sore back |Immersed in a gentle cascade of water | Get a different shower spa experience at home. - 3 function hand shower - Settings Include: Power Rain, Spray, Rain/Spray | Angle and arm length adjustable shower head | Great for projects and home spa renovations. Features: • Powerful Rainfall • 2 function Jets (massage+Spray) • 3 function i-move hand shower (Power Rain, Spray, Rain/Spray) • New Design Sliding Bar • All functions work independently to ensure proper water pressure Stainless Steel Shower Panel Massage System With Brushed Nickle Finish • Faucet Material: Zinc alloy • Panel Material: #304 Stainless steel • Hand shower: 3 function i-move hand shower • Installation method: Wall-mounted • Product dimension: 51H * 7.9 W * 3.0L inches • Package Size:53H *10.6W * 7.8L inches • Surface treatment: brushed nickel Shower Head • 126 Total rainfall nozzles, Anti-blocking silicone outlet • 8" Rainshower Single-Spray • 2.5 GPM flow rate to provide a steady, drenching water supply. • Metal swivel ball allows you to adjust the angle of the showerhead 2 function Jets • Two function-massage and spary • Men like a stiff jet with hard water pressure to massage your sore back • Women prefers to be immersed in a gentle cascade of water. New Design Sliding Bar • New Design Sliding Bar • Angle and arm length adjustable shower • Adjust the height and enjoy your shower 3 function hand shower • 3 functions hand shower • Power Rain, Spray, Rain/Spray

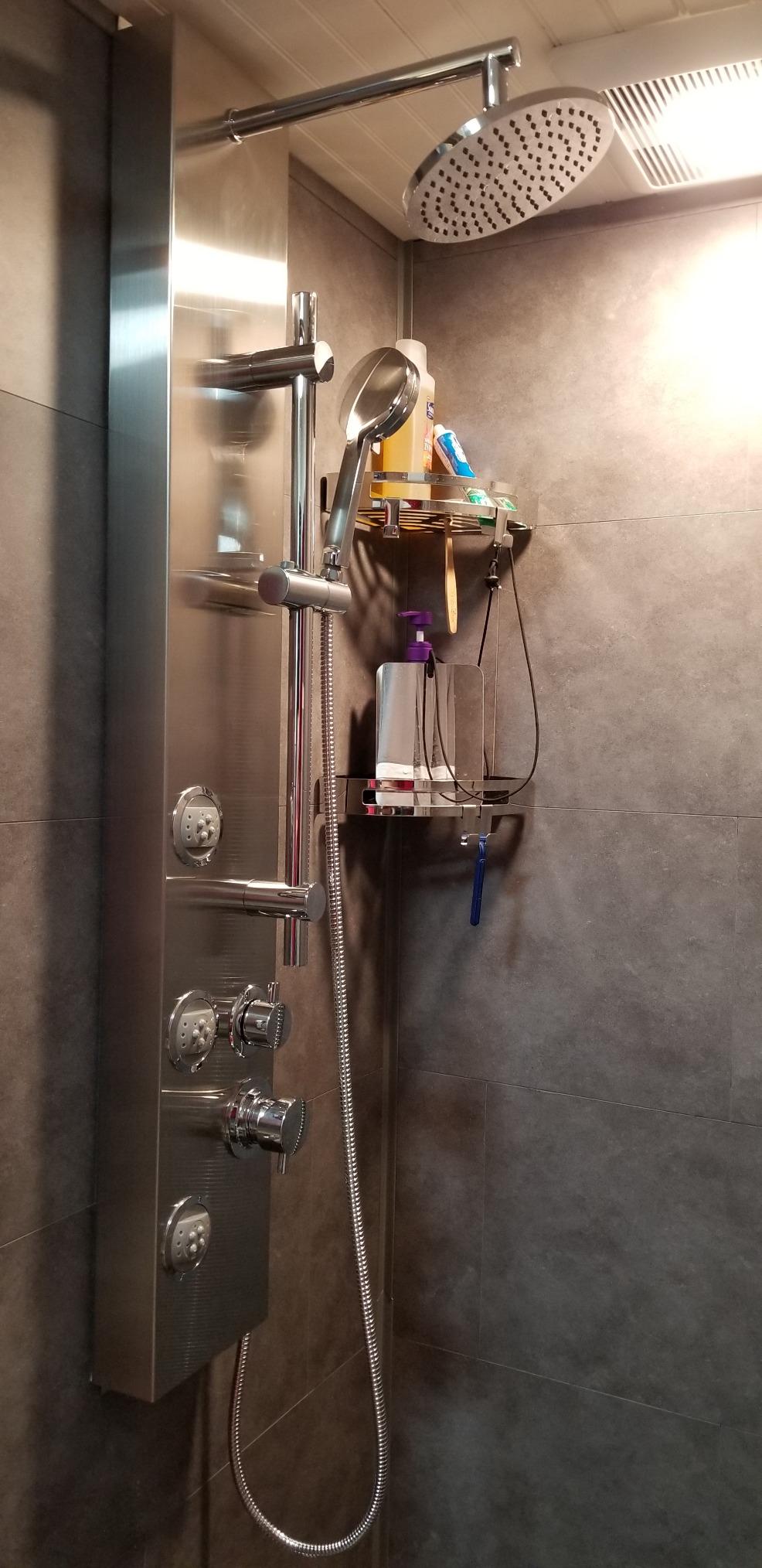

Fontana Rainfall Massage Shower Panel System

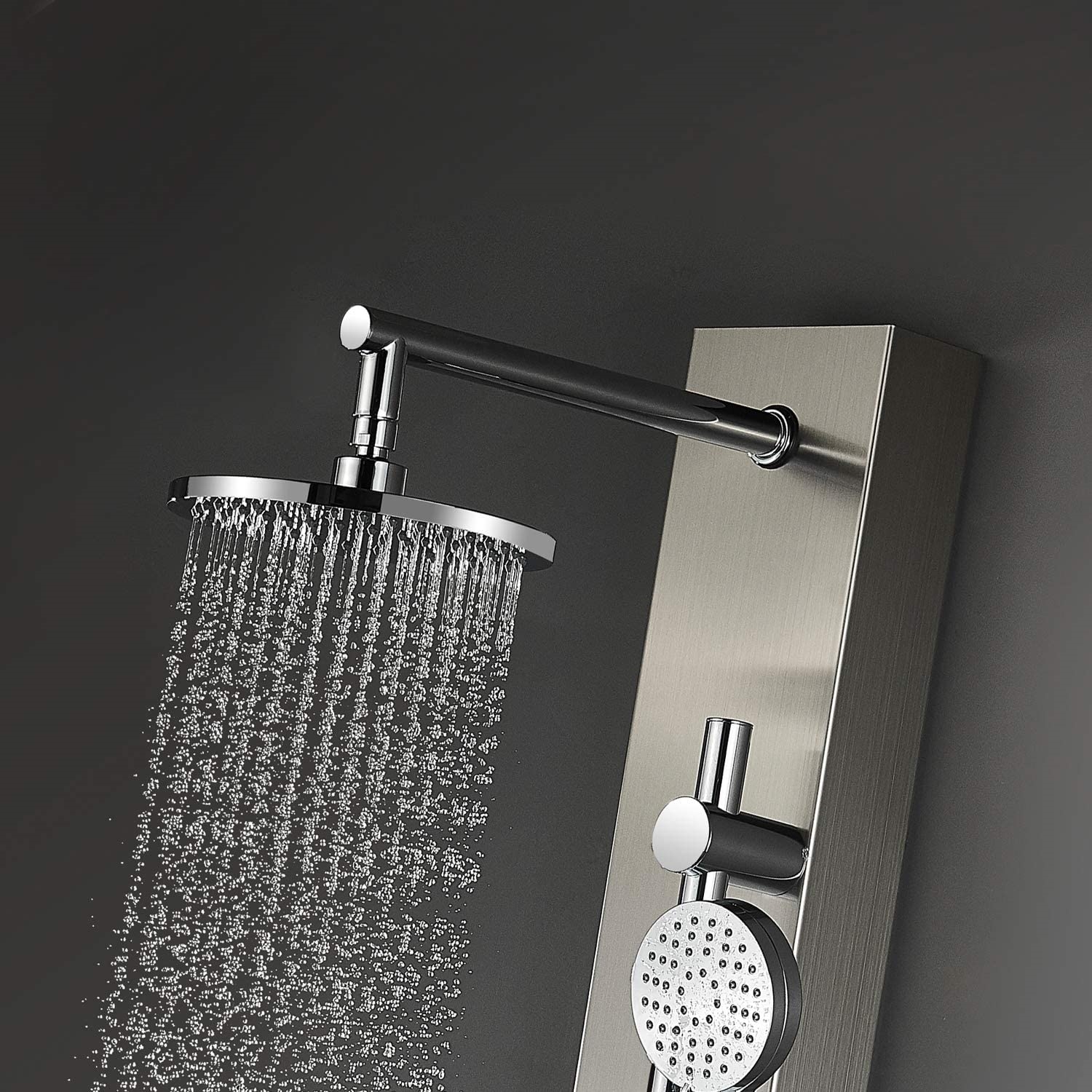

Get a Spa shower experience at home. The Fontana Thermostatic Shower Massage Panel System offers a unique combination of a traditional shower and water massage. This panel is equipped with everything you can wish for in a shower system: adjustable massage jets, rainfall showerhead, elegant hand shower. All functions can be used independently or in any combination you wish. Since it is factory pre-plumbed and it has standard connections and is easy to install.

Features:

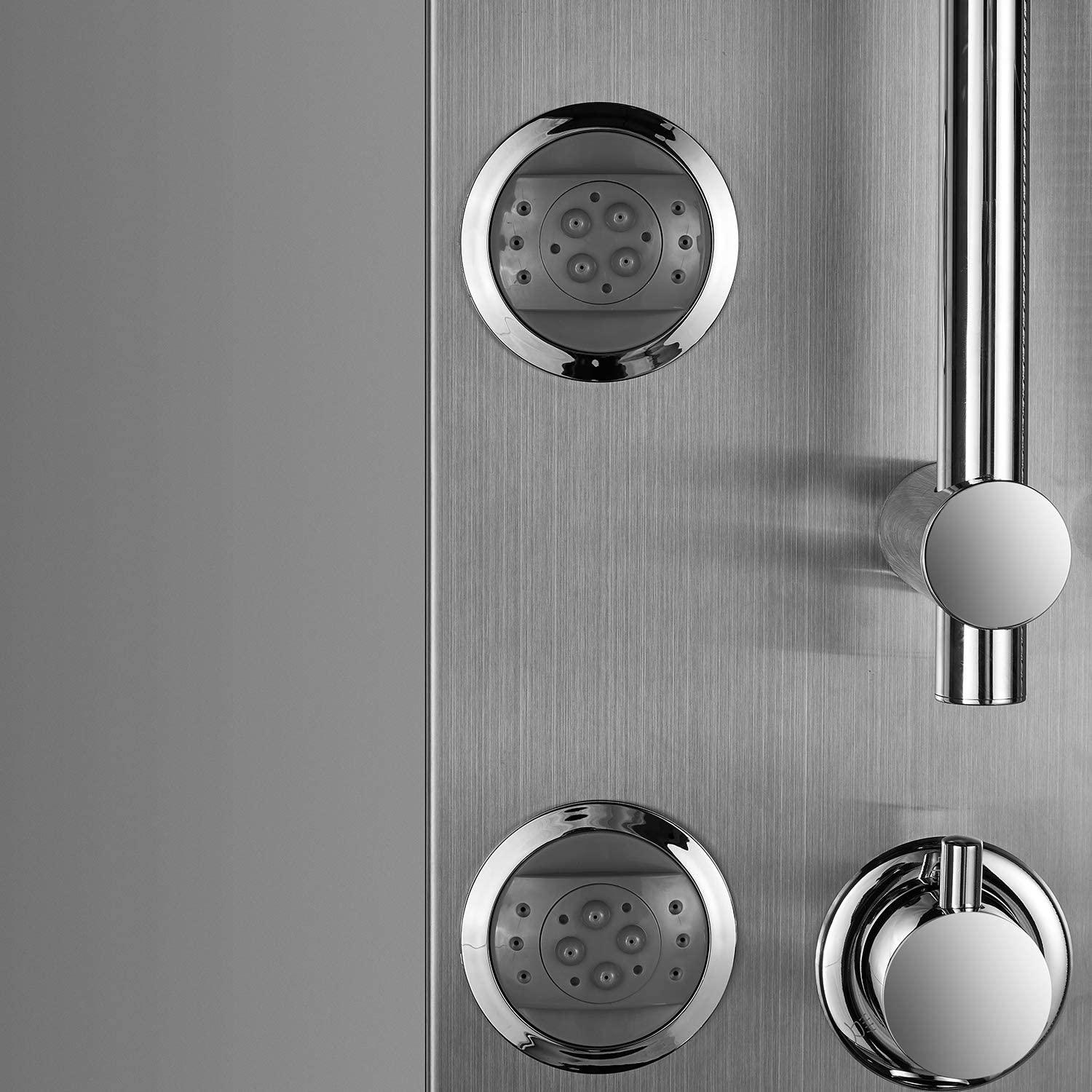

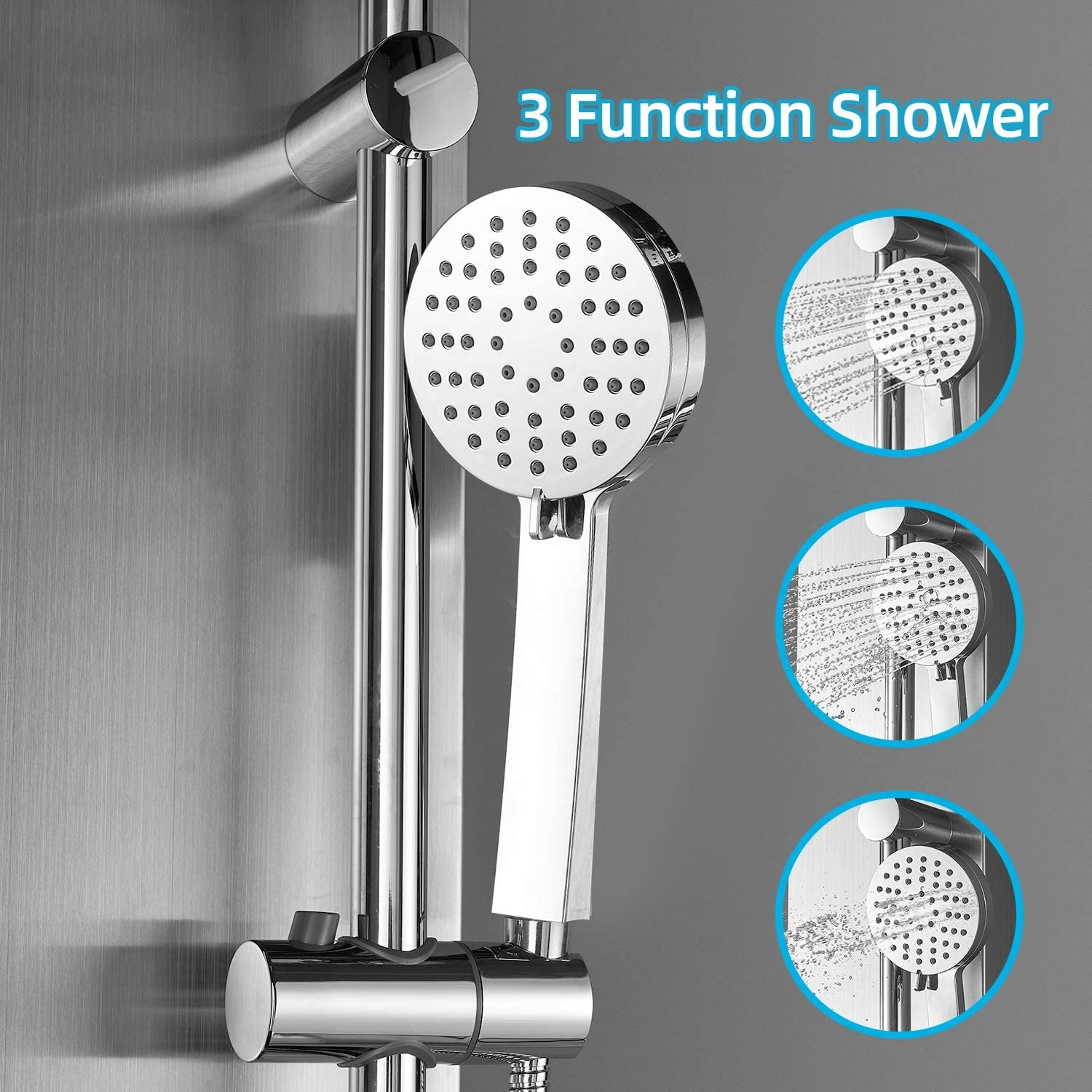

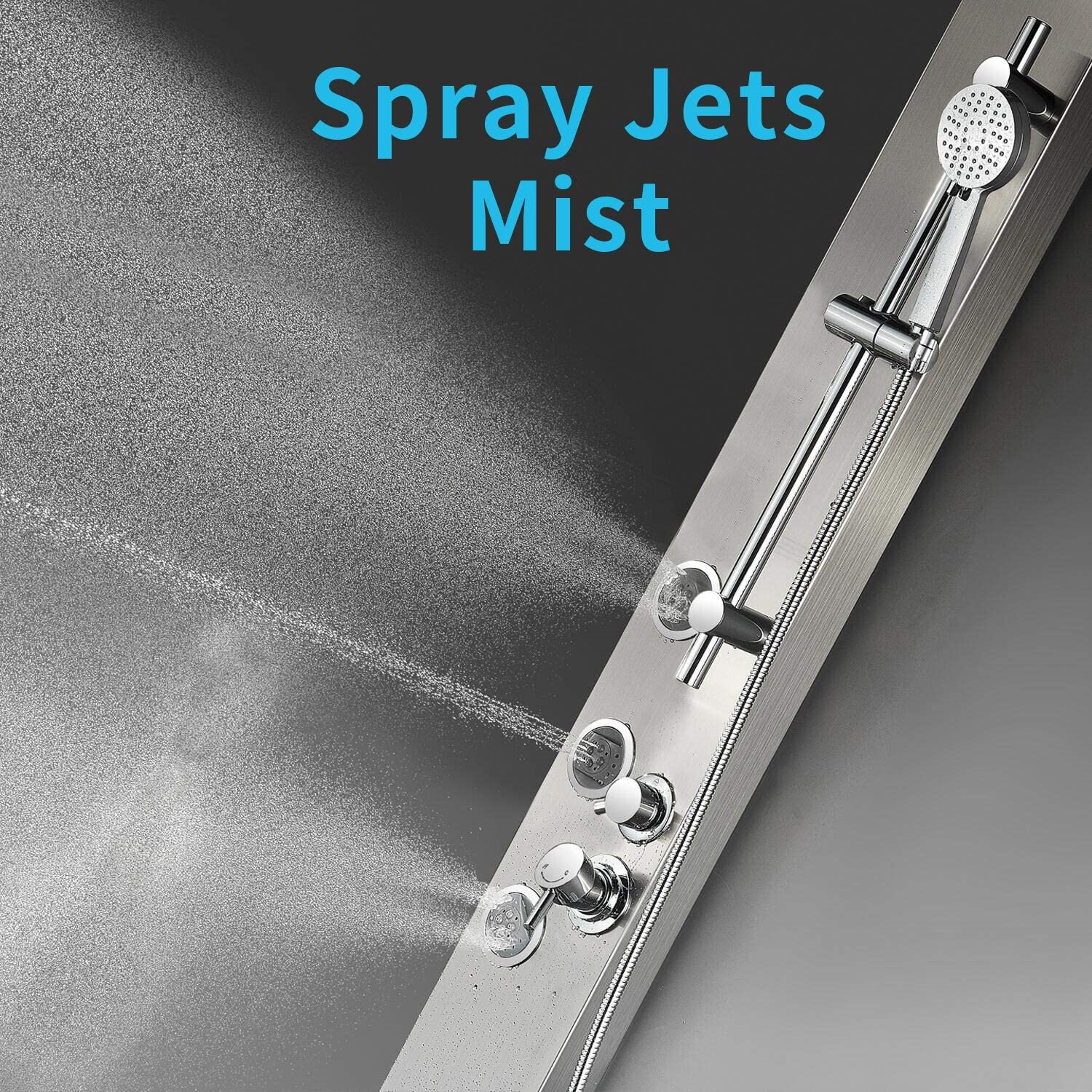

Brand Name: FontanaShowers Model Number: shower-massage-panel-0845 Type: Shower Panel Feature 1: 3 stage shower function (Rainfall, Horizontal Massage Spray, Shower Spa, Hand Shower)|All functions work independently to ensure proper water pressure Feature 2: High-powered Jets - shower Spa has two function|Stiff jet with hard water pressure to massage your sore back |Immersed in a gentle cascade of water| Get a different shower spa experience at home. Feature 3: 3 function i-move hand shower - Settings Include:Power Rain, Spray, Rain/Spray| Angle and arm length adjustable shower head|Great for projects and home spa renovations 2 function Jets (massage+Spray) 3 function i-move hand shower (Power Rain, Spray, Rain/Spray) Faucet Material: Zinc alloy Panel Material: #304 Stainless steel Hand shower: 3 function i-move hand shower Installation method: Wall mounted Product dimension: 51H * 7.9 W * 3.0L inches Package Size:53H *10.6W * 7.8L inches Surface treatment: Brushed nickel Weight: 22.18 LB Easy Installation Pre-plumbed,Surface mounted and wall-mounted options Including all standard installation accessories and hardware.
