How to install Fontana Digital Screen Temperature Control Shower Panel With Handshower And Tub Spout | SHOWER-MASSAGE-PANEL-0816

Installation Instructions for Bathroom Shower Panel		Visit Product Page
Before you begin, please read the installation instructions below. Observe all local building and safety codes. Unpack and inspect the products for any shipping damages. If you find damages, do not install. Please note all products must be installed by a professional and certified plumber otherwise warranty might be voided.	shower

Step 1:	shower	Step 2:
Step 3:		Step 4:
Step 5:		Step 6:

IMPORTANT Before drilling any holes for the shower panel brackets, ensure there are no hidden cables or pipelines aligned with the desired drilling position. Drill the two holes for the top bracket 1” apart at the desired height. Drill the two holes for the bottom bracket 1” apart at approximately 45” below the top bracket. Insert the wall anchors into the pre-drilled holes as shown in Figure B. Place the shower panel brackets aligned with the drilled holes and using a Philips screw-driver tighten the screws to secure the brackets. Insert the shower wand holder through the pre-drilled hole on the shower panel. Install the water supply hose for the shower wand onto the holder, as shown. Make sure all O-rings are inserted to prevent leakage. Once the shower panel is fully installed and hung on the bracket, you can install the shower wand hose to the holder connection. Finally, install the hand shower to the hose. Screw the cold and hot water hose from the shower panel to the supply lines in the wall. Carefully hang the shower panel on the secured mounting brackets.

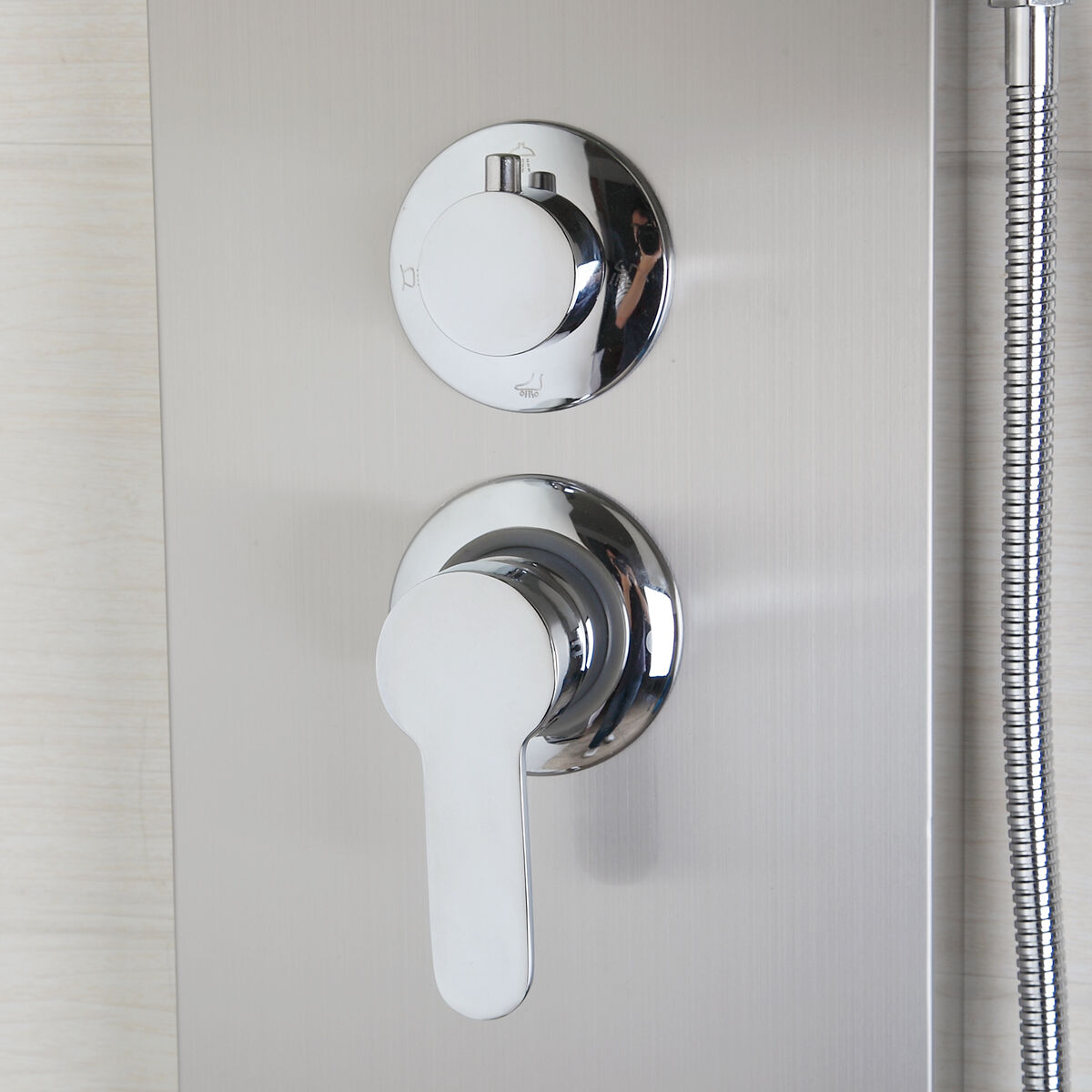

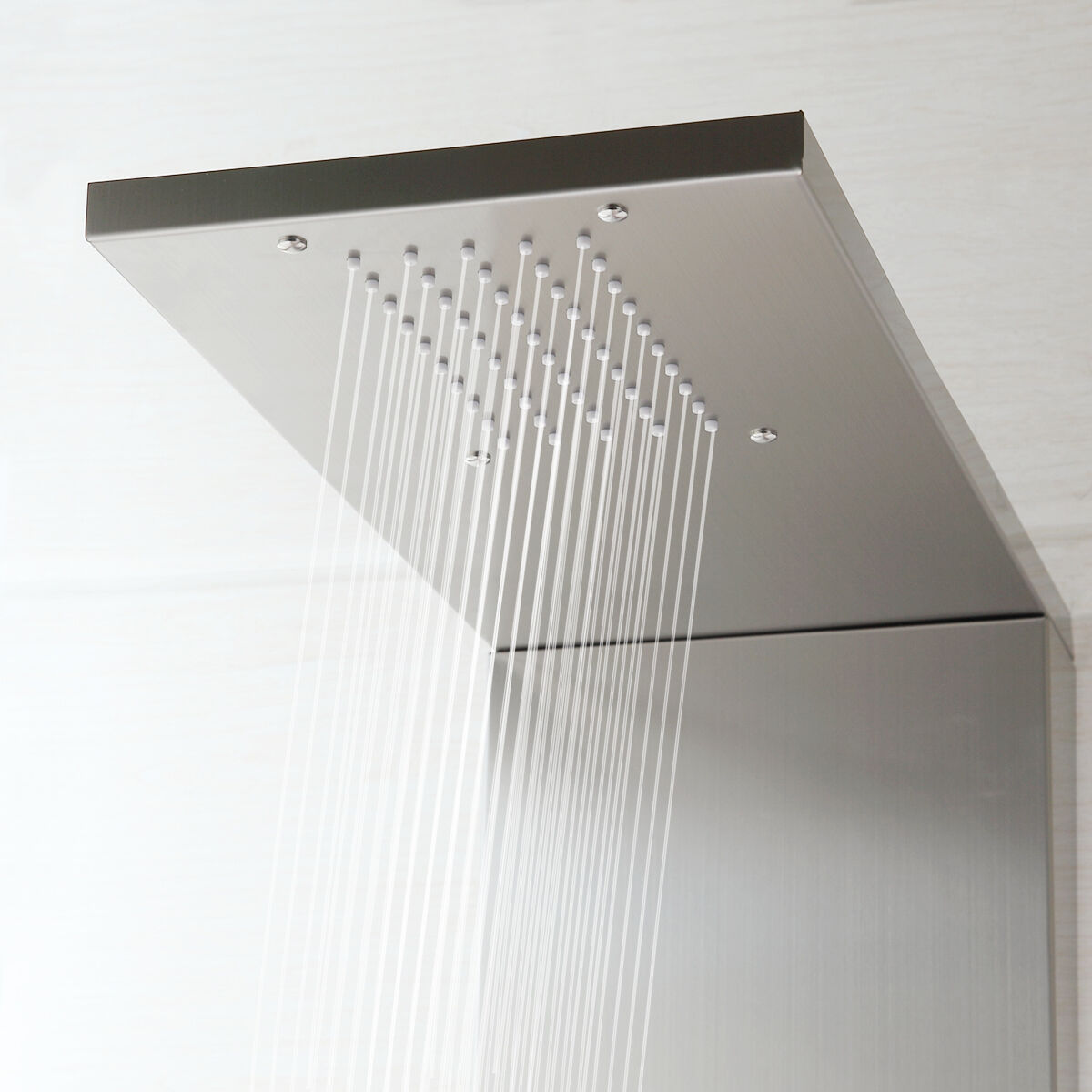

Features - Premium Quality Panel: 304 stainless steel thickened panel, brass mixing valve and explosion-proof hoses make this shower column stable and reliable; The elegant brushed surface is anti-rust, finger-proof and easy to clean. - Multi-Function Shower Panel: This 4-in-1 shower system: rainfall shower, waterfall shower, body massage spray jets and handheld shower will soothe your muscle and get you relaxed. - Rainfall and Waterfall Shower Head: Rainshower covers you without turning around; Waterfall shower splashed onto skin softly; Rubber nozzles for easily rubs away dirt with fingers wipe. - 5 Massage Jets & 3-Function Hand Shower: The 5 angle-adjustable body sprays act as hydro massage which will help you to reduce stress level; The convenient 3-function shower wand with long and flexible hose get to hard reach places with ease. - Easy to use: There are 5 shower knobs on the shower panel from top to bottom. Rotate the top 4 shower knobs anticlockwise to turn on showers; 4 showers can run separately or simultaneously; Rotate the bottom knob to control water temperature and volume. • Unidirectional limiting technology---- more superior water-saving performance

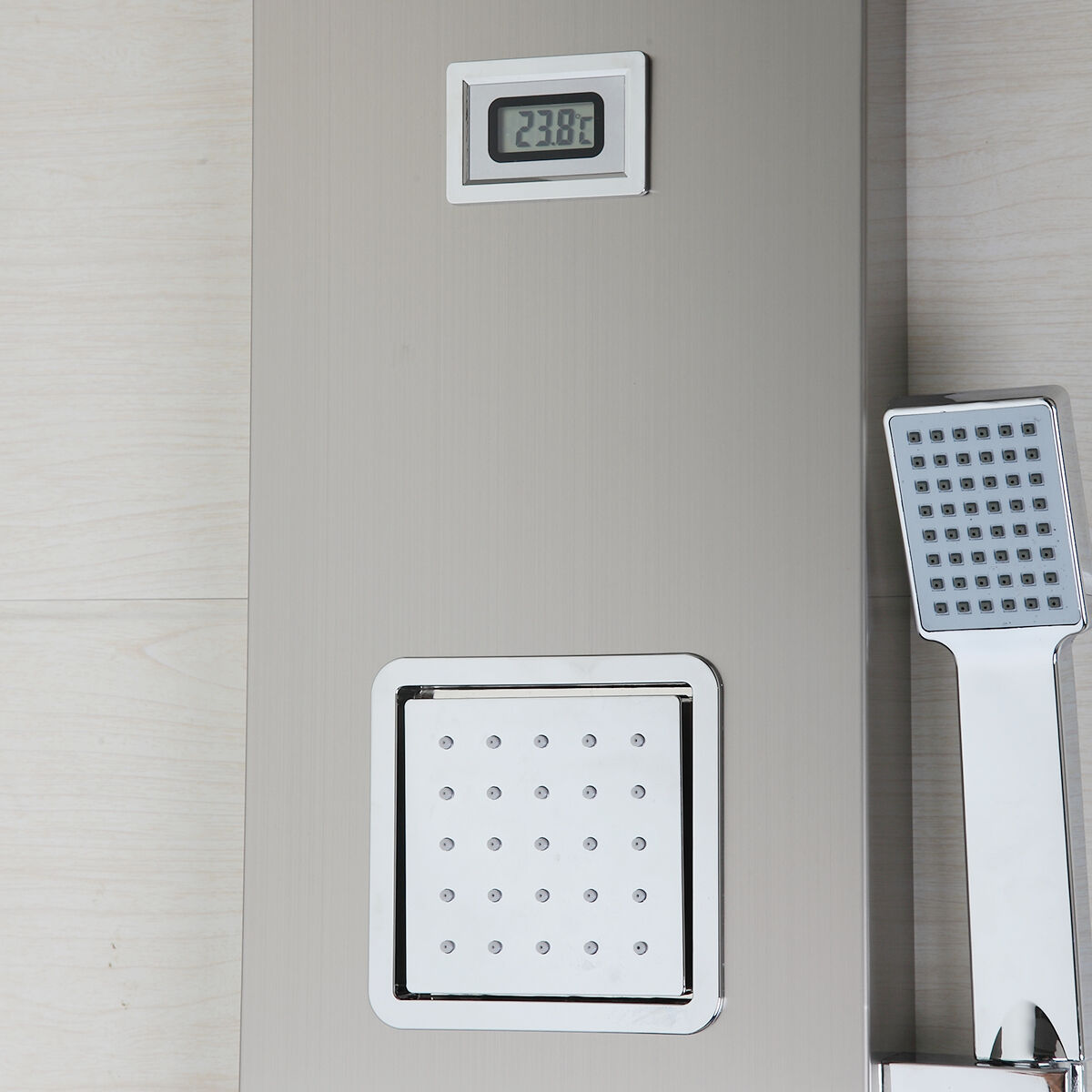

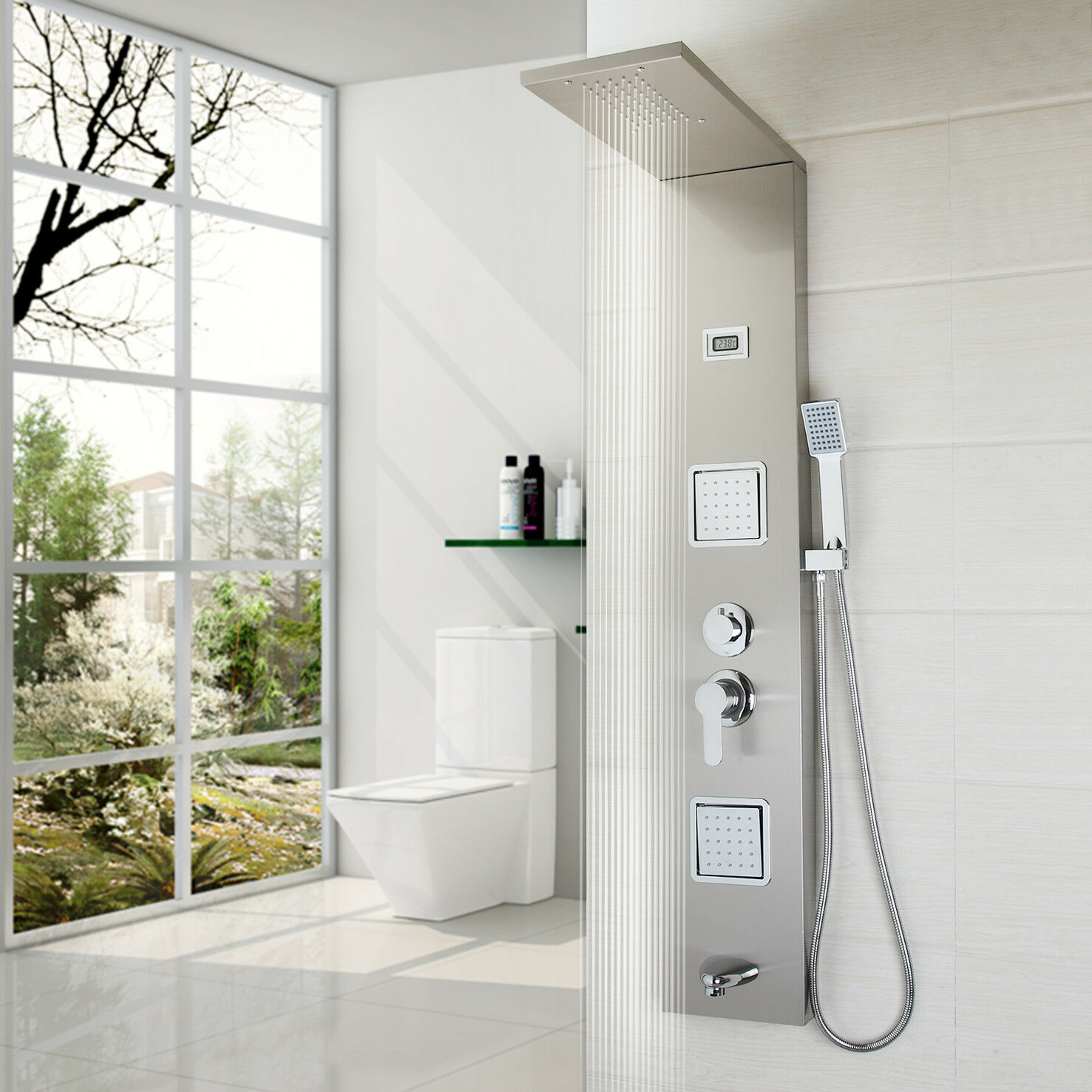

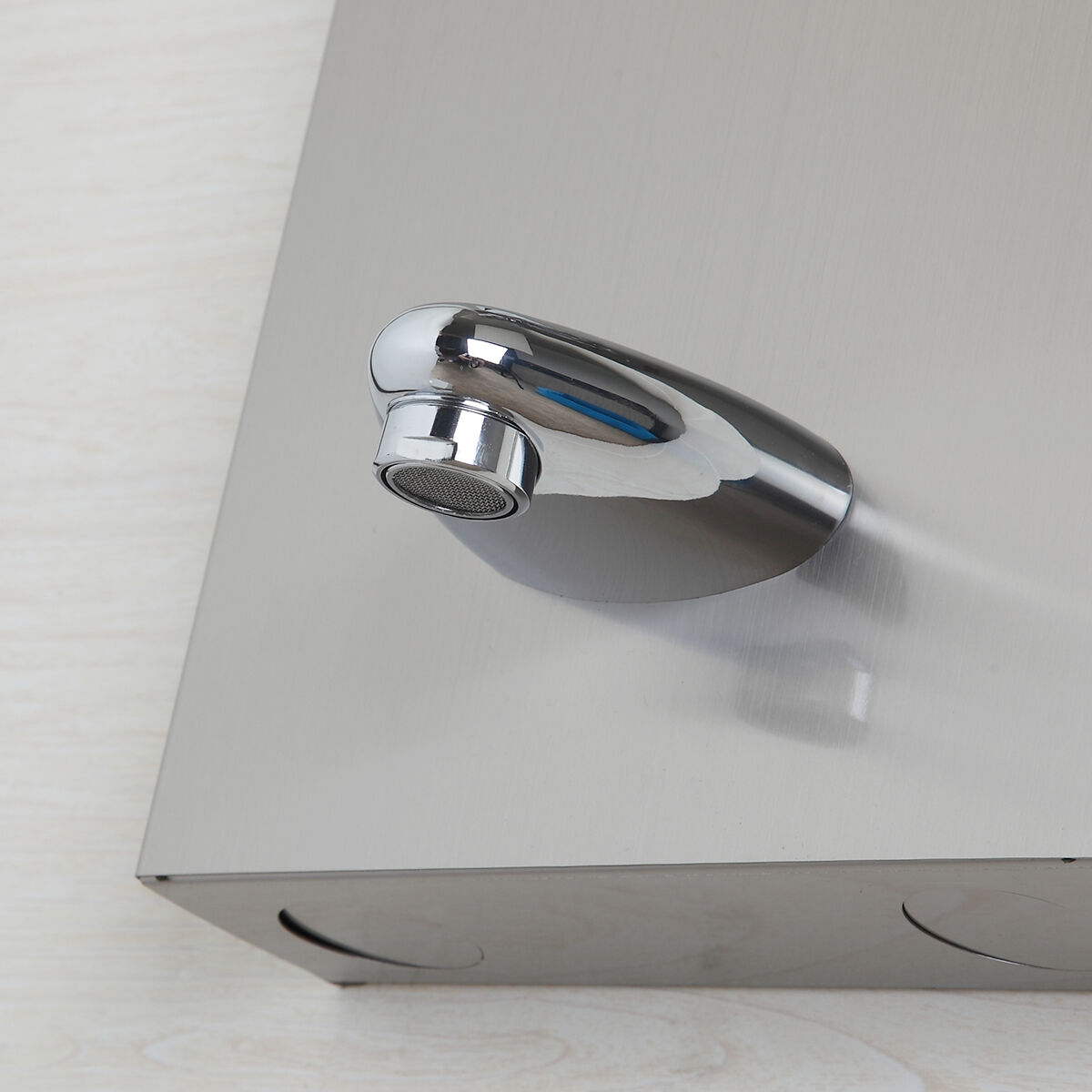

Fontana Digital Screen Temperature Control Shower Panel With Handshower And Tub Spout

Get a Spa shower experience at home. The Fontana Thermostatic Shower Massage Panel System offers a unique combination of a traditional shower and water massage. This panel is equipped with everything you can wish for in a shower system: adjustable massage jets, rainfall showerhead, elegant hand shower. All functions can be used independently or in any combination you wish. Since it is factory pre-plumbed and it has standard connections and is easy to install.

Features:

Brand Name: FontanaShowers Model Number: shower-massage-panel-0816 Type: Shower Panel Durable solid brass constructon. Swivel ball joint adjust to suit your need Function: Shower Faucets Feature:Wall Mount Style: Contemporary Shower Head: Rainfall Number of Handles: Single Handle Valve Type: Ceramic Valve Faucet Body Material: Brass Faucet Spout Material: Brass Easy to install Drip Free Ceramic disc cartridge for smooth and long lasting operation.
