How to install Fontana Dual Rain Shower Heads With Handshower 4 Jet Sprays Triple Handle Thermostatic Mixer | FS1329
Installation Instructions for Bathroom Shower Set
Visit Product Page
Before you begin, please read the installation instructions below. Observe all local building and safety codes.
Unpack and inspect the product for any shipping damages. If you find damages, do not install.
Please note all products must be installed by a professional and certified plumber otherwise warranty might be voided.
shower
Shower Head Installation Instructions
Size
Step 1:
Round
Shower
Step 2:
Wall Mount Round Showerhead
Step 3:
Step 4:
Step 5:
Step 6:
1. Remove the old shower head by using the channel lock pliers or monkey wrench. Be sure to turn the pliers counter-clockwise to loosen the old shower head. (Tip: Right is tight, left is loose.)
2. Remove the shower arm by turning it by hand counter-clockwise.Make sure you remember to apply putty or tape to the new arm. (Tip: Using teflon tape is less messy)
3. Apply teflon tape to the threading of the shower arm by wrapping it around the threads, go all the way around 3 or 4 times depending on the quality of the Teflon tape.
4. Install the new shower arm by going clockwise by hand until it is tight, then put painters tape around the arm and tighten the arm with the channel lock or monkey wrench.
5. Place Teflon tape around the threads on the shower head and then place the shower head onto the shower arm by turning the shower head clockwise after the shower arm is already in the wall.
Shower Body Jets Installation Instructions
Step 1:
Step 2:
Body
Spray
Installation
Step 3:
Step 4:
Step 5:
Step 6:
Step 8:
Step 8:

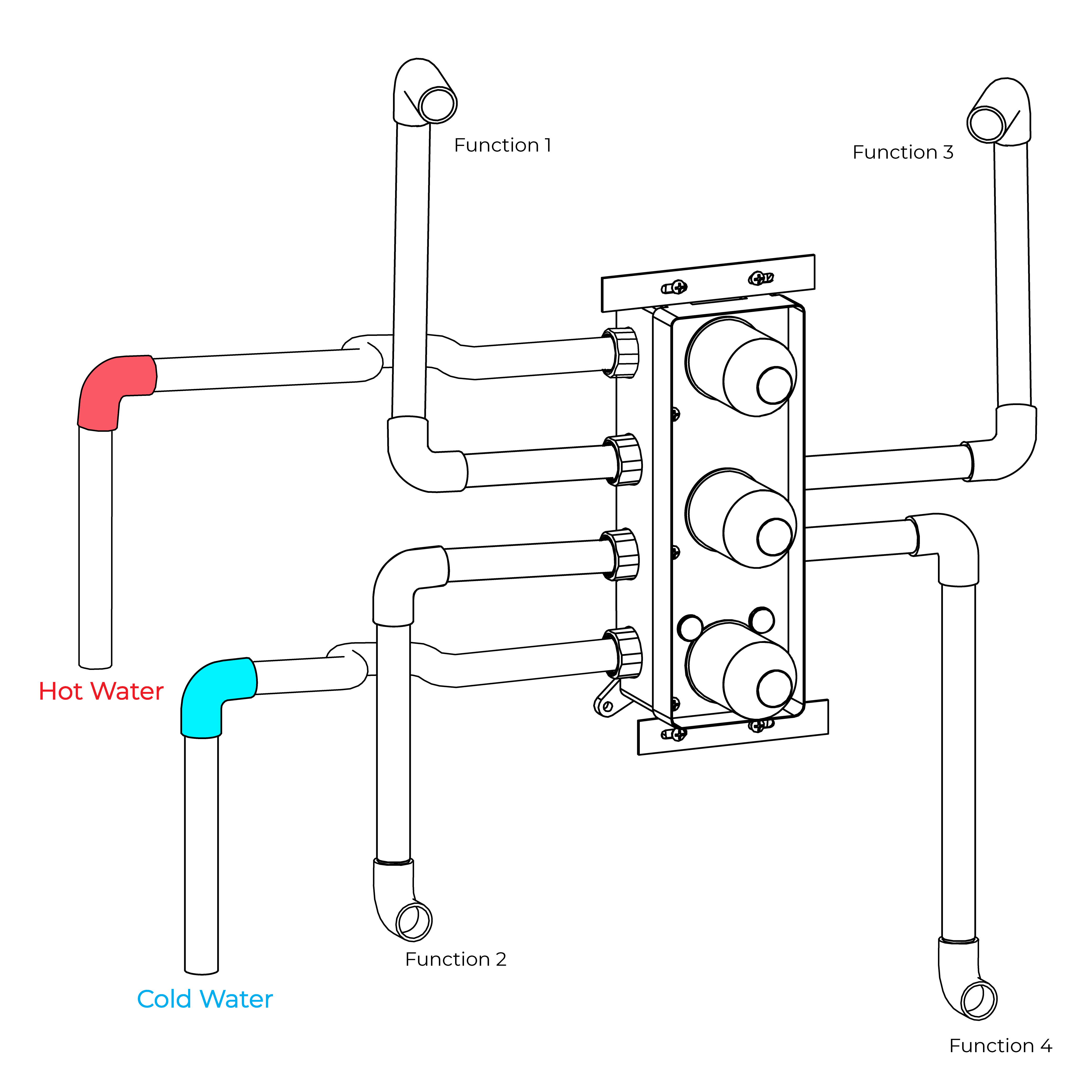

Multiple body jets will require installation in parallel using a pressure-balancing loop (not included).

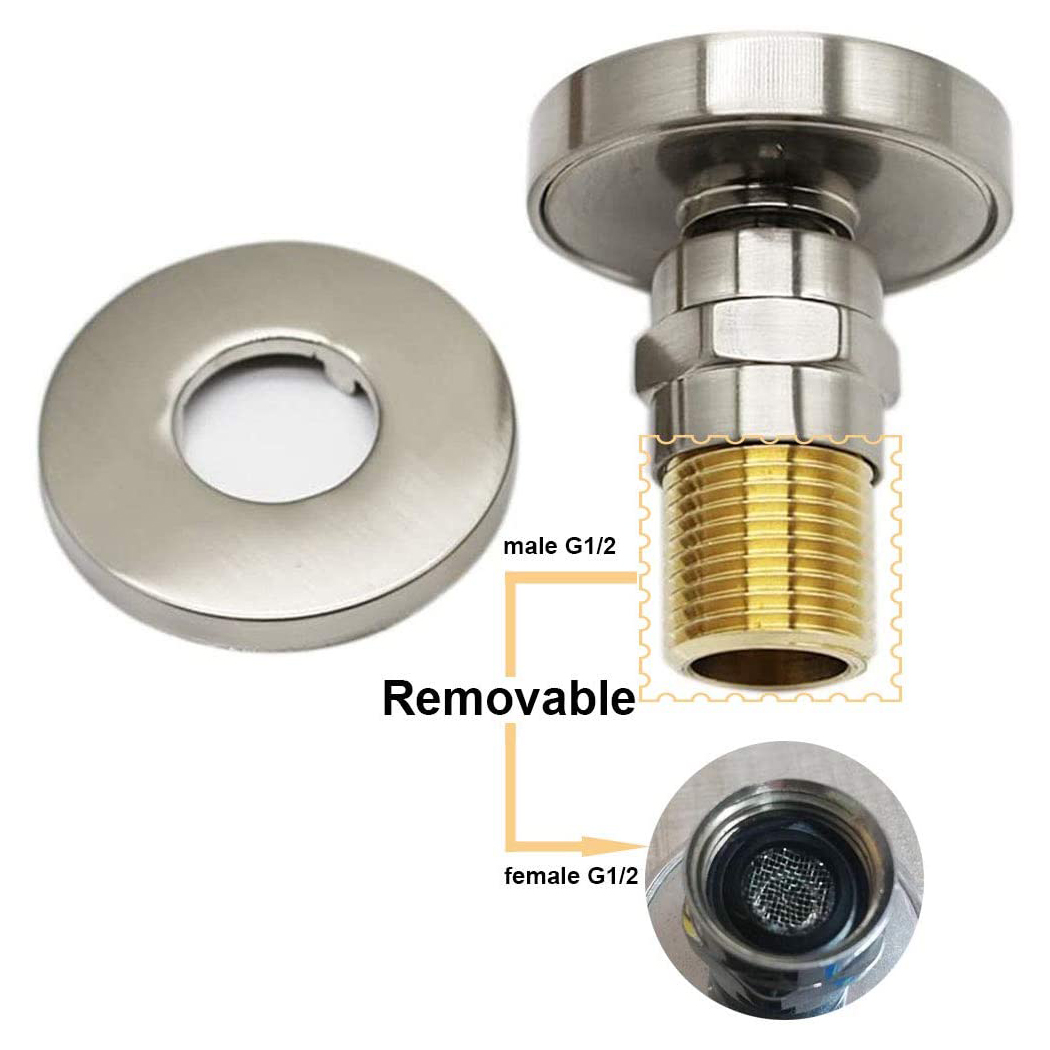

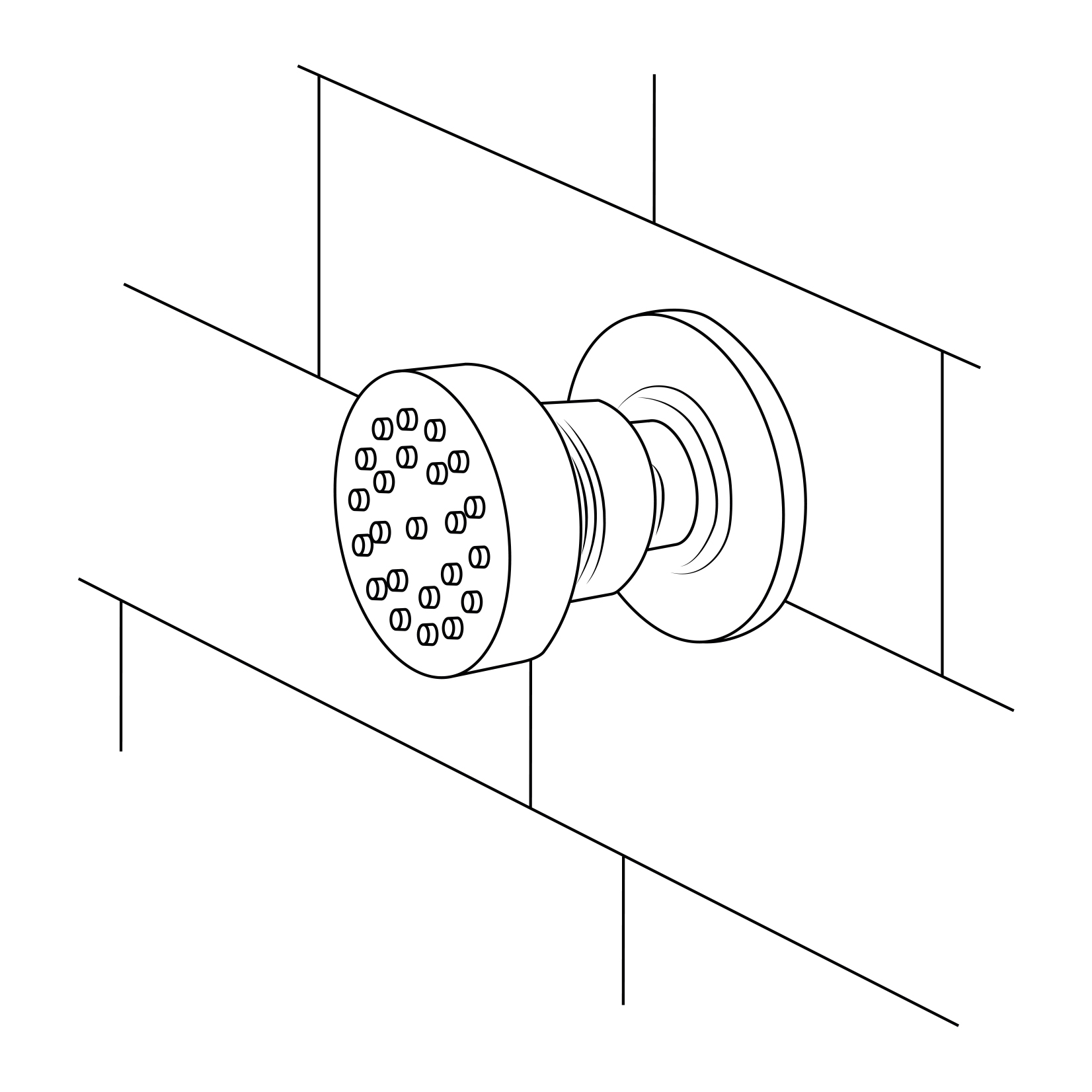

1. Attach the escutcheon to the body spray. 2. Apply Teflon tape to the threaded tailpipe of the body spray. 3. Screw the body spray tightly into the female of water supply. 4. Press the escutcheon against the finished wall.
Instructions
Body jets should be arranged in your system to provide the necessary spray outlets to suit the application. 1. Identify all components and check for completeness, particularly before arranging fitting. 2. Depending on the application the body jet can be panel mounted using a backnut (not supplied) or set into the wall on rigid pipe work. If panel mounting care should be taken to ensure connection can be made after securing with the backnut. 3. Connect body jet to pipe work using recommended ½” BSP connections (not provided) with thread sealing compound where necessary. Note: - Before finishing wall turn on water supplies to check both correct system function and for leaking from joints/connections. 4. Complete wall finish.
Hand Held Shower Installation Instructions
Step 1:
Step 2:
Hand Held Shower
Step 3:
Size:
Hand Shower Outlet Installation • Complete the outlet pipework ensuring it ends in an appropriate 15mm x 1/2" BSP female thread elbow. Note: This fitting is not supplied as variations in installations require the selection of a suitable solder or compression fitting.
• Install the 'Wall Outlet', thread long male 1/2" BSP into the appropriate female fitting using PTFE tape to give a watertight joint. Note: The thread can be cut to size if required. Make sure that all debris is removed from the connector and the section that has been cut is dressed correctly, before installation. The minimum required water pressure is 0.05 MPa (0.5 bar). Flow rate 2.5 GPM (9.5 LPM).

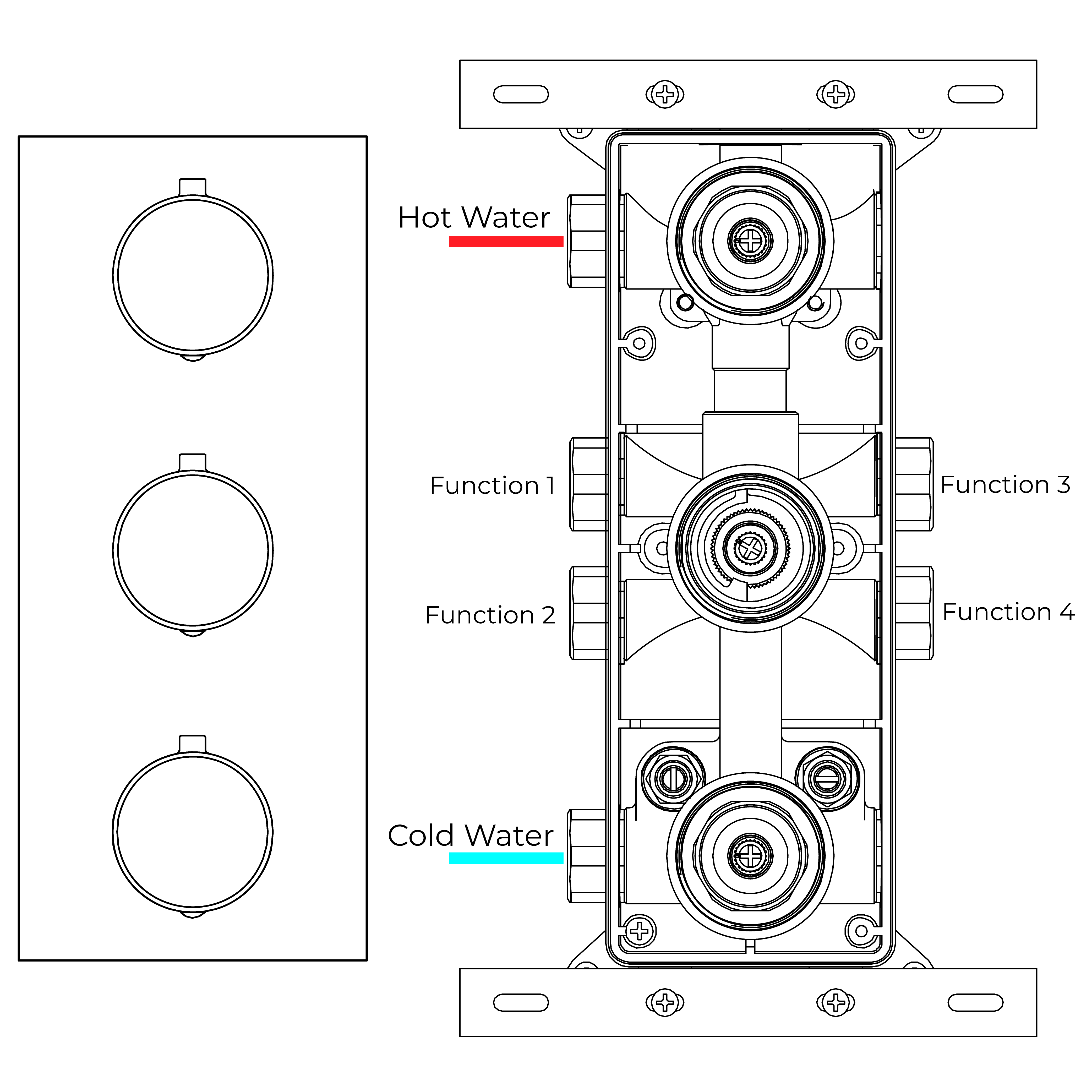

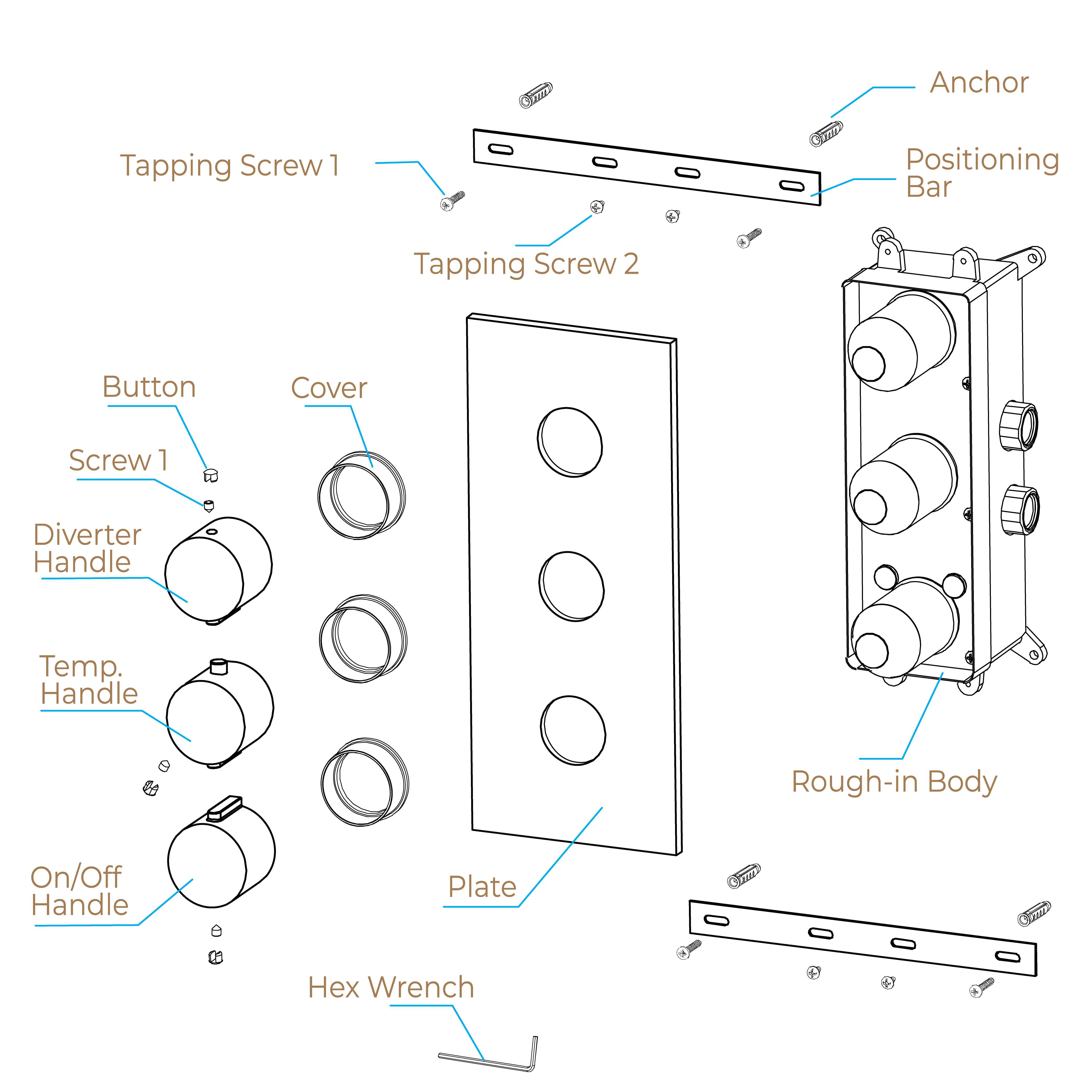

1. Attach the positioning bar to the rough-in body with tapping screws. Mark the location of the mounting holes. 2. Remove the rough-in body and drill pilot holes at the locations marked in the previous step. Insert anchors. 3. Attach the rough-in body to the wall. 4. Connect the rough-in body to the water supply pipes. 5. Finish the wall surrounding the mixer with a thickness of 1/2"-1-1/2". a) The finished wall surface should not exceed the upper edge of the installation box. 6. If the tile exceeds the edges of the installation box, trim the tile as necessary to install the trim plate. b) Trim the tile around the installation box as necessary. 7. Remove the plastic guard and place the trim plate over the installation box. 8. Install the screws covers, handles and buttons.
