Before you begin, please read the installation instructions below. Observe all local building and safety codes.
Unpack and inspect the products for any shipping damages. If you find damages, do not install.
Please note all products must be installed by a professional and certified plumber otherwise warranty might be voided
sensor
Kitchen Sensor Faucet Installations Instructions
Size:
Hole Size:
Specification :
The body of the main faucet is made of brass and metal to ensure its durability and reliability. Durable 1/4 turn ceramic valve ensures no water leaks. The connection will not drop. Suitable for all piping systems. Ceramic disc technology disc for long life. Easy to install and clean. With water pipes and fittings. Durable Chrome Protective Layer - Prevents daily rust and corrosion. Simple operation: easy to control hot and cold water Minimum water pressure 0.5 bar recommended pressure: 3 bar. Connecting tube: standard 3/8 "standard connecting tube
Feature :
360 ° rotation of the valve body; The ceramic cartridge passed 500000 times of laboratory test, no leakage or damage, with a silent filter inside the debris.
Built in sturdy ceramic valves ensure no water leaks, and save 30% wasted water. Anti-aging and wear resistance also make ceramic valve life far exceeding the others, saving you money without compromising performance.
Single-handle faucet allows you to control both the water flow and the temperature with one hand, making it easy and safe to use.
The body is made of brass, resistant to corrosion, oxidation, extrusion , always elegant, and easy to clean
Step by step installation instructions
Step 1:
Step 2:
sensor
Step 3:
Step 4:
Step 5: (Make Hot & Cold Water Connections)
Step 6: (Flush Pipe)
Step 7: (Install Control Box)
Step 8: (Install Hose Weight)
Step 9:
Step 10:
Step 11:
Step 12:
Step 13:
Step 14: (Correct way for Hose)
Full connection View :

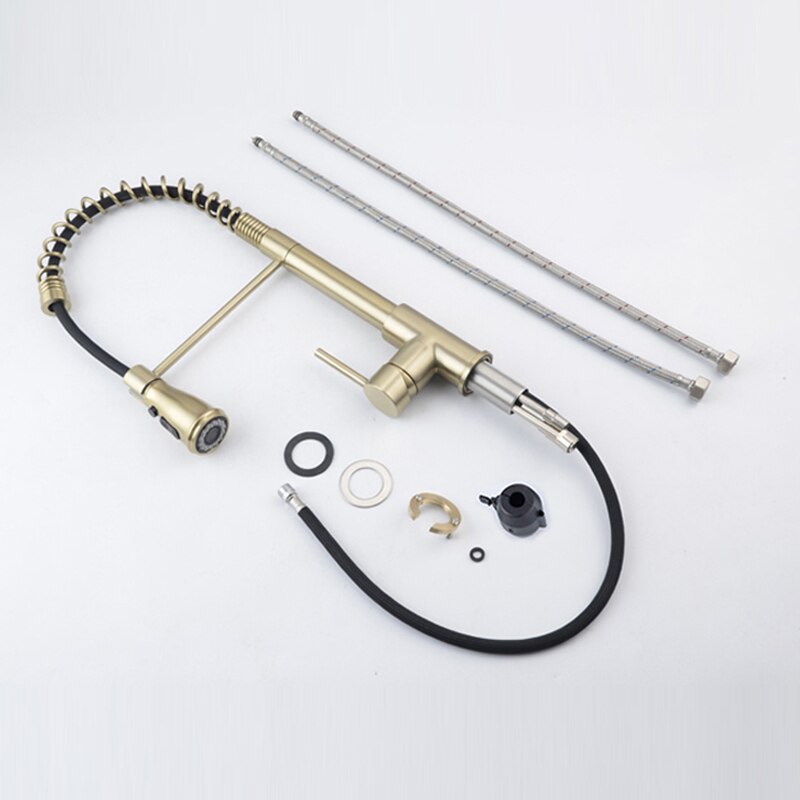

Mount Faucet to Deck Install gasket into the groove under the faucet base. Insert faucet tubes and shank through the mounting hole in the sink; and, place faucet over the mounting hole.
Secure faucet to sink with washer and mounting nut. Tighten securely by hand. Using a screwdriver, tighten locking screws.
Loop the supply lines, if possible, to avoid having to cut them. Finger tighten both hot & cold sides. Tighten one additional turn with a wrench. Use a second wrench to ensure you do not over tighten the check valves. Repeat for the other side.
Make sure water supplies are closed. Move handle to the full mix position. Place bucket under the faucet outlet tube.
Slowly open both water supply stops to flush lines. This will prevent debris from being lodged in the hose and sprayer.
Close water supplies and faucet valves.
Remove the bucket and dry tube with a soft cloth.
Connect the battery cable to the battery box. Install 4 “AA” batteries into the battery box.
Important:DO NOT install batteries before making all electrical connections.
Note: It is critical for the batteries to be installed in the correct direction in the battery box.
Place the battery pack in a convenient location close to the floor.
Place flat on the floor for best performance and at least 2" from cabinet walls and other objects.
Note: If the battery pack does not reach the floor, place on a non-metallic object at least 2" from cabinet walls.
Turn on water supplies. Turn faucet valve on full and check connections are properly made.
Flexible Connecting Hose Care must be taken when connecting the flexible connection hose from the power supply box to the spout to ensure it does not bend sharply and kink or twist. See above for recommended ways to fit the flexible connecting hose.
Important: Failure to follow these guidelines may result in poor performance and damage to the flexible connection hose.
Operations
1. The operation is simple! With the handle in the “on” position tap anywhere on the spout, base, or handle.
2. The faucet is able to tell the difference between a touch and a grab. So it won’t turn on and off when you don’t want it to.
3. Use the handle to control temperature and volume for both manual and electronic operations.
4. Whether you grab the handle or taps it, water will flow. Once water is flowing, a tap will turn it off.
5. Auto Shut-off, the faucet will automatically shut off after running for 4 minutes.
6. Your new faucet will run for up to 2 years on 4 AA batteries.
A sink kitchen with a pull down sprayer is a big help in the kitchen. Our Fontana Toulouse Gold Finish Stainless Steel Sensor Kitchen Faucet model was designed to maximize all the advantages of using modern technology and in the same time it aims to impress with the grace and style. You can choose a matching finish for your kitchen style, gold finish. This kitchen sink faucet is deck mount, with single swivel faucet handle and single hole required for installation. This also has two way flow type, stream flow or spray flow and has 360 degree rotation. Only the best quality materials have been used – the body is made of solid brass for a long lasting life time. It comes complete with accessories and installation instructions.
