How to install Fontana Luigi Automatic Infrared Sensor Faucet With Touch Activation | FS9582
Easy step by steps installation instructions for Commercial Automatic Sensor Faucet & Soap Combo
Visit Product Page
Before you begin, please read the installation instructions below. Observe all local building and safety codes.
Unpack and inspect the products for any shipping damages. If you find damages, do not install.
Please note all products must be installed by a professional and certified plumber otherwise warranty might be voided.
sensor
Sensor Faucet Installations Instructions
Size:
Hole Size:
Parts:
Step 1: Deck Mount Installation
Step 2: Control Box & Battery Connection
sensor
Step 3:
Step 4: (Correct way for Hose)
1. Screw the hose into the corresponding screw-hole of the faucet body. Fix the o-ring into the bottom groove of the faucet body. 2. Insert hose, threaded pipe and data cable through the drilled hole of the countertop. Put rubber washer and metal washer onto the threaded pipe, screwing in mounting nut. Adjust the faucet body correctly and tighten the mounting nut with screws. 3. Install the control box to the faucet. 4. Then connect the battery cable to the control box. 5. Make Connections to water supplies. Turn on the water supply and flush water lines into a container for one minute. Important: This flushes away any debris that could cause damage to internal parts. 6. Connect waterlines to angle stops. Turn on the angle stops and check for leaks (DO NOT TURN FAUCET ON). 7. Turn the faucet on for 1 minute to flush any debris.
Flexible Connecting Hose Care must be taken when connecting the flexible connection hose from the power supply box to the spout to ensure it does not bend sharply and kink or twist. See above for recommended ways to fit the flexible connecting hose.
Important: Failure to follow these guidelines may result in poor performance and damage to the flexible connection hose.
Functions: 1. Water saving: water flows out when hands get close and when your hand moves away, water stops immediately. 2. Hygienic: one open and close to hands-free from any contact, which can efficiently prevent mutual infection of bacteria 3. Intelligent: with your computer to control its action, the faucet can auto-adjust its best detection zone as per color and the shape of the sink 4. Low power consumption: for DC agitators, 4AA alkaline batteries can be used for 2 years. 5. convenient to maintain: there is an internal filter to prevent the entry of the solenoid valve of miscellaneous and the filter is easy to clean.
Fontana Luigi Automatic Infrared Sensor Faucet With Touch Activation

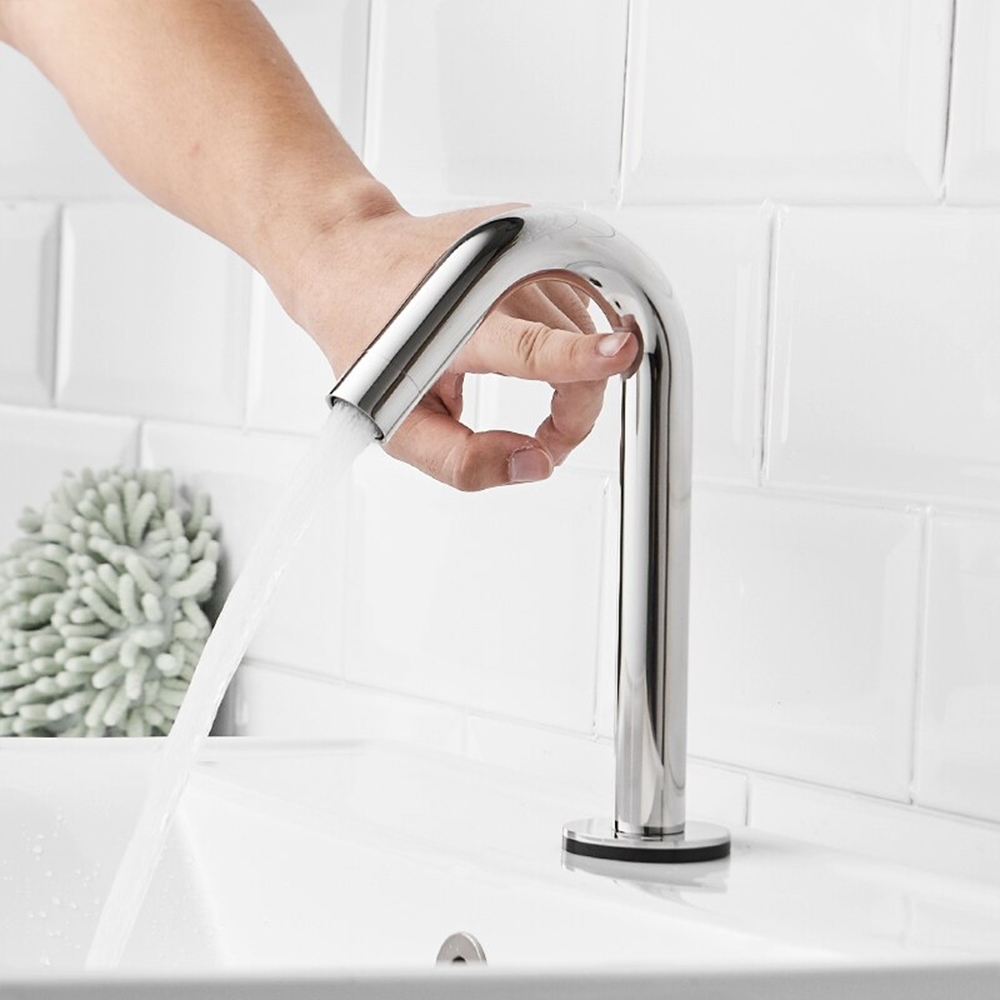

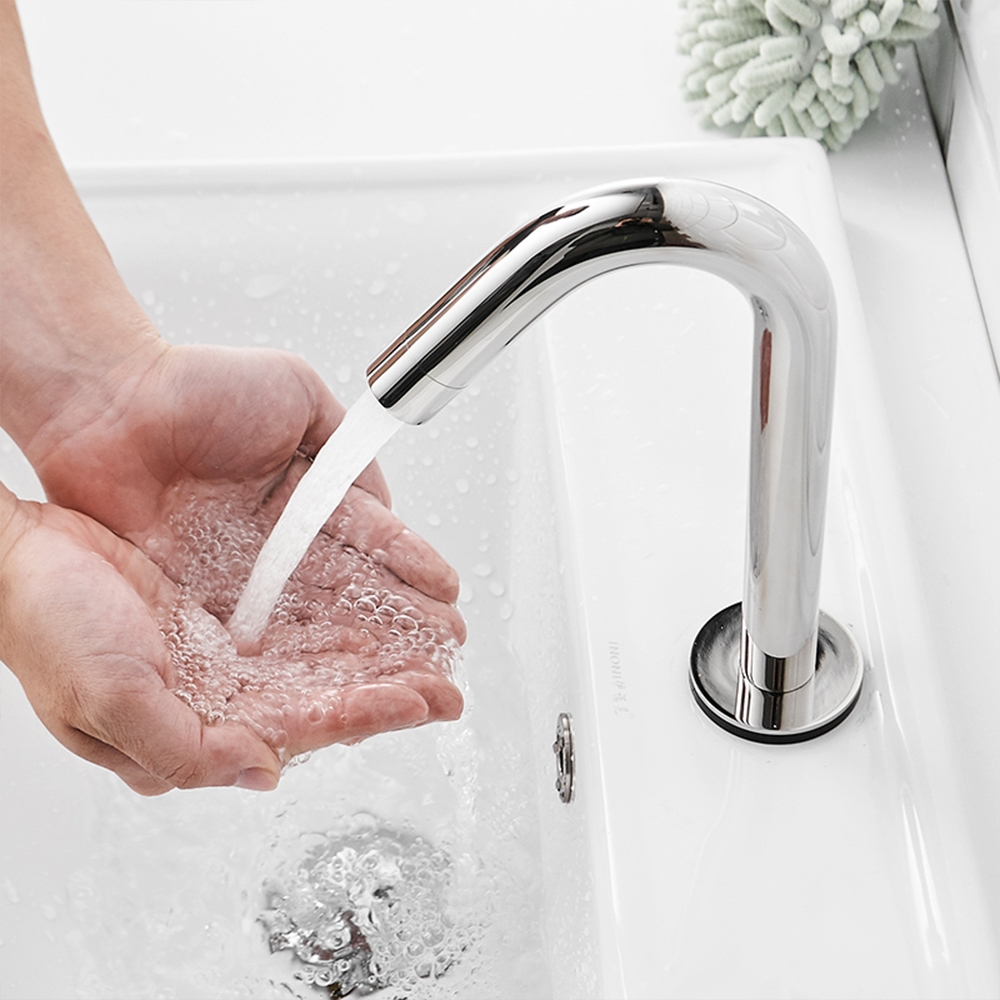

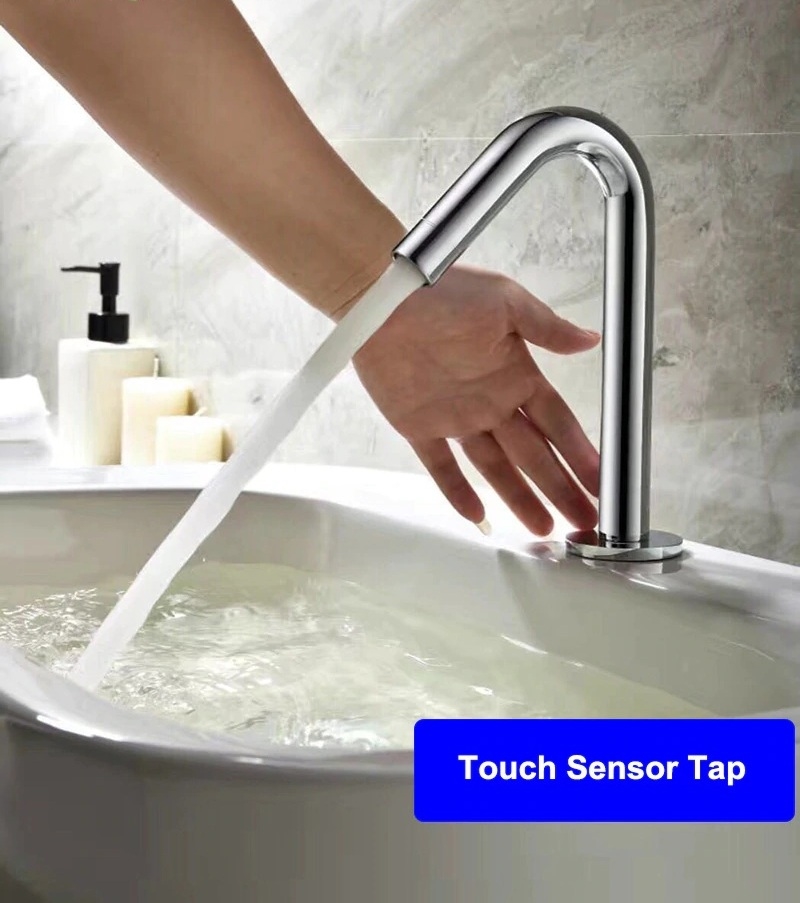

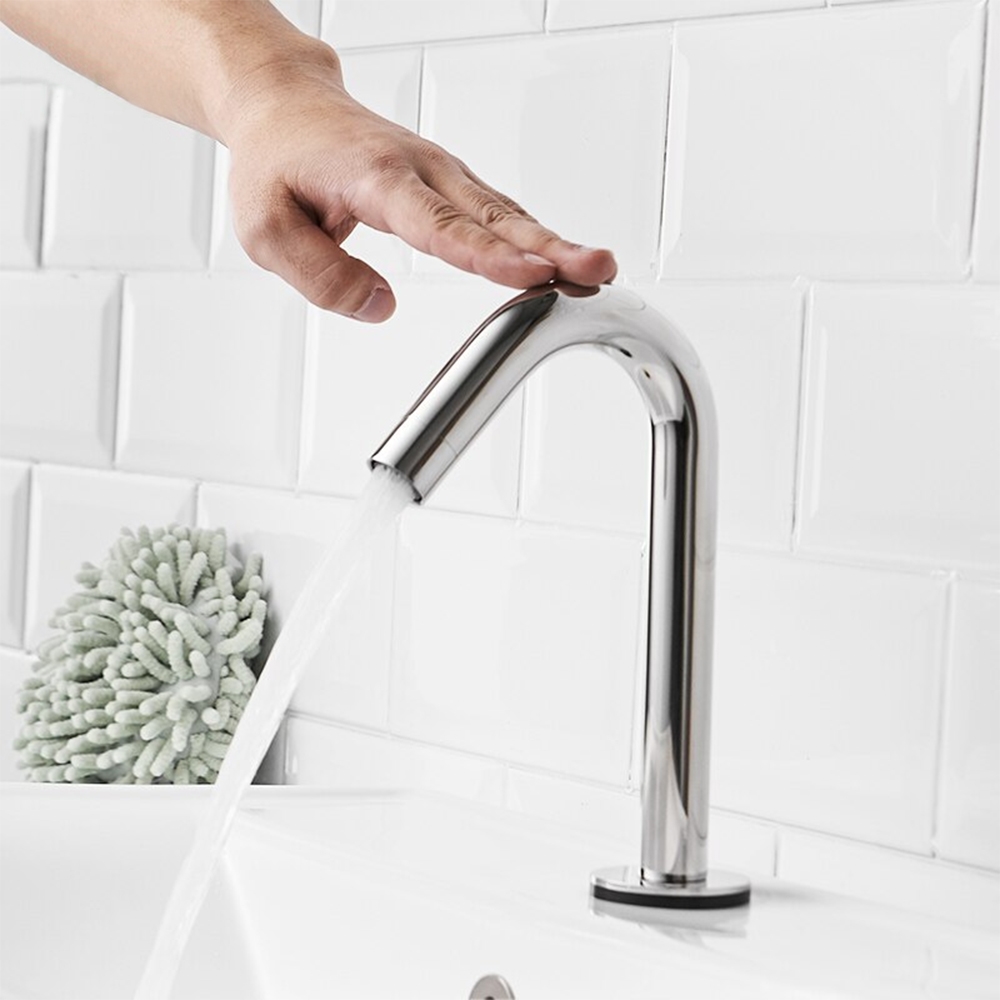

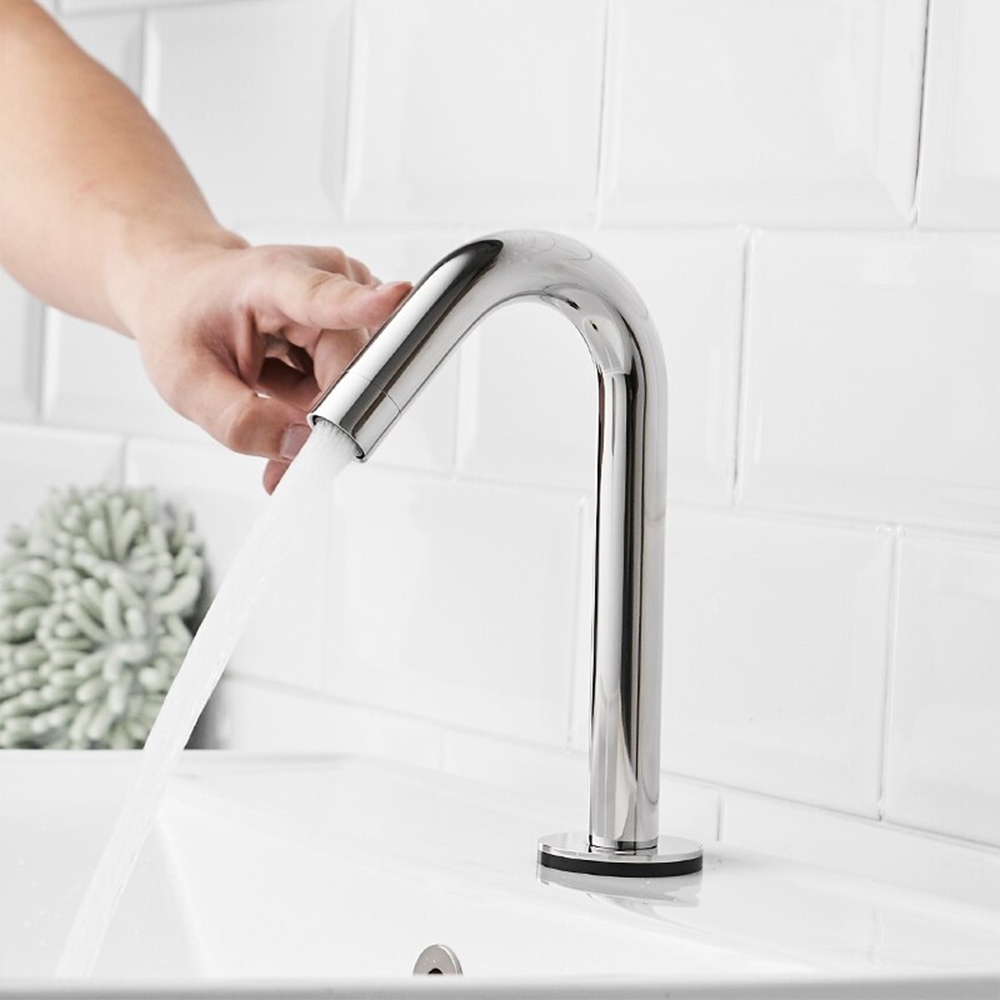

This is designed for kitchen, bathroom, hotel, hospital, washrooms and other applications. Beautiful elegant design with solid construction for long durability that will upgrade your bathroom with a modern and cool look. It’s solidly built with a smooth finish. This design features super capacitive touch control & infrared sensor touch-free, which gives the user easy control of water usage. This Faucet can be electronically activated by means of touch activation. The touch sensor on the faucet is for simple on and off functions. Also can be touch-free by infrared sensor function too, we designed one infrared sensor chip in the water outlet to meet your different demands.
Features:
Brand Name: FonatanaShowers
Model Number: FS9582
Type: Ceramic Plate Spool
Number of Holes: Single Hole
Surface Finish: Chrome
Feature: Sensor Faucets, Touch Activation

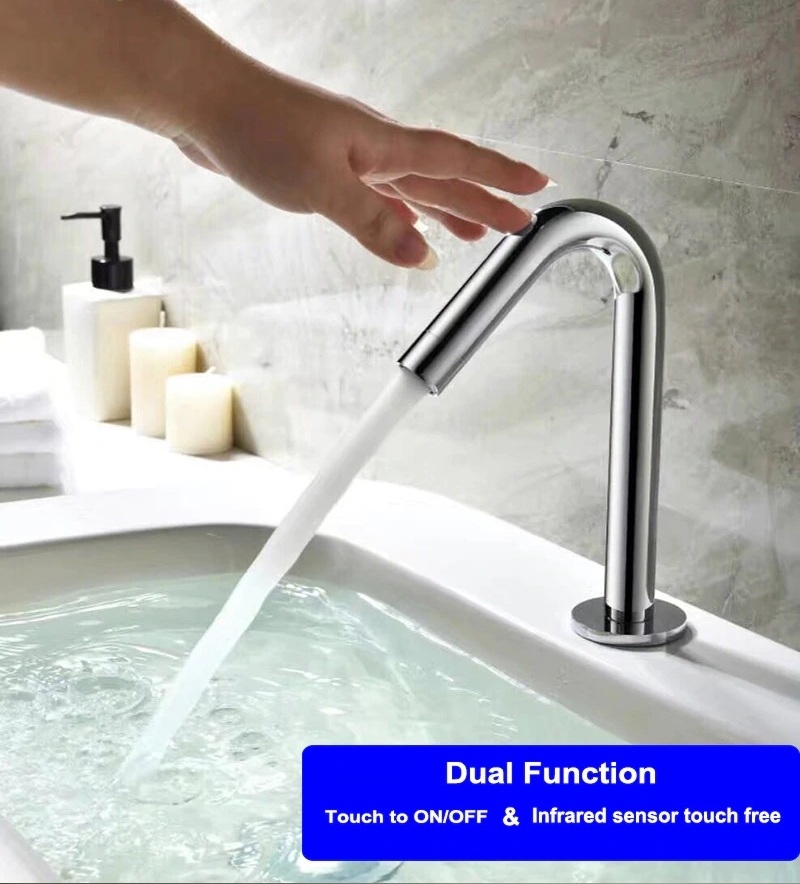

Dual Function: Touch to ON/OFF, touch-free infrared sensor
