How to install Fontana Milan Single Lever Wall Mount White 8.27" (210MM) Sink Faucet | FS9548


Easy step by steps Installation Instructions for FaucetVisit Product Page

  • Before you begin, please read the installation instructions below. Observe all local building and safety codes.
  • Unpack and inspect the products for any shipping damages. If you find damages, do not install.
  • Please note all products must be installed by a professional and certified plumber otherwise warranty might be voided.

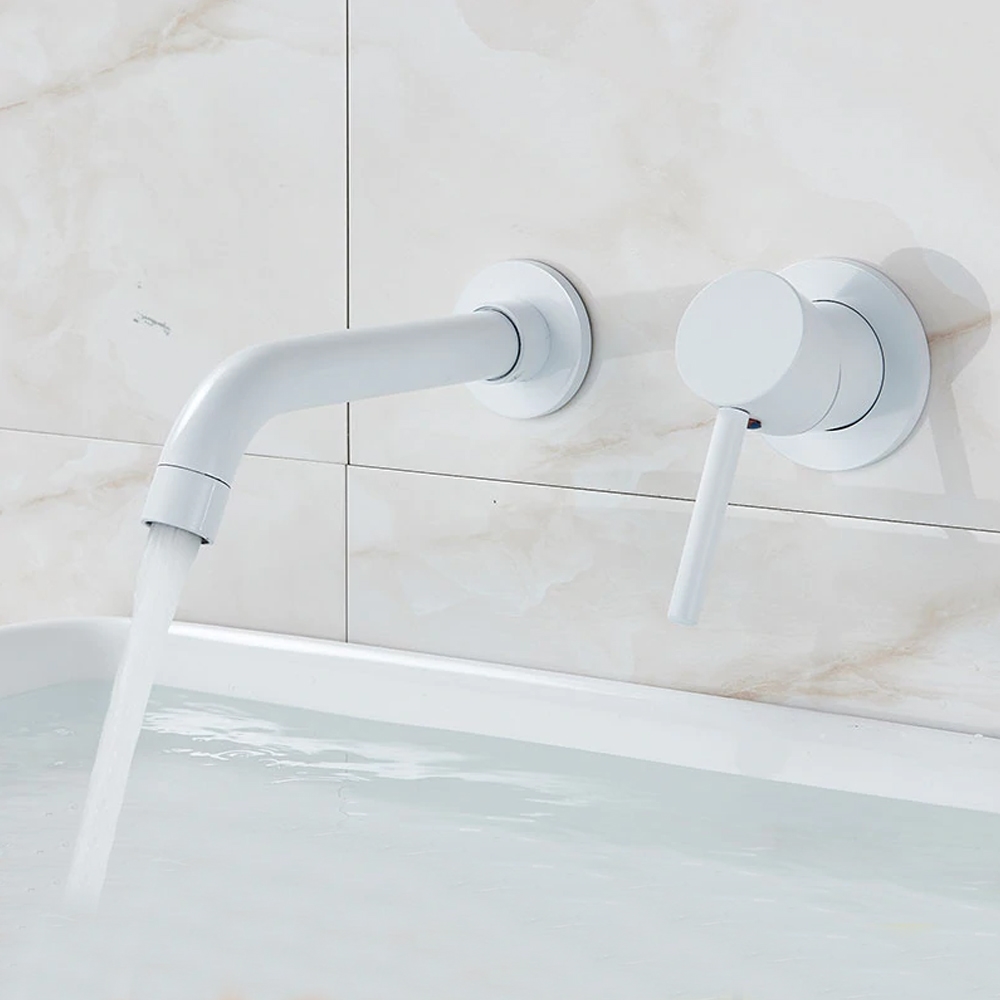

faucetFontana Milan Single Lever Wall Mount White 8.27" (210MM) Sink Faucet


sensor

Specs:
Spout reach - 8.27"
Flow Rate - 1.2 GPM / 4.5 LPM
Minimum required water pressure - 0.05 Mpa (0.5 bar)


Wall mount Installations


Step 1: faucet Step 2:
Step 3: Step 4:
Step 5: Step 6:
Step 7: Step 8:
Step 9: Step 10:


Step 11: Step 12:

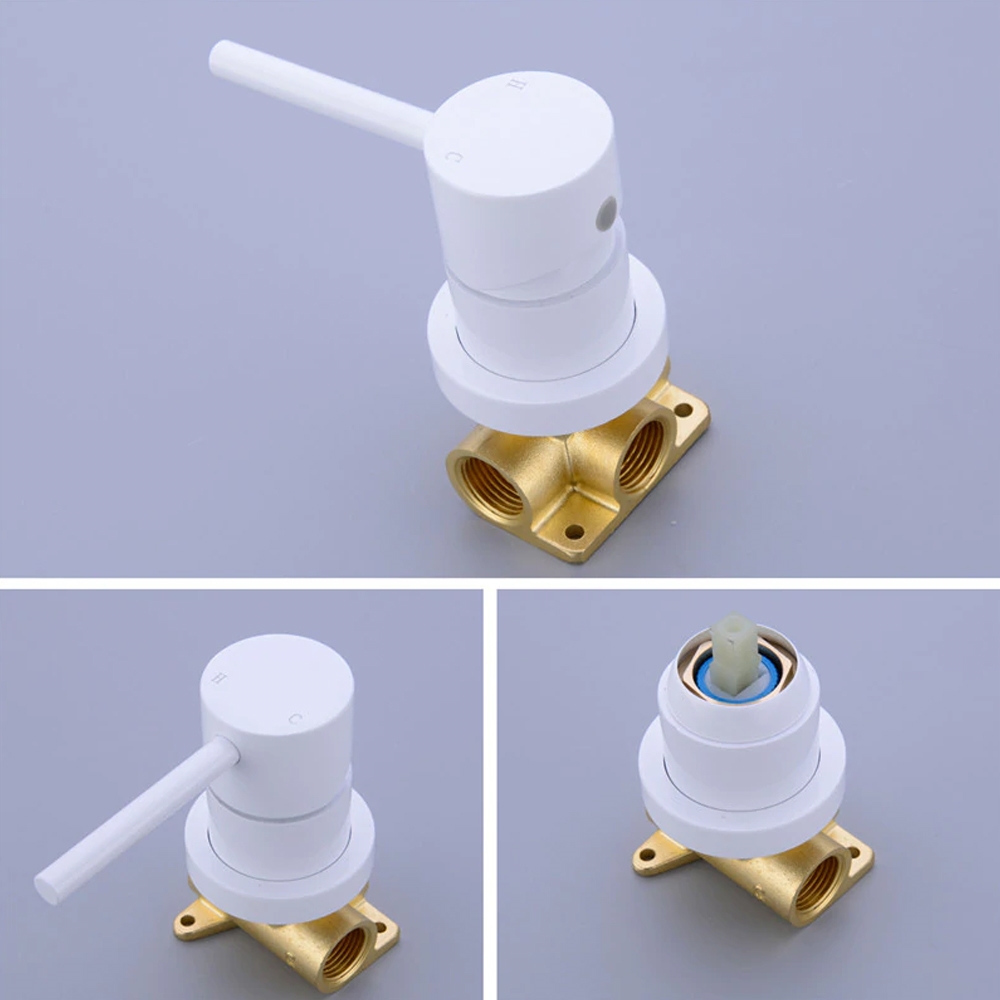

1. Position and fix the valve body (B) into the wall with screws (C). Make sure that the valve body (B) is completely level.
2. Connect hot and cold water inlets of the valve body (B) to the main water supply. (Solid copper pipes are recommended for the connection.)

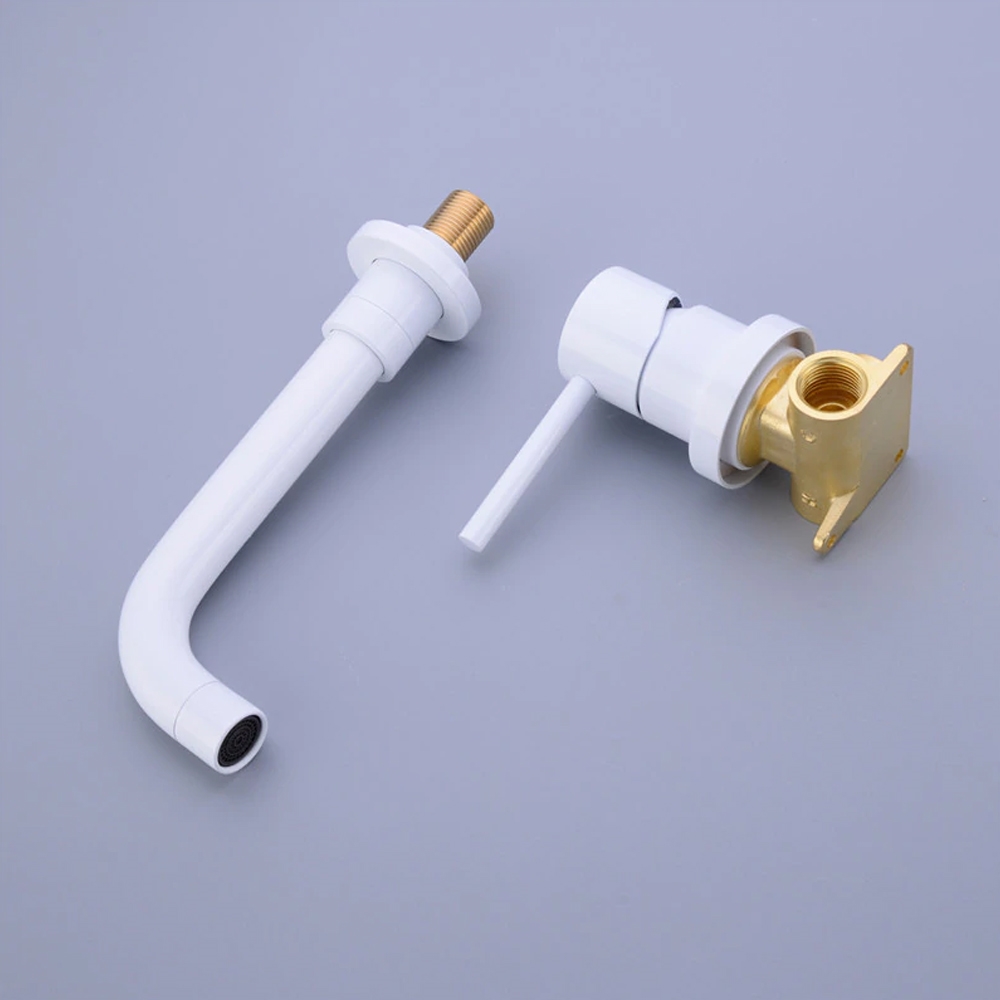

3. Apply Teflon tape (F) to the threaded tail pipe of the spout body (G). Then press escutcheon (D) firmly against the finished wall and screw the spout body (G) through escutcheon (D) into the valve body (B) tightly.
4. Place the cover plate (H) to the valve body (B) and press it against the finished wall. Install the handle (I) and fix the set screw (1) with Allen key (K), then put on the indication button (L).








.

Fontana Paita Brushed Nickel Deck Mount Single Handle Bathroom Sink Faucet


Paita is an elegant bathroom sink faucet, with a design which gracefully combines the straight and curved lines. It can fit any bathroom style, and this has brushed nickel finish. It is deck mount, single handled, it requires one hole for installation and it has a built-in hot and cold water mixer. It is made of high quality materials for improved functionality and long lasting life time. It comes complete with mounting accessories and installation instructions.

Features:


Visit Product Page
  • Brand Name: FontanaShowers
  • Model Number: FS9548
  • Type: Sink Faucet
  • Number of Handle: Single Lever
  • Surface Treatment: Polished
  • Hot and Cold Cater: Yes
  • Style: Contemporary
  • Installation Holes: 2 Holes
  • Installation Type: Wall Mount
  • Core Material: Ceramic
  • Suitable: Bathroom / Hotel
  • Color: White
  • Spout Style: Round
  • Customizable Yes
  • Hoses: 2 Piece Included
