How to install New Luxury LED Crystal Handle Waterfall Mixer Bathroom Widespread Sink Faucet | FS-CRYSTAL-BATHROOM-FAUCET-C79
Easy step by steps installation instructions for Faucet
Visit Product Page
Before you begin, please read the installation instructions below. Observe all local building and safety codes.
Unpack and inspect the products for any shipping damages. If you find damages, do not install.
Please note all products must be installed by a professional and certified plumber otherwise warranty might be voided.
faucet
Faucet Set Installation Instructions
Specs:
Installation Type: Widespread Body & Spout Material: Brass Handle Material: Zinc Alloy Finish: Chrome Style: Contemporary/Modern Spout Type: Waterfall Number of hole: 3 Number of handle: 2 Connection Size: 0.5 Flow rate: 1.2 GPM / 4.5 LPM Valve type: Ceramic Valve

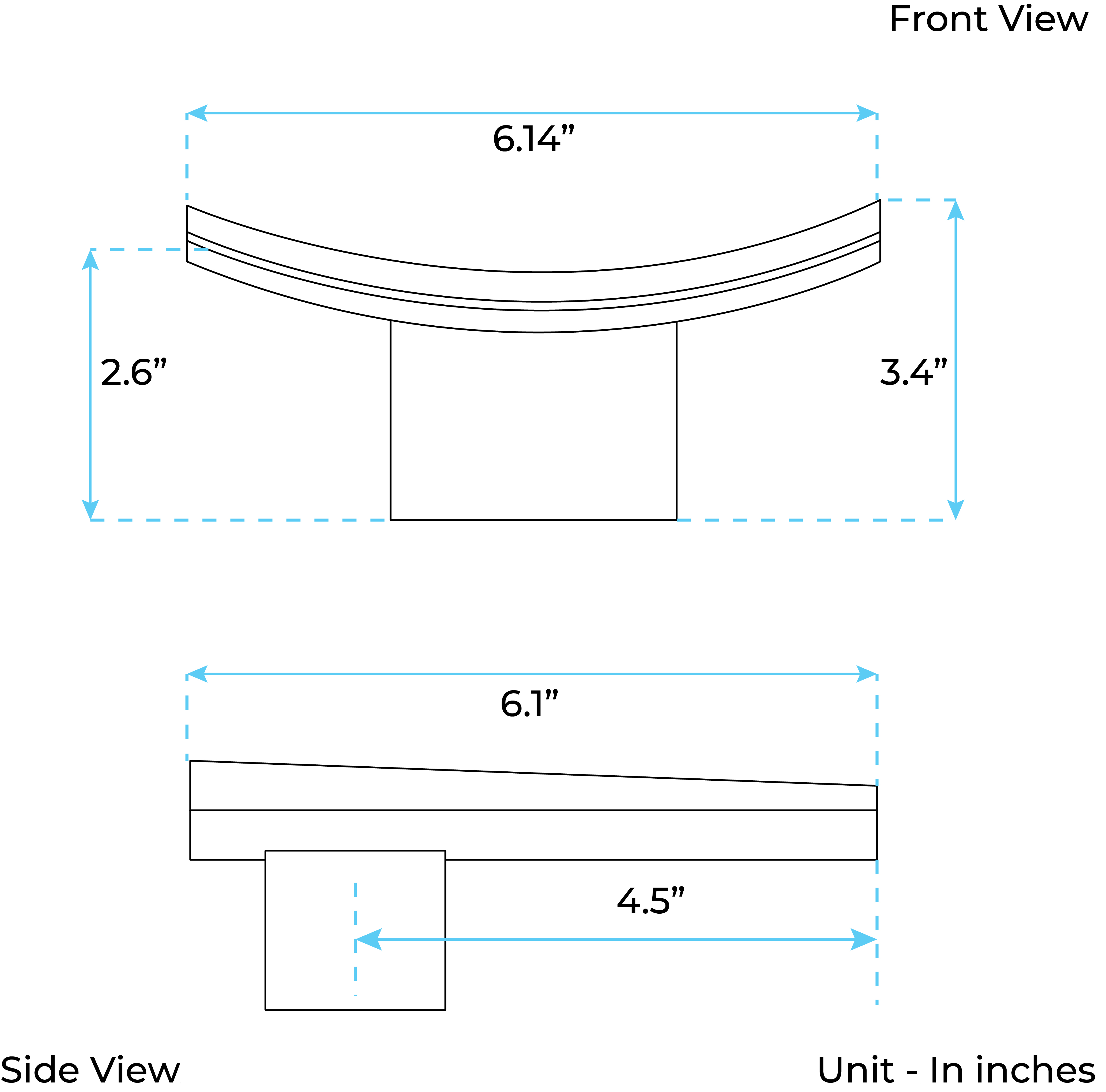

Size:
bath faucet
Step 1:
Step 2:
Step 3:
Step 4:
Step 5:

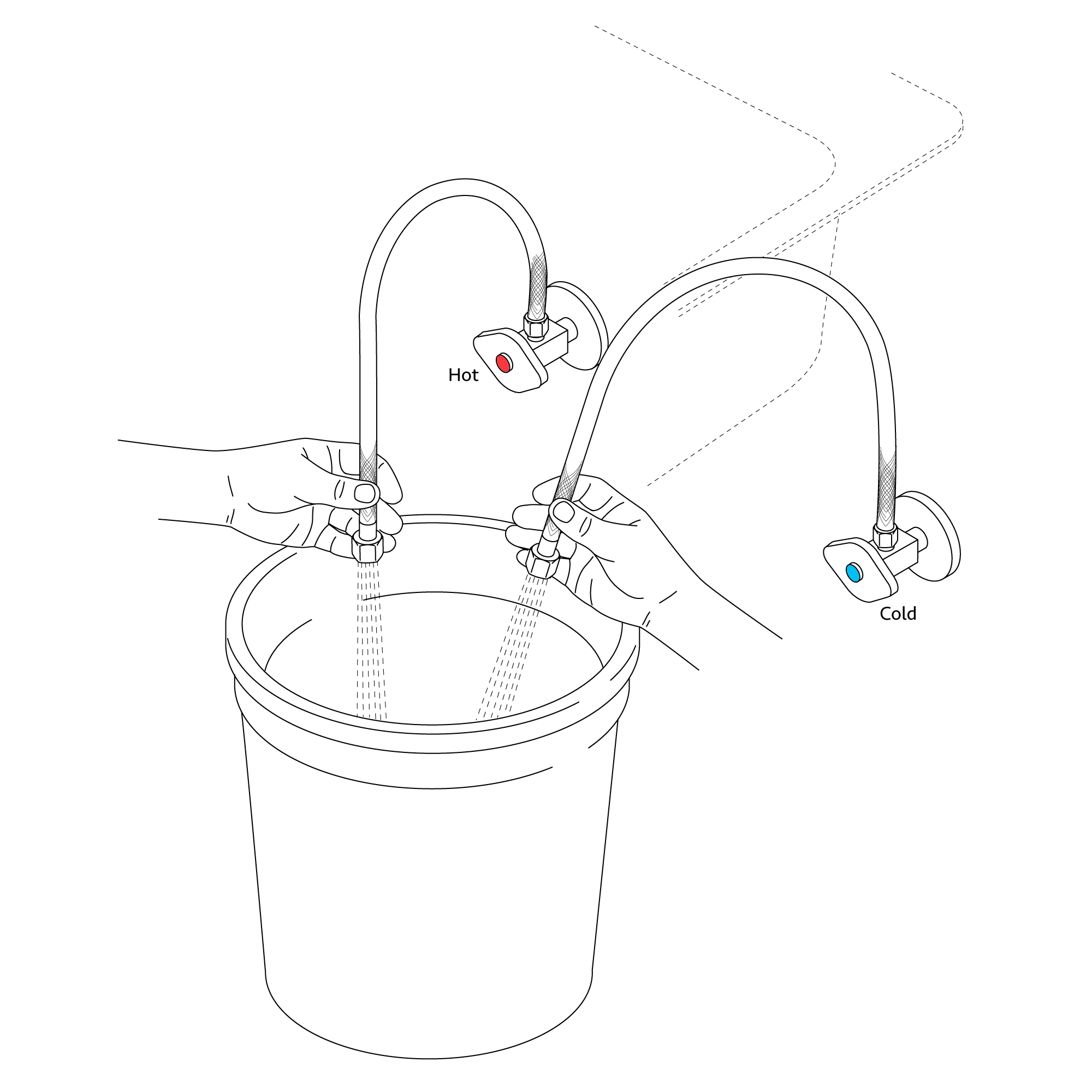

Flush Debris from Waterpipe lines

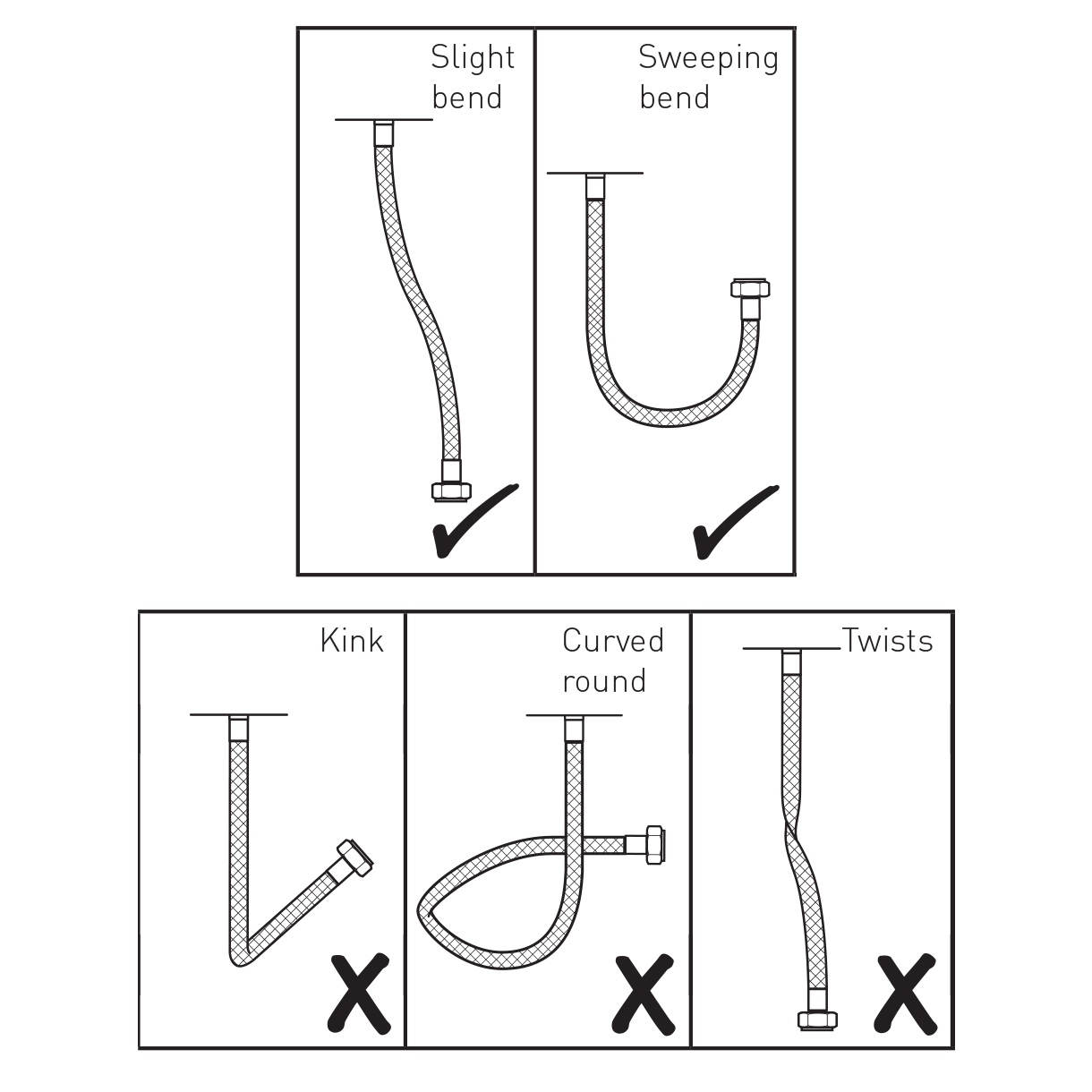

The correct way for Hose

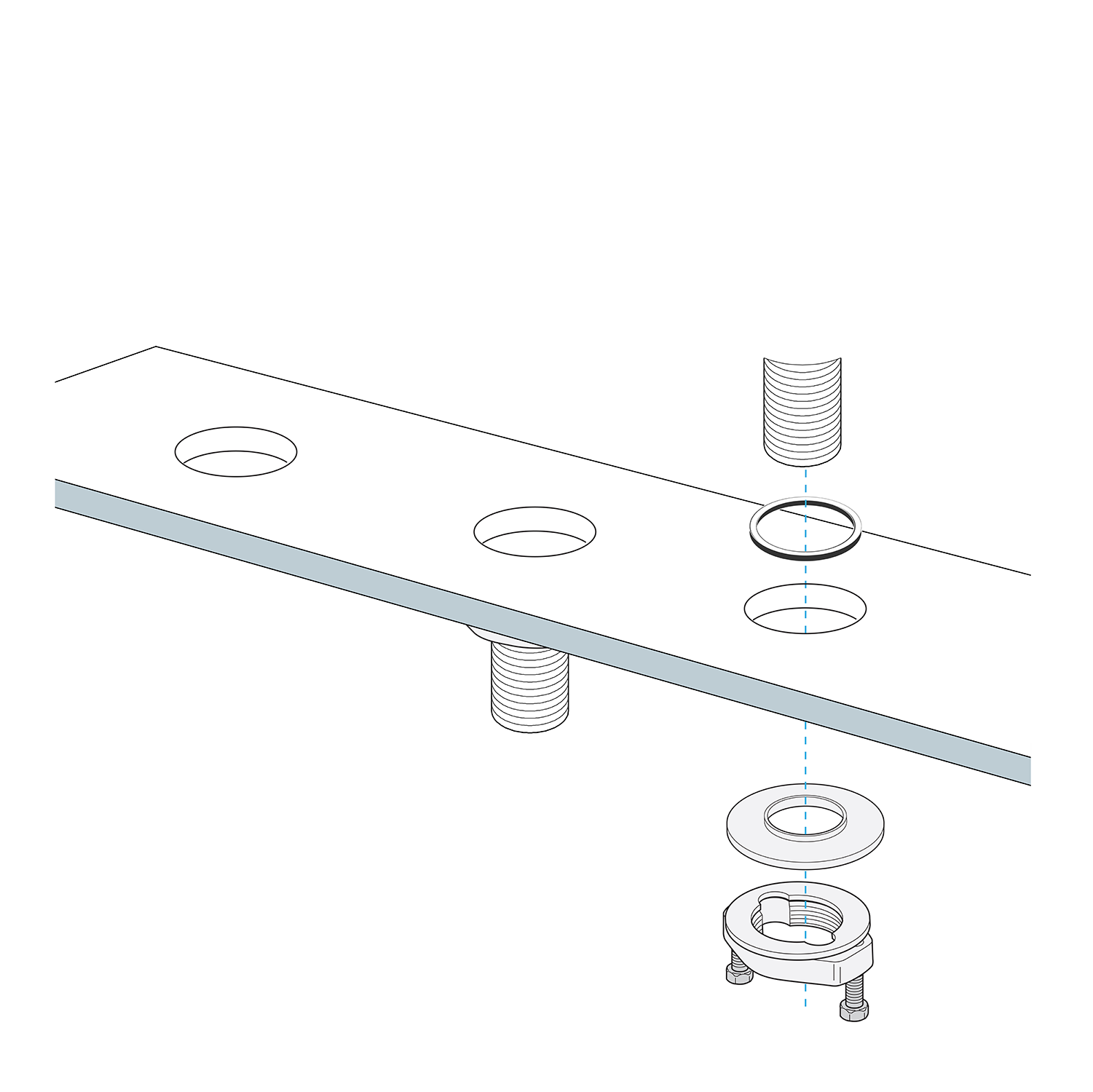

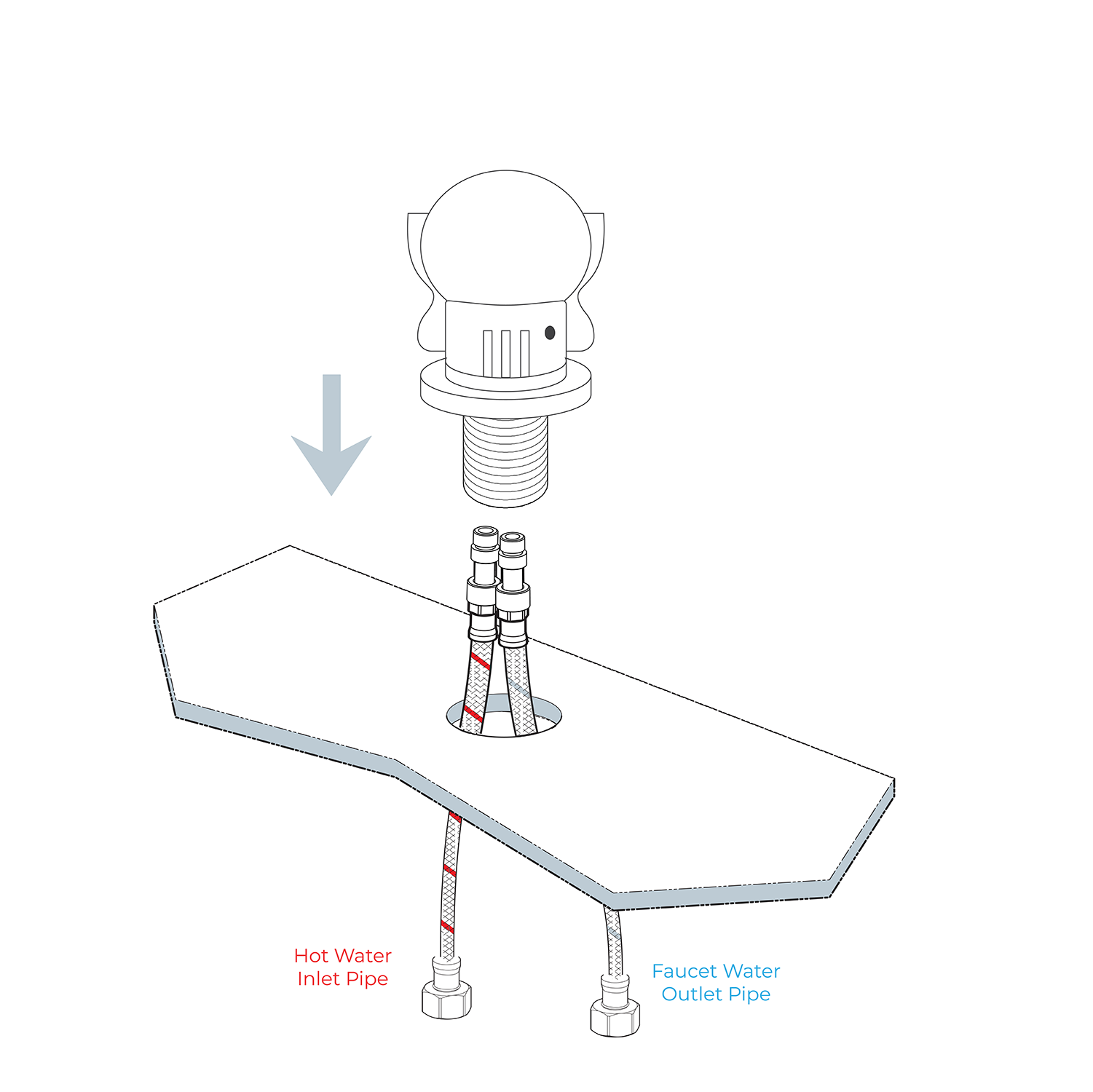

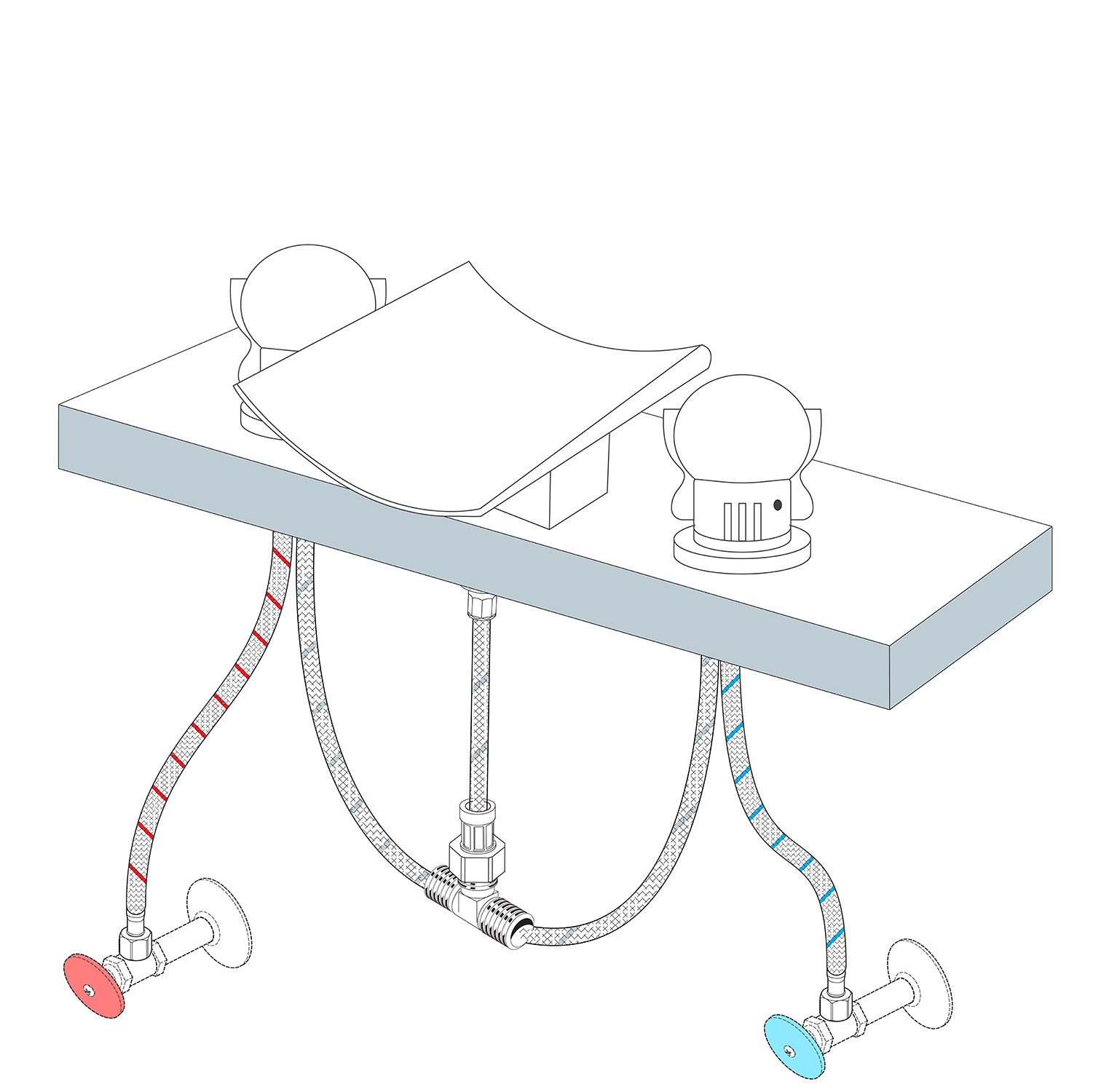

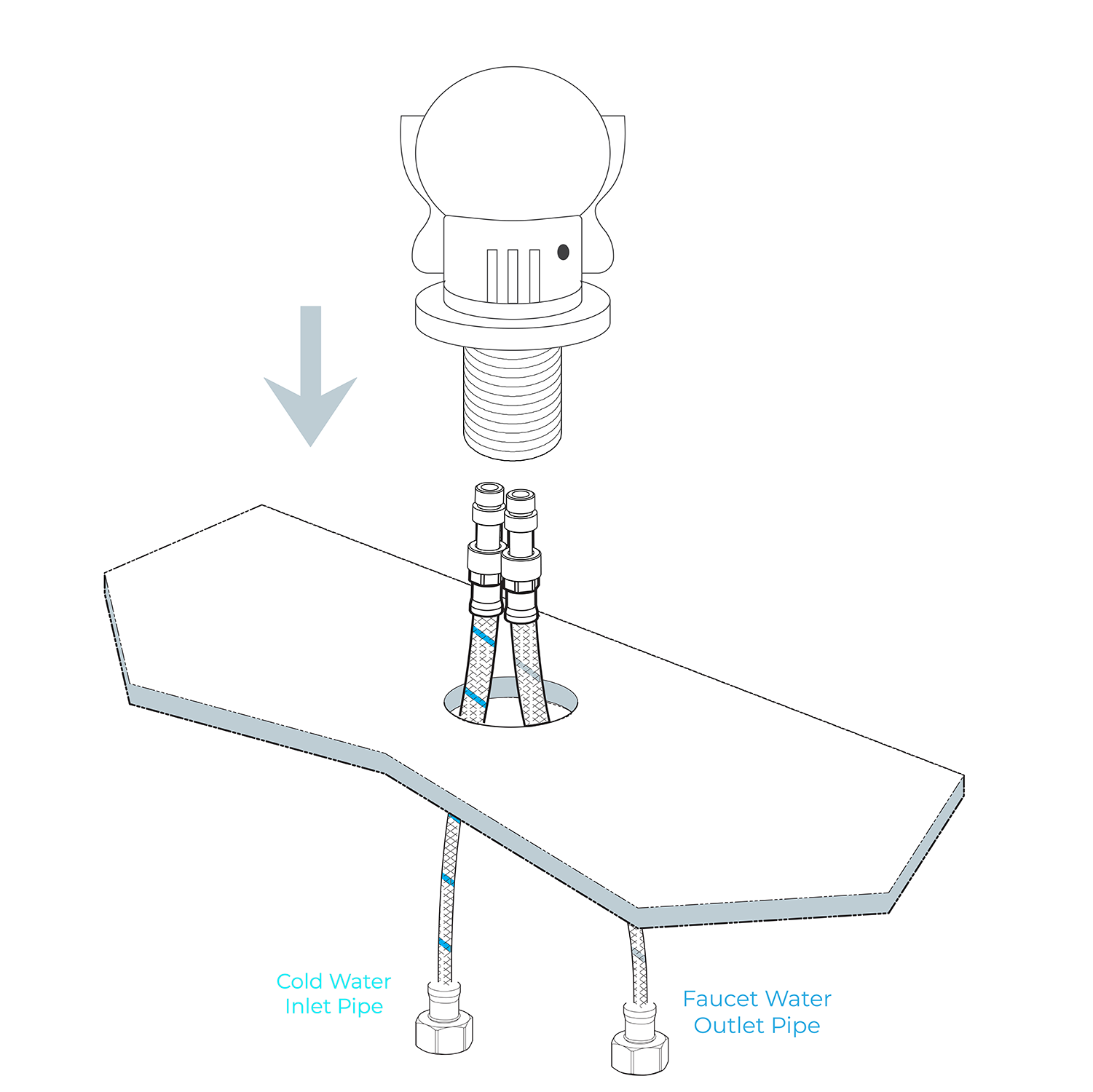

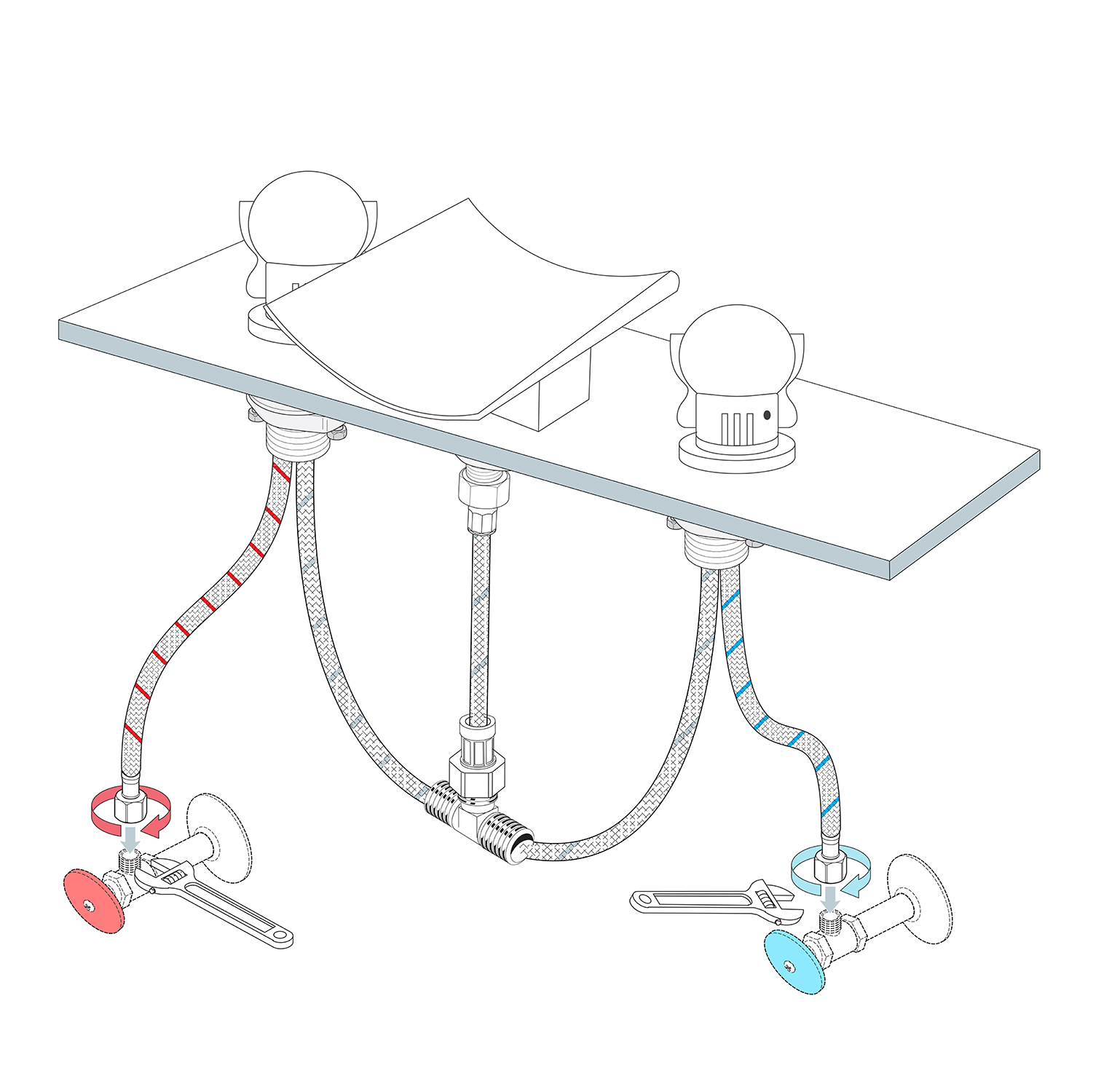

1. Ensure that the water supply below your sink is completely shut off by turning the valve all the way to the right. 2. Remove the T-connector from the spout in order. Set the parts aside. 3. Insert the spout into the prepared center mounting hole. From below, Slide one of the provided rubber gaskets onto the threaded shank, followed by the metal washer. Secure the spout to the surface using the lock nut. Tighten firmly with a basin wrench. 4. Reattach the T-connector to the spout in the reverse order of its removal. Ensure that the rubber o-ring is seated properly and that the nut is tightened firmly using an adjustable wrench. 5. Thread one of the provided lock nuts onto each of the valve stems. Thread to the bottom of each stem. Slide one of the provided plastic washers, followed by a rubber washer, onto each stem as well. 6. One of the faucet’s valve stems are for ‘hot water'. Install the ‘hot’ handle into the deck. 7. From beneath the sink, hand tighten the lock nut. Finish tightening using a basin wrench. 8. Repeat steps 6-7 to install the ‘cold’ valve stem into the right-side faucet hole. 9. Use the provided braided water lines to connect the hot and cold valve stems to the T-connector. Use an adjustable wrench to tighten, but be careful not to overtighten. Apply thread sealant or plumber’s tape to each threaded connection before attaching. 10. Connect the main water supply lines to the valve stems. Apply plumber’s tape or thread sealant to the threads before tightening. 11. Turn the faucet on and allow the water to flow for approximately 60 seconds. Ensure that there are no leaks and that both hot and cold water is running properly.

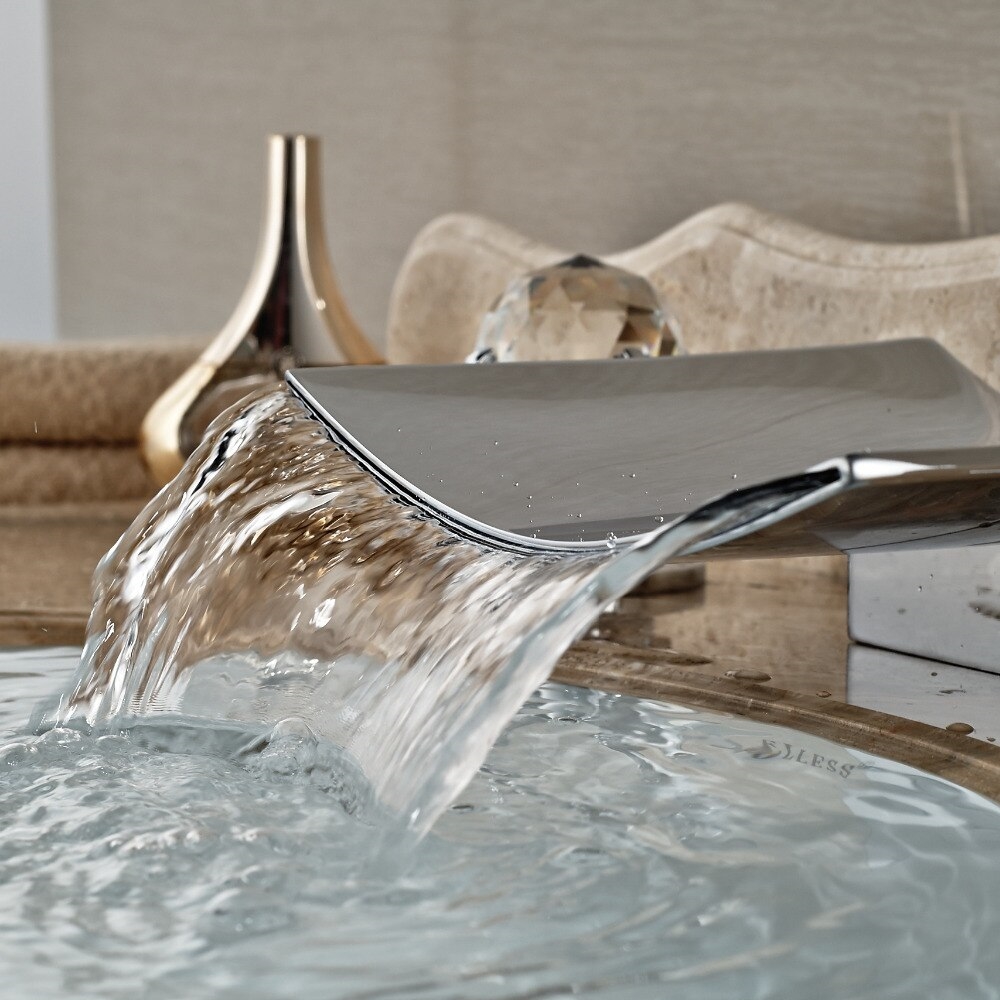

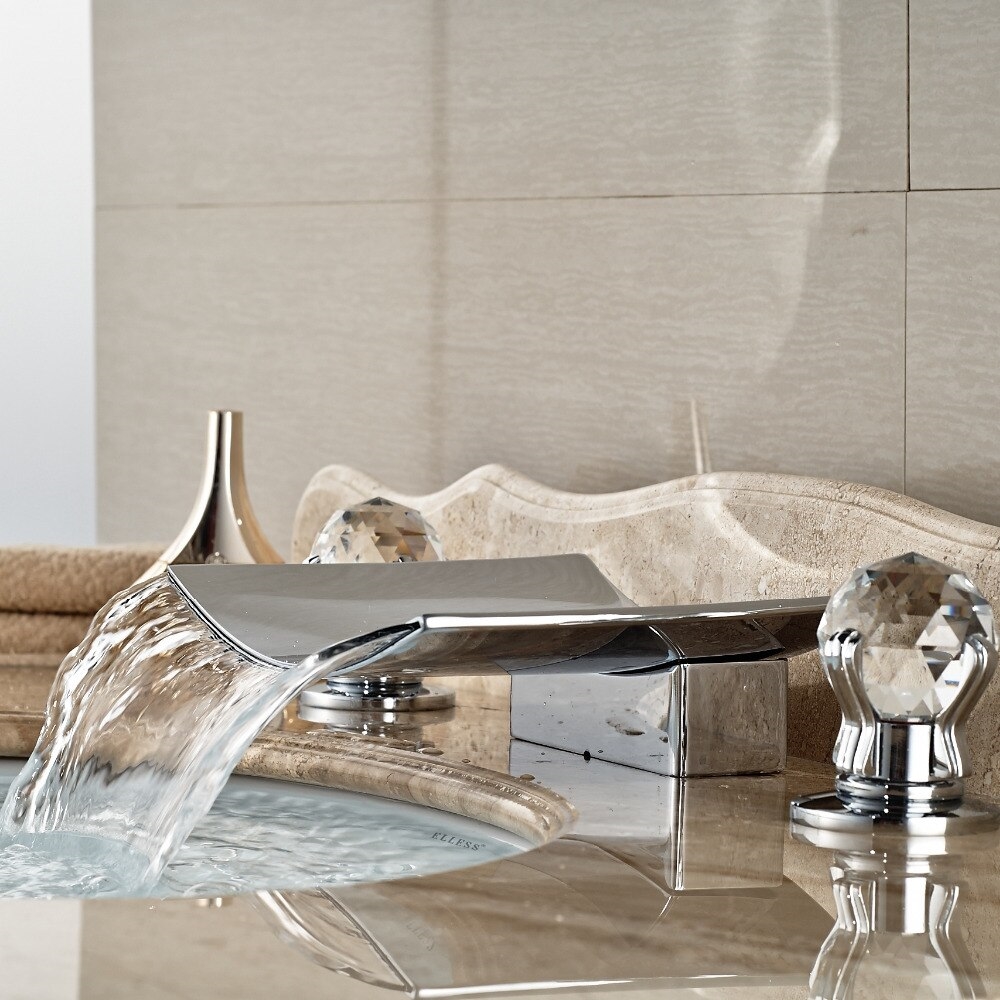

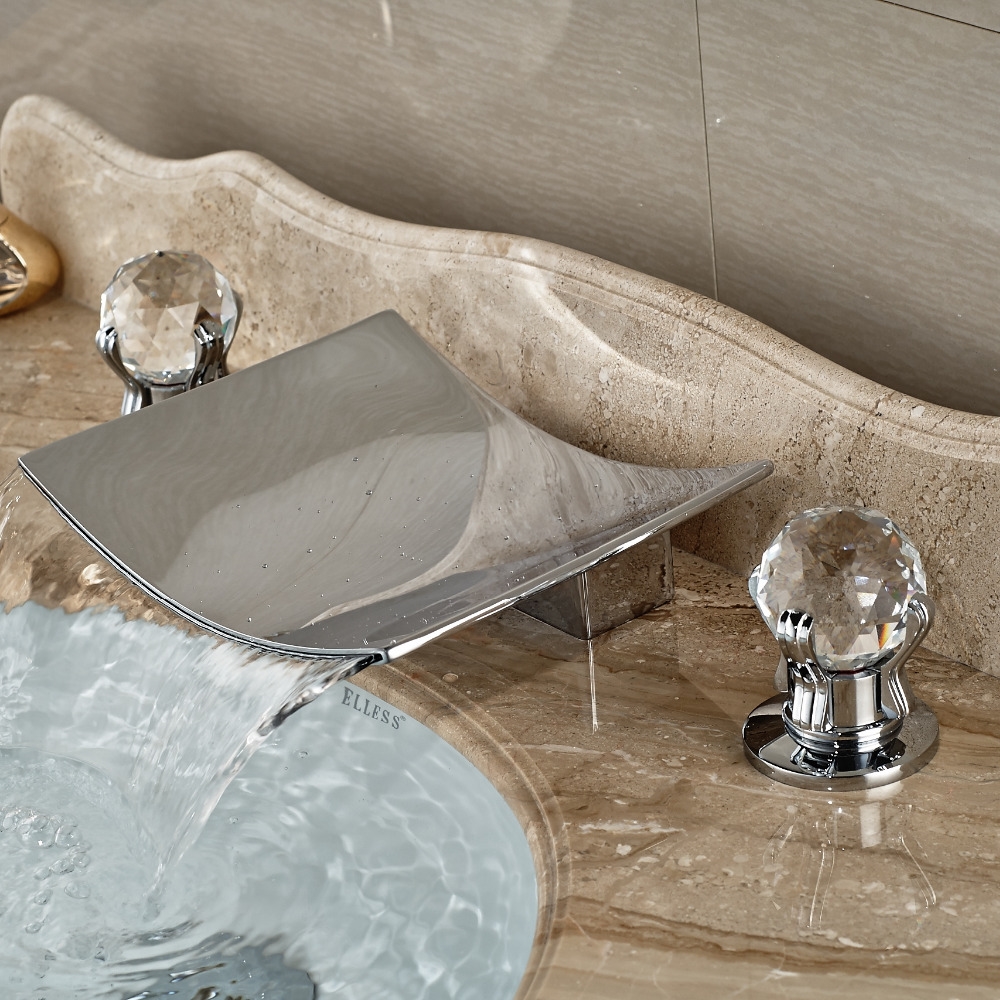

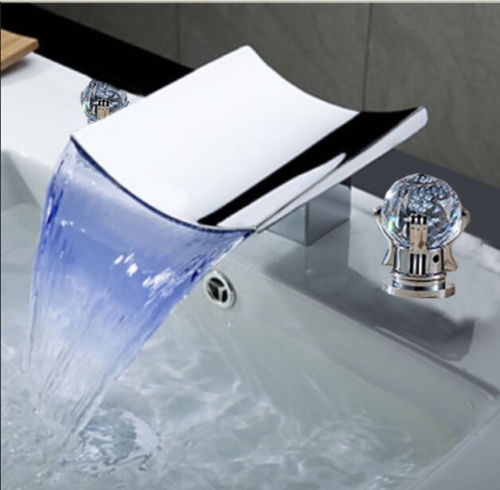

New Luxury LED Crystal Handle Waterfall Mixer Bathroom Widespread Sink Faucet

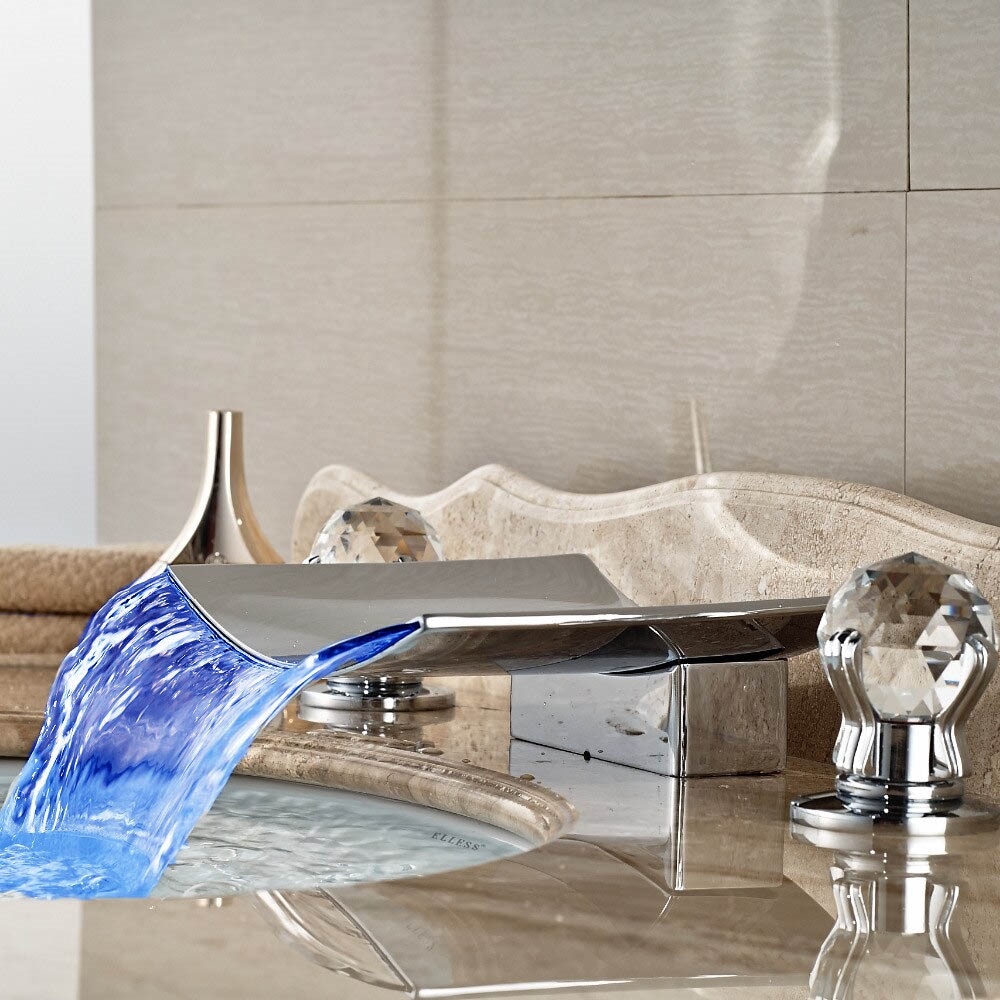

Beautiful New Luxury LED Crystal Handle Waterfall Mixer Bathroom Widespread Sink Faucet fix as deck mount and Drip-free Seal. Inside led light will change color when water temperature will change. We gained high reputation with the good quality and best service from the customers. Perfect solution for bathroom. Certified by quality standards, no hard to human, water or environment. Easy to use and leak free. Extended durability ensured by solid construction, Stylish appearance. Self powered by water pressure-No battery or other electricity required. When water flows down, the LED will light instantly and automatically. LED works by water flow, LED changes according to water temperature.
