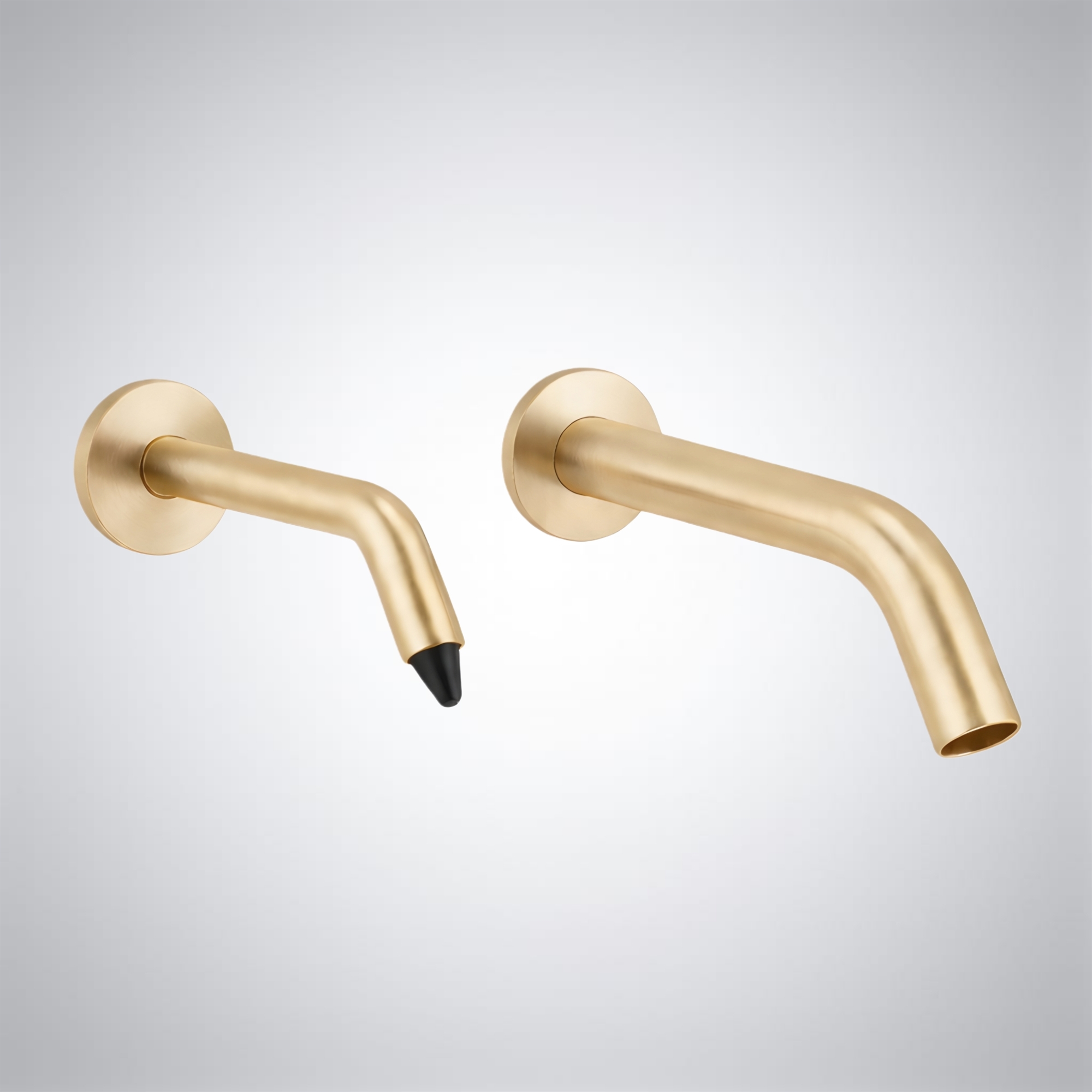

Fontana HydroPrime Series Premium Champagne Touchless Faucet With Soap Dispenser
The Fontana HydroPrime Series Premium Champagne Touchless Faucet With Soap Dispenser is an extravagant restroom addition that has been designed for not only hygiene but also elegance and modernity. The two units the traffic light water flow and the soap system activated by a sensor that is completely synchronized are the starters of a seamless hands-free experience that is completely suitable for airports, hotels, restaurants, shopping malls, and other places where a large number of people come and go. While the elegant surface of the faucet resembling champagne signifies high-end quality yet at the same time the solid brass that makes it reaffirms its strength in a difficult environment for a long period. The state-of-the-art infrared is there to signal the moment the user’s hand gets close without actually touching the faucet so that the user’s hand remains sterile, and will thus, in turn, also help in efficient management of resources across the facility because of the elimination of wastages. The large 1500ML soap reservoir that has been designed equals the long-time availability of soap, while the AC110-220V power supply also provides stable operation even during heavy use. The sensor has a life span of 300,000 cycles while it is combined with a pump of 80,000 cycles, thus, giving very high reliability of the modern lavatory. Its modern wall-mounted design helps in the architectural flow of the whole building, the fascia being polished and fitting for the high-end architectural concepts. Touchless faucet with soap dispenser, hands-free hygiene fixture, and automated washroom system will come up when planners are looking for cutting-edge sanitation solutions, so the visibility of these phrases will be quite strong. The whole configuration is backed up with the highest possible quality assurance with its full compliance with ASME, CSA, ADA, WaterSense, and CALGreen, thus, responsible water management, inclusive accessibility, verified efficiency, and premium engineering are guaranteed.
HYDROPRIME™ COMMERCIAL DUO
Fontana HydroPrime Champagne FAQs
Champagne wall-mounted touchless faucet and automatic soap dispenser
with brass construction, infrared activation, and a 1500 mL reservoir.
✥
What Is The Soap Sensor Range?
+
The HydroPrime dispenser uses a published sensing distance
of approximately 2.4–3.9 inches. Complete final sensor
commissioning after the basin and finished wall surfaces
are installed to verify reliable hand detection without
unintended soap activation.
◇
What Power Supply Is Required?
+
The automatic soap dispenser is specified for AC110–220V
operation. Coordinate electrical routing, transformer
location and service access before closing the wall assembly.
◯
What Is The Soap Reservoir Capacity?
+
The integrated dispenser uses a 1500 mL soap reservoir.
For high-traffic facilities, establish refill intervals
according to actual consumption and retain access to the
tank, tubing and pump assembly.
↻
What Is The Sensor Cycle Rating?
+
The published dispenser sensor lifetime is approximately
300,000 on/off cycles. Actual service life can vary with
usage frequency, electrical conditions, environmental
exposure and sensor-window cleanliness.
⌁
What Is The Pump Cycle Rating?
+
The soap-dispenser pump is specified for approximately
80,000 operating cycles. Preventive maintenance should
include checking dispensing consistency, soap tubing and
pump performance.
⌂
What Installation Layout Is Required?
+
The HydroPrime uses a two-hole wall-mounted configuration.
Coordinate faucet and dispenser centerlines, concealed
water supply, electrical routing, soap tubing and basin
geometry before completing finished wall surfaces.
⚙
What Material Is Used?
+
The Champagne HydroPrime specification identifies brass
construction. Brass provides structural durability for
commercial wall-mounted applications exposed to frequent
daily use.
⌕
Champagne Finish Maintenance?
+
Clean the Champagne surfaces and sensor windows with a soft
non-abrasive cloth. Inspect the faucet outlet and soap nozzle,
verify reservoir level and pump output, and avoid aggressive
cleaners that may affect the decorative finish.
‹
›
Champagne
◇
Brass Body
Commercial Construction
⌁
2.4–3.9"
Soap Sensor Range
⚡
AC110–220V
Dispenser Power
⚙
300K Cycles
Sensor Life
Brand Name: FontanaShowers® Model Number: FS20005CP Type: Touchless Faucet With Soap Dispenser Style: Contemporary Installation Type: Wall Mounted Finish: Champagne Material: Brass Number of Holes: Two Holes Dispenser Working Power: AC110-220V Dispenser Soap Capacity: 1500ML Dispenser Sensor lifetime: 300,000 times on/off Dispenser Pump lifetime: 80,000 times on/off
Dispenser Sensor Distance: 2.4"-3.9"
Sophisticated Sensor-Activated Water & Soap Delivery
