Fontana HydroPrime Series Brass Touchless Faucet With Dispenser Gold Tone
The Fontana HydroPrime™ Series Brass Touchless Faucet With Dispenser Gold Tone is an innovative washroom solution that combines automatic water delivery and a fully synchronized soap system that is perfect for modern public places such as airports, hotels, restaurants, malls, and other commercial locations. This combination of the rich gold tone not only adds an upscale visual statement but also supports long-term durability through the use of solid brass material. Sophisticated sensor technology allows for instant hands-free activation thus reducing the extent of contact and at the same time promoting higher hygiene standards in areas with heavy traffic. The flow management system works efficiently to cut down on waste while the large 1500ML reservoir ensures that soap is always available. The faucet operates on a very stable AC110-220V current which guarantees uninterrupted functionality together with a 300,000 cycle sensing unit and an 80,000 cycle pump that make the item super durable even in the most demanding conditions. The smooth lines fit well with the modern architectural trends and provide a seamless design that adds to the overall appeal of the restroom. The touchless faucet with soap dispenser is hands-free washroom fixture, and automated hygiene system are smoothly blended into this description, thus, the visibility of design professionals and facility planners being maximized. Each product has been thoroughly checked against the rigorous standards of ASME, CSA, ADA, WaterSense, and CALGreen, not only assuring performance, responsible water management and inclusive accessibility but also giving modern installations that are sophisticated and reliable engineering.
HYDROPRIME™ COMMERCIAL DUO
Fontana HydroPrime Gold Touchless Duo FAQs

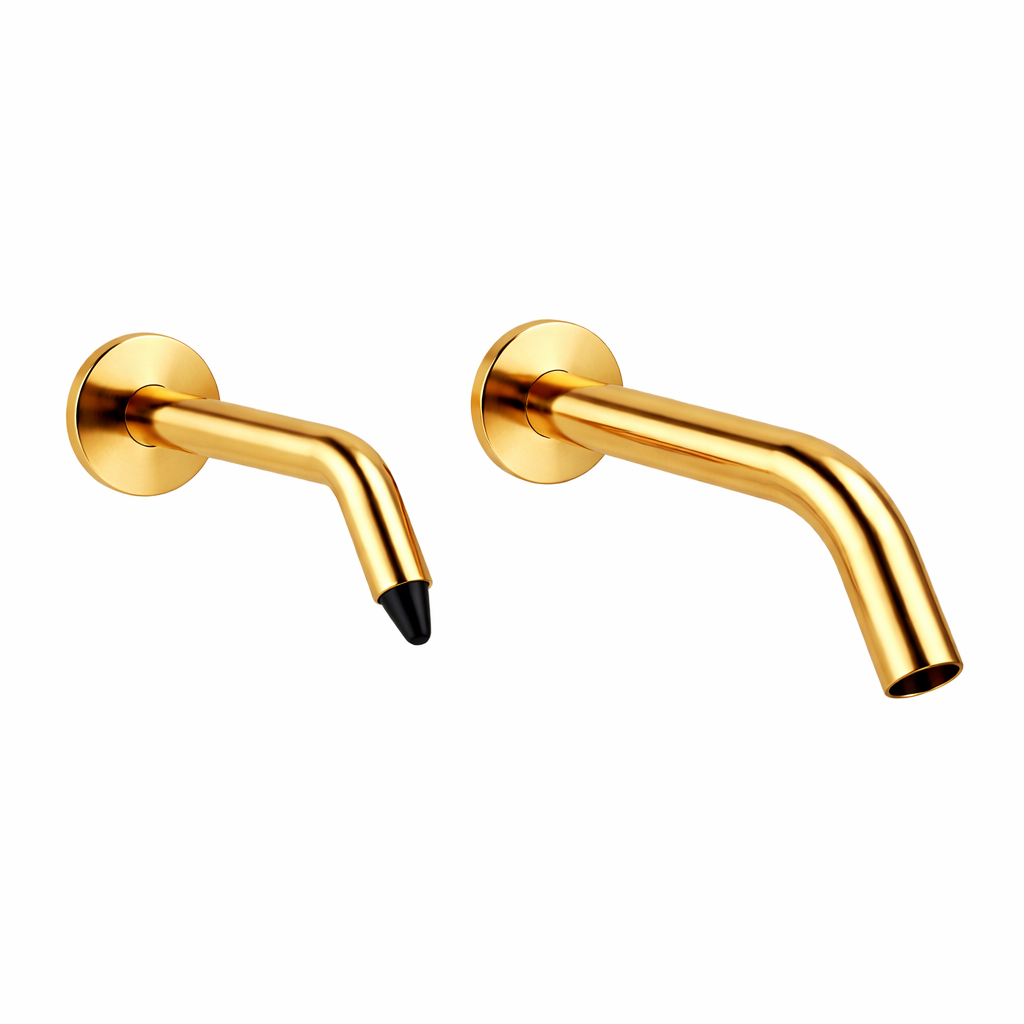

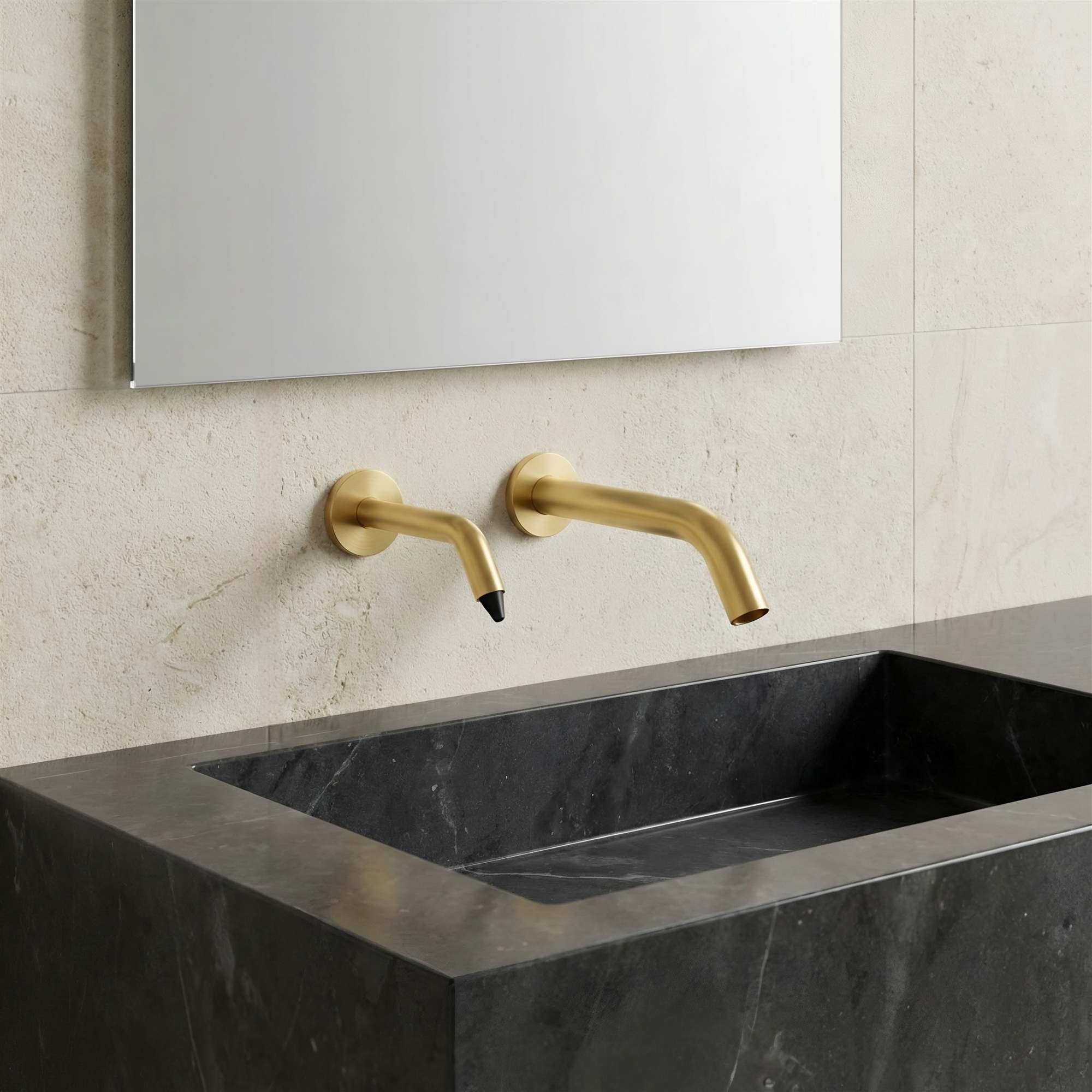

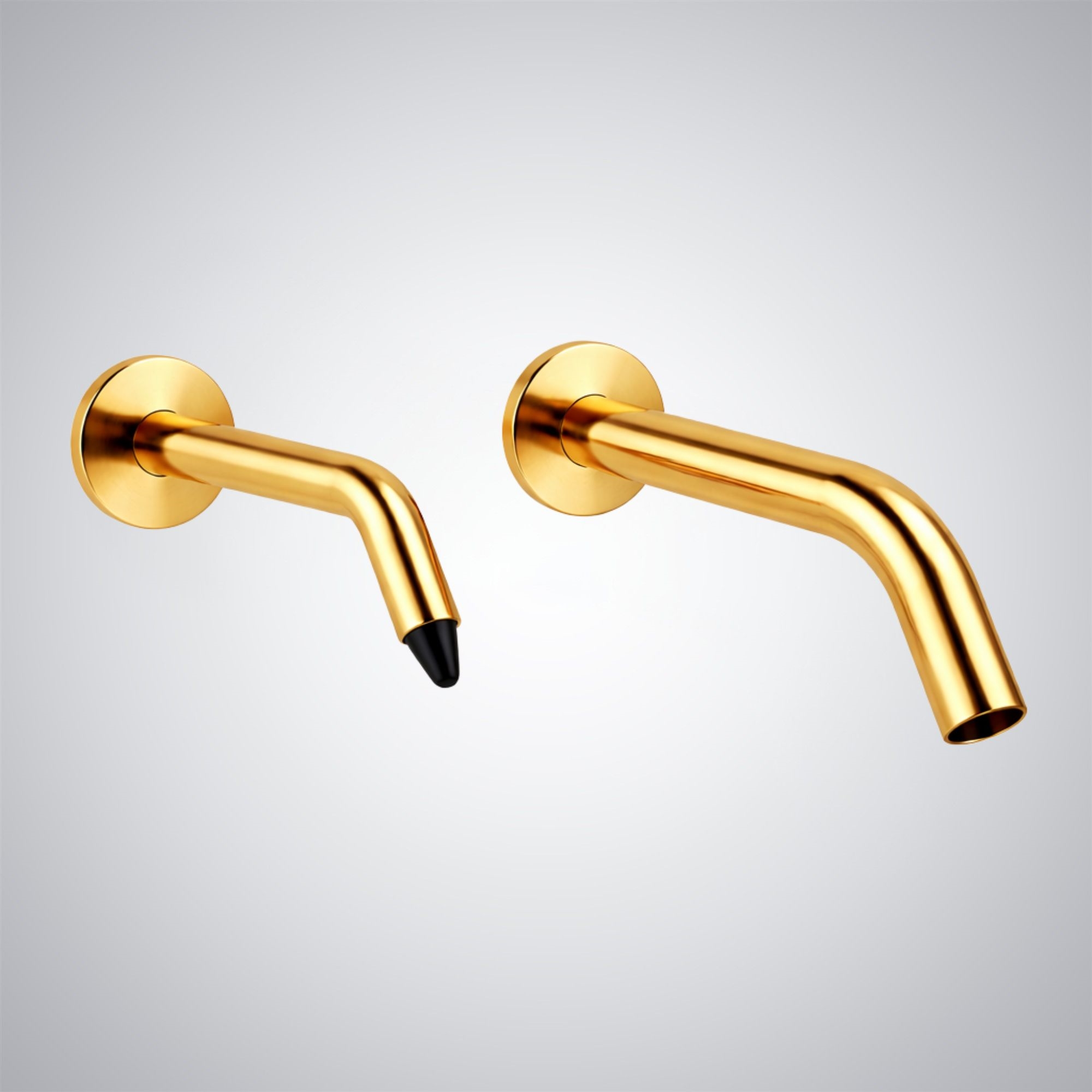

Gold wall-mounted touchless faucet and automatic soap dispenser
with brass construction, infrared activation, 1500 mL capacity,
and commercial-duty electronic components.
✥
Soap Sensor Detection Range?
+
The automatic soap dispenser uses a published sensing
distance of approximately 2.4–3.9 inches. Complete final
sensor commissioning after the basin and finished wall
surfaces are installed to confirm reliable dispensing
without unintended activation.
◇
Dispenser Power Requirements?
+
The dispenser is specified for AC110–220V operation.
Coordinate transformer location, electrical routing and
service access before closing the wall or completing
final fixture commissioning.
◯
Soap Reservoir Capacity?
+
The HydroPrime system uses a 1500 mL soap reservoir.
For high-traffic commercial installations, establish refill
intervals based on actual usage and maintain access to the
reservoir, tubing and pump for routine service.
↻
What Is The Sensor Service Life?
+
The published dispenser sensor lifetime is approximately
300,000 activation cycles. Actual service life can vary
with traffic volume, electrical conditions, sensor cleanliness
and preventive maintenance practices.
⌁
What Is The Pump Service Life?
+
The dispenser pump is specified for approximately
80,000 operating cycles. Inspect soap output consistency,
tubing condition and pump performance during scheduled
maintenance before reduced dispensing becomes noticeable.
⌂
What Installation Layout Is Required?
+
The HydroPrime uses a two-hole wall-mounted arrangement.
Coordinate faucet and dispenser centerlines, concealed
water supply, electrical routing, soap tubing and basin
geometry before completing the finished wall.
⚙
What Material Is Used?
+
The Gold HydroPrime page specifies brass construction.
Brass provides structural durability for commercial
wall-mounted fixtures exposed to repeated daily operation
in high-traffic washroom environments.
⌕
Gold Finish Maintenance Requirements?
+
Clean the gold surfaces and sensor windows using a soft,
non-abrasive cloth. Inspect the faucet outlet and soap nozzle,
verify reservoir level and pump output, and avoid aggressive
cleaners that may affect the decorative finish.
‹
›
Gold
◇
Brass Body
Commercial Construction
⌁
2.4–3.9"
Soap Sensor Range
⚡
AC110–220V
Dispenser Power
⚙
300K Cycles
Sensor Life
Brand Name: FontanaShowers® Model Number: FS20005GL Type: Touchless Faucet With Soap Dispenser Style: Contemporary Installation Type: Wall Mounted Finish: Gold Material: Brass Number of Holes: Two Holes Dispenser Working Power: AC110-220V Dispenser Soap Capacity: 1500ML Dispenser Sensor lifetime: 300,000 times on/off Dispenser Pump lifetime: 80,000 times on/off
Dispenser Sensor Distance: 2.4"-3.9"
Seamless Touchless Wash Experience
Placement Defines Value
