Fontana HydroPrime Series Gun Metal Gray Sensor Faucet With Soap Dispenser
The Fontana HydroPrime™ Series Gun Metal Gray Sensor Faucet With Soap Dispenser is a great option for modern public interiors that want to remove properly, automate the process and, at the same time, increase cleanliness. This combo consists of a sensor faucet and automated soap dispenser thus giving the users an entire hands-free experience that is best suited for busy smoking areas like airports, hotels, restaurants, shopping malls, and so on-they need effective usage and keep them that way with modern design. The gun-metal-gray not only delivered practical use but also an attractive architectural statement. The faucet is made out of solid brass which guarantees its durability even against the rigorous continuous daily use. State-of-the-art infrared technology allows for instantaneous turn on which results in better hygiene, less contact, and better resource use management in busy areas. The 1500ML chamber is large enough to provide a long supply of soap, while the AC110-220V power range guarantees uniform performance in various installation situations. The sensing unit has a life cycle of 300,000 while the pump has a life cycle of 80,000 cycles making the whole system extremely reliable even in the most strenuous washroom applications. The sleek wall-mounted design not only saves space but also enhances light, sound, and air circulation and eliminates any risk of contamination. The words touchless faucet with soap dispenser, hands-free hygiene fixture, and automated washroom system will easily lead planners to sanitation solutions that are advanced, hence making their searches effective. Furthermore, the whole fixture has a certified compliance with ASME, CSA, ADA, WaterSense, and CALGreen which not only guarantees but also reflects the efficiency, accessibility, responsible resource usage, and superior engineering throughout the entire assembly.
HYDROPRIME™ COMMERCIAL DUO
Fontana HydroPrime Gun Metal Gray FAQs

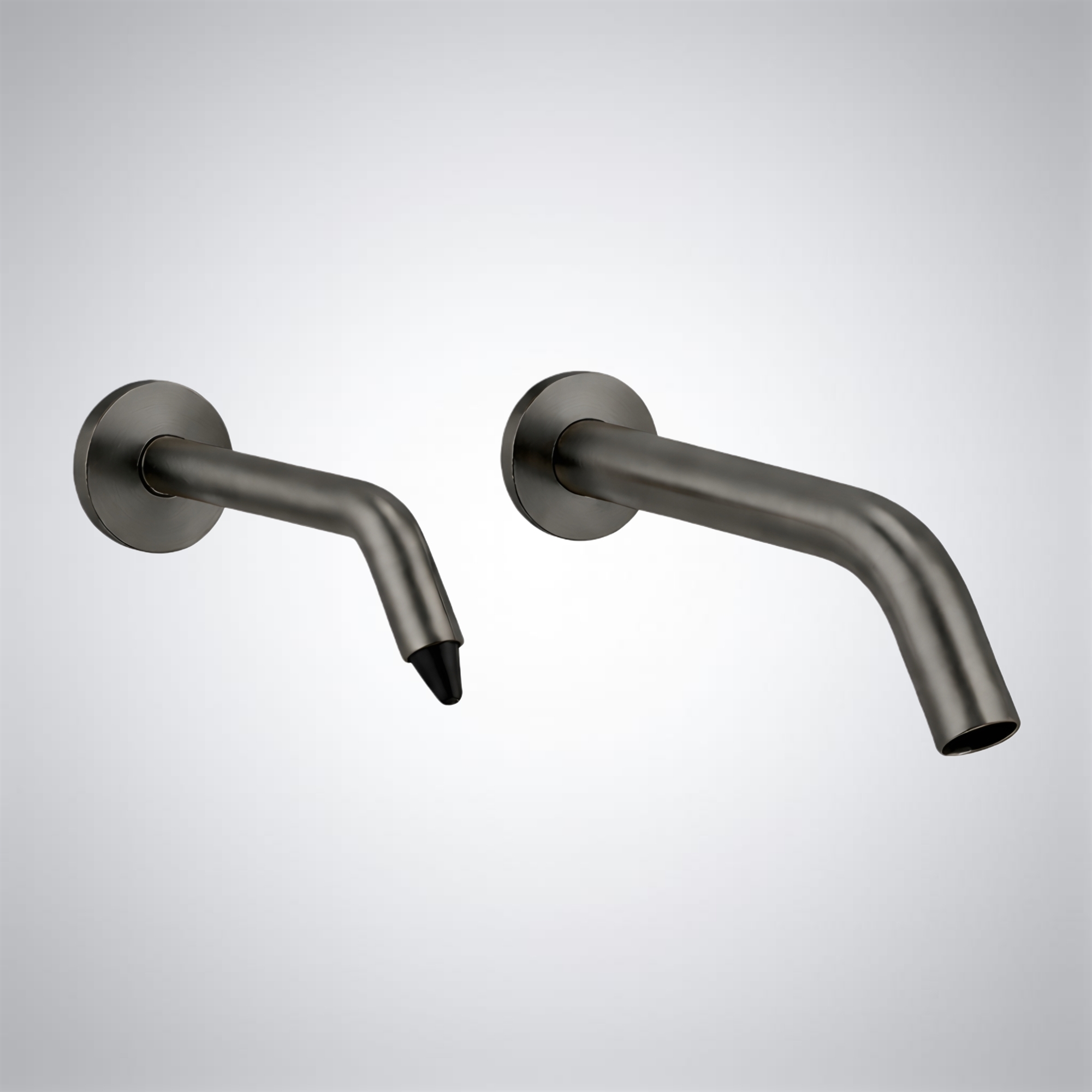

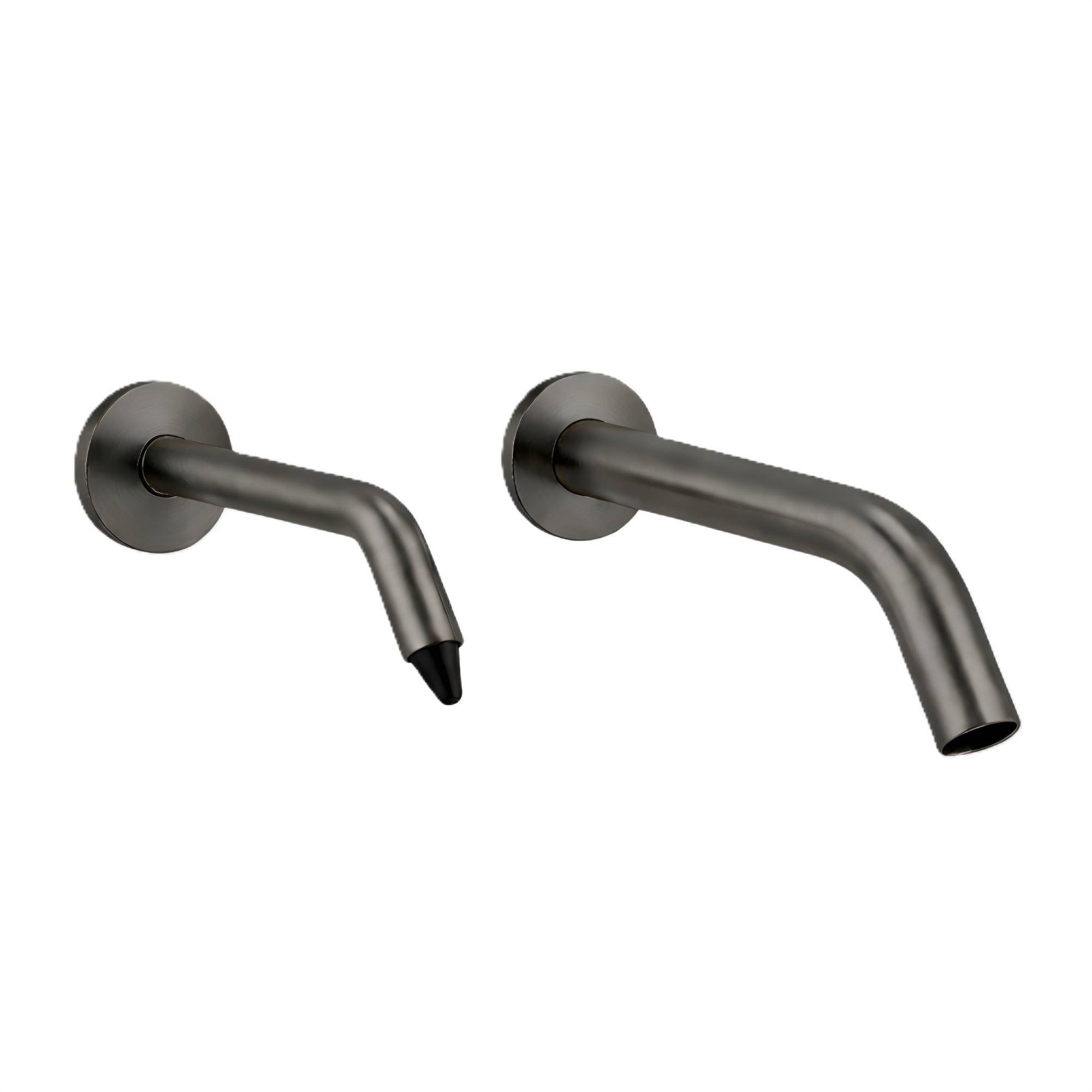

Gun metal gray wall-mounted touchless faucet and automatic soap dispenser
with brass construction, infrared activation, and a 1500 mL reservoir.
✥
What Is The Soap Sensor Range?
+
The HydroPrime dispenser uses a published sensing distance
of approximately 2.4–3.9 inches. Complete final commissioning
after the basin and finished wall surfaces are installed to
confirm reliable hand detection without unintended dispensing.
◇
What Power Supply Is Required?
+
The automatic soap dispenser is specified for AC110–220V
operation. Coordinate transformer placement, electrical
routing and service access before closing the wall assembly.
◯
What Is The Soap Capacity?
+
The HydroPrime dispenser uses a 1500 mL soap reservoir.
High-traffic facilities should establish refill intervals
according to actual usage while keeping the reservoir,
tubing and pump accessible for maintenance.
↻
What Is The Sensor Cycle Rating?
+
The published dispenser sensor lifetime is approximately
300,000 activation cycles. Actual service life can vary
with traffic volume, power quality, environmental conditions
and sensor-window cleanliness.
⌁
What Is The Pump Cycle Rating?
+
The soap-dispenser pump is specified for approximately
80,000 operating cycles. Preventive maintenance should
include checking soap output consistency, tubing condition
and pump performance.
⌂
What Installation Layout Is Required?
+
The HydroPrime uses a two-hole wall-mounted configuration.
Coordinate faucet and dispenser centerlines, concealed
water supply, electrical routing, soap tubing and basin
geometry before completing finished wall surfaces.
⚙
What Material Is Used?
+
The FS20005GMG specification identifies brass construction.
This provides structural durability for high-frequency
commercial wall-mounted applications while supporting
repeated touchless operation.
⌕
Gun Metal Gray Finish Maintenance?
+
Clean the gun metal gray surfaces and sensor windows with
a soft non-abrasive cloth. Inspect the faucet outlet and
soap nozzle, verify reservoir level and pump output, and
avoid aggressive cleaners that may alter the dark finish.
‹
›
Gun Metal Gray
◇
Brass Body
Commercial Construction
⌁
2.4–3.9"
Soap Sensor Range
⚡
AC110–220V
Dispenser Power
⚙
300K Cycles
Sensor Life
Brand Name: FontanaShowers® Model Number: FS20005GMG Type: Touchless Faucet With Soap Dispenser Style: Contemporary Installation Type: Wall Mounted Finish: Gun Metal Gray Material: Brass Number of Holes: Two Holes Dispenser Working Power: AC110-220V Dispenser Soap Capacity: 1500ML Dispenser Sensor lifetime: 300,000 times on/off Dispenser Pump lifetime: 80,000 times on/off
Dispenser Sensor Distance: 2.4"-3.9"
Advanced Touchless Water & Soap Delivery
Industrial Palette Fits
