Fontana HydroPrime Series Matte White Modern Touchless Faucet With Soap Dispenser
The Fontana HydroPrime™ Series Matte White Modern Touchless Faucet With Soap Dispenser is a very minimalist upgrade for the animated public indoor that attracts the attention and concern for their hygiene, efficiency, and good looks. This coordinate setup consists of a sensor faucet and an automatic dispenser, thus making the total experience completely hands-free and recommending the use for airports, hotels, restaurants, shopping malls, and similar places where lots of people come in and out all the time. The matte white finish gives it a very clean and modern look, while the solid brass manufacturing guarantees that it will withstand many years of use without degradation of its quality. The advanced infrared technology makes it very sensitive that turns on instantly with the slightest approach, thus reducing the contact made as well as leading to better cleanliness and more responsible use of resources developed in high-traffic areas. The large 1500ML tank keeps soap available for a long time, while the AC110-220V operating range means the product will work perfectly in all kinds of installation situations. The sensing device offers 300,000 cycles of life which comes along with an 80,000 cycles pump that is giving very high reliability of the device for even the most demanding washroom applications. It has a sleek wall-mounted profile that increases the architectural flow, providing a unified and integrated presentation into modern restroom designs. Necessary keywords such as touchless faucet with dispenser, hands-free hygiene fixture, and automated washroom system quieently support the visibility for planners who are looking for advanced sanitation solutions. The comprehensive compliance to ASME, CSA, ADA, WaterSense, and CALGreen guarantees responsible water management, inclusive accessibility, validated efficiency, and excellent engineering throughout the entire assembly.
HYDROPRIME™ COMMERCIAL DUO
Fontana HydroPrime Matte White FAQs

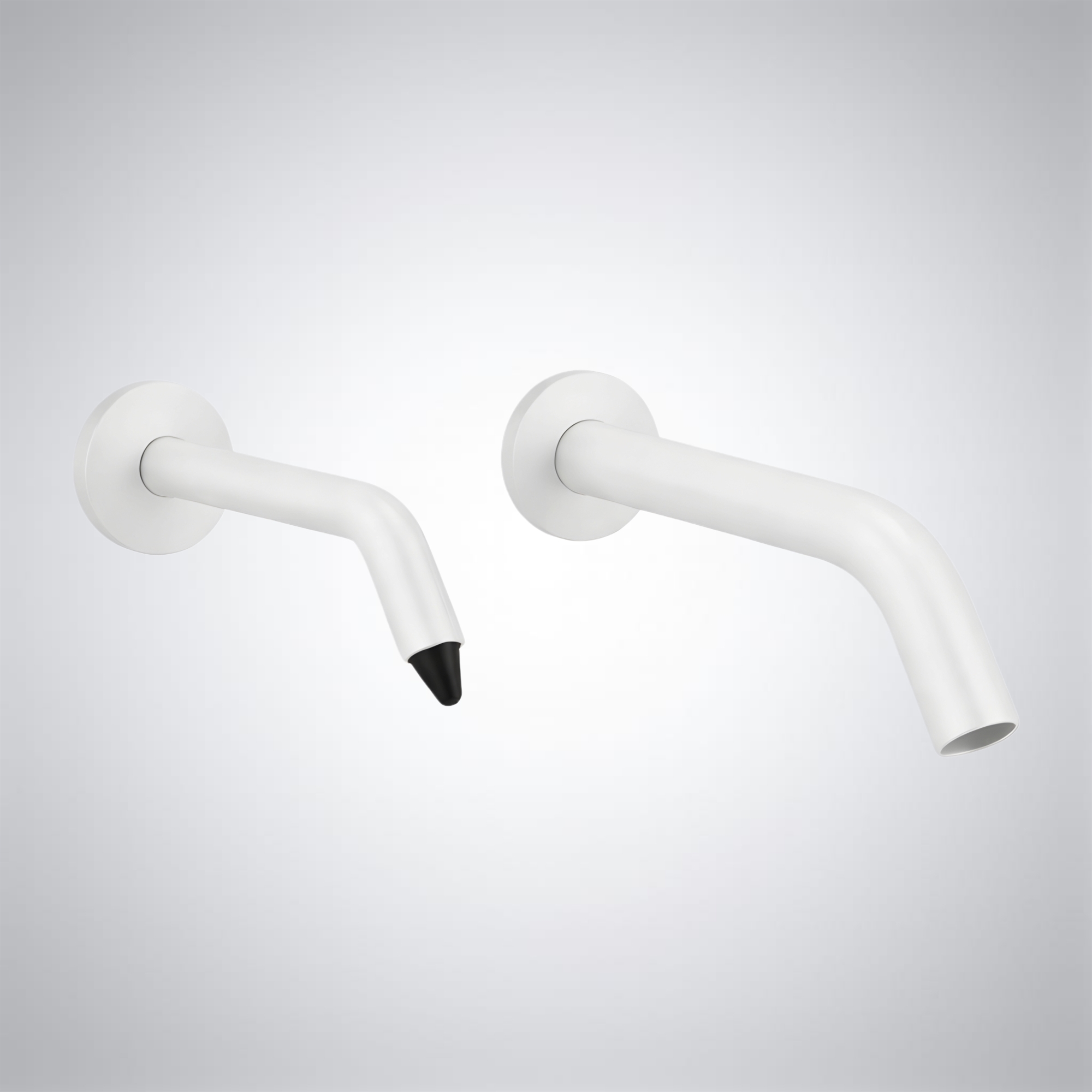

Matte white wall-mounted touchless faucet and automatic soap dispenser
with brass construction, infrared activation, and a 1500 mL reservoir.
✥
What Is The Soap Sensor Range?
+
The HydroPrime dispenser uses a published sensing distance
of approximately 2.4–3.9 inches. Complete final commissioning
after the basin and wall finishes are installed to confirm
reliable hand detection without unintended soap activation.
◇
What Power Supply Is Required?
+
The automatic soap dispenser is specified for AC110–220V
operation. Coordinate transformer placement, electrical
routing and future service access before closing the wall.
◯
What Is The Soap Capacity?
+
The dispenser uses a 1500 mL soap reservoir. High-traffic
installations should establish refill intervals based on
actual usage while maintaining clear access to the tank,
tubing and pump assembly.
↻
What Is The Sensor Cycle Rating?
+
The dispenser sensor is rated for approximately 300,000
activation cycles. Actual service life will depend on traffic,
electrical conditions, sensor cleanliness and maintenance frequency.
⌁
What Is The Pump Cycle Rating?
+
The soap pump is specified for approximately 80,000
operating cycles. Preventive maintenance should include
checking soap output consistency, tubing condition and
pump performance.
⌂
What Installation Layout Is Required?
+
The HydroPrime uses a two-hole wall-mounted configuration.
Coordinate faucet and dispenser centerlines, concealed water
supply, electrical routing, soap tubing and basin geometry
before completing finished wall surfaces.
⚙
What Material Is Used?
+
The HydroPrime family is specified with brass construction,
providing structural durability for commercial wall-mounted
faucet and dispenser installations exposed to repeated daily use.
⌕
Matte White Finish Maintenance?
+
Clean the matte white surfaces and sensor windows with a
soft non-abrasive cloth. Inspect the faucet outlet and soap
nozzle, verify reservoir level and pump output, and avoid
abrasive or aggressive cleaners that may mark the finish.
‹
›
Matte White
◇
Brass Body
Commercial Construction
⌁
2.4–3.9"
Soap Sensor Range
⚡
AC110–220V
Dispenser Power
⚙
300K Cycles
Sensor Life
Brand Name: FontanaShowers® Model Number: FS20005MW Type: Touchless Faucet With Soap Dispenser Style: Contemporary Installation Type: Wall Mounted Finish: Matte White Material: Brass Number of Holes: Two Holes Dispenser Working Power: AC110-220V Dispenser Soap Capacity: 1500ML Dispenser Sensor lifetime: 300,000 times on/off Dispenser Pump lifetime: 80,000 times on/off
Dispenser Sensor Distance: 2.4"-3.9"
Intelligent Dual Activation
White Stayed Relevant
