Fontana HydroPrime Series Brushed Nickel Sensor Faucet With Soap Dispenser
The Fontana HydroPrime™ Series Brushed Nickel Sensor Faucet With Soap Dispenser stands as a sophisticated solution for the present-day toilet designing, combining the automated control of water with the simultaneous cleansing system thus increasing the comfort of the users in high-demand areas like airports, hotels, restaurants, and shopping malls. This joint setup is characterized by the metallic surface that is not very shiny and has a modern look to it while its floor plan is not too far away from a futuristic one. The use of solid brass for the wall-mounted installation guarantees a long-life of the product thanks to the high quality of the manufacturing and the advanced infrared activation. The extra large 1500ML container allows for constant soap delivery and the AC110-220V power range that is so stable ensures that the facilities get the performance they need as there is always a requirement for uninterrupted service. The sensing device allows for an impressive 300,000 cycles still the built-in pump only gives 80,000 cycles suitability. Thus the product is extremely robust for heavy public use. Furthermore, the product's smooth curves make a powerful visual statement that easily integrates into upscale restroom designs. This built-in unit not only strengthens the infection-preventive facility regulations, but also collaborates with the maintenance of the facility and boosts the SEO of the phrases touchless hygiene fixtures, hands-free washroom technology, and automated soap solutions. The entire system has passed the strictest ASME, CSA, ADA, WaterSense, and CALGreen testing, hence responsible water use, inclusive access, and premium quality which is fit for today's most advanced public interiors are all backed up by such certification.
HYDROPRIME™ COMMERCIAL DUO
Fontana HydroPrime Brushed Nickel FAQs

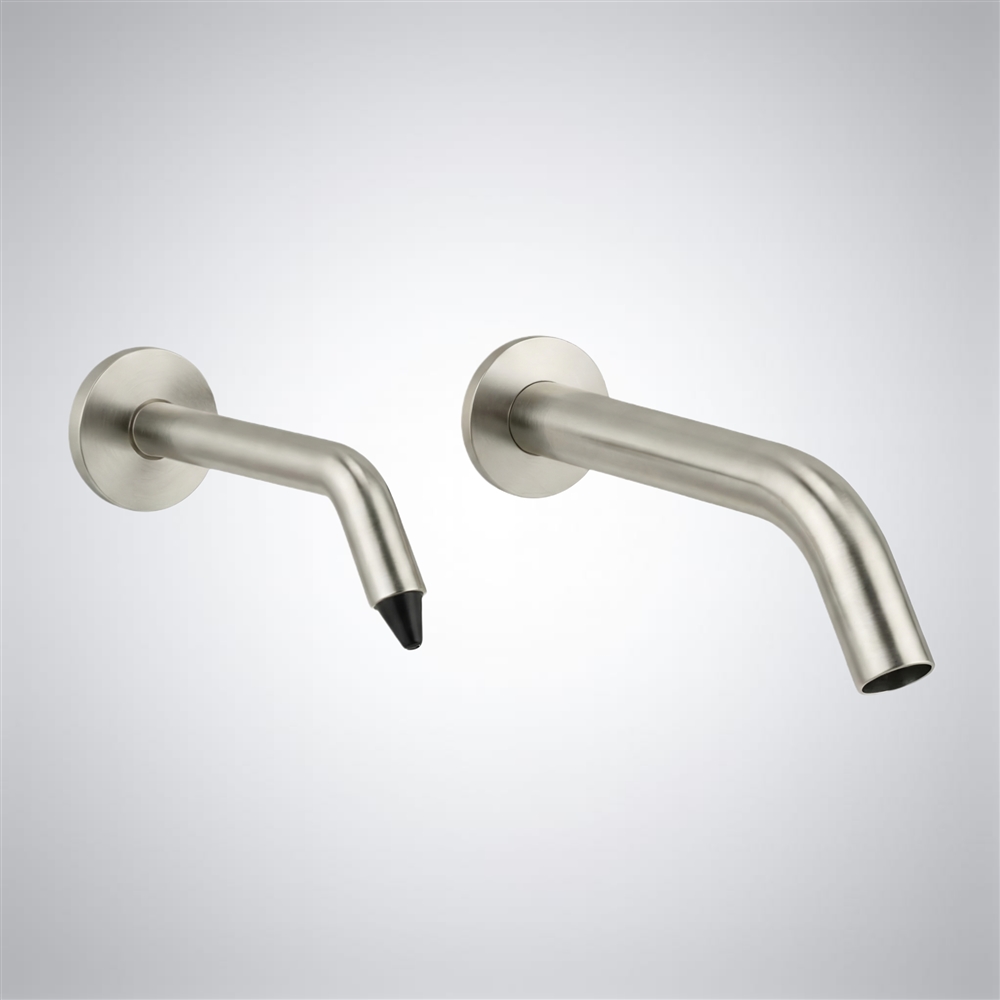

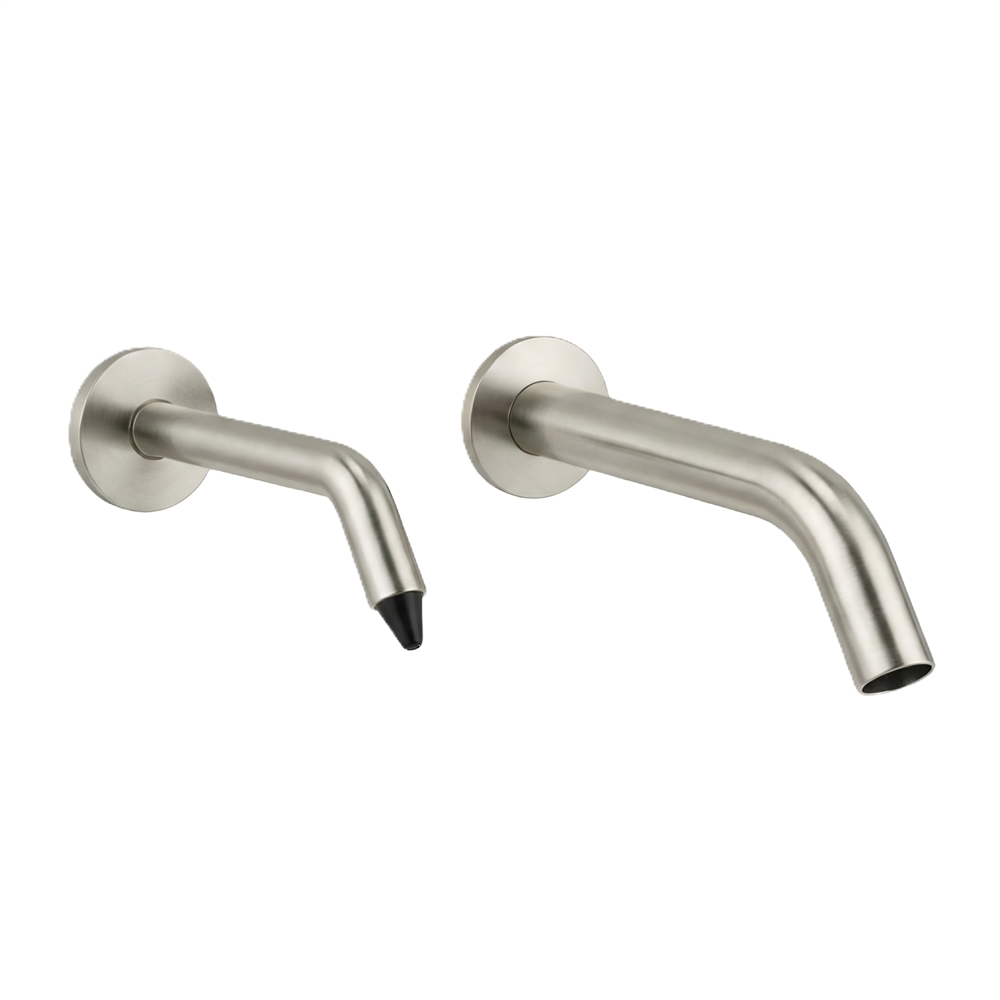

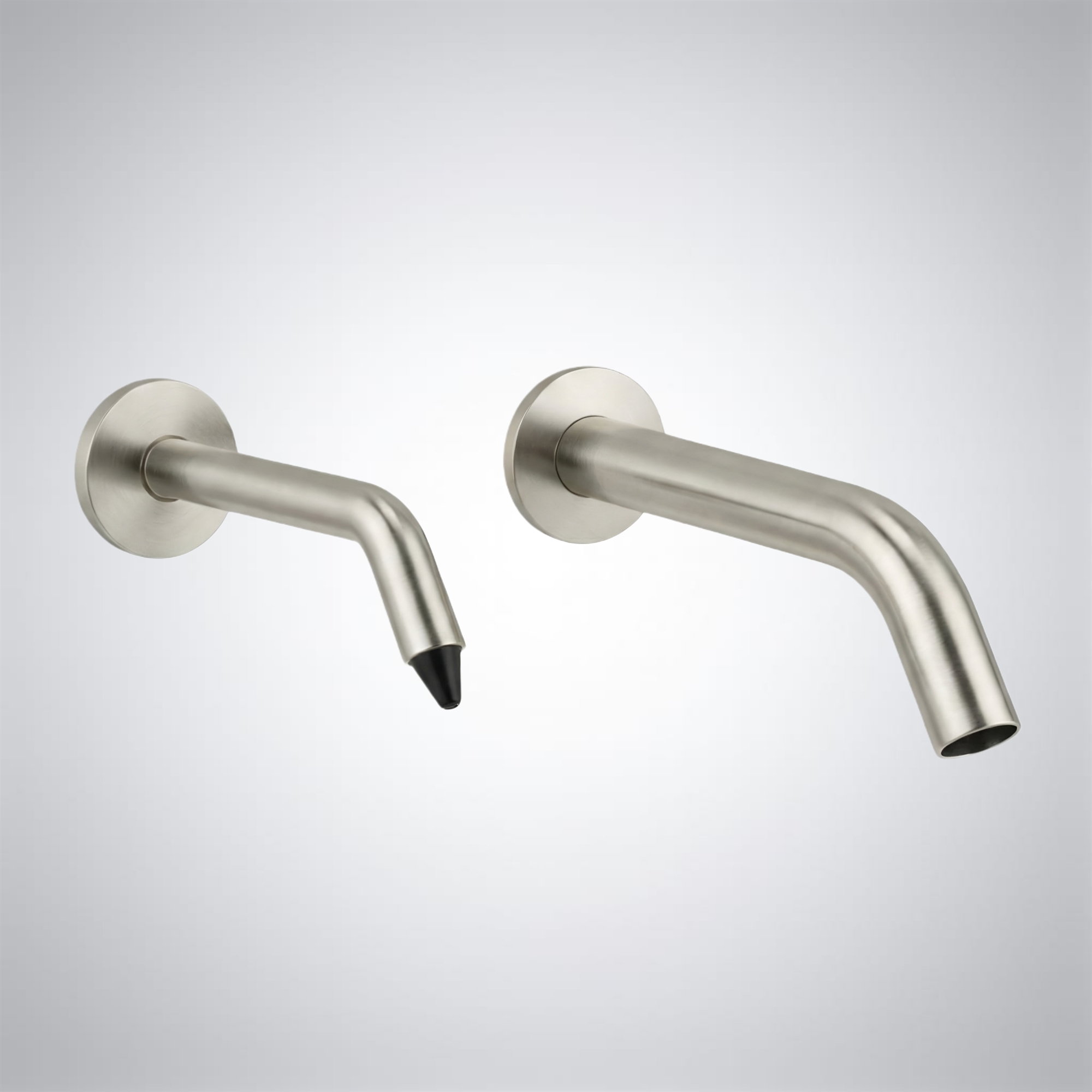

Brushed nickel wall-mounted touchless faucet and automatic soap
dispenser duo with brass construction, infrared operation,
and 1500 mL soap capacity.
✥
Soap Sensor Detection Range?
+
The automatic soap dispenser uses a published sensing
distance of approximately 2.4–3.9 inches. Final sensor
commissioning should be completed after the basin and
finished wall surfaces are installed to confirm reliable
hand detection without unintended dispensing.
◇
Dispenser Power Requirements?
+
The soap dispenser is specified for AC110–220V operation.
Coordinate electrical routing and transformer access before
closing the wall, and maintain service access to the
electronic dispenser components.
◯
Soap Reservoir Capacity?
+
The HydroPrime dispenser uses a 1500 mL reservoir.
In high-traffic facilities, establish refill intervals
based on actual daily use and maintain access to the
reservoir and pump for preventive maintenance.
↻
What Is The Sensor Service Life?
+
The published dispenser sensor lifetime is approximately
300,000 activation cycles. Actual service life will depend
on usage frequency, power quality, installation conditions
and routine cleaning of the sensing area.
⌁
What Is The Pump Service Life?
+
The soap pump is rated for approximately 80,000 operating
cycles. Monitor output consistency and inspect the soap
pathway and pump during scheduled maintenance to identify
reduced dispensing performance early.
⌂

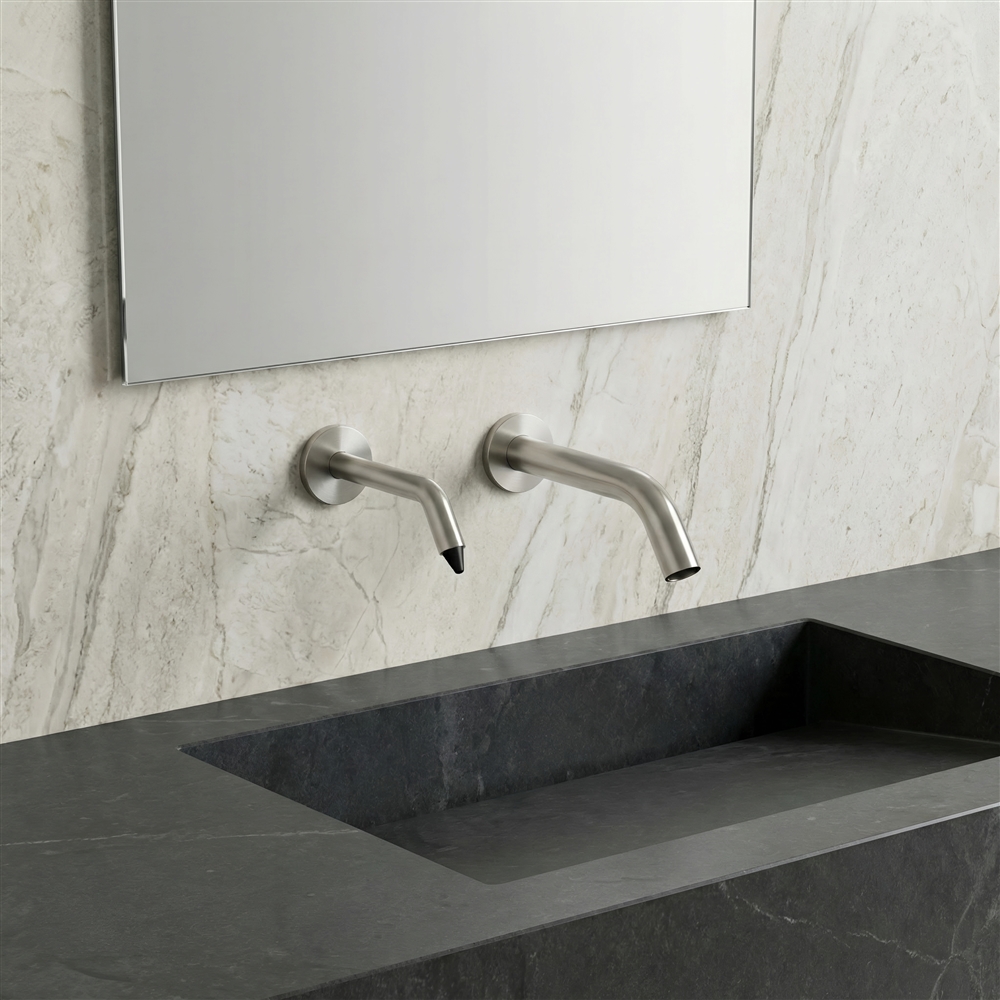

What Installation Layout Is Required?
+
The HydroPrime system uses a two-hole wall-mounted
configuration. Coordinate faucet and dispenser centerlines,
concealed water supply, electrical routing, soap tubing and
basin geometry before completing finished wall surfaces.
⚙
What Material Is Used?
+
The product page specifies brass construction for the
fixture assembly. Brass provides structural durability
for commercial wall-mounted installations and repeated
daily operation in high-use restroom environments.
⌕
Brushed Nickel Maintenance Requirements?
+
Clean the brushed nickel surfaces and sensor windows with
a soft non-abrasive cloth, inspect the faucet outlet and
soap nozzle, verify reservoir level and pump output, and
check concealed connections where service access is available.
‹
›
Brushed Nickel
◇
Brass Body
Commercial Construction
⌁
2.4–3.9"
Soap Sensor Range
⚡
AC110–220V
Dispenser Power
⚙
300K Cycles
Sensor Life
Brand Name: FontanaShowers® Model Number: FS20005BN Type: Touchless Faucet With Soap Dispenser Style: Contemporary Installation Type: Wall Mounted Finish: Brushed Nickel Material: Brass Number of Holes: Two Holes Dispenser Working Power: AC110-220V Dispenser Soap Capacity: 1500ML Dispenser Sensor lifetime: 300,000 times on/off Dispenser Pump lifetime: 80,000 times on/off
Dispenser Sensor Distance: 2.4"-3.9"
Smart Sensor Water & Soap Delivery
Maintenance Team Preferred
