Home > How to Install Bravat Brushed Gold Wall Mounted Shower Valve Mixer

How to install Bravat Brushed Gold Wall Mounted Shower Valve Mixer | FS1046


Easy step by step Installation Instructions for 1 Way Wall-Mounted Shower Faucet Mixer Valve
  • Before you begin, please read the installation instructions below. Observe all local building and safety codes.
  • Unpack and inspect the product for any shipping damages. If you find damages, do not install.
  • Please note all products must be installed by a professional and certified plumber otherwise warranty might be voided.
 Shower

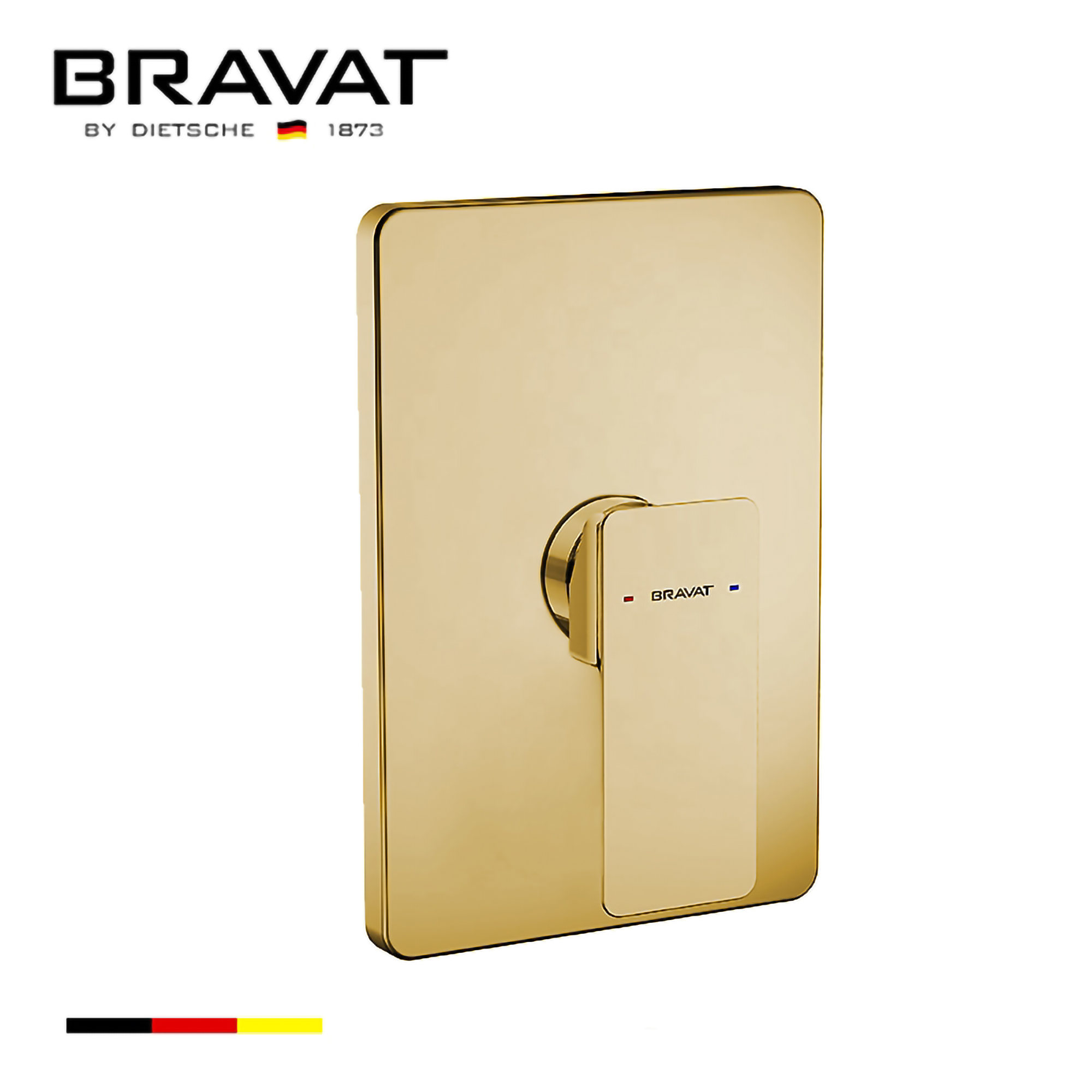

mixer 		Bravat Brushed Gold Wall Mounted Shower Valve Mixer


Shower Mixer Installation Instructions
Shower Mixer Shower Mixer Inlet and Outlet Connections
Shower
Mixer
Shower Mixer
shower mixer shower mixer
Step 1: mixer Step 2:




shower mixer shower mixer
Step 3: Step 4:
1) Fix the shower valve into the wall with screws. Use a level to ensure that the valve is straight and level. (Important: Flush the water supply pipes to remove any dirt and debris before installing the valve body)

2) Wrap Teflon tape around the pipe thread. Connect hot and cold water supply lines and all the in-wall pipes (not included) as desired to the valve. Turn on the water supply and open the cartridge to check for leaks. Then, put on the protective cover.

3) Remove the protective cover when the wall finished wall is completed. Install escutcheon onto the shower valve and press it against the finished wall. Then, install the handle and diverter knob to the valve and tighten set screws with the Allen key and put on the indication button.


Function: Check connections for leaks and check function of fitting. Flow is diverted automatically from shower outlet to bath inlet when the fitting is closed.
Shower Mixer Wall Mount View Connection Shower Mixer Connection Overview

Shower
Mi


Bravat Brushed Gold Thermostatic Wall Mounted Shower Valve Mixer


The Bravat Brushed Gold Shower Valve Thermostatic Mixer Wall Mount is one of the most trendiest finishes across decor styles in the bathroom. It has a contemporary style with a beautiful gold finish. When it comes to new bathroom upgrades, FontanaShowers is offering shape, finishes and styles that you've looking for.

Features:

  • Brand Name: FontanaShowers
  • Model Number: FS1046
  • Type: Thermostatic Bath & Shower Mixer
  • Style: Contemporary
  • Type: Fixed Support Type
  • Surface Finish: Brushed Gold
  • Installation Type: Wall Mount
  • Size: 7.91"-11.85" (201-300mm)
  • Surface Treatment: Polished
  • Valve Core Material: Ceramic
  • Bath Shower Type: In-Wall Shower Mixer
  • Valve Type: Ceramic Valve
  • Faucet Handle Material: Zinc Alloy
  • Mixer Body Material: Brass
  • Valve Included: Yes
  • Embedment Depth: 2.16" (55mm)
  • Valve Panel Dimension: 6.29"x6.29" (160x160mm)
  • Connector: G1/2"B (Standard)
  • Complete Shower Mixer Valve & Trim
    		•  Bravat Brushed Gold Wall Mounted Shower Valve Mixer


    The installation and illustrations provided are for informational purposes only.

    For detailed and accurate installation instructions, please refer to the

    product specifications or the corresponding BIM file.
