How to install Fontana Commercial Lenox Dual Touchless Bathroom Faucet With Automatic Soap Dispenser
Installation Instructions for Fontana Commercial Lenox Dual Touchless Bathroom Faucet With Automatic Soap Dispenser
- Before you begin, please read the installation instructions below. Observe all local building and safety codes.
- Unpack and inspect the touchless faucet for any shipping damages for any shipping damages. If you find damages, do not install.
- Please note all showers must be installed by a professional and certified plumber otherwise warranty might be voided.
|
sensor
|
|
|
Sensor Faucet Installations Instructions
|
Step 1:
|
|
Step 2:
|
|
|
|
|
|
|
Step 3:
|
|
Step 4:
|
|
|
|
|
|
|
Step 5:
|
|
Step 6:
|
|
|
|
1. Power line 2. Control bus 3. Soap delivery Pipe 4. Tube 5. Faucet soap outlet 6. Soap bottle 7. Power supply 8. Faucet water outlet
|
|
|
|
|
|
|
|
Step 7:
|
|
Step 8:
|
|
|
|
|
|
|
|
|
|

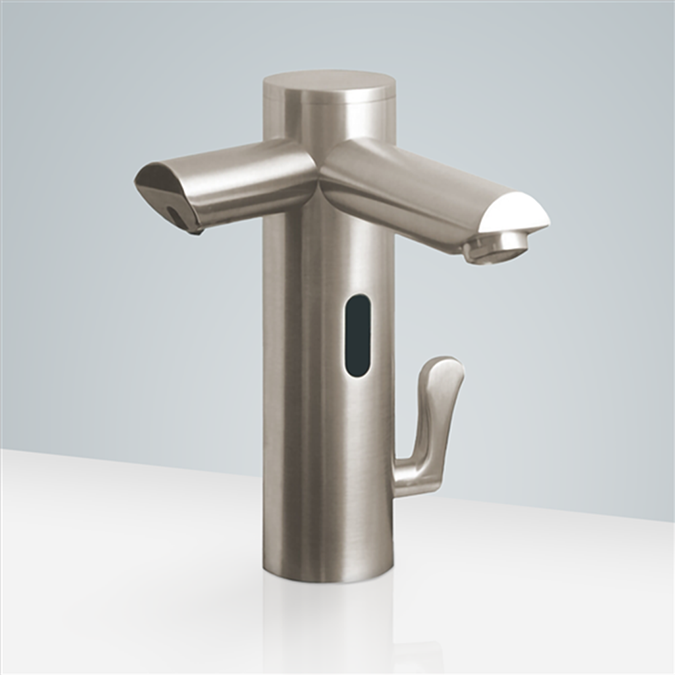

Fontana Commercial Lenox Dual Touchless Bathroom Faucet With Automatic Soap Dispenser
This cast brass electronic motion faucet is now available in dual-function Water and Soap Dispenser Sensor Faucet. This Touchless Bathroom Faucet reduces the transfer of germs by preventing cross-contamination and re-contamination of germs and bacteria by not touching the faucets or handles. Fits all standard US plumbing. Uses 4AA Alkaline Batteries (purchase separately).Water Pressure: 0.5 - 7.0 KGS/CM, 10-125 PSI. With its micro-computer controlling its action, the Touchless Bathroom Faucet can self adjust its best detection zone as per the color and shape of the lavatory! Sensor Faucet finish is Brushed Nickel, with built-in Infrared AI Smart-Chip No Water Dripping Design 100% Touch-free operation. Reduces the transfer of germs by preventing cross-contamination and re-contamination of germs and bacteria by not touching the faucets or handles. Cut down on water usage by minimizing waste of water while soaping, lathering, scrubbing and drying hands by eliminating unnecessary and unattended water flow.
Fontana Commercial Lenox Dual Touchless Bathroom Faucet With Automatic Soap Dispenser Features:
|
Brand Name: FontanaShowers
Model Number: BST571
Feature: Motion Detection
Sensor Type: Sensitive Sensor,Infrared AI, Smart-Chip
Dispenser Type: Automatic Soap Dispenser
Timer: 30-second Auto Shutoff (can be adjusted)
Time Delay: 0.5 seconds
Water Pressure: 0.05Mpa - 0.7Mpa (10 - 125 PSI)
Material: Solid Brass
Finish: Brushed Nickel
Power Supply: AC110V and DC6V (batteries not included)
Power Option: AC/DC
Diameter of Inlet Pipe: DN15
Diameter of Outlet Pipe: DN15
Usage: Commercial / Residential
|
|
|
