How to install Bravat Light Oil Rubbed Bronze Shower Valve Mixer 2-Way Concealed Wall Mounted | FS1043


Easy step by step Installation Instructions for 2 Way Wall-Mounted Shower Faucet Mixer Valve
  • Before you begin, please read the installation instructions below. Observe all local building and safety codes.
  • Unpack and inspect the product for any shipping damages. If you find damages, do not install.
  • Please note all products must be installed by a professional and certified plumber otherwise warranty might be voided.
 Shower
mixer 		Bravat Light Oil Rubbed Bronze Shower Valve Mixer 2-Way Concealed Wall Mounted

Shower Mixer Installation Instruction

Shower Mixer Size and Dimension

Parts List
  • Shower Valve
  • Hot Water Inlet
  • Cold Water Inlet
  • Diverter Knob
  • Handle
  • Set Screw
  • Allen Key
  • Indication Button
  • Escutcheon

mixer
Shower Mixer Installation Overview

shower mixer shower mixer
Step 1: mixer Step 2:



shower mixer shower mixer
Step 3: Step 4:



1) Fix the shower valve into the wall with screws. Use a level to ensure that the valve is straight and level. (Important: Flush the water supply pipes to remove any dirt and debris before installing the valve body)

2) Wrap Teflon tape around the pipe thread. Connect hot and cold water supply lines and all the in-wall pipes (not included) as desired to the valve. Turn on the water supply and open the cartridge to check for leaks. Then, put on the protective cover.

3) Remove the protective cover when the wall finished wall is completed. Install escutcheon onto the shower valve and press it against the finished wall. Then, install the handle and diverter knob to the valve and tighten set screws with the Allen key and put on the indication button.


Function: Check connections for leaks and check function of fitting. Flow is diverted automatically from shower outlet to bath inlet when the fitting is closed.
Shower Mixer Wall Mount View Connection Shower Mixer Connection Overview

Shower
Mix


Shower Mixer

Shower Mixer

Shower Mixer

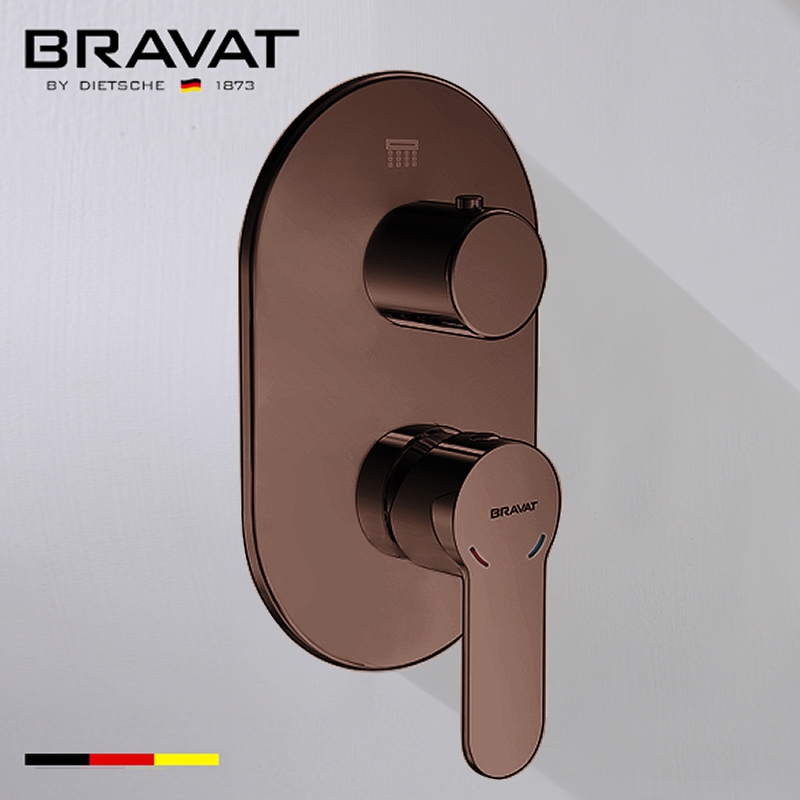

Bravat Light Oil Rubbed Bronze Shower Mixer Valve (Complete with Trim) 2-Way Concealed Wall Mounted

The Bravat Light Oil Rubbed Bronze Thermostatic Shower Valve Mixer 2-Way Concealed Wall Mounted is one of the most trendiest finishes across decor styles in the bathroom. It has a contemporary style with a beautiful Light Oil Rubbed Bronze finish. When it comes to new bathroom upgrades, FontanaShowers is offering shape, finishes and styles that you've looking for.

Features:

  • Brand Name: FontanaShowers
  • Model Number: FS1043
  • Type: Bath & Shower Mixer
  • Style: Contemporary
  • Type: Fixed Support Type
  • Surface Finish: Light Oil Rubbed Bronze
  • Installation Type: Wall Mount
  • Control Type: Single Holder Dual Control
  • Size: 7.91"-11.85" (201-300mm)
  • Surface Treatment: Polished
  • Valve Core Material: Ceramic
  • Bath Shower Type: In-Wall Shower Mixer
  • Valve Type: Ceramic Valve
  • Faucet Handle Material: Zinc Alloy
  • Mixer Body Material: Brass
  • Valve Included: Yes
  • Embedment Depth: 2.16" (55mm)
  • Valve Panel Dimension: 6.29"x6.29" (160x160mm)
  • Connector: G1/2"B (Standard)
  • Complete Shower Mixer Valve & Trim

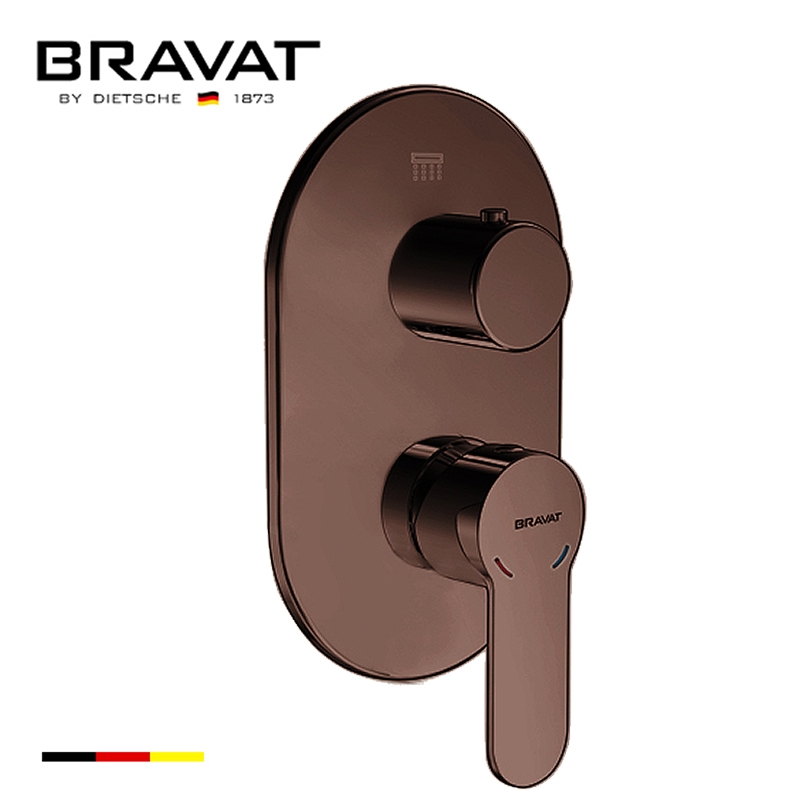

    		•  Bravat Light Oil Rubbed Bronze Shower Valve Mixer 2-Way Concealed Wall Mounted
    		mixer



    The installation and illustrations provided are for informational purposes only.

    For detailed and accurate installation instructions, please refer to the

    product specifications or the corresponding BIM file.
