How to install Bravat Shower Valve Mixer 2-Way Concealed Wall Mounted In Dark Oil Rubbed Bronze | FS1038

Easy step by step Installation Instructions for 2 Way Wall-Mounted Shower Faucet Mixer Valve

Before you begin, please read the installation instructions below. Observe all local building and safety codes.
Unpack and inspect the product for any shipping damages. If you find damages, do not install.
Please note all products must be installed by a professional and certified plumber otherwise warranty might be voided.

Shower
mixer

Bravat Shower Valve Mixer 2-Way Concealed Wall Mounted In Dark Oil Rubbed Bronze

Shower Mixer Installation Instructions

shower mixer		shower mixer
Step 1:	mixer	Step 2:


shower mixer		shower mixer
Step 3:		Step 4:

shower mixer		shower mixer
Step 5:	mixer	Step 6:


shower mixer		shower mixer
Step 7:

1) Fix the shower valve into the wall with screws. Use a level to ensure that the valve is straight and level. (Important: Flush the water supply pipes to remove any dirt and debris before installing the valve body)

2) Wrap Teflon tape around the pipe thread. Connect hot and cold water supply lines and all the in-wall pipes (not included) as desired to the valve. Turn on the water supply and open the cartridge to check for leaks. Then, put on the protective cover.

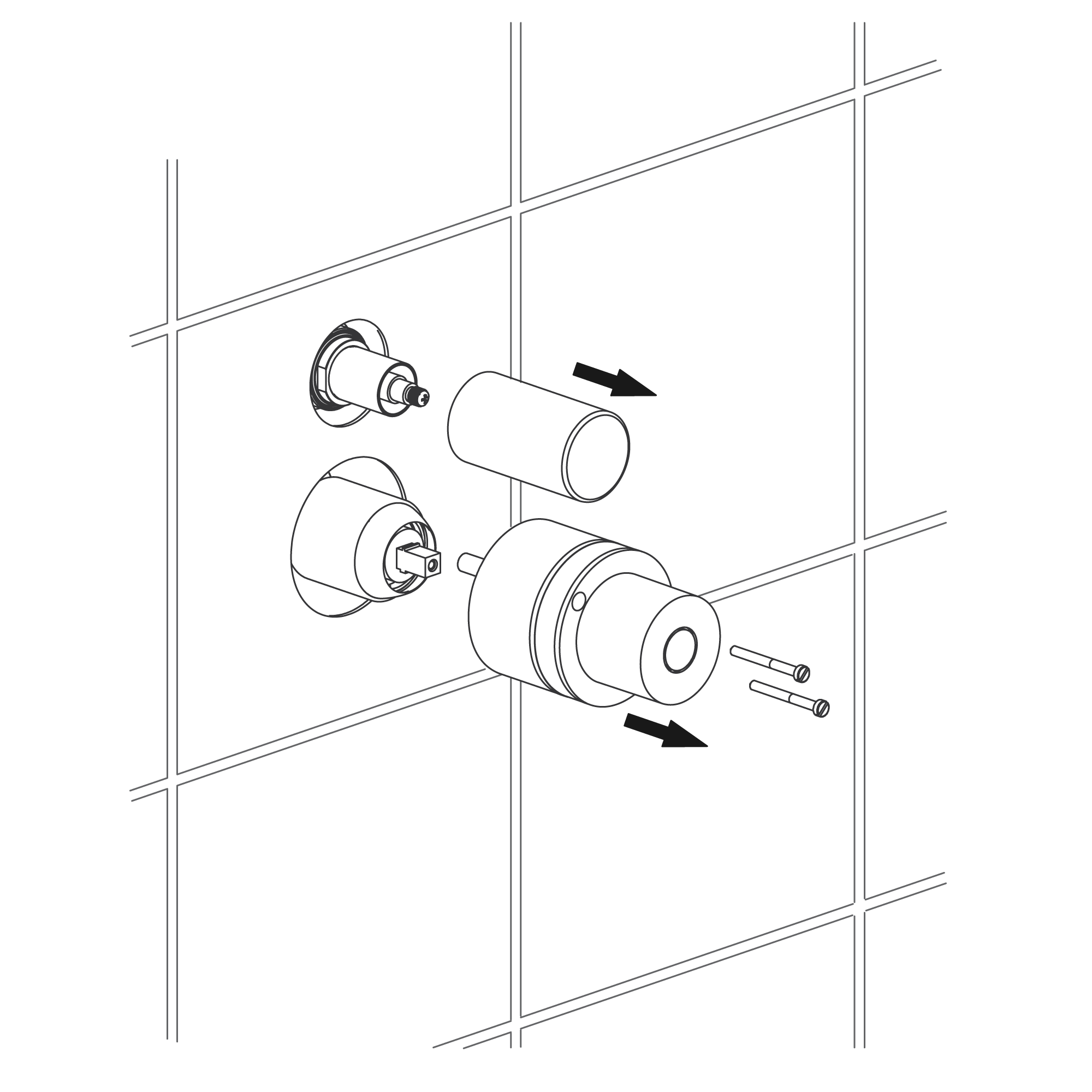

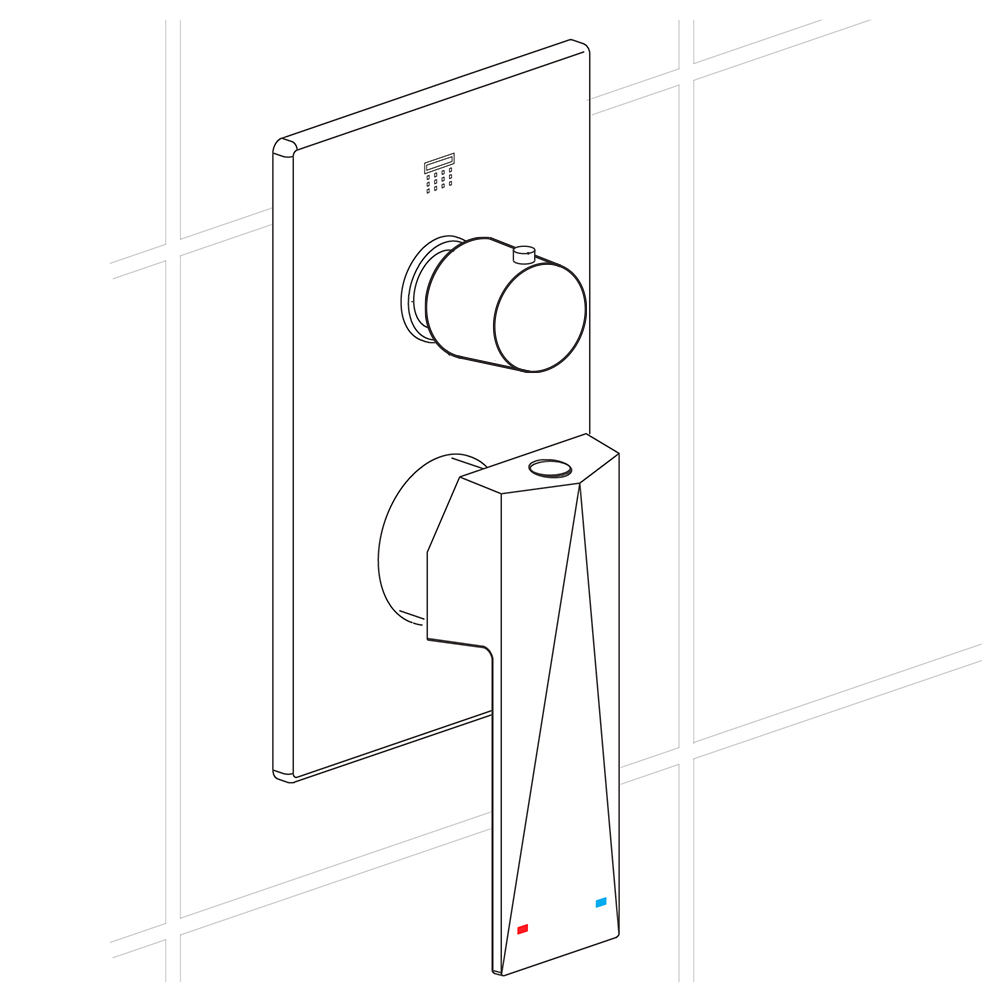

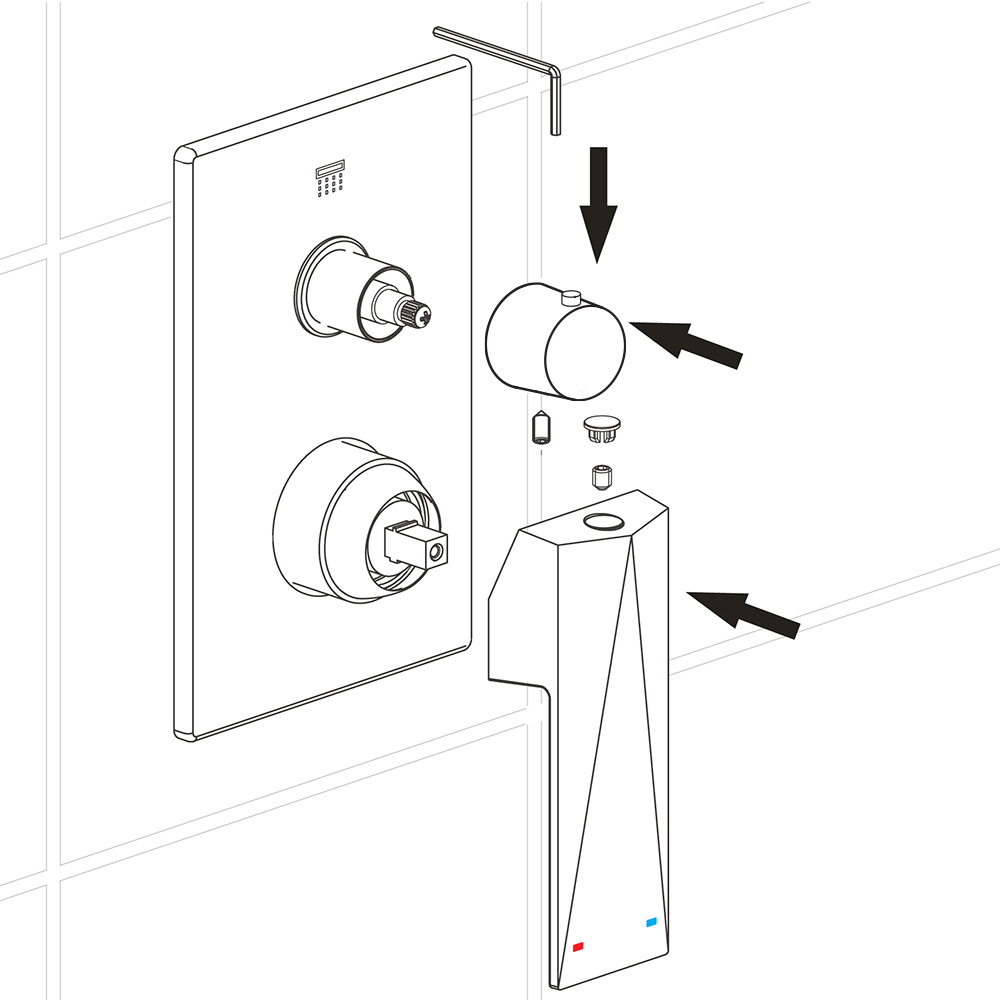

3) Remove the protective cover when the wall finished wall is completed. Install escutcheon onto the shower valve and press it against the finished wall. Then, install the handle and diverter knob to the valve and tighten set screws with the Allen key and put on the indication button.

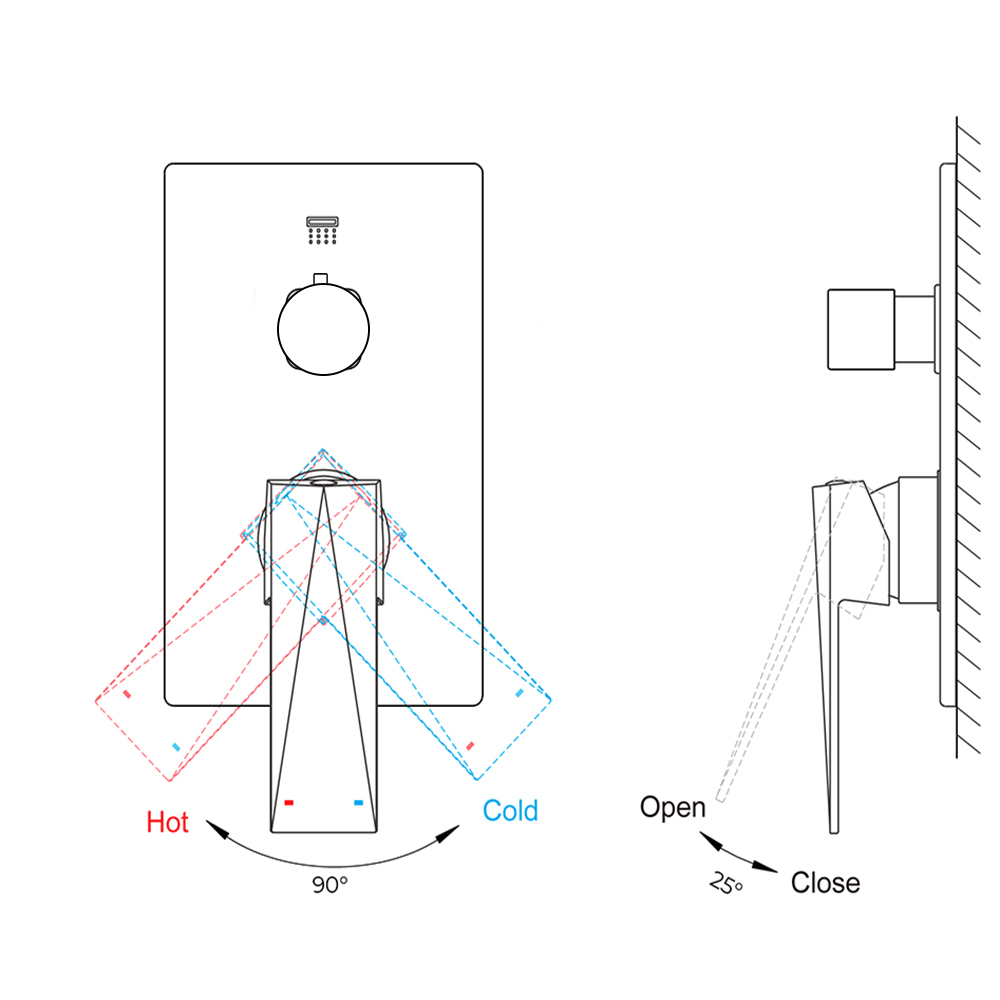

Function: Check connections for leaks and check function of fitting. Flow is diverted automatically from shower outlet to bath inlet when the fitting is closed.

Shower Mixer Wall Mount View Connection		Shower Mixer Connection Overview
	Shower Mix

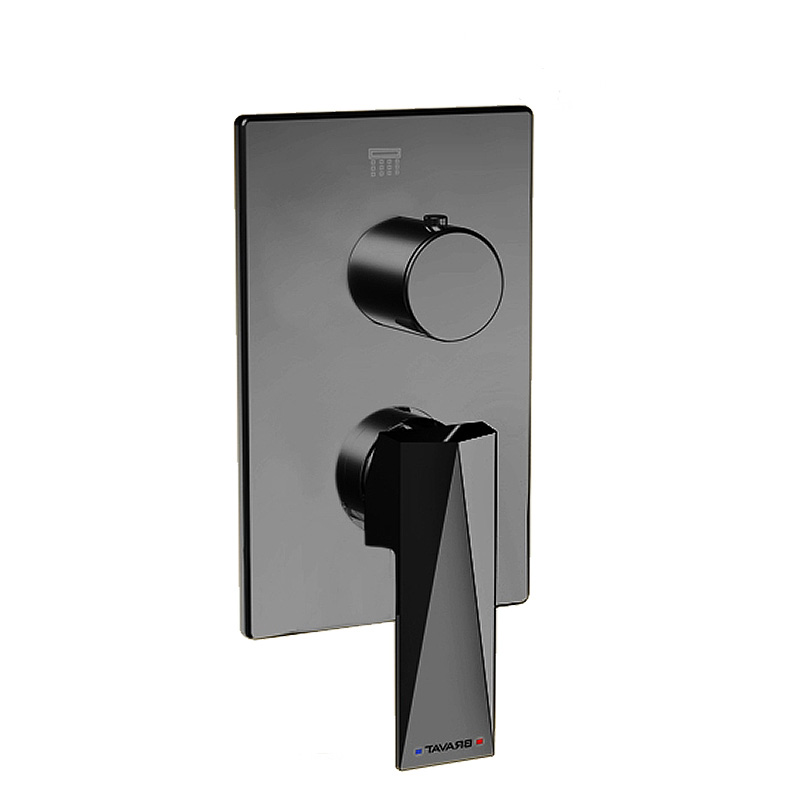

Bravat Thermostatic Shower Mixer Valve (Complete With Trim) 2-Way Concealed Wall Mounted In Dark Oil Rubbed Bronze

The Bravat Dark Oil Rubbed Bronze Shower Valve Mixer 2-Way Concealed Wall Mounted is one of the most trendiest finishes across decor styles in the bathroom. It has a contemporary style with a beautiful dark oil rubbed bronze finish. When it comes to new bathroom upgrades, FontanaShowers is offering shape, finishes and styles that you've looking for.

Features:

Brand Name: FontanaShowers

Model Number: FS1038

Type: Bath & Shower Mixer

Style: Contemporary

Type: Fixed Support Type

Surface Finish: Oil Rubbed Bronze

Installation Type: Wall Mount

Control Type: Single Holder Dual Control

Size: 7.91"-11.85" (201-300mm)

Surface Treatment: Polished

Valve Core Material: Ceramic
