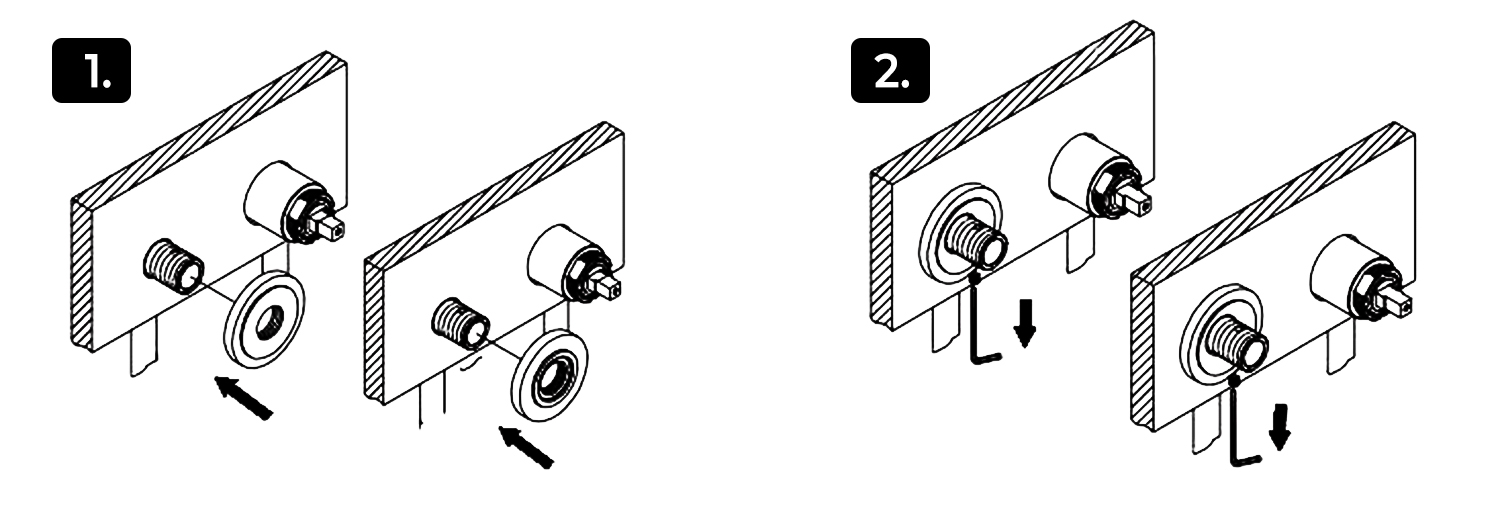

b) Slide spout onto spout mounting shank. Tighten set screw with the hex wrench.
c) Slide spout body to spout trim ring.

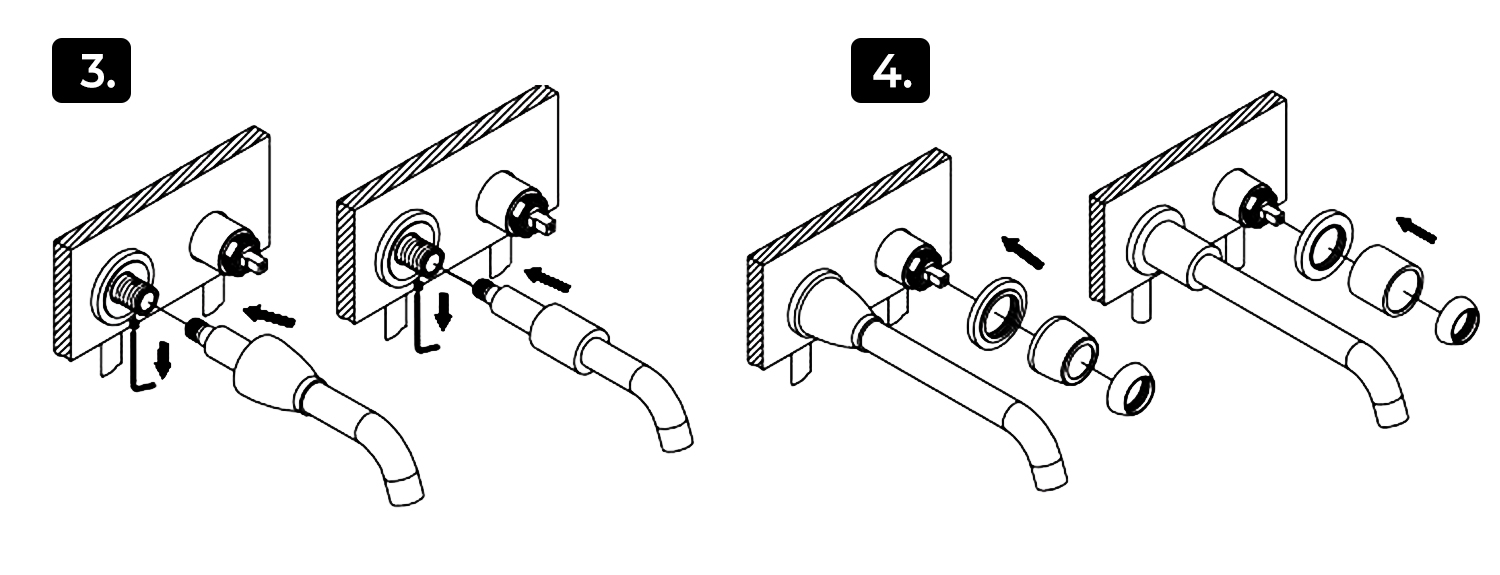

4. Install the handle trim ring, sleeve, and cap onto handle valve.

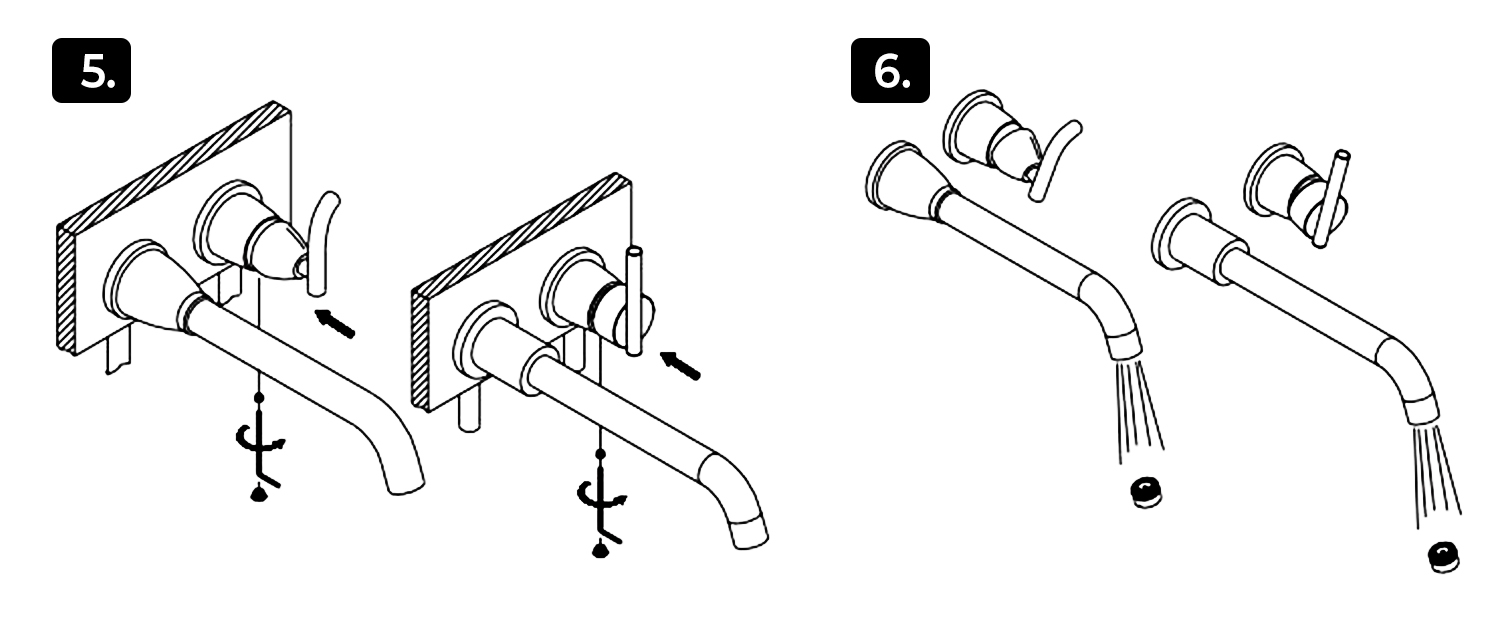

5. Install handle with cartridge by tightening set screw. Put the insert.
6. After installing the faucet, remove the aerator and turn on the water to remove any left-over debris. Re-assemble aerator.
Drain Installation

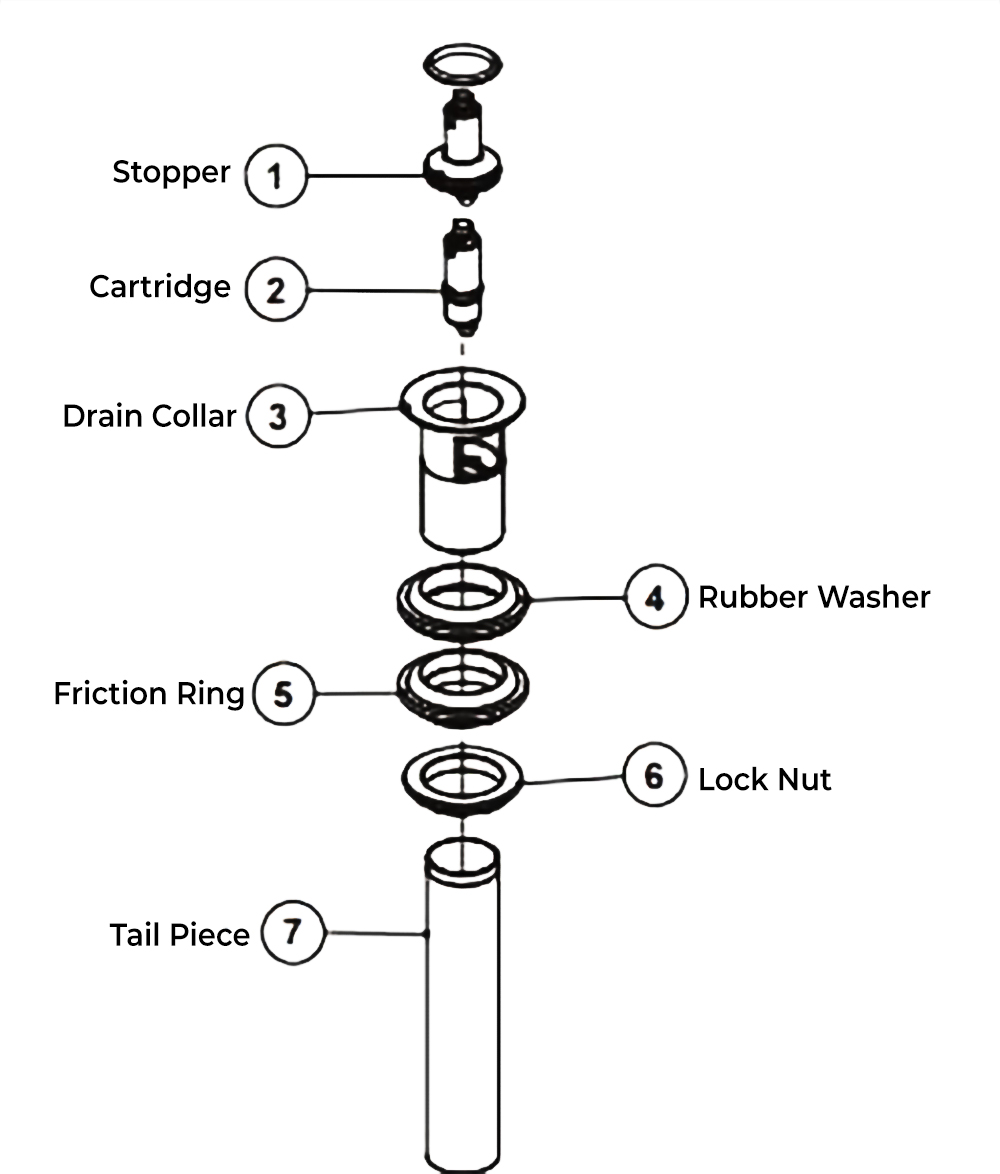

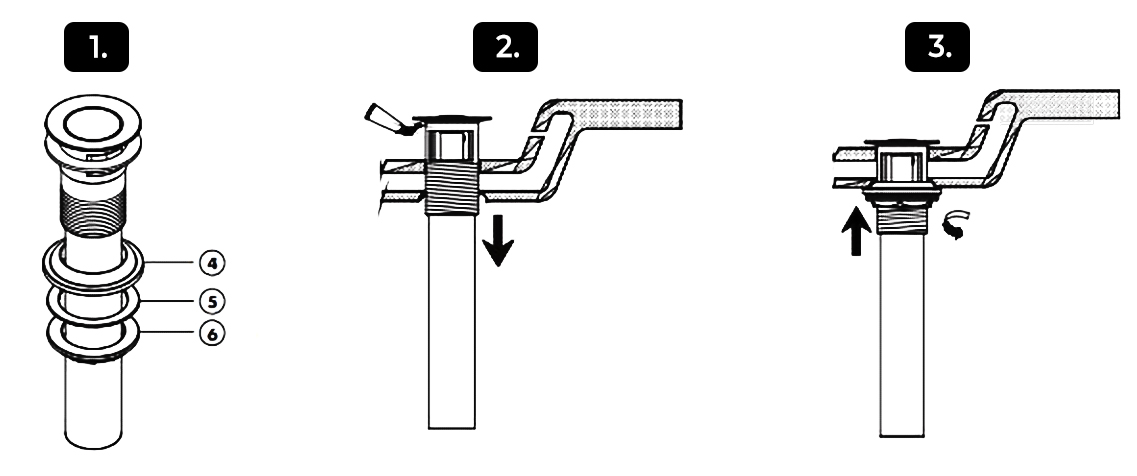

1. Remove rubber washer (4), friction ring (5) and locknut (6) from the drain assembly. 2. Place a ring of silicone sealant beneath the lip of drain collar (3) and place it in the opening of the sink. Press down firmly to secure the drain collar (3).
3. Screw rubber washer (4), friction ring (5) and locknut (6) onto drain collar

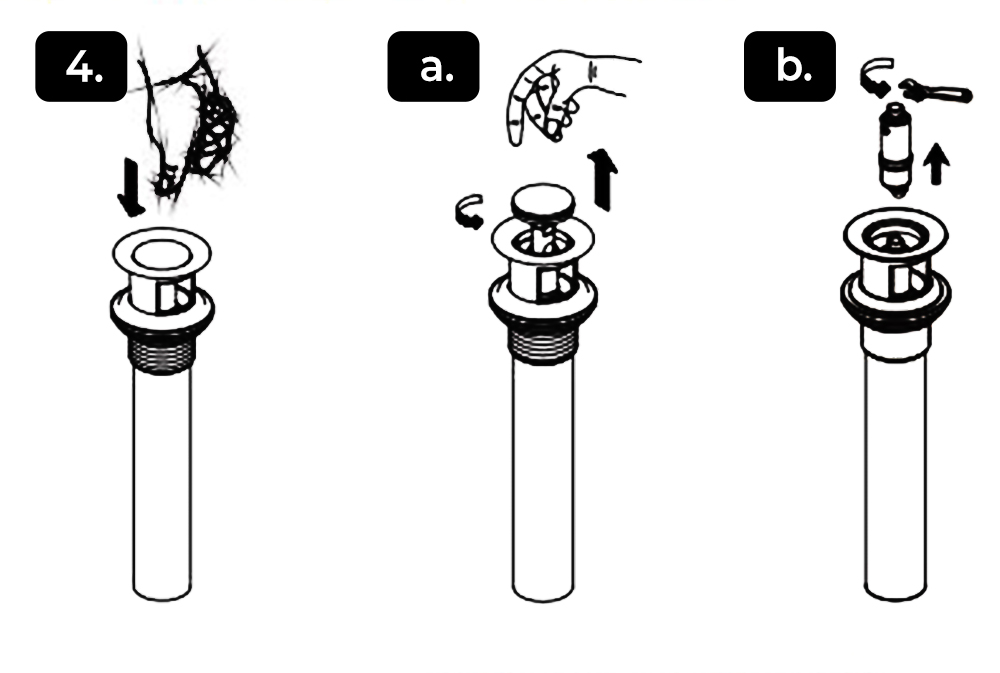

For drain cartridge replacement or cleaning
Remove cartridge (2) from drain: a) Push stopper to a raised position. Unscrew the stopper cap from the cartridge. b) Using a wrench or pliers, unscrew the cartridge from drain collar and remove from drain.

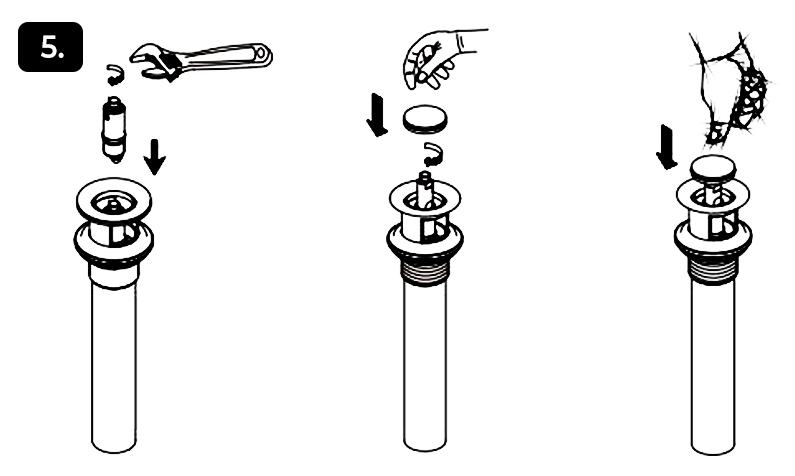

5. Reinstall cartridge (2) into drain collar: a) Thread on stopper cap.
