Core Engineering Considerations in AEC Specification
1. Multi-Outlet Flow Performance
Spa systems often operate multiple outlets simultaneously. Proper design must ensure:
Balanced flow distribution
No pressure drop between outlets
Stable temperature during switching
Poorly sized valves or supply lines can result in weak spray patterns and inconsistent temperature, which directly impacts user satisfaction.
2. Thermostatic Control Systems
High-end systems utilize thermostatic valves to maintain precise temperature control, even under fluctuating pressure conditions.
For example, systems like the
Fontana Nerelle Luxury Spa Shower System feature thermostatic valves that ensure consistent water temperature and improved safety.
3. Material & Durability Standards
AEC-grade systems prioritize long-term durability:
Solid brass valve bodies (corrosion resistance)
Ceramic cartridge valves (leak prevention)
Stainless steel panels (structural stability)
These materials reduce lifecycle maintenance costs and extend system longevity in humid environments.
4. Plumbing Compatibility
Most premium systems are designed for standard 1/2-inch connections, ensuring compatibility with residential plumbing infrastructure.
However, designers must evaluate:
Water pressure (psi)
Heater capacity (tankless vs. storage)
Simultaneous demand load
Types of Spa-Style Shower Systems
Rainfall + Body Jet Systems
These are the most common spa configurations, combining overhead coverage with targeted hydrotherapy.
Example:

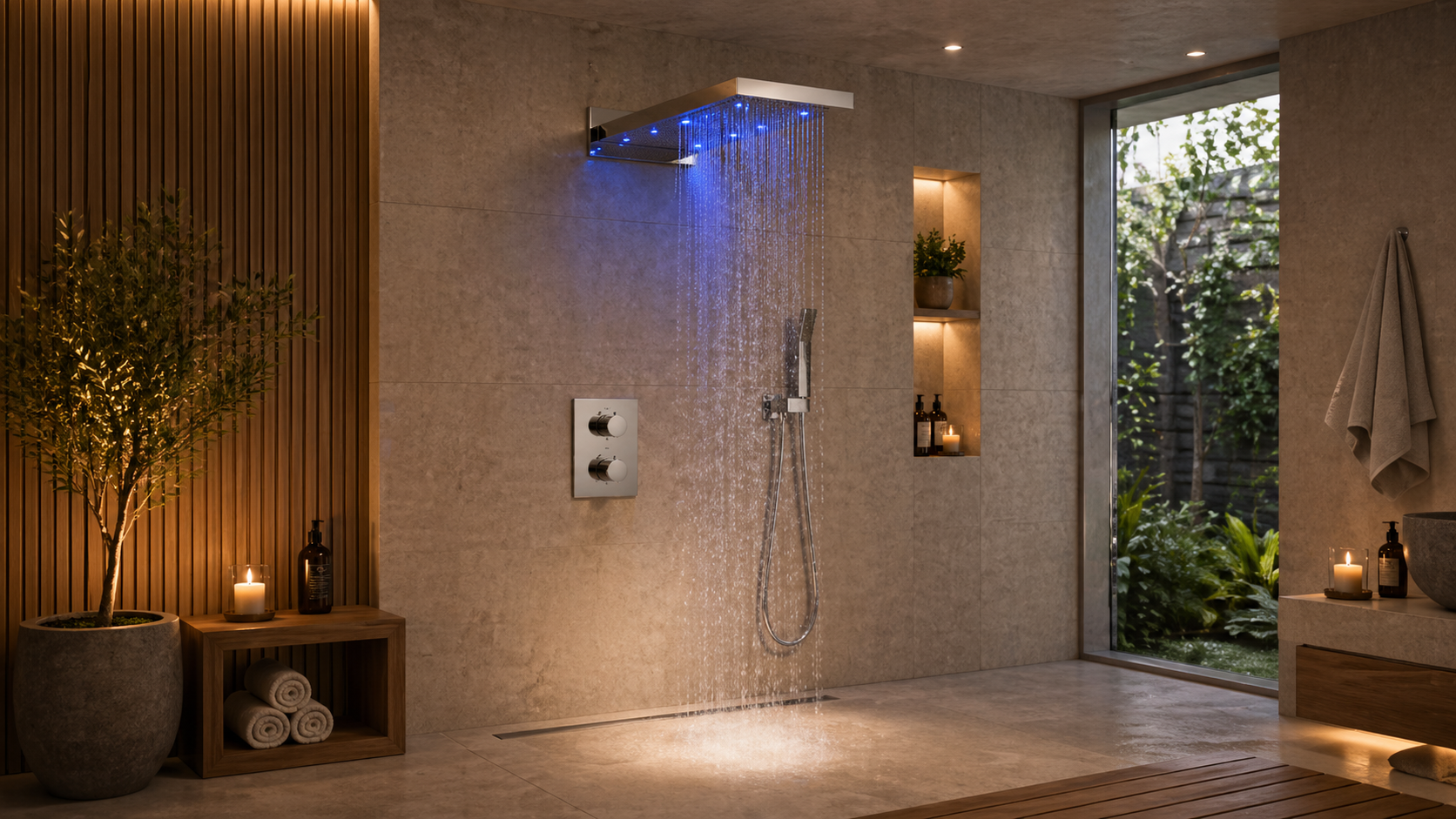

Fontana Gioia Thermostatic Rainfall Shower Set
Includes rainfall head, body jets, and handheld spray for full-body immersion
Best for: Residential master bathrooms and luxury remodels
LED & Smart Shower Systems
Advanced systems incorporate:
Digital temperature displays
LED lighting tied to water temperature
Programmable flow settings
Example:

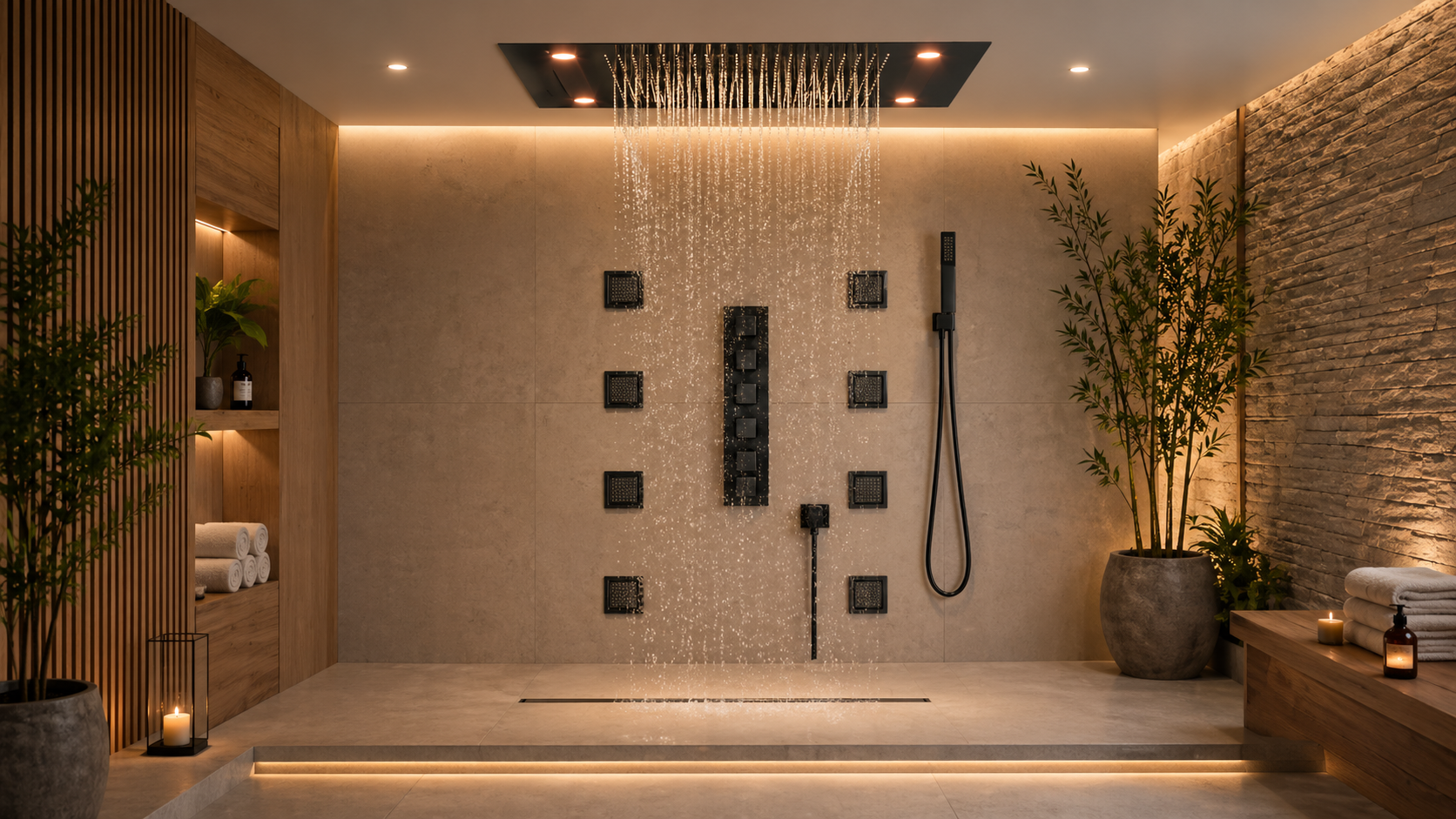

Fontana LED Rainfall Shower System with Body Jets
Features LED indicators and 6 body jets for enhanced user experience
Best for: Smart homes and high-end residential projects
Shower Panel Towers
Panel systems offer pre-configured vertical assemblies that simplify installation.
Example:

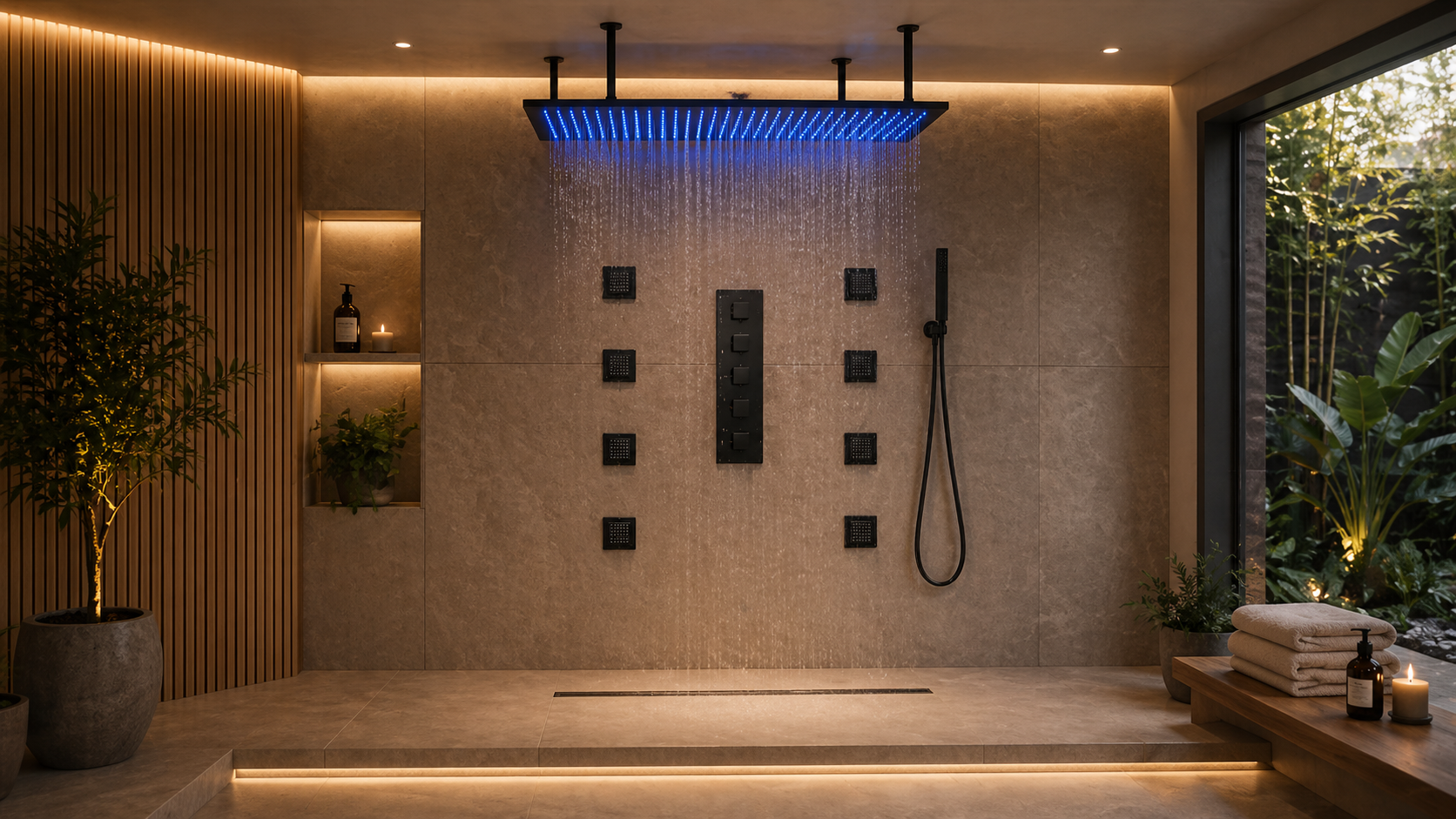

Fontana Thermostatic Shower Panel System
Combines rainfall, body jets, and handheld in a single integrated unit
Best for: Renovations and retrofit projects
Digital & Smart Spa Systems
Top-tier models integrate IoT and automation:
Digital interface controls
Memory presets
Smart home integration
Systems like the Flux de Rêve represent cutting-edge luxury with advanced control systems and premium pricing tiers.
Premium Spa Shower System Costs
1. Entry-Level Spa Systems
Cost Range: $1,200 – $2,000
Basic rainfall + body jet configurations
Limited digital features
Example: Standard multi-jet systems
A system priced around $1,281 provides rainfall, jets, and handheld functionality with solid performance.
2. Mid-Range Premium Systems
Cost Range: $2,000 – $4,000
LED features
Larger rainfall heads
Improved valve systems
Example:
LED rainfall systems priced around $3,700 with advanced features and multiple jets
3. High-End Luxury Systems
Cost Range: $4,000 – $10,000+
Digital controls
Smart technology
Custom configurations
These systems deliver fully immersive spa environments, often specified in luxury residences and hospitality projects.
Installation & AEC Coordination
Plumbing Layout
Multi-outlet systems may require:
Dedicated supply lines
Pressure balancing loops
Larger valve rough-ins
Space Planning
Spa systems require sufficient enclosure size:
Ceiling-mounted rainfall heads need vertical clearance
Body jets require precise ergonomic placement
Code Compliance
Systems must meet:
UPC / IPC standards
Flow rate regulations (e.g., 1.8–2.5 GPM)
Anti-scald requirements
Failure to meet code can result in inspection delays and redesign costs.
Performance vs. Aesthetic Value
While spa systems enhance bathroom aesthetics, AEC professionals prioritize:
Hydraulic efficiency
System reliability
Maintenance accessibility
FontanaShowers systems, for example, emphasize design-performance balance and long-term durability, making them suitable for both residential and commercial applications.
ROI and Property Value Impact
Spa-style showers contribute to:
Increased property value
Higher buyer appeal in luxury markets
Enhanced daily user experience
In high-end residential developments, these systems are often considered standard in premium bathroom design packages.
