Fontana Brio PrimeSense™ Line FS-1095GMG Gun Metal Gray Touchless Bathroom Faucet: DC Battery Power Installation

This DC battery-power installation resource is intended to support architects, electrical engineers, plumbing engineers, MEP coordinators, contractors, installers, commissioning technicians and facility managers coordinating the Fontana Brio PrimeSense™ Line FS-1095GMG touchless bathroom faucet. The drawing identifies the 6V DC battery supply, four-AA battery arrangement, battery enclosure, controller connection, infrared sensor cable, solenoid-valve cable, cable-routing path, dry mounting location, waterproof penetrations, plumbing separation and service-access requirements below the finished countertop.

Fontana Brio PrimeSense™ Line FS-1095GMG Touchless Bathroom Faucet

The Fontana FS-1095GMG can be configured for battery-powered operation using a 6V DC supply provided by four AA batteries. The battery enclosure is installed below the countertop and connected to the electronic controller, which processes the infrared sensor signal and operates the solenoid water-control valve. Proper battery-box placement, polarity, cable protection and dry service access are essential for dependable automatic operation.

  • Model: FS-1095GMG
  • Product type: Touchless bathroom faucet
  • Installation: Single-hole deck mount
  • Finish: Gun Metal Gray
  • DC power: 6V
  • Battery configuration: 4 × 1.5V AA batteries
  • Alternative power: 220–240V AC
  • Electronic control: Touchless controller
  • Sensor: Infrared automatic activation
  • Automatic water control: Solenoid valve
  • Sensor range: Approximately 16–32 cm adjustable
  • Flow rate: 1.2 GPM [4.5 L/min] at 60 PSI
  • Water connection: G1/2"
  • Application: Commercial and institutional washrooms
Product Page Installation Guide

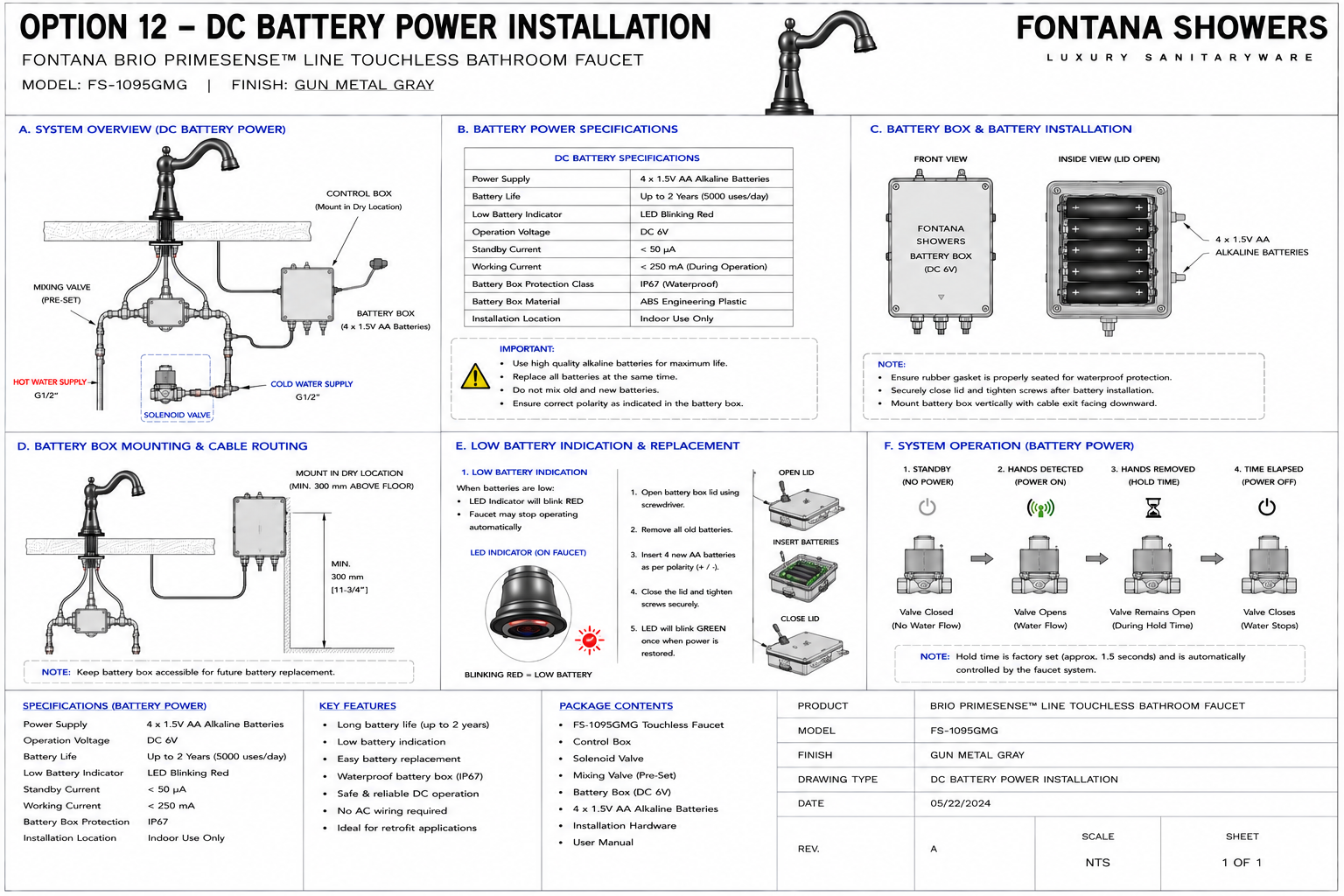

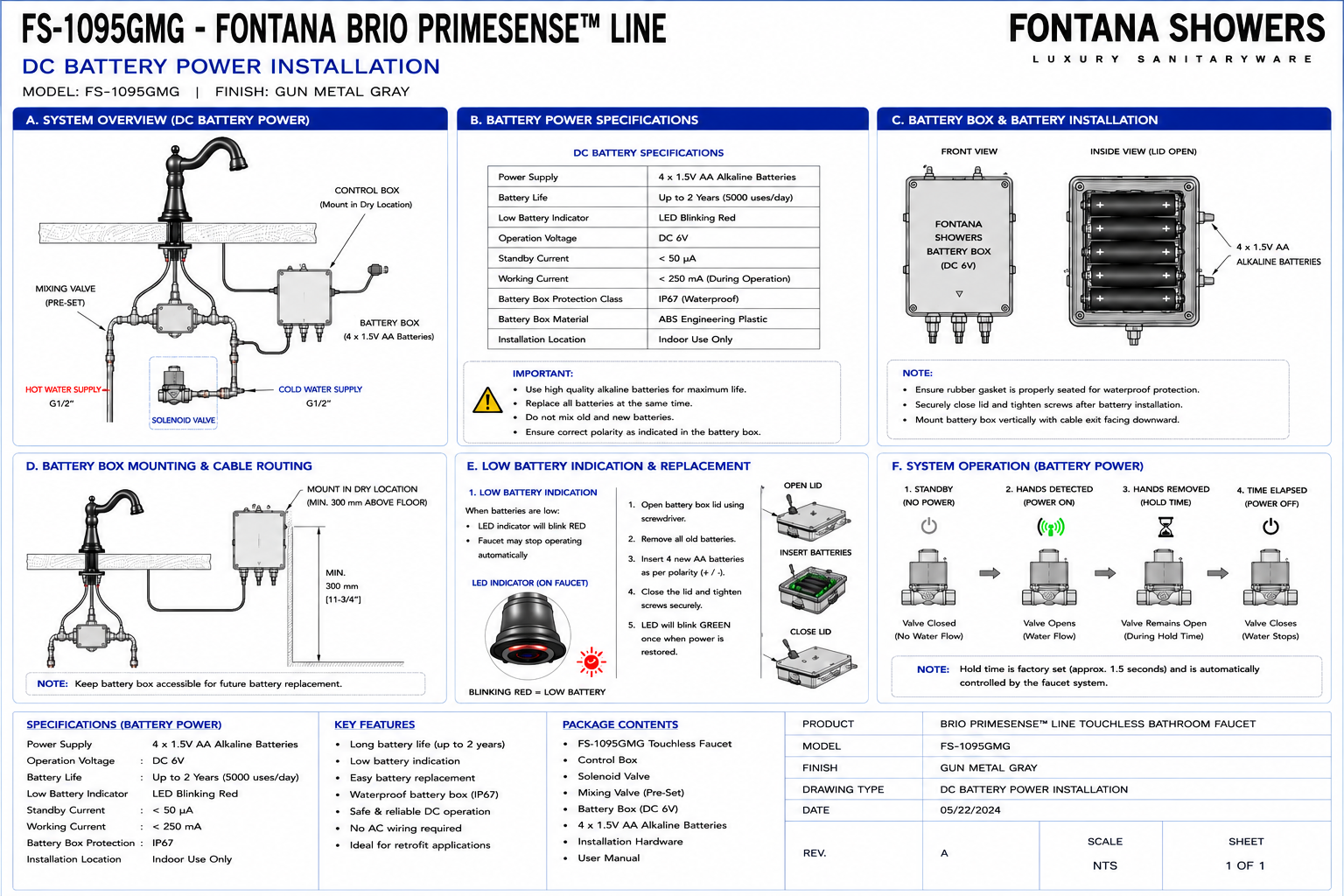

Required DC Battery Power Installation Drawing Package

The battery-power drawing should document the complete low-voltage electrical path from the 6V DC battery enclosure to the faucet controller, infrared sensor and solenoid valve. The drawing should identify the four-AA battery arrangement, battery polarity, enclosure orientation, controller input, sensor cable, solenoid-control cable, cable connectors, mounting position, waterproof penetrations, plumbing separation and battery-replacement access.

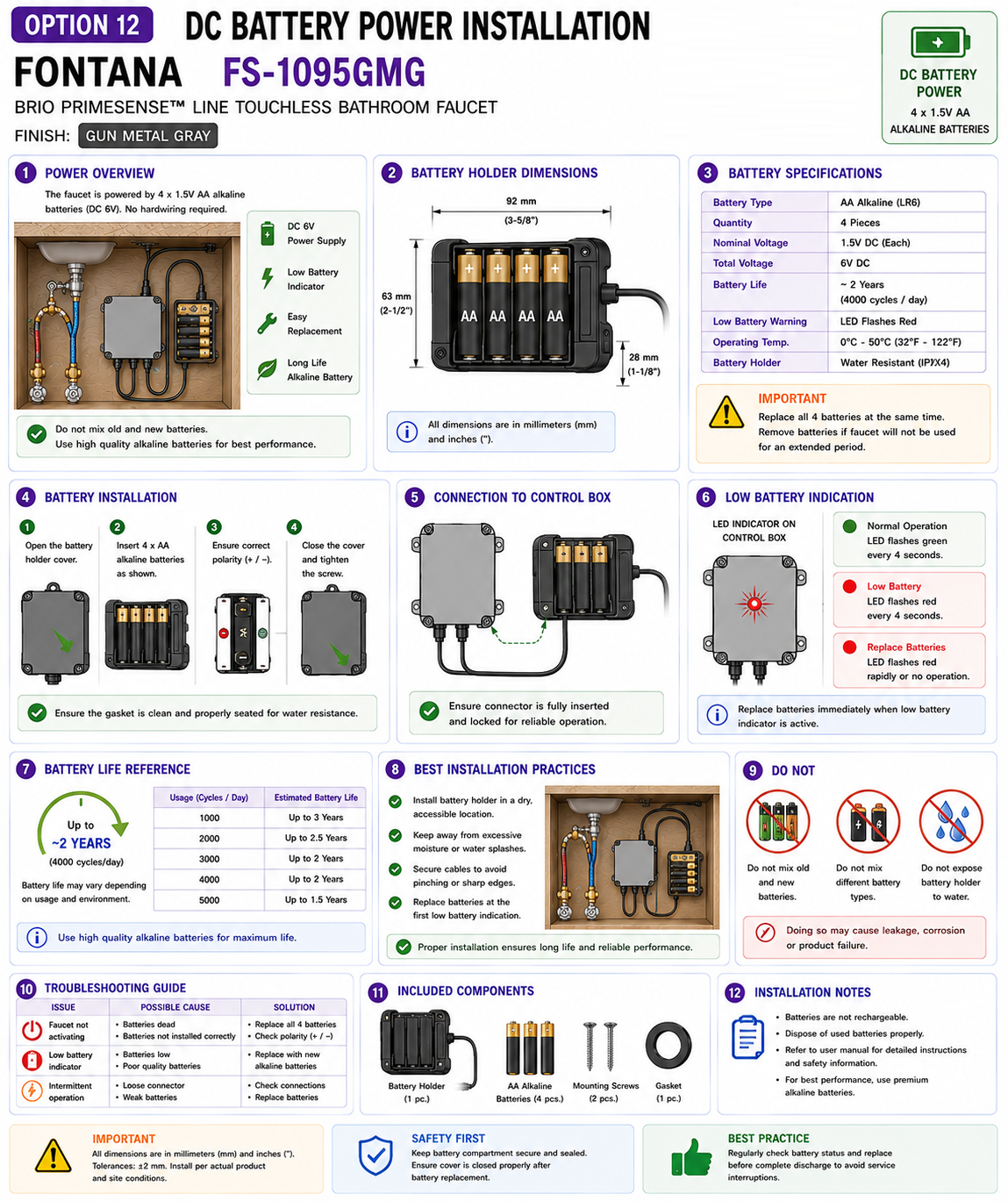

Complete DC Battery Power Installation

Shows the complete battery-powered operating arrangement from the four-AA battery pack through the controller to the infrared sensor and solenoid valve. The drawing provides the primary reference for battery-box location, wiring and service access.

6V DC Power Supply

Identify the battery-powered operating supply as 6V DC. The battery system should connect only to the designated controller power input through the approved connector arrangement.

Four-AA Battery Arrangement

Show four 1.5V AA batteries installed in the approved enclosure. Batteries should be inserted in the correct orientation according to the polarity markings inside the holder.

Battery Polarity

Clearly identify positive and negative battery orientation. Incorrect polarity can prevent controller operation and should be checked before troubleshooting other components.

Battery Enclosure

Show the protective battery box containing the four AA cells. The enclosure should remain closed during normal operation and should be positioned where it can be opened without disconnecting plumbing.

Battery Box Mounting Location

Mount the battery enclosure in a dry and accessible location within the cabinet. Avoid placing it on the cabinet floor or directly below water-supply and drain connections.

Battery Box Orientation

Position the enclosure so the cover can be opened easily and batteries can be removed without twisting or pulling on the power cable.

Battery Replacement Clearance

Provide clear working space around the battery enclosure for removal and replacement of all four batteries without removing the basin, trap or permanent cabinet components.

Battery Power Cable

Show the cable connecting the battery box to the electronic controller. Route the cable without sharp bends, pinching or exposure to moving cabinet hardware.

Controller Power Input

Identify the designated low-voltage power connection on the electronic control box. The battery-pack connector should be fully seated and should not be forced into another controller port.

Electronic Control Box

Mount the controller securely in a dry under-counter location. The controller should remain accessible for battery-power testing, sensor diagnostics and solenoid troubleshooting.

Infrared Sensor Cable

Show the low-voltage cable from the faucet sensor to the controller. The cable should remain organized and protected from sharp edges, water connections and cabinet movement.

Solenoid Control Cable

Identify the controller-to-solenoid connection. The cable should be supported and kept away from plumbing joints that could leak during operation or service.

Low-Voltage Wiring Zone

Provide an organized route for battery, sensor and solenoid wiring so all cables remain visible and accessible for commissioning and future maintenance.

Cable Strain Relief

Support cables so the battery box or controller connectors do not carry the weight of hanging wiring. Avoid tension on plug connections.

Cable Service Loop

Provide a modest service loop where appropriate so the battery enclosure or controller can be moved slightly during inspection without disconnecting wiring.

Waterproof Cable Grommet

Show a protected grommet wherever the battery or control cable passes through cabinet panels or supporting construction. The penetration should not expose the cable to sharp edges.

Dry Electrical Zone

Reserve a dry portion of the cabinet for the battery enclosure, controller and electrical connectors. Avoid areas directly below water-supply valves, hose unions or drainage joints.

Water-Supply Separation

Keep the battery enclosure and electrical connectors separated from G1/2 water connections, braided supply hoses, mixing valves and solenoid hydraulic fittings.

Drain Separation

Do not install the battery pack directly beneath the lavatory drain, trap or tailpiece where maintenance leakage could expose the electrical system to moisture.

Cabinet Floor Clearance

Mount the battery box above the lowest cabinet level where practical. This reduces exposure to cleaning water, condensation and minor plumbing leakage.

Accessible Battery Cover

The battery-box cover should face an accessible direction so facility personnel can open the enclosure and replace batteries without special disassembly.

Connector Identification

Clearly distinguish the battery-power connector from sensor and solenoid connectors to reduce errors during maintenance.

Low-Battery Service Access

Provide direct access to the battery compartment so batteries can be replaced promptly if reduced voltage causes slow or intermittent touchless operation.

Battery Removal Path

Show sufficient clearance to slide or lift the batteries from the holder without interference from the basin, drain, valves or cabinet structure.

Battery Enclosure Support

Secure the battery pack using the approved mounting method rather than allowing it to hang from its cable or move freely within the cabinet.

Finished DC Power Arrangement

The completed installation should present a securely mounted battery box, organized low-voltage wiring, protected connectors and clear separation from water and drainage components.

Engineering note: The FS-1095GMG battery-powered configuration should use the approved 6V DC arrangement with four 1.5V AA batteries. Battery polarity, enclosure type, connector configuration and controller compatibility should be verified against the approved FontanaShowers installation documentation before commissioning.

Required DC Battery Drawing Views

Front Cabinet Elevation

Show the battery enclosure, controller, sensor cable, solenoid cable, basin, drain and surrounding plumbing components.

Side Cabinet Section

Show battery-box depth, mounting height, cabinet-floor clearance, basin envelope and access required for battery replacement.

Battery Wiring Diagram

Show the 4 × AA battery pack connected to the control box and the controller connections to the sensor and solenoid valve.

Battery Polarity Detail

Provide an enlarged battery-holder diagram showing the positive and negative orientation of all four AA cells.

Cable Routing Detail

Show supported low-voltage wiring, service loops, cable grommets and separation from water and drain connections.

Battery Replacement Detail

Show the direction the enclosure opens and the clearance required to remove and replace all four batteries.

Recommended DC Battery Installation Sequence

1. Confirm Power Configuration

Verify the faucet will use the 6V DC battery configuration rather than the alternative AC power arrangement.

2. Review Battery Holder

Confirm the supplied battery enclosure, cable and controller connection before finalizing its cabinet location.

3. Select a Dry Mounting Location

Choose a dry and accessible cabinet position away from water-supply joints, the drain trap and areas subject to standing water.

4. Mount the Battery Box

Secure the enclosure so it cannot move, fall or hang from the battery power cable.

5. Install Four AA Batteries

Insert four 1.5V AA batteries according to the positive and negative polarity markings within the enclosure.

6. Close the Battery Enclosure

Confirm the cover is properly secured and no battery or cable is pinched by the enclosure.

7. Connect Battery Power

Connect the battery-pack lead to the designated control-box power input and verify the connector is fully seated.

8. Connect Sensor Cable

Connect the faucet's infrared sensor cable to the corresponding controller input.

9. Connect Solenoid Cable

Connect the automatic water-control valve to the designated controller output.

10. Organize Low-Voltage Wiring

Secure excess cable and maintain clear separation from plumbing fittings, drawer slides and cabinet hinges.

11. Power and Function Test

Activate the sensor and verify that battery power supports consistent controller and solenoid operation.

12. Verify Replacement Access

Confirm the batteries can be replaced after all cabinet doors, panels and plumbing components are installed.

Battery Enclosure Coordination

Dry Cabinet Location

Locate the battery holder outside areas directly below supply hoses, mixing valves, solenoid fittings and drain connections.

Above-Floor Mounting

Mount the battery box above the cabinet floor where practical to reduce exposure to cleaning water or minor leaks.

Accessible Cover

The enclosure cover should be oriented toward the service opening so facility personnel can replace batteries easily.

Stable Mounting

Fix the enclosure securely to an approved surface so battery movement does not place stress on the power connector.

No Plumbing Support

Do not cable-tie or support the battery enclosure directly from water hoses, drain piping or valve assemblies.

Service Identification

Label the enclosure as the touchless faucet battery supply where multiple electronic devices are present in the same cabinet.

Battery Selection & Replacement Coordination

Four Matching Batteries

Install four matching AA batteries of the specified type and avoid mixing different battery chemistries, brands or capacities within the same holder.

Replace as a Complete Set

When replacement is required, replace all four batteries together rather than mixing new and partially discharged cells.

Polarity Check

Verify every cell is aligned with the positive and negative markings before closing the battery holder.

Terminal Condition

Inspect battery contacts for contamination, corrosion or deformation during routine maintenance.

Long-Term Service

If the faucet is taken out of service for an extended period, follow the approved maintenance procedure for battery removal or storage.

Facility Maintenance Record

Record battery replacement dates where the facility uses planned preventive-maintenance schedules for touchless fixtures.

DC Power & Plumbing Separation

Angle Stop Separation

Keep the battery box and connectors away from hot- and cold-water isolation valves.

Mixing Valve Separation

Do not locate the battery enclosure directly beneath mixing-valve fittings or flexible-hose unions.

Solenoid Valve Separation

Maintain physical separation between the battery enclosure and the solenoid's hydraulic connections.

Trap Separation

Locate the battery pack outside the vertical drip path of the lavatory drain and trap.

Leak Inspection

Inspect nearby plumbing connections for leakage before installing or replacing batteries.

Independent Service

Arrange components so battery replacement does not require disconnecting the hydraulic faucet system.

DC Battery Commissioning Tests

Battery Installation Test

Confirm all four AA batteries are properly seated and oriented before connecting the battery pack to the controller.

Controller Power Test

Verify the control system powers correctly from the battery pack before functional faucet testing.

Sensor Activation Test

Place hands within the detection zone and confirm the faucet responds consistently under battery power.

Solenoid Operation Test

Verify the automatic valve opens and closes repeatedly without hesitation or incomplete actuation.

Automatic Shut-Off Test

Remove hands from the sensor field and verify water flow stops reliably.

Repeated-Cycle Test

Run multiple touchless activation cycles to verify stable battery, controller, sensor and valve performance.

DC Battery Troubleshooting Considerations

No Faucet Response

Check battery installation, polarity, battery condition, battery-box connector and controller input before investigating other components.

Intermittent Activation

Inspect battery contacts, connector seating and cable condition in addition to checking sensor calibration.

Slow Solenoid Response

Verify the batteries are correctly installed and have sufficient remaining capacity before replacing the valve or controller.

Corroded Battery Contacts

Remove the faucet from service and address the affected battery enclosure according to approved maintenance procedures.

Moisture in Battery Box

Identify and correct the moisture source before reinstalling batteries or returning the touchless system to service.

Frequent Battery Replacement

Check for repeated false sensor activation, abnormal control behavior or installation conditions that could increase operating cycles.

DC Battery Power Installation Notes

  • DC power configuration: Use the approved 6V DC arrangement with 4 × 1.5V AA batteries.
  • Observe polarity: Install each battery according to the positive and negative markings.
  • Use matching batteries: Install a complete matched set rather than mixing old and new cells.
  • Dry installation: Mount the battery enclosure away from water-supply and drainage leak points.
  • Elevate the enclosure: Keep the battery pack above the cabinet floor where practical.
  • Secure the battery box: Do not allow the enclosure to hang from its power cable.
  • Protect cable penetrations: Use suitable grommets where wiring passes through cabinet material.
  • Maintain access: All four batteries should be replaceable without removing the basin or countertop.
  • Check nearby leaks: Inspect plumbing components before opening the battery enclosure.
  • Commission after replacement: Perform multiple sensor activation cycles after installing new batteries.

DC Battery System Component Identification

  • AA batteries: Four 1.5V cells providing the 6V DC operating supply.
  • Battery holder: Internal component retaining and electrically connecting the batteries.
  • Battery enclosure: Protective housing for the battery pack.
  • Battery power cable: Connects the battery enclosure to the electronic controller.
  • Controller power input: Designated connection receiving battery power.
  • Electronic control box: Processes sensor signals and controls the automatic valve.
  • Infrared sensor cable: Transfers activation signals from the faucet to the controller.
  • Solenoid control cable: Transfers the controller output to the automatic water valve.
  • Low-voltage connector: Plug interface joining the battery pack and control system.
  • Waterproof grommet: Protects wiring where it passes through cabinet material.
  • Dry electrical zone: Reserved cabinet area for battery and electronic components.
  • Battery replacement zone: Clear space required to open the enclosure and remove all four cells.
